3.94mm Rubber Offset Flexo Printing Plates, Flexographic plates

Product Overview

Description

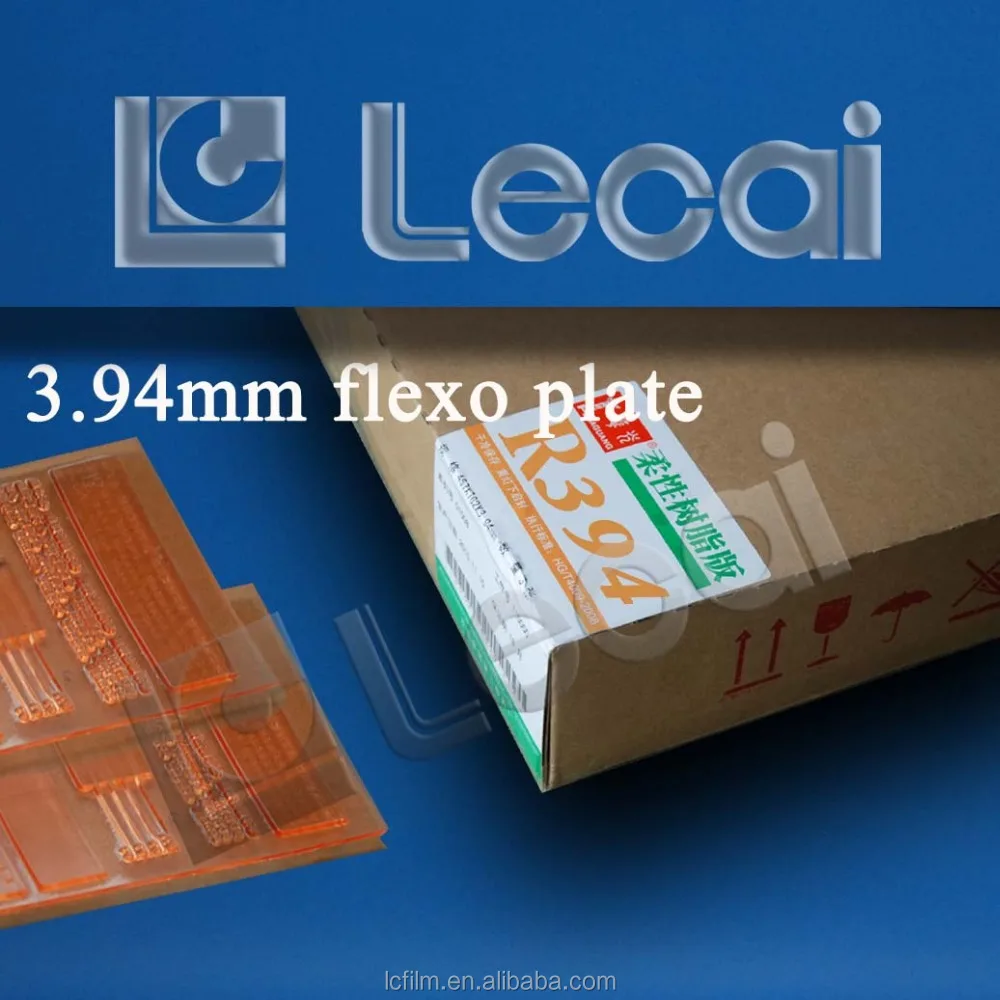

3.94mm Rubber Offset Flexo Printing Plates, Flexographic plates

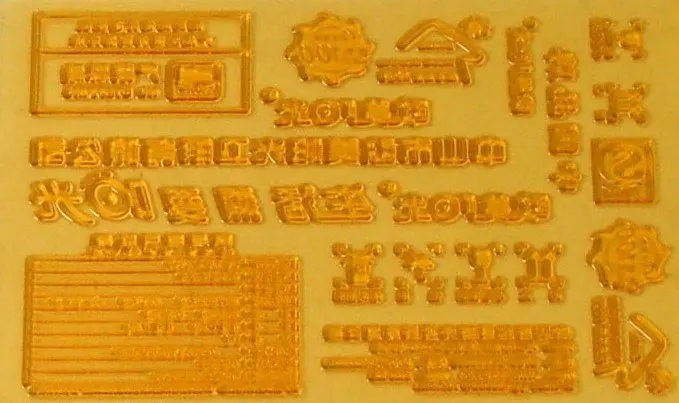

Type R-394 flexographics printing plate is specialized for corrugated board printer and platemaking company which can give excellent isolated line reproduction, smaller dot gain and smooth solids. R-394 has the features of simple platemaking and smooth printing.



Huaguang 3.94mm thickness solvent-based analogue flexo plate is similar to Flint Nyloflex FAC 394X or Du Pont Cyrel TDR 155/DRC 155/HDC 155, Max. size is 1800x900mm. Thickness 2.28mm flexo printing plate will be ready this quarter.Please find following more detail information about our product.



	Huaguang 394	DUPONT Cyrel TDR 155	DRC 155
Thickness	3.94mm/0.155inch	3.94mm/0.155inch	3.94mm/0.155inch
Durometer (Shore A)	41	34	38
Image Reproduction	3-95% 40LPC	3-98% 42 LPC	3-98 33 LPC
Minimum Positive Line Width	0.3mm	0.35mm/14 mil	0.35mm/14 mil
Minimum isolated dot size	500μm	500μm	500μm
Relief Depth	1.8-2.0mm	1.0-2.0mm	1.8-2.0mm
Back Exposure (Sec)	20-40	35-60	20-40
Main Exposure (Min)	5-15	6-18	5-15
Drying time at 60°C	1.5-2	2-3	1.5-2
Post Exposure (min)	3-5	5-7	3-5
Light Finishing (min)	8-12	5-10	5-10



Note:Due to the different requirements of the plate-making device,the UV lamp power,the relief depth ,the above recommended time can be changed accordingly.Customers should do test on their own device for optimum plate quality.



They are used in the area of corrugated boxes and cardboard.



PS.: We have thickness of 7.00mm, 6.35mm, 3.18mm, 2.84mm, 2.54mm, 2.28mm, 1.70mm and 1.14mm flexo plates.
