Product Overview
Description
Small Rolling Kraft Paper Machine Production Line-mini corrugated cardboard line from machinery industrial manufacturer in China
Product Description
Power dates- mini corrugated cardboard line
1. Power source parameters:
Voltage: AC380V220V±10%
Frequency: 50HZ±1%
2.Compressed air:
Medium pressure 0.6-0.7Mpa
The Max temperature 35℃
Quality Need to filter
Working pressure below than 0.6 Mpa
3.Compressed air instrument:
Medium pressure 05.-0.6Mpa
The Max temperature 35℃
Quality need to filter,de-oiled,dewatered
Working pressure below than 0.5Mpa
4.Clean water and clarified water:
Request : Pure clear, colorless, desanding, PH value close to neutral
Pressure: 2.5Mpa,1.2Mpa,0.4Mpa three types
5.Steam: drying cylinder uses 0.3MPa
Technical Parameters - mini corrugated cardboard line
Raw material :waste paper
Output paper: a4 paper ;newsprint paper
Output weight: 25-75gsm
Paper width: 2400mm
Capacity:10-15T/D
The gauge:3100mm
Drives: use frequency conversion, and drives by step.
Manpower : 8-10mans/shift(8hours)
Factory area required: 1200-1500m2

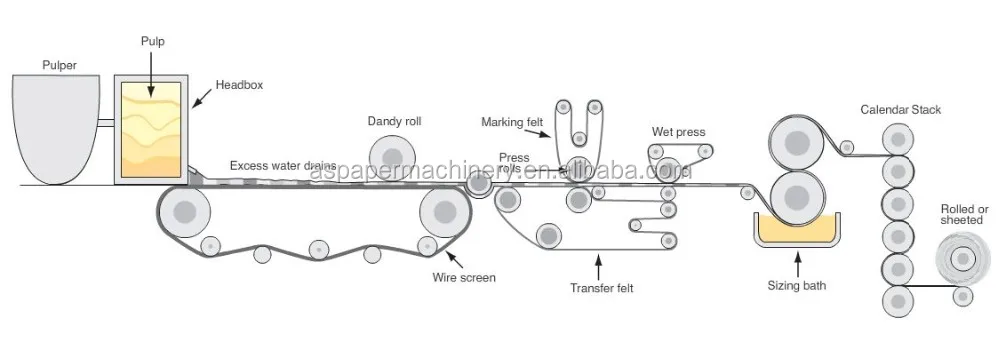

Drawing sheet - mini corrugated cardboard line
Making pulp equipment
Wire
Press Section

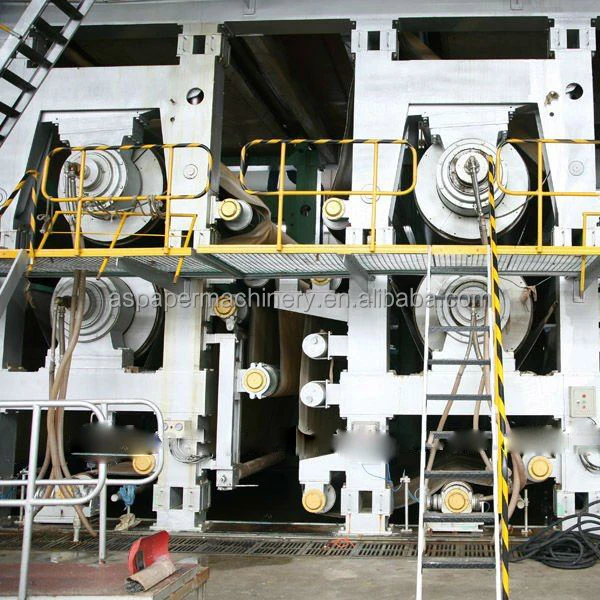

Dryer Section
Winding machine

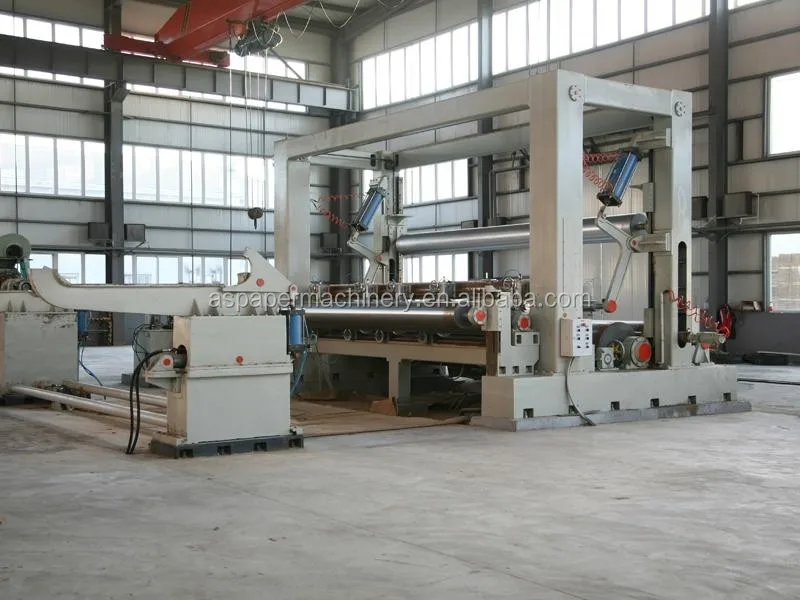

Rewinder machine

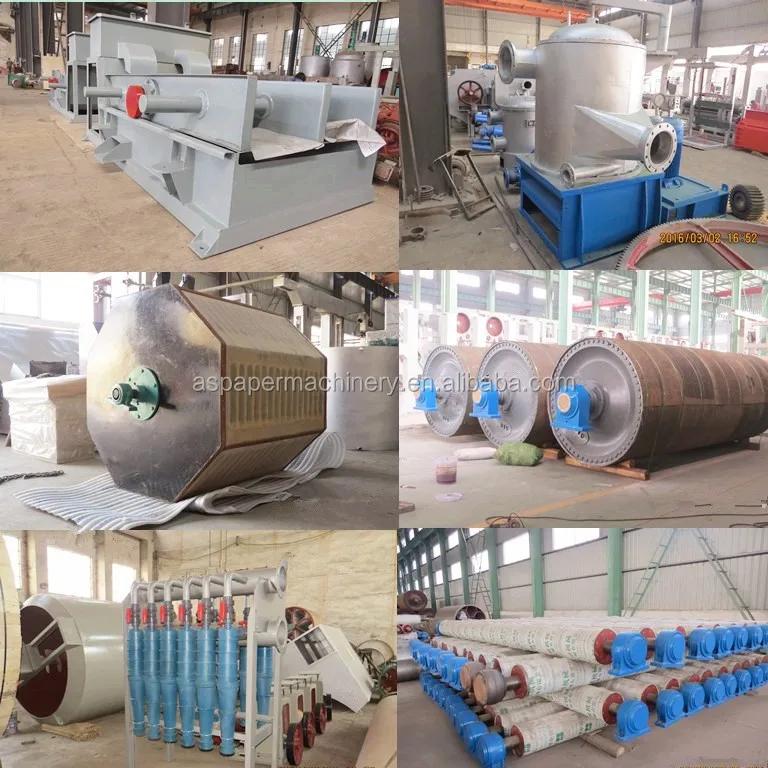

<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<Equipments>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Company Information
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<Company Profile>>>>>>>>>>>>>>>>>>>>>>>>>>>>

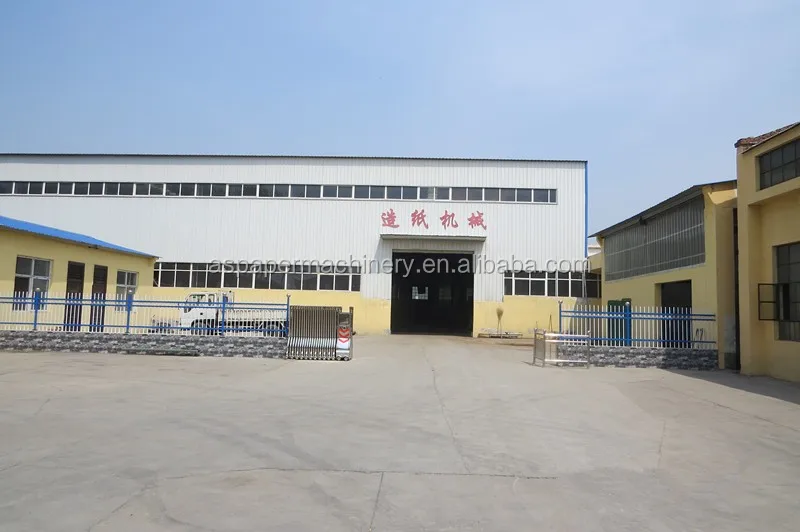

Qinyang Anshun Paper Machinery Co.,Ltd
is located in jiaozuo from henan province with convenient transportation access. we are focused on paper making machinery research and development, after years of practice, has the abundant technical force and the engineering experience.Our company vision market will widely sales in Africa, Europe, South Africa and Asia.As a professional machinery supplier,anshun always can meet different customers' demans ,Because we following the "customer first, quality first" principle of development.our company has introduced a series of advanced equipment including toilet paper machine ,kraft paper machine,culture paper machine, corrugated paper machine ect.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
<<<<<<<<<<<<<<<<<<<<<<<<<<Machinery process equipment>>>>>>>>>>>>>>>>>>>>>>
Advantages
Features:
1. customer-oriented design principle
2. high rate of output with high quality
3. mature skills and technology support
4. considerate pre-sales and after-sales service
5. appropriate discount can be negotiated
Packaging & Shipping
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<Packaging>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<Shipments>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Our Services
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<Service>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
1. Warranty: All our machines come with a one year warranty. Within one year, if fault is found with any parts we will provide replacement parts to our customers for free.(Apart from parts broken due to wear and tear (ie: small electrical parts, spraying nozzle, hauling rubber, cutting saw)
2. Test: We would invite our customer to test the machines in our factory after we finish the production. Machines are only shipped following full product testing and qualification.
3. Formula: We would provide the basic formulas to our customer after testing the machines.
4. Installation: We will provide an engineer to visit our customer's factories to install the machines and communicate with the company engineers.
5. After installation: We will respond to questions and queries within 24 hours. And will provide engineers for our customer's at their factory if required.
Please Note: we provide a lifetime of service to our customers.
FAQ
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<FAQ>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Q1: What is guarantee terms ?
A1: According to the international practice, performance and mechanical guarantee shall be for 1 year
from the successful commissioning or 1.5 years from the date of bill of lading.
Q2: What is the production time ?
A2: Normally 3-4 months, it depends on the machine type and scope of supply. But we can arrange the
partial shipment according to customer’s foundation construction schedule.
Q3: Can you make paper mill design for us?
A3:Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension; we will make your future paper mill design.
Q4.What is your payment terms or delivery time?
A4:1.Payment terms :
(1) 30% T/T within 7days after sign contract;
(2)70% T/T before shipment ;
(3)100% L/C is also acceptable ;
2.Delivery time : within 45days after first advanced payment ;
Q5:What advantages do you have?
A5: 1. Punctual. we are a direct manufacturer. It ensures that we have the ability to carry out the production shedule for punctual delivery.
2. We have over 30-year experience in this industry,which means we can preview the problems for the orders and production,so we can avoice bad situation.
3.Free design. Our engineer is willing to design the general drawing for your workshop and the machine you need for free.
Warm Tips:
1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining.
2.Before the test of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
