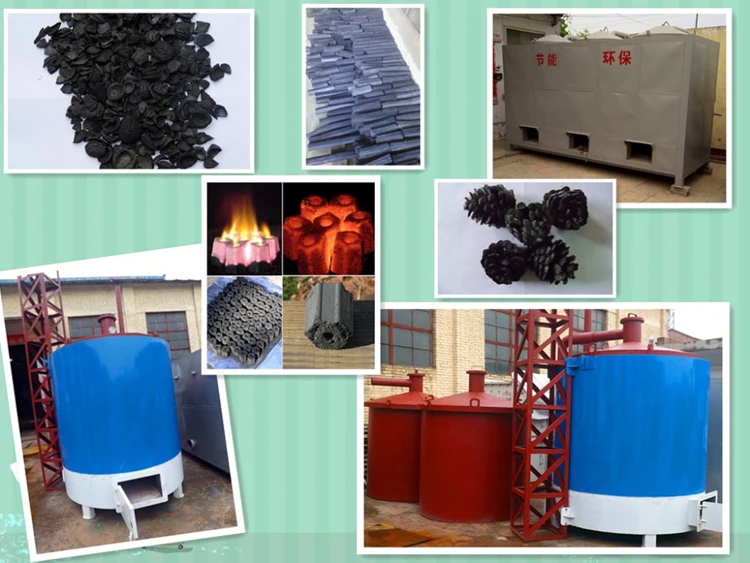

High Quality rice husk coconut shell carbonization furnace wood sawdust briquette charcoal making machine price

Product Overview

Description

rice husk coconut shell wood sawdust briquette charcoal making machine

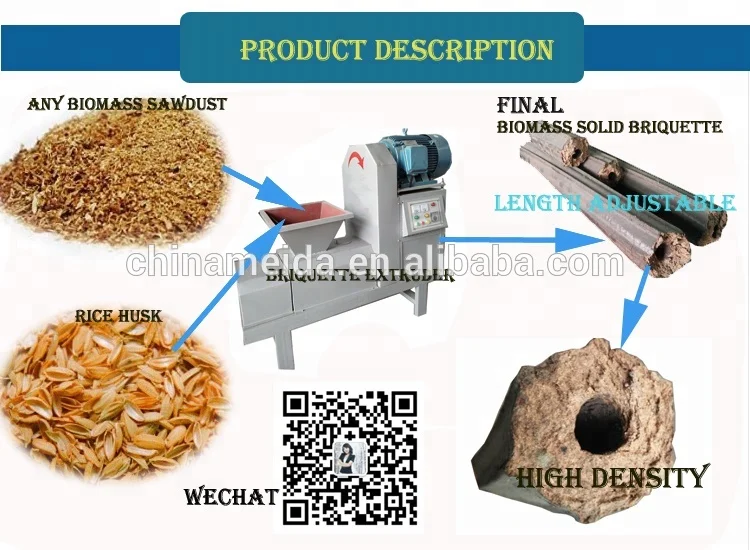

Basic Introduction of biomass charcoal briquette press machine

Work Principle: this machine is used for change agriculture or forestry waste into solid fuel under the high temperature & high pressure

1 raw materials :	any biomass sawdust & rice husk( put raw materials directly into the machine , no need any additives )
2 raw materials moisture:	8-12%
3 final biomass briquette density	900-1400kg/m
4 final briquette length :	the machine with a automatic cutter, any length can be make
5 final briquette shape :	hexagon or square shape
6 final briquette size :	diameter 50mm & inside hole 15mm
7 spare parts	spare parts include mould, heating ring, oil seal, propeller, welding rod, temperature controlled meter.

Different Models of Biomass charcoal briquette extruder machine

Model	Power	Machine Weight	Capacity	Size
250	15kw	500kg	250kg/h	1.6*0.55*1.25m
450	22kw	600kg	450kg/h	1.7*0.55*1.55m

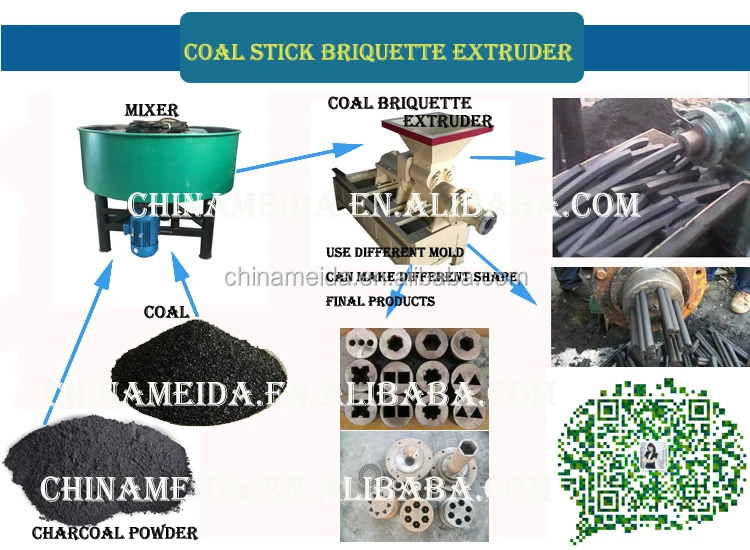

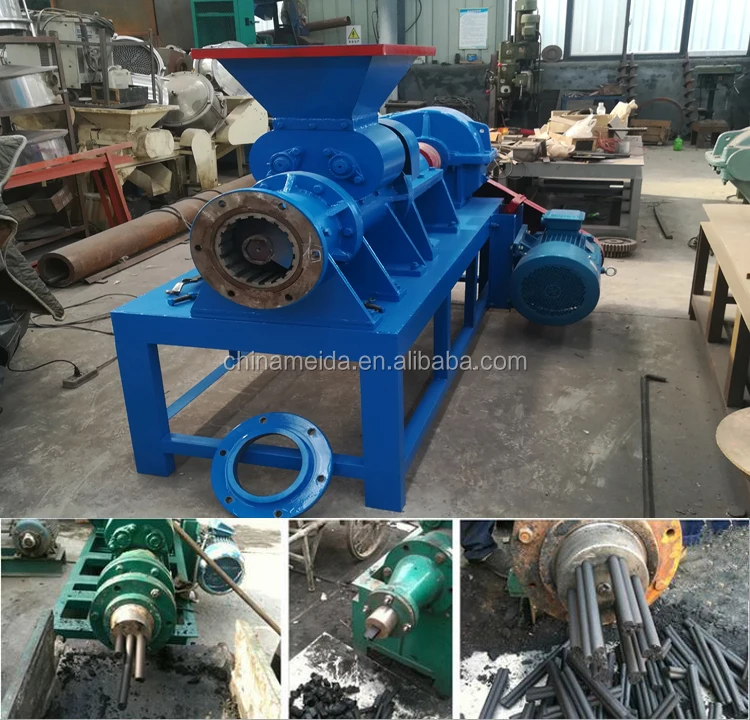

Coal stick briquette extruder

Basic Introduction of coal stick briquette press machine

Work Principle: change charcoal powder or coal or other powder into briquette

Final products shape :mold style : square, round, hexagonal, plum blossom and so on

Main Features of the machine

1. This machine can make coal and charcoal powder into sticks.
2. The shape of the sticks can be made by customers’ requirements.
3. The final product made by this machine is no pollution or smoke.
4. It is suitable for charcoal powder, wood charcoal powder, coconut shell charcoal powder, rice husk
charcoal powder, charcoal dust, coal powder.
5. Material required size: <3mm
6. The shape and size of stick can be made as required, such as round, hexagon, cinquefoil, and other
shapes, in the stick center, it can be made with a hole or not.
7. For the length, the automatic cutter is available.

Application of coal briquette making machine:

This charcoal briquette machine is widely used in chemical industry, metallurgy and ceramic industry, etc.

It is the ideal equipment for enterprises to improve production efficiency and reduce consumption.

Model Style	140	180	300	450
Capacity	1-2tons/hour	2-3tons/hour	3-5tons/hour	8-12tons/hour
Power	11kw	22kw	90kw	220kw
Diameter of briquette	18-80mm ( buyer need tell us what diameter you need )
Speed	60rpm	60rpm	132rpm	132rpm
Spiral impeller diameter	120mm	160mm	270mm	420mm
Size	1.9*1.1*1.17m	2.2*1.37*1.44m	3.6*1.4*1.45m	5.13*1.52*1.5m
Raw materials size	<3mm

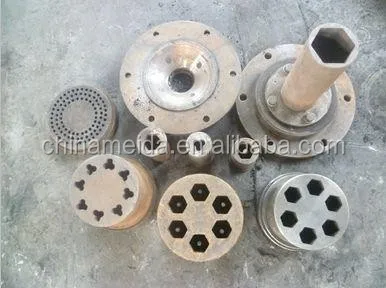

Different Mold of  coal briquette make machine

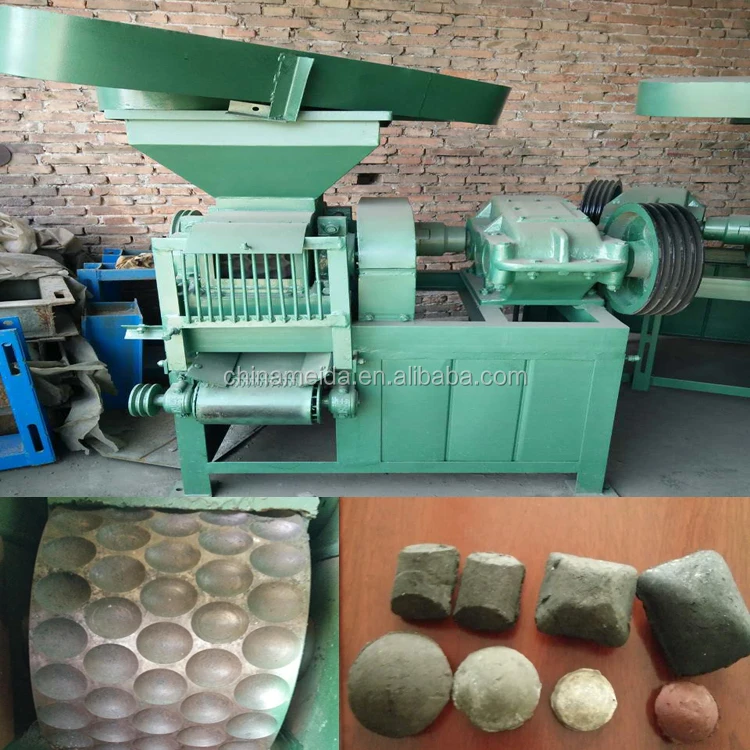

Coal charcoal briquette making machine

briquette briquetting machine is a ball-making equipment, which can continuously send various powder materials to the roller pressing area through the pre-pressing device, and press the powder into balls under the pressure of the roller pressing area

Model	290	360	360B
Capacity	2-3t/h	3-4t/h	5-6t/h
Roller width	200mm	250mm	250mm
Roller diameter	290mm	360mm	360mm
Power	5-7.5kw	7.5-11kw	7.5-11kw
Rotary speed	18r/min	18r/min	18r/min
Roller material	Wear-resistant alloy	Wear-resistant alloy	Wear-resistant alloy
