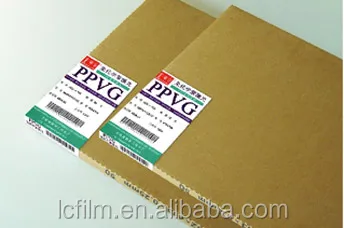

Huaguang PPVG low chemical violet CTP plate

Product Overview

Description

Huaguang PPVG low chemical violet CTP plate



Condition: Used in Computer-to-Plate systems

Feature:

+ Simplifying the processing, only three steps including preheating, developing and drying.

+ Reducing chemical consumption, saving water.

+ Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer. It makes print quality more stable.



This product is widely used in the area of newspaper publishing.



Features	Run length,Stable quality
Substrate	Aluminum
Spectral sensitivity	Violet laser(405nm)
Laser energy required	70-90uj/cm2( based on platesetter and developing condition
Resolution	2%-98%@175lpi(depending on capability of imaging device)
Run length	100,000 impressions unbaked. Actual run length may vary according to press/paper/ink conditions
Safe light	yellow
Developer	Developing gum
Size	According to customer's requirement
Thickness	0.30mm, 0.15mm,0.25mm,0.20mm,0.40mm
Noted	Suitable for  newspaper printing
Preheat	105-110°C
Developing time	20-30s
Developing temp	22°C-26°C
Brush speed	100rpm
Shelf life	12months, under recommended storage conditions
Transport and storage	Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15-28°C& RH between 30-70%. Handle with care, the maximum height is 1.2m. Open the box under yellow light. Sealed the box with remained plates to avoid moisture.

 *Type: PPVG( new product with low chemicals, eco-friendly)
