Hot Selling UHF 840 960MHz RFID Tree/Wood Tracking Nail Tag

Product Overview

Description

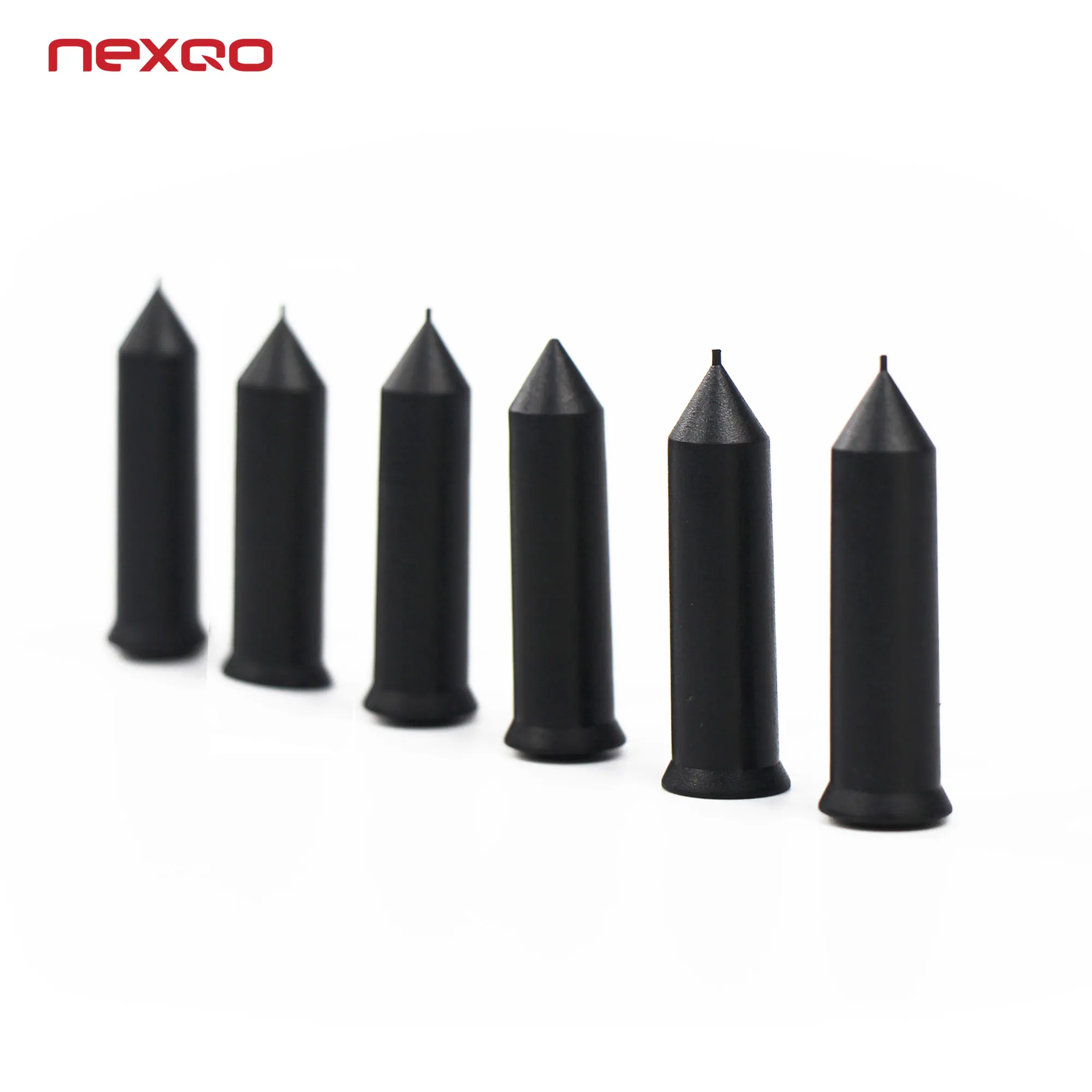

Hot Selling UHF 840-960MHz RFID Tree/Wood Tracking Nail Tag

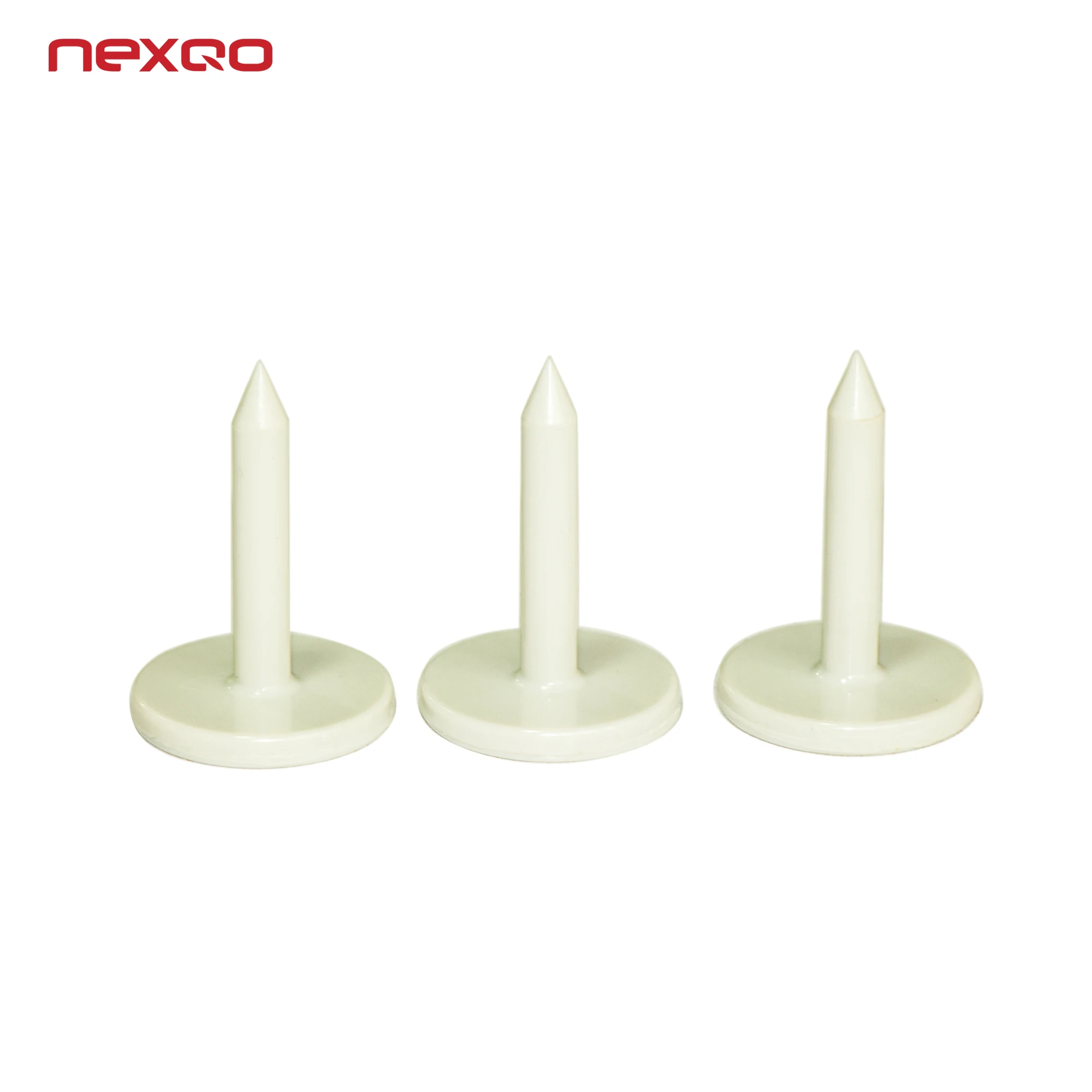

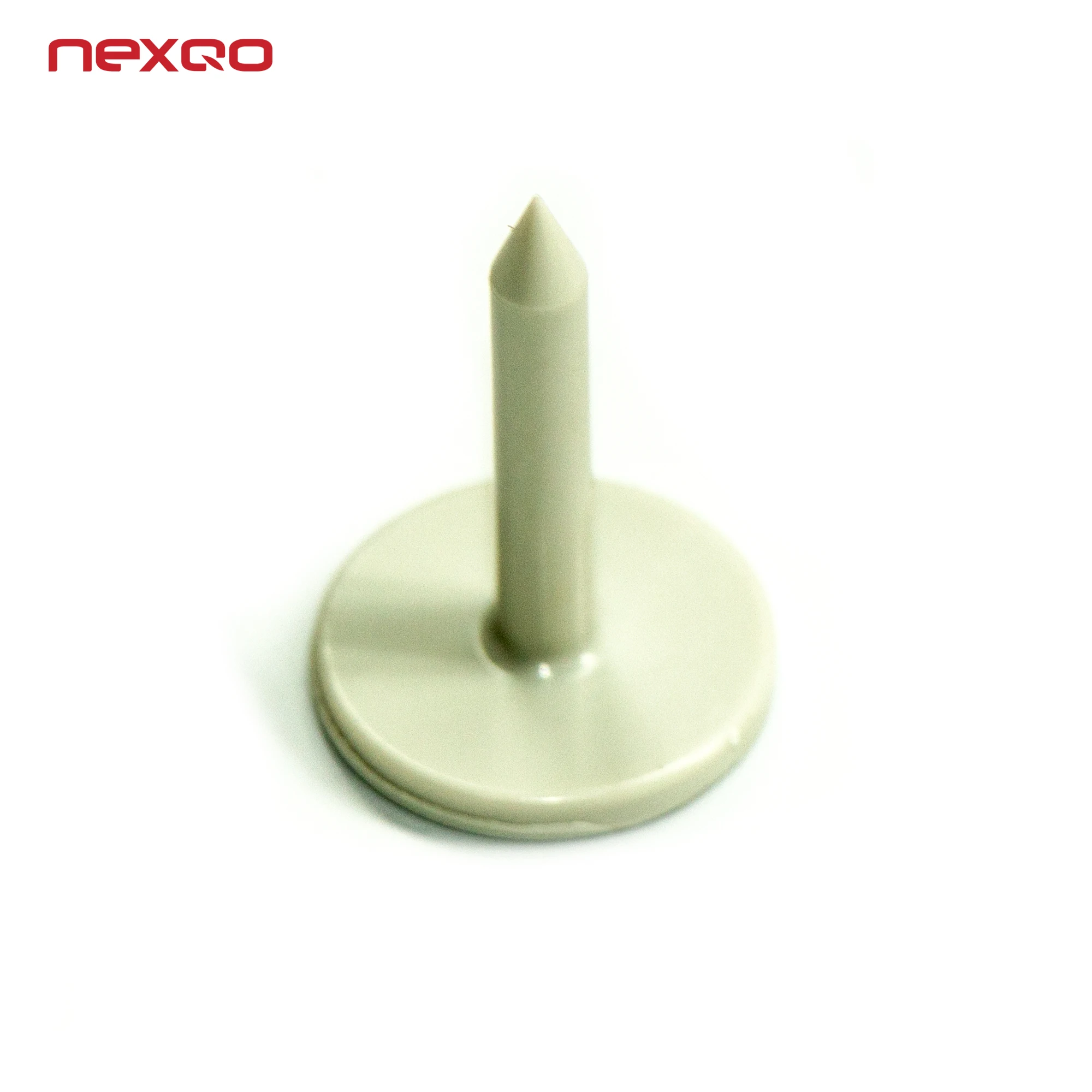

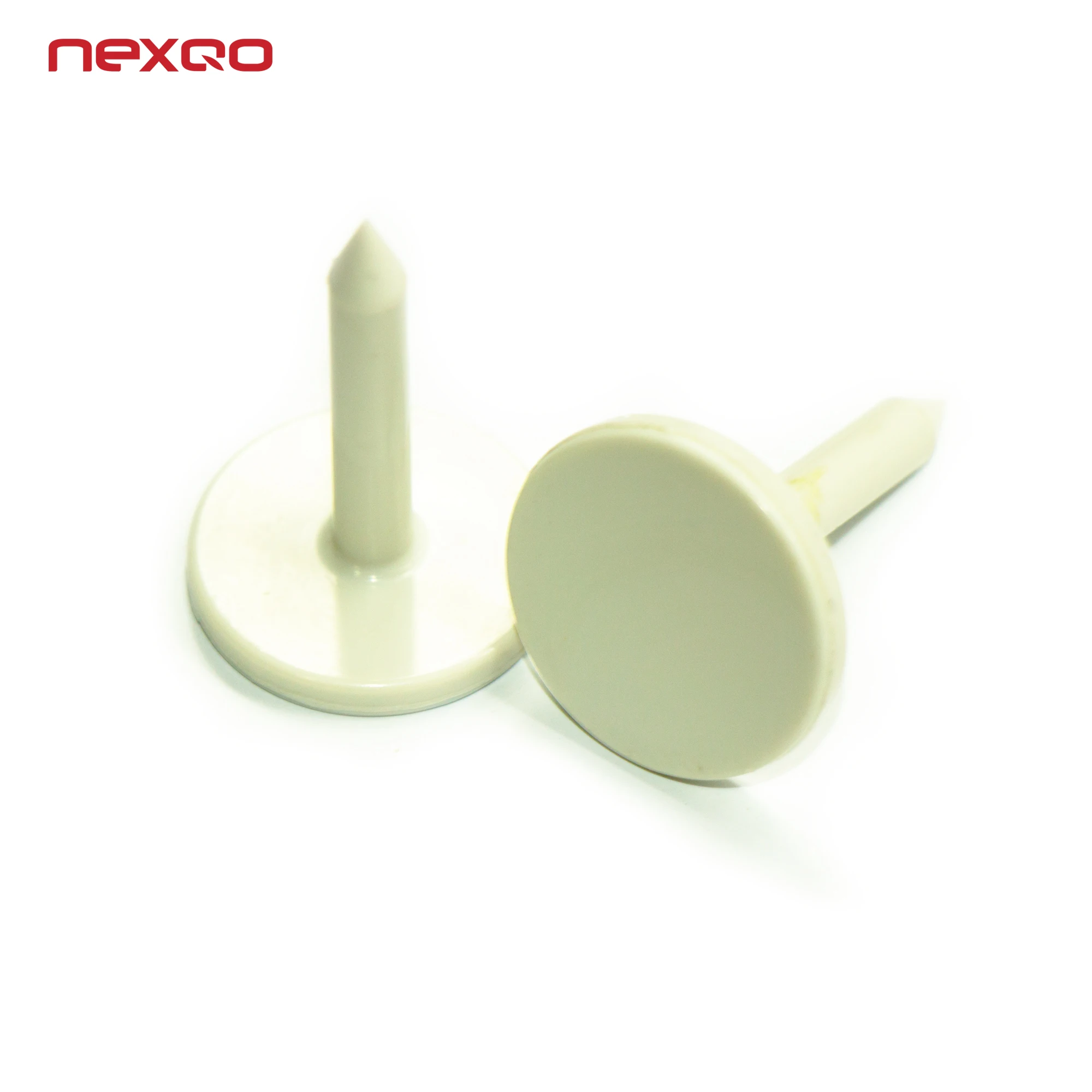

RFID Nail tag is composed of ABS outer covering and robust RFID transponder inside. It is rust-resistant in wet and chemical environment.Only by a narrow space, nail tag could be widely applied in supply chain management, property tracking management, timber and wooden products tracking management, ash bin management, and industrial parts management.

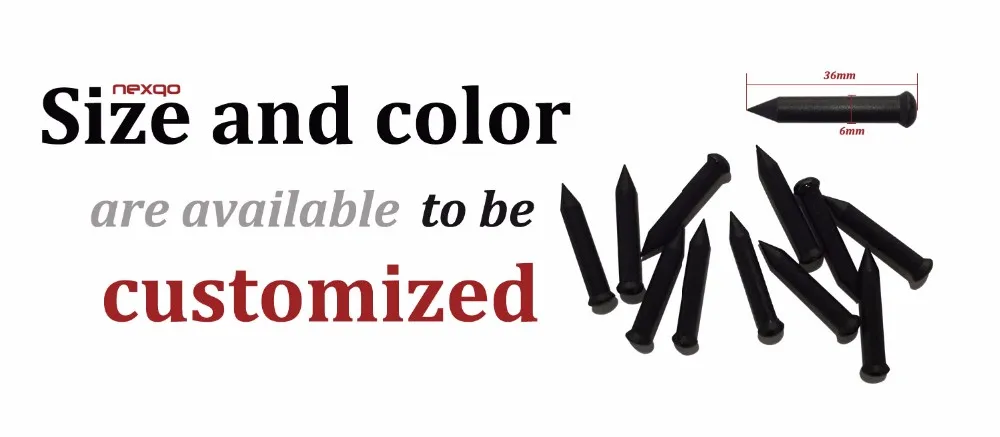

RFID nail tag size and color

Standard size: 6mm*36mm or customized

Color: black or customized

RFID Chip options

Nail tags are available with a broad range of RFID technology from low frequency 125KHz, high frequency 13.56MHz, to Ultra High Frequency 860-960Mhz, thus providing an optimal solution for different RFID applications.

Standard

125 KHz: TK4100; EM4200

13.56 MHz (ISO14443A/B or ISO15693): F08;

860-960 MHz EPC Gen2 (ISO18000-6C)): Alien Higgs3

Other type chip is available upon your request.

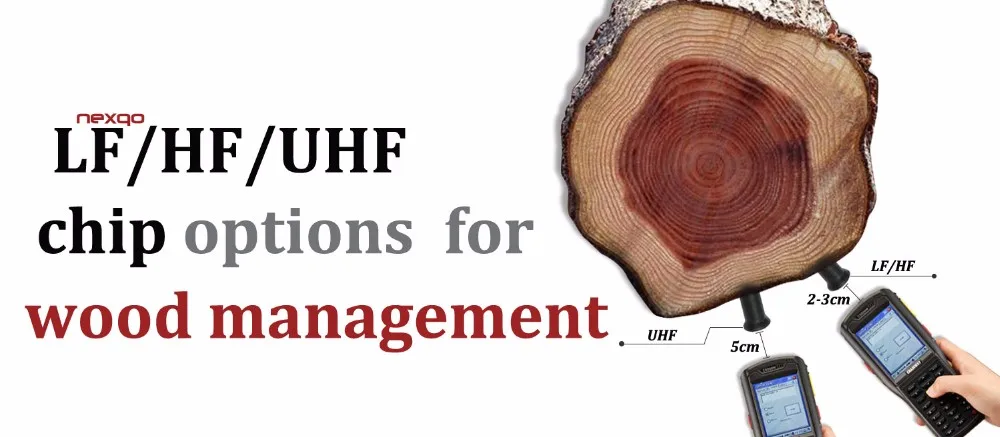

Read range

Since the nail tag is long and narrow, which push the antenna in a small space. As a result, the reading distance of the nail tag is rather short.



For chip range from 125 kHz and 13.56 MHz, the read range is about 2-3cm;

For Chip from 860-960 MHz, the read range is about 5cm.



Operation temperature

Operating temperature: -25°C to +75°C

Storage temperature: -25°C to +85°C

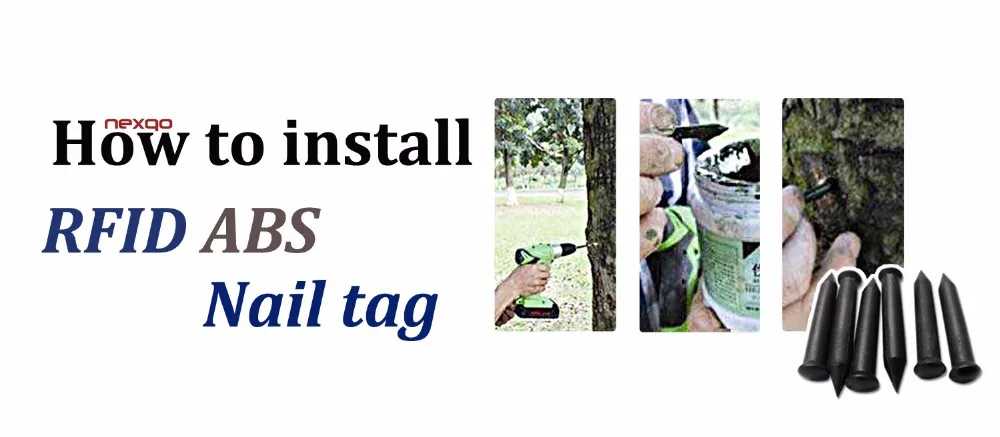

Installation

First, make a hole in the wood or tree;

Then, insert nail tag with a rubber plastic hammer.

Reminds: Avoid drilling nail tag in the wood or tree directly, which will damage nail tag.



QC

Every tag will be carefully checked by machine or manual work before dispatch.



RFID nail tag package

To make sure tags can be delivered without any damage, Nexqo uses top standard packaging. All bags, boxes and cartons are made of high-quality material.

Standard Package: 400pcs/bag, 25bags/carton.

Carton dimension: 230*260*500mm, weight: 20 kg / carton.
