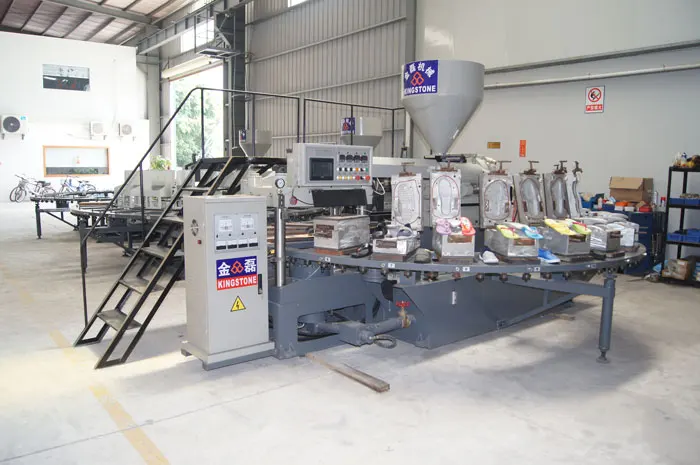

Rubber and Plastic PVC Slipper Sandals Flip Flips Making Machine

Product Overview

Description



1.  Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.

2.  Specialized in producing single color outsoles, slippers, sandals and short-height boots. It is particularly effective to the making of all-plastic sport shoe, and leisure shoes etc.

3.  It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect.Computerization in analysis and design, the machine is well in stability.

4.  Conformed to human engineering in design, it features operational compatibility.

5.  The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.

6. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

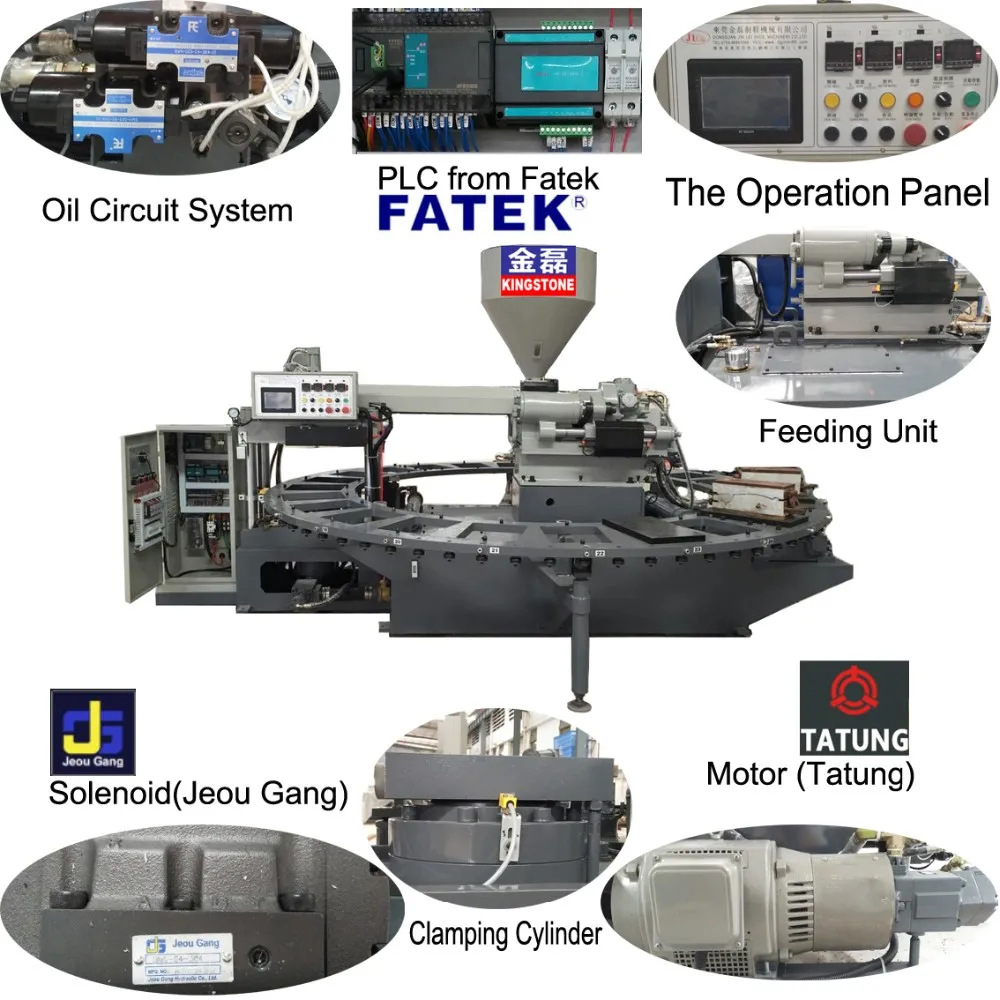

7. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.





Specifications
Machine Model		JL-108-24S
Mould-Clamping Unit
Work Station		24
Clamping Force	TON	80
Opening Stroke	MM	210
Mould Dimension	MM	600*280
Height of Injection Nozzle	MM	280
Injection Unit
Injector	SET	1
Screw Diameter	MM	65
Screw L/D Ratio	L/D	20
Max.injection Volume	cm3	650-1000
Injection Speed	cm/s	10
Screw Rotation Speed	R.P.M	0-200
Electricity Consumption
Heating power of injector	KW	7
Hydraulic unit motor	KW	18.5
Total electric consumption	KW	25.5
Temperature Control	Section	4
Dimension and Weight
Machine Dimension (L*W*H)	MM	4600*3600*2300
Machine Weight	KGS	6000
* Note: Above data only for reference.
