32 inch 4G wifi network LED digital totem AD android TV for retail store with mounting bracket

Share on (60473933313):


Price:$190.00

Quantity:


Product Overview

Description


32 inch 4G wifi network LED digital totem AD android TV for retail store with mounting bracket


wall mounted indoor 32inch LCD playback signage screen with wifi network function


B



Product Description


- Digital Panel


- Cabinet: Plastic case
There is lock hole on the back.
- ABS housing available in customized color, available in standard black, white, or silver.
- Brand New LCD TFT Panel: AUO, INNOLUX, CHIMEI, Sharp, Toshiba, Samsung, LG
- Supports Music, Photo, Auto Play, and Replay in Loop
- Multi Language OSD: English, Japanese, Chinese etc.
- Supports Slide Show (interval mode: Interval time with 1, 3, 5, 10, 30, 60 seconds).
- Play through USB (2.0) / SD (High Speed) / CF Card
- Playback mode: File and folder repeat, choose to repeat playback one file or all the files.
- USB Update Content Directly in CF/SD Card
- Build-in clock and calendar function in the system of player.
- BGM (background music) mode.
- Build-in 2 High Quality Stereo Speakers: 5W x 2
- Anti-burglar Lock system
- Support Shockproof and Dustproof Function
- Timer on/off function: Support 5 groups of auto power-on / off timer. It is able to be set 5 groups of times per day and 7 days in one week.
- Power supply: AC 100V~240V, 50Hz/60Hz, Output working Voltage: 12V 5A.
- Fixation & Bracket: VESA 100mm x 100mm.
- Accessories: Power Cable x 1, User Manual x 1, Bracket x 1, Remote Control x 1, Anti-Burglar Cable x 1 (Optional).
- Working temperature: 0~40C- Working humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 10%~95%
- We can customize according to the different advertising projects

File format:
AUDIO: MP3; File Suffixes: *. MP3
VIDEO: MPG1 (VCD), MPG2 (DVD/SVCD),
MPG-4 ASP (MPEG-5 Advanced Simple Profile video including GMC and QPEL support), M-JPEG;
File Suffixes: *. AVI, *. Dat, *...Vob, *. Mpg.
PHOTO: JPEG, PROGRESSIVE JPEG; File Suffixes: *. JPG

LCD panel specification:
Monitor Size/Profile Ratio: 32 inch Digital Panel / 16: 9
Display Resolution: 1920 X 1080 / 3840x2160
Active Area(mm): 408, 24(W)X255.15(H) mm2
Pixel Pitch (mm): 0.2835mm
Number of Colors: 16.7M (RGB 8 bits)

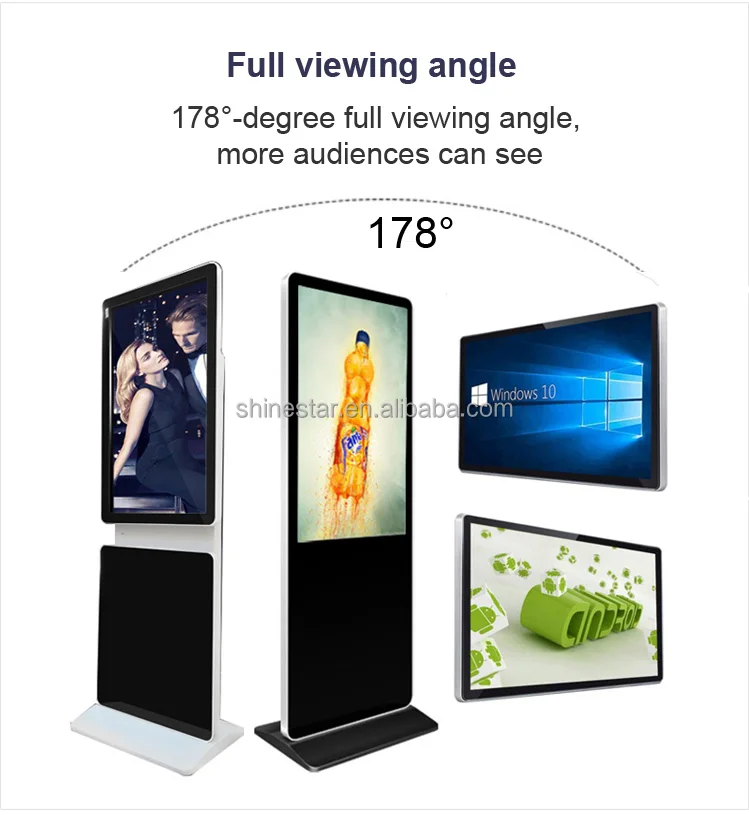

View Angle(R/L/T/B): 178/178
Brightness (CD/ m): 400CD/m
Contrast Ratio: 1000: 1
Response Time (ms) (at 25C) (Rising + Falling): 5 ms
Power Consumption (W): 23W
Interface: 2CH LVDS
Supply Voltage (V): 5 V
Light Source: CCFL
Outline Dimensions (mm): 428.0(W)X278.0(H)X18.5(D) mm3
Weight (g): 2500g





















































Network system :
* Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles.
* Support format: JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG
* Can set several assistant of administrator with limits of authority.
* Can set fixed time download, real-time download. And keep broadcasting when downloading.
* Support terminal set password, for protect viciously control from outside.
* Support modify terminal IP by server software or by remote control.
* High definition, and support 1080P video.
* Control one or all terminals.
* Support 3 roll-text.
* Support play files & roll-text in the specified time, support playlist.
* Support play video with connected photo and roll-text.
* Can be set several clocks of power on and off.
* Support cut-in broadcasting.

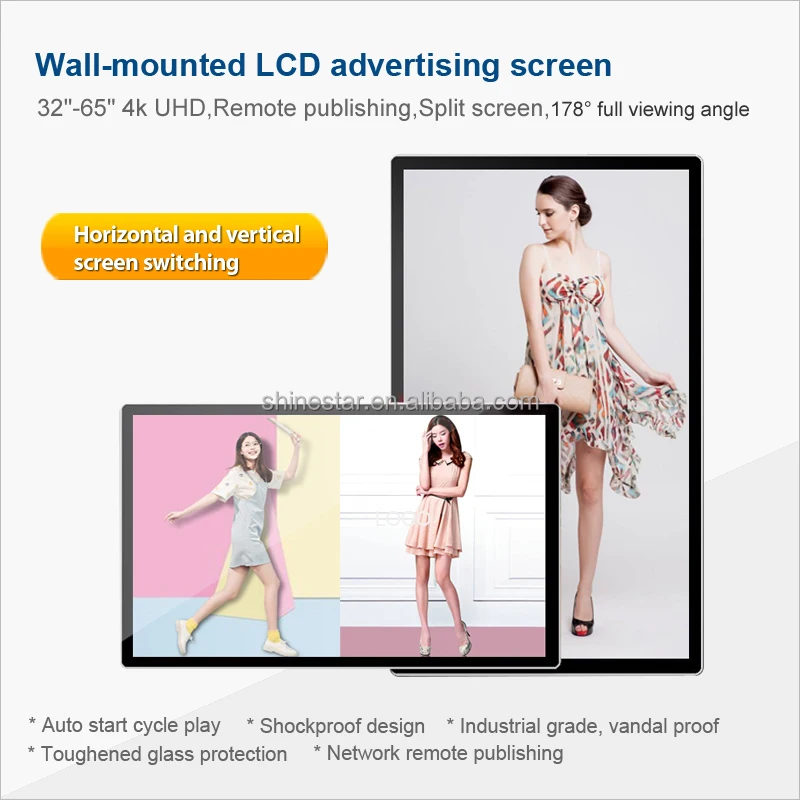

* Support vertical type.

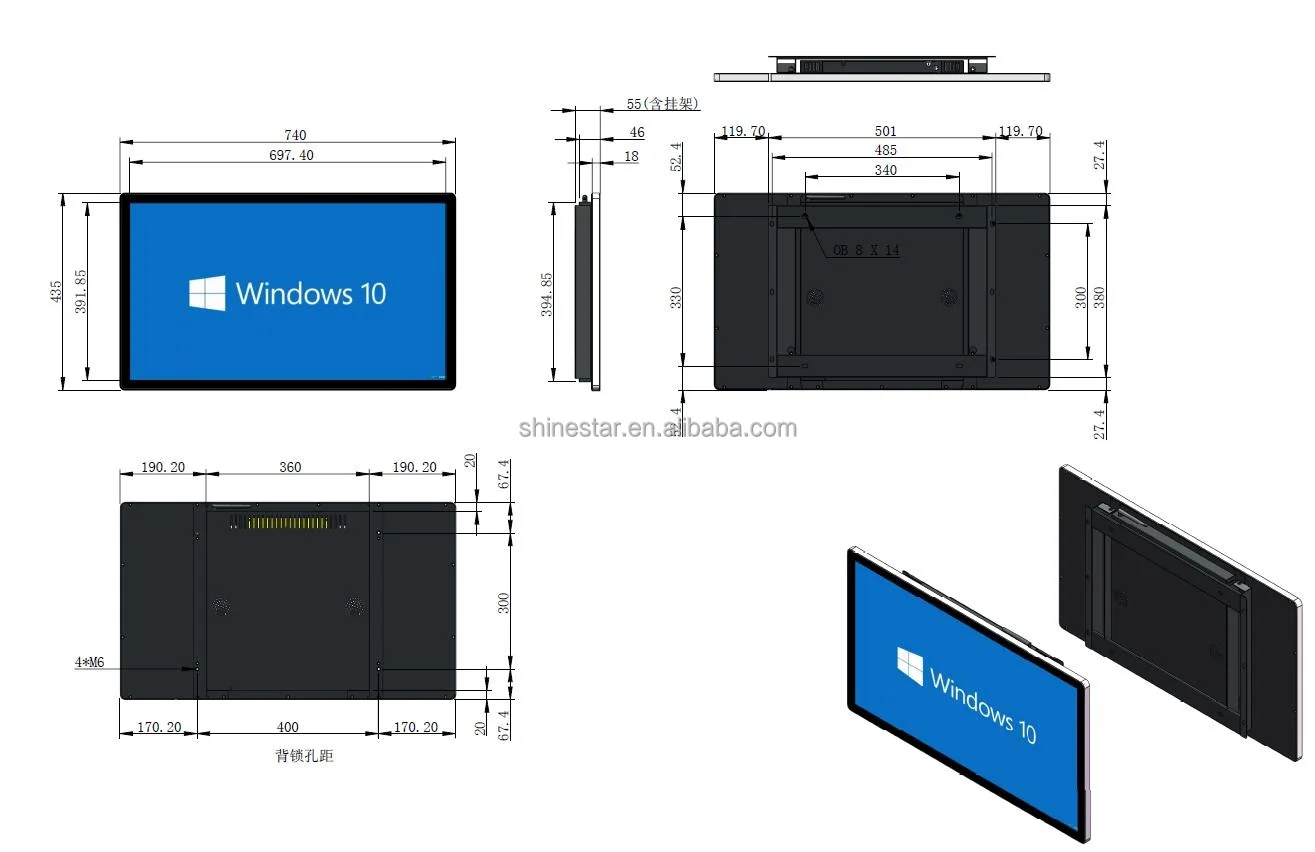

32 drawing qy




FAQ

Ab1Ig1GFHDEJ










Packaging & Shipping


IMAG0278DSCN3262







Our Services


Warranty: 12 months


Life-Time maintenance.
