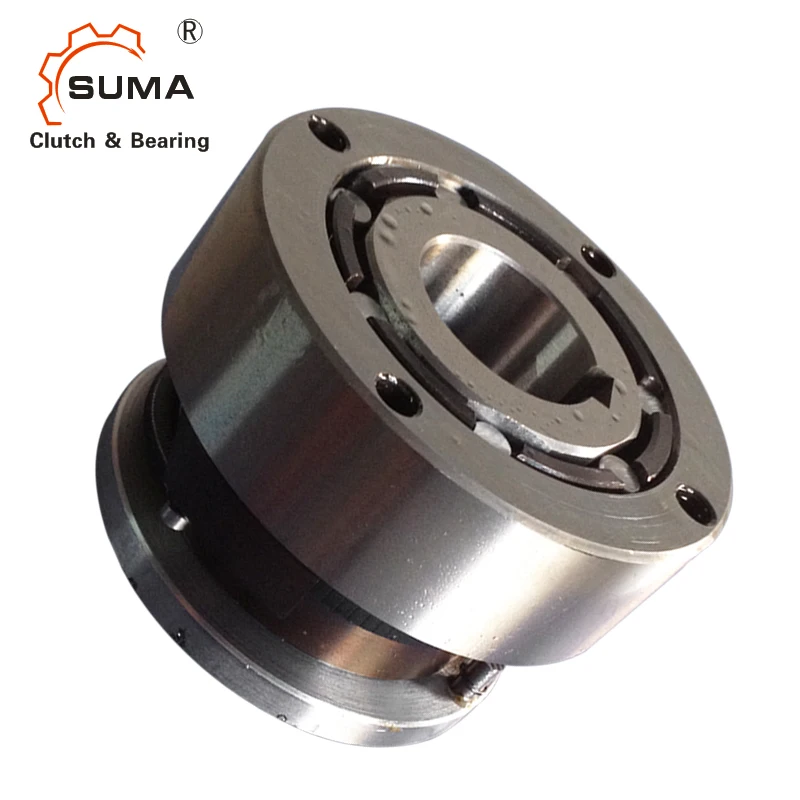

GCS40110 Two Way Clutch Bearings Backstop Cam Clutch
Product Description
Features of cam clutch
Type " GCS “ is a roller type plectrum over-running clutch with bearing supported.
Working Principle of cam clutch :
Driving Nit Drive unit to rotate , the rotation of inner race is controlled by plectrum. When plectrum affected , driven unit stop prorogating while drives unit remains working.
Application of cam clutch :
Feeding, Intermission, Stampling, Packaging Equipment , etc .
Product name | cam clutch |
Model | GCS40110 |
Material | GCr15 |
Torque capacity | 160Nm |
Inner diameter | 40mm |
Outer diameter | 110mm |
Thickness | 80mm |
Weight | 4.68kg |
Application | Feeding, Stampling, Packaging, Intermission, etc |
Package | Carton box , Pallte or Customized |
Payment terms | TT. L/C, D/A,D/P,Western Union, Paypal |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of GCS cam clutch for your choice
| SPECIFICATIONS | ||||||||||||
| Model | Torque | Overrunning Speed (r/min) | Dimensions (mm) | Weight | ||||||||
| Nm | Outer race | Inner race | d | D1 | D | L | L1 | N | bxt | H | kg | |
| GCS2576 | 49 | 595 | 1000 | 25 | 64 | 76 | 54 | 24.5 | M6 | 8x3.3 | 15 | 1.1 |
| GCS3086 | 60 | 525 | 850 | 30 | 74 | 86 | 55 | 26 | M8 | 10x3.3 | 16 | 1.5 |
| GCS3596 | 100 | 410 | 720 | 35 | 84 | 96 | 68 | 30 | M8 | 10x3.3 | 16 | 3.07 |
| GCS40110 | 160 | 386 | 684 | 40 | 95 | 110 | 80 | 38 | M10 | 12x3.3 | 18 | 4.68 |
| GCS45125 | 246 | 346 | 630 | 45 | 112 | 125 | 85 | 42 | M10 | 12x3.3 | 18 | 5.65 |
| GCS50140 | 380 | 335 | 605 | 50 | 120 | 140 | 96 | 50 | M12 | 14x3.8 | 20 | 7.63 |
| GCS55160 | 613 | 290 | 505 | 55 | 140 | 160 | 108 | 56 | M14 | 14x3.8 | 20 | 10.5 |
| GCS60180 | 1175 | 250 | 423 | 60 | 156 | 180 | 120 | 65 | M14 | 16x4.3 | 20 | 17.89 |
| GCS65200 | 1510 | 223 | 360 | 65 | 164 | 200 | 130 | 65 | M16 | 16x4.3 | 20 | 20.15 |
| GCS70225 | 2819 | 168 | 266 | 70 | 180 | 225 | 135 | 70 | M18 | 18x4.4 | 20 | 26.52 |

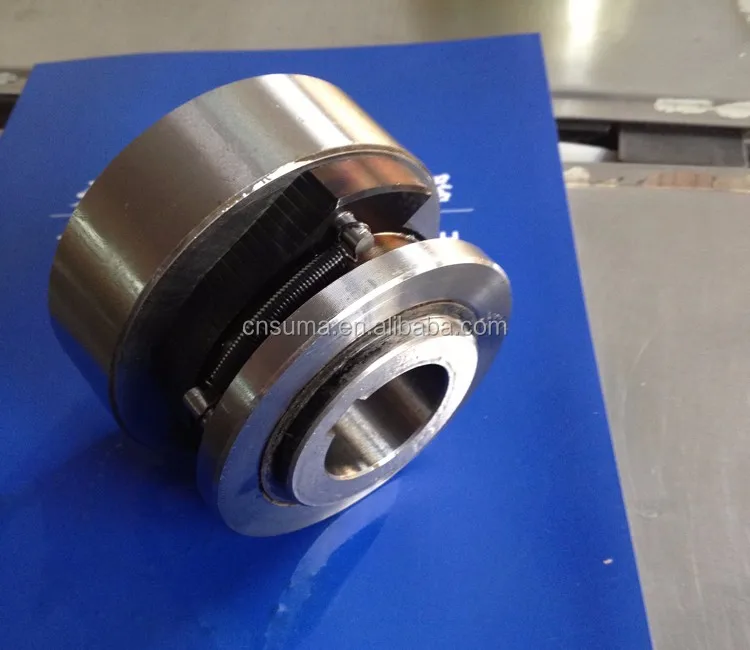

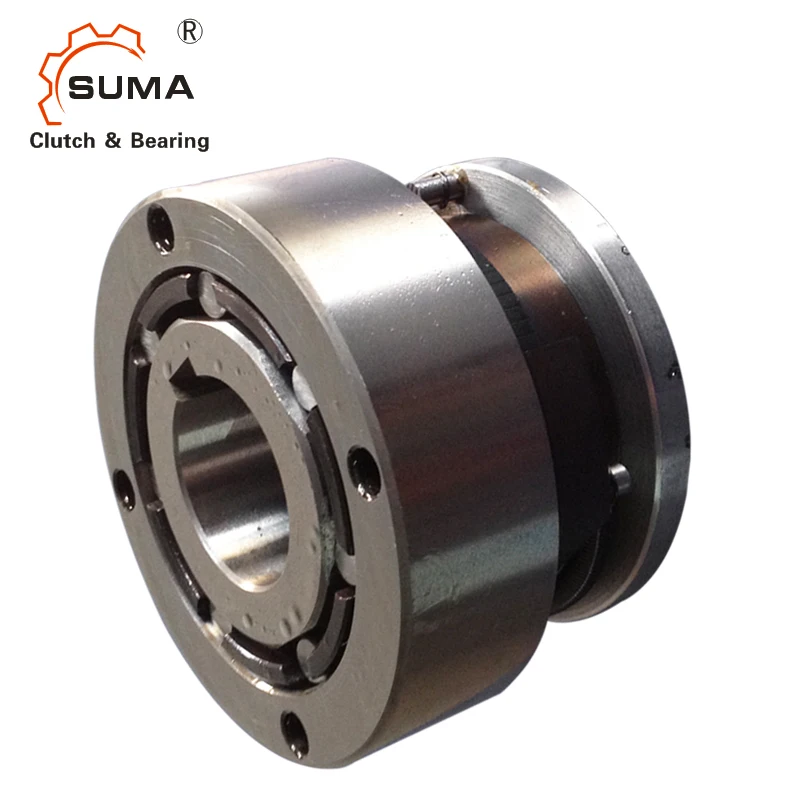

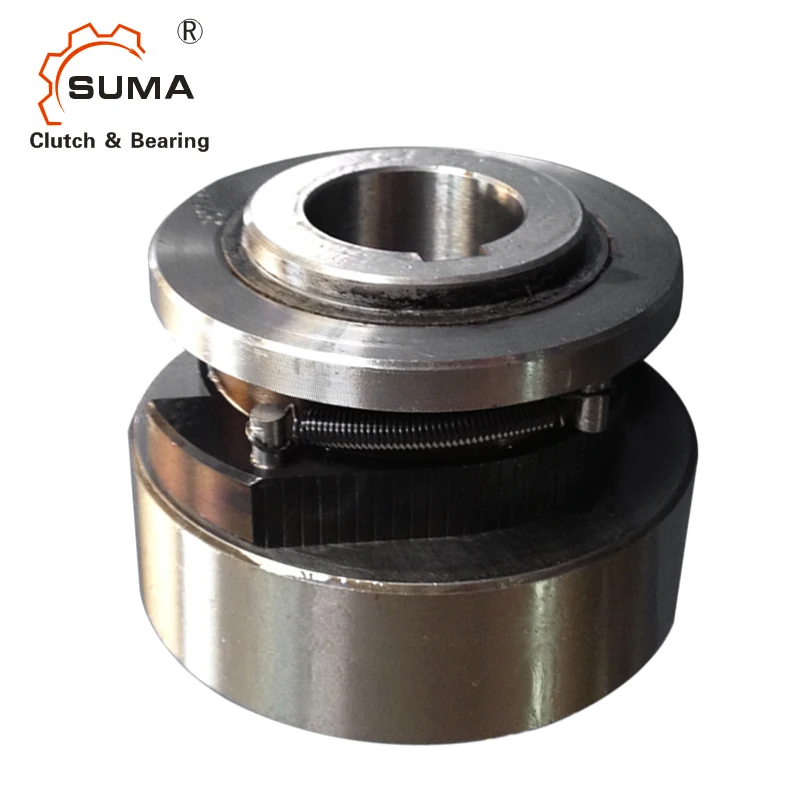

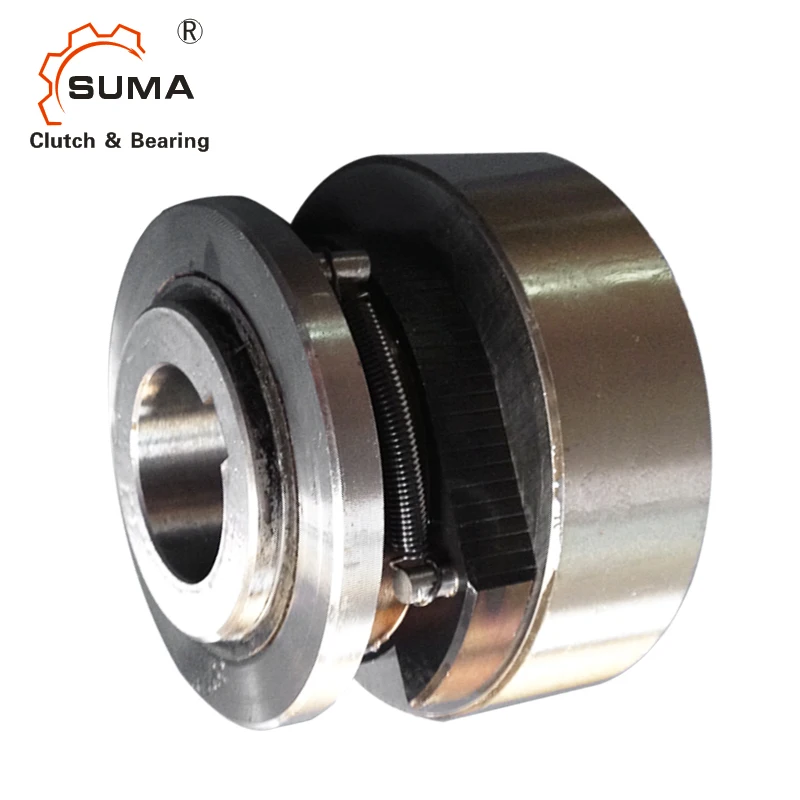

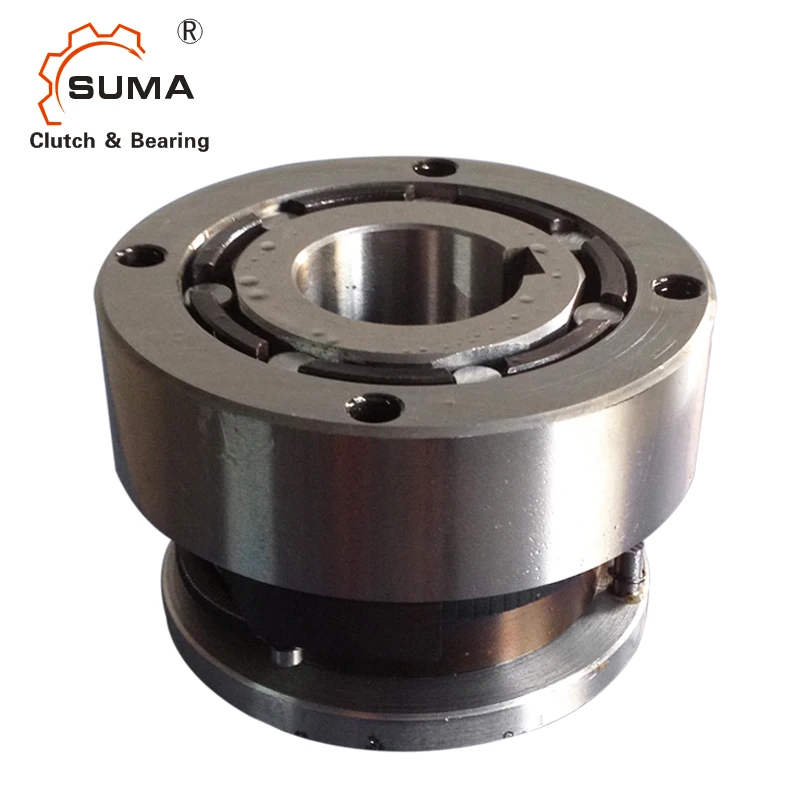

Detailed Images
Clients Visit
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
After-Sales Service
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
