open source video wall software

Share on (60474129698):


Price:

Quantity:


Product Overview

Description


open source video wall software

Product Description

Product Description for open source video wall software

LCD VIDEO WAll Features:

1. Ultra-narrow border design of the current width of only 2.65mm at present

2. Full-screen high definition display, up to 1080P

3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

5. Long life, stable operation, no burns, injuries, low maintenance costs

A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

 6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

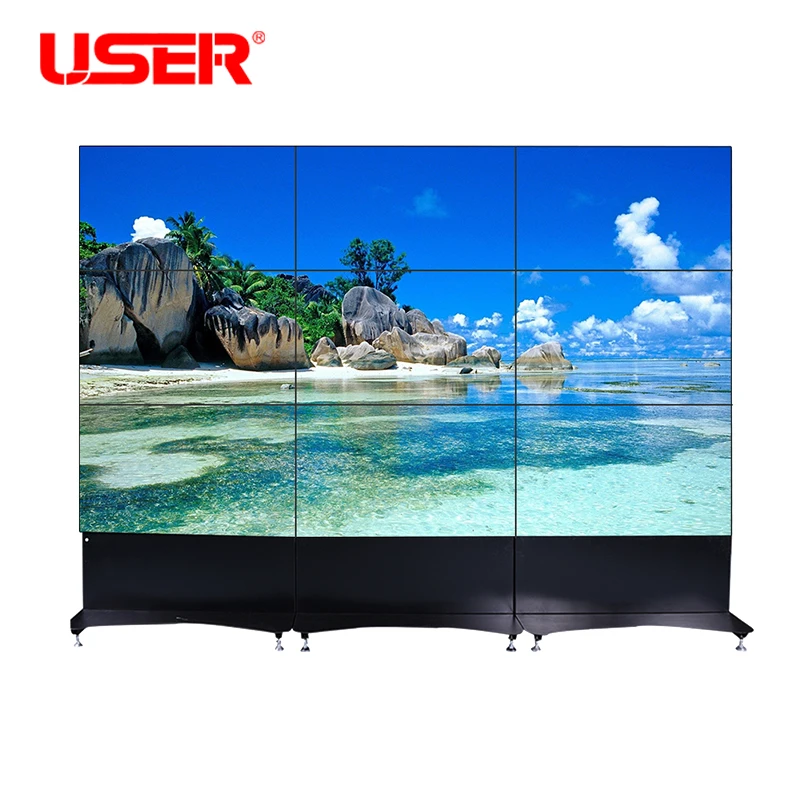

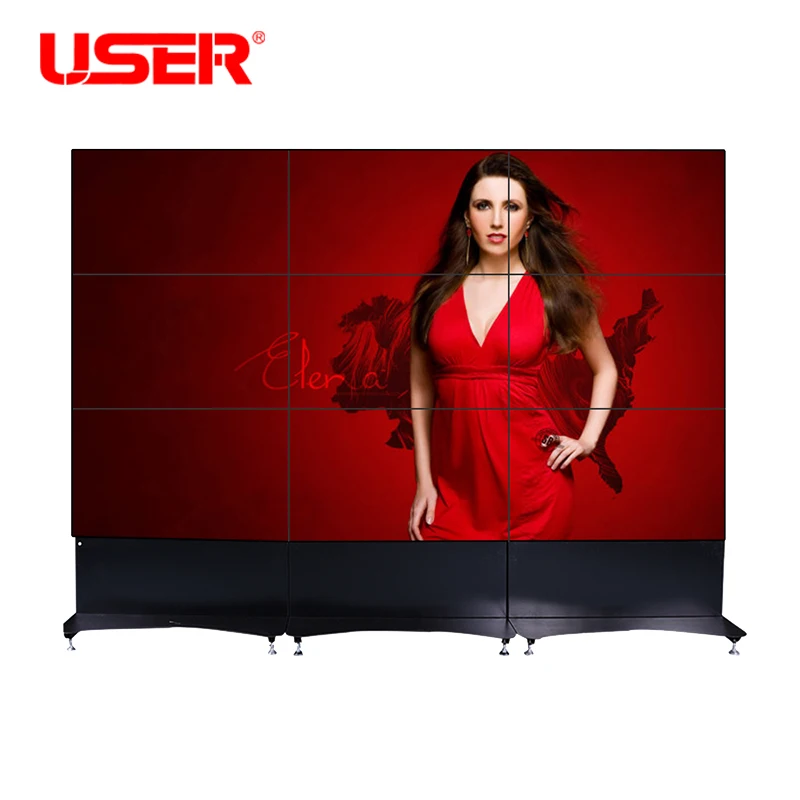

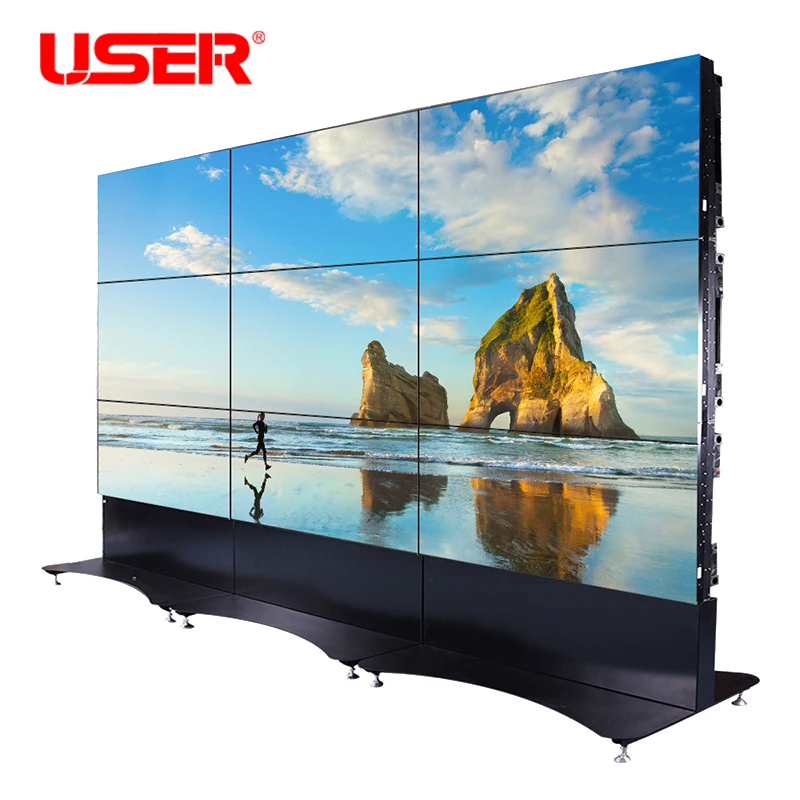

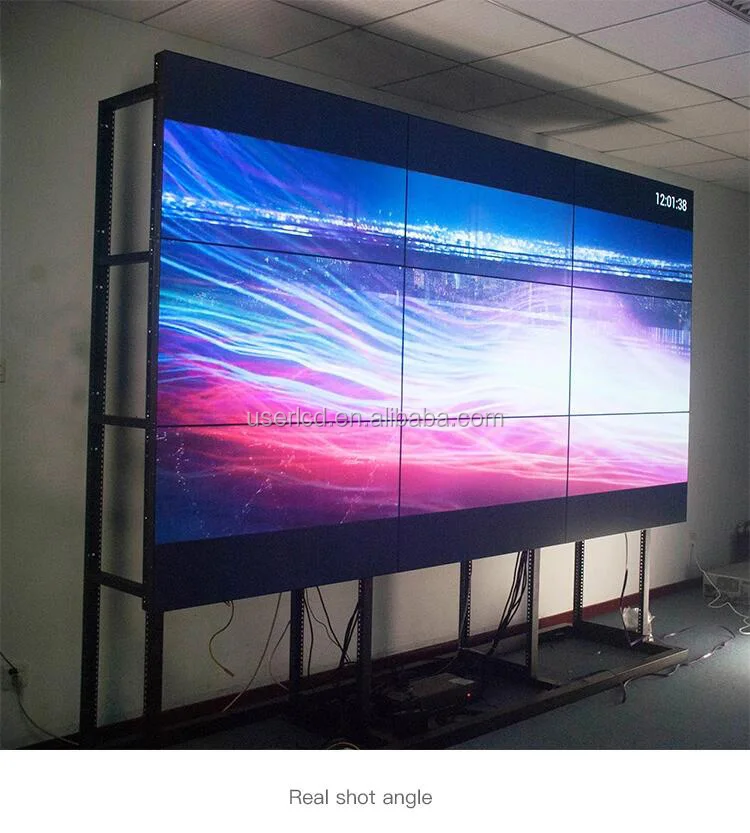

LCD Video Wall Screen (SAMSUNG DID panel)
Specifications
Model No.US-PJ6504HD
Panel Size65'' Samsung DID LCD Screen(super narrow bezel 5.3mm)
Aspect Ratio 16:9
Max Resolution Support1920x1080
 Color8Bit,16.7M
Brightness (nits)500cd/m2
Contrast 4000:1
Visual Angle (H/V)178°
Response Time<=6ms
Life(hrs)>60,000(hrs)

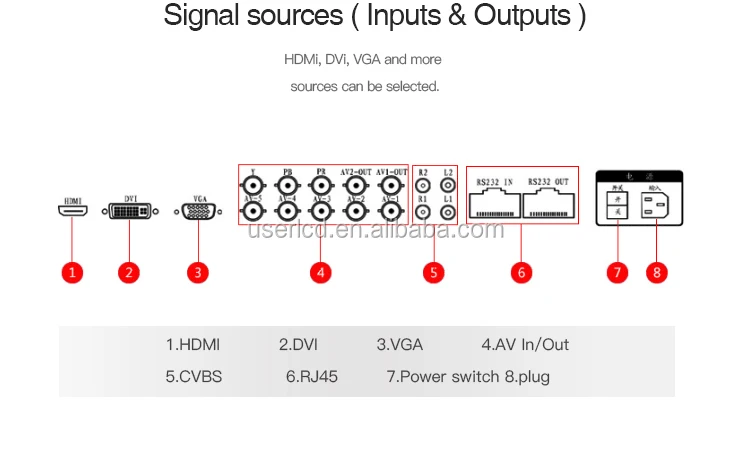

Input and output
DVI1
HD1
D-15 RGB Input(VGA)1
YUV/YPbPR1(3xBNC)
S-(YC)1(2xBNC)
Composite Video Input/(AV)3(3xBNC)
Composite Video Output2(2xBNC)
AUDIO INPUT1
Split ScreenSupport Picture in Picture(PIP/POP/PAP)
Power
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
Temperature
Working Temperature0°C~50°C
Working Humidity20%-80%
Dimension1213.4x684.2x127.0mm

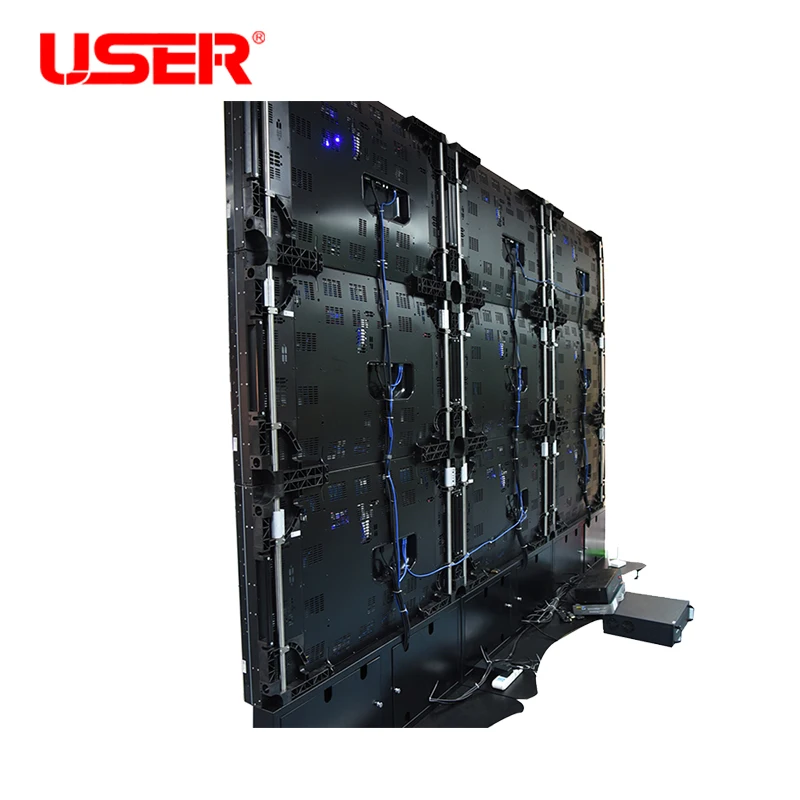

Video Wall Controller(Built-in each Screen)
Model No.US-P817W
InputCVBS1*BNC port, support PAL/NTSC all formats
DVI1*DVI-I port, support SVGA/XGA/WUXGA
VGA1*D15 port, support SVGA/XGA/WXGA
HD5*BNC ports, support SVGA/XGA/WUXGA
OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
CVBSsupport PAL/NTSC all formats
DVI1*DVI-I port, support SVGA/XGA/WUXGA
Operate modePanel key operation(needs customization)
Standard RS232 port( provide free control software)
ADD Code
Engineering softwareXK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature 0~70 ℃
working humidity5~95 %RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models
Dimension307×283×55(mm)
WeightAbout 3.5KG
