1. Both of longitudinal and cross movement are driven by the vane pump, which is stability and low noise. The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983). 2. It can be carried out trough and flange lateral grinding. 3. Grinding head has rapid movements mechanism invertical movement, but also manually feed. 4. Grinding head vertical move can be adopted with power rapid movement or hand micro feed. 5. Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards 6. It can be installed with digital display according to the requirement of our customers.
Model
M7163-1250
M7163-2000
M7163-1600
Working table
Table size (L*W)
mm
1250*630
2000*630
1600*630
Max. grinding size (L*W)
mm
1250*630
2000*630
1600*630
T-slot
N*mm
5*18
5*18
5*18
Speed of working table
m/min
3-25
3-25
3-25
Max loading weight of table
kg
600
600
600
Wheel head
Max distance from spindle to table
mm
830
830
830
Max travel of spindle
Transverse (manual or hydraulic)
650
650
650
Vertical
600
600
600
Spindle speed
rpm
1440
1440
1440
Wheelsize (diameter*w*bore)
mm
400*40*127
400*40*127
400*40*127
Scale on the vertical handwheel
mm
0.01
0.01
0.01
The wheel head travel of the handwheel per circle of dial (vertical)
mm
1
1
1
Total power
kw
13.675
13.675
13.675
Spindle motor
Power
kw
7.5
7.5
7.5
Speed
r/min
1440
1440
1440
Rapid up-down motor
Power
kw
0.55
0.55
0.55
Speed
r/min
1440
1440
1440
Oil pump motor
Oil pump motor
kw
4
5.5
5.5
Speed
r/min
960
960
960
Coolant pump motor
Coolant pump motor
kw
0.125
0.125
0.125
Speed
r/min
2800
2800
2800
Oil pump
Flow
L/min
125/50
125/50
125/50
Working pressure
Mpa
6.3
6.3
6.3
Working precision
The parallelism of working surface to base level
mm
1000:0.015
1000:0.015
1000:0.015
Surface roughness
μm
Ra0.63
Ra0.63
Ra0.63
Machine weight
Net weight
kg
5600
6800
7800
Gross weight
kg
6300
7500
8500
Package size
mm
3800*2700*2800
5500*2700*2800
4500*2700*2800
Packaging & Shipping
Package:Plywood box
Delivery time: 20 working days after we receive the payment
Our Services
Providing after sale service
Our advantage
1,We have passed through the ISO9001:2008 system
2,We have CE certificate for our products
3,We are the manufacturer of surface grinders for over 19 years

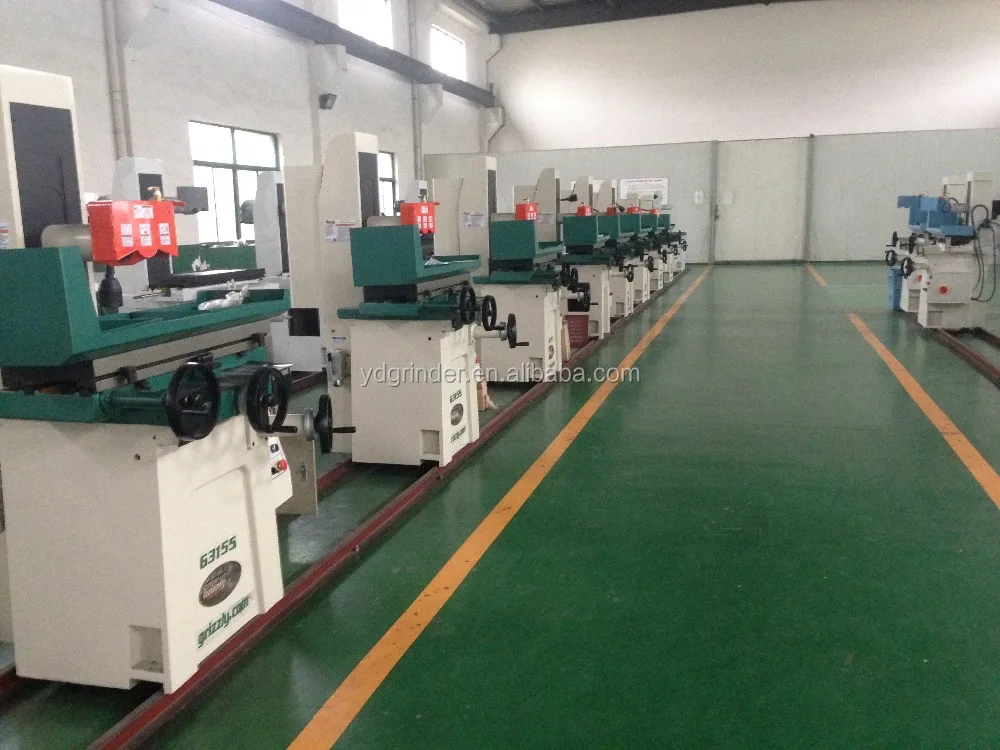

Company Information
FAQ
Where is the hydraulic system from ?
Answer:Taiwan
Does the machine have one year gurantee period?
Answer:Yes.
