frp water meter box septic tank composite drain grates glass fiber manhole cover with high quality

Product Overview

Description

septic tank composite drain grates glass fiber manhole cover with high quality



Products Details:



Techniacal Parameters:





OEMis supported
Inscription Design customized  Inscription		inscription and logo can be customized according to the client company name   it can be changed according to  customer needs
Logo Design   customized logo
Surface Pattern   Design customizedSurface Patterns		Surface pattern can be designed according to the equirements of customers   but it is paid for the customer.
Colors  Design customized Colors		We can provide a variety of color service

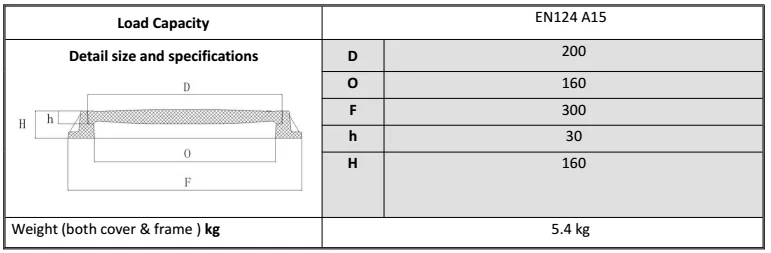

manhole cover Specification:



Size		Remarks
Clear Open 450mm       A15+, B125,	Cover Dia 500mm
Clear Open 550mm       A15+, B125,C250, D400	Cover Dia 600mm
Clear Open 600mm      A15,B125,C250,D400	Cover Dia 650mm
Clear Open 600mm       D400	Cover Dia 690mm	Hinged, antistatic, watertight with lock
Clear Open 695mm        B125,C250,D400	Cover Dia 750mm	Watertight, inner cap, sealing
Clear Open 700mm        C250,D400	Cover Dia 750mm	Hinged, antistatic, watertight with lock
Clear Open 840mm                       D400                                           (gas station manhole cover)	Cover Dia 700mm	Hinged, antistatic, watertight with lock





Why choose Jinmeng ?



Application

Gas/ Water/ Main Road/ Telecommunications/ Petrochemical Installations/ Underground/ Electrical Installations/ Access to Pipework Chambers and Petroleum Storage Tanks



manhole cover Description
20''API aluminumm round located manhole cover for tanker truck parts C801B-560/580

Standard: EN 124-1994
Loading capability: A15+, B125, C250, D400, E600
Material: Sheet Moulding Compound ( SMC )
SMC Manhole Cover in EN 124 with A15+, B125, C250, D400, E600, F900



manhole cover Feastures:

1.Against theft---JINMENG SMC manhole cover is non-metallic, non-conductive and non-sparking. It has no value of recycling, thus completely solving the problems caused by theft.



2.High load capacity---Its main components are fibreglass and unsaturated resin. JINMENG's existing moulds load capacity are A15, B125, C250, D400, E600.



3.Free design---Sucs as Color, Logo, Panel, Load and Dimension can be desigened according to the requirements of customer.



4.Long life---Minimum lifespan of 30 maintenance free years.



5.Well sealed---It can be used hermetically, and effectively prevent those poisonous gases leaking out from cesspool. Well sealled, no noise pollution or rebound.



6.Good wear and corrosion resistance---It will never rust because it has good wear and corrosion resistance.



7.High and low temperature resistance---Excellent insulator against heat ( from -40° C to 200° C)



8.Lighter weight and more competitive price--- the weight of composite manhole cover especially SMC manhole cover is lighter. The composite manhole cover is more convenient to transport, install and repair.



Founded for safer road, and tradition of Quality & Innovation, Hangzhou Jinmeng Road Establishment Co., Ltd. Has been at the forefront of composite products for more than 15 years.



Factory overview

Jinmeng owns a 70 thousand square meter plant, who now is China largest and most professional solution provider of composite infrastructure products.



Warehouse

Jinmeng has 4 standard raw material workshops, 2 material lines, and 2 production workshops, and large scale warehouse to meet increasing production.



Production workshop

There are 41 hydraulic machines ranging from 200 tons to 1600 tons and more than 500 molds for different products, a 100 tons load capacity testing facility.



Certificates



Certificated with ICMQ, ISO9001, ISO14001, OHSAS18001, BS EN124&CE, Bsi (Eurofins), SGS certificat,quality of our products can be assured.



Packaging

Experienced packaging & logiest team is ready to well pack the goods and load in good condition.



R&D Dept.

Jinmeng has a experienced engineering team consisting of raw material analysis and developing, structure designing, mold engineering, quality controlling and testing. Jinmeng technical consultancy team is available to offer the technical advice, supports and integrated solutions.



Show Room



Jinmeng strives for excellence and wins ISO9001, ISO14001, CE, SGS, BV, Eurofins, ICMQ certificates owning to the strict production standard and excellent product performance. Today Jinmeng is a leader in designing and marketing composite infrastructure solutions. Our products are exported to most of the European and American countries and win global reputation for high quality and superior after sales service.
