Price:$2.00

Quantity:


Product Overview

Description



Product Description

   tape cassette LM-TP309W (9mm,White) for MAX electronic lettering machine tube marking machine LM-370A LM-370E LM-380A LM-380E LM-390A/PC


Packaging & Shipping

10PCS/box



Detailed Images

 MAX LABEL TAPE-1LM-TP312YMAX LABEL TAPE-2MAX LABEL TAPE-6

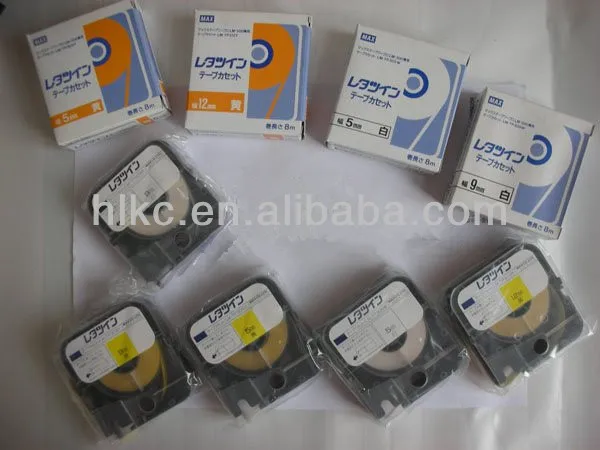

electronic-lettering-machine-Cassette-Tape-Labels-For-LM-370-LM-380-LM-390_.jpgLM-TP305W1.jpgLM-TP305Y1.jpgLM-TP309W1.jpgLM-TP309Y1.jpgLM-TP312Y1.jpg



LM-380E
Electronic Lettering Machine

INK RIBBON CASE
LM-RC310
10pcs./box 50pcs./ctn

ECONOMICAL INK RIBBON
LM-IR300B(BLACK)
50m/roll 5rolls/box20rolls/ctn
LM-IR300B(WHITE)
32m/roll 5rolls/box20rolls/ctn
HIGH QUALITY TUBE
LM-TU432L White3.2mm dia. x 200m/roll

1Roll/box

LM-TU436L White3.6mm dia. x 200m/roll1Roll/box
LM-TU442L White4.2mm dia. x 200m/roll1Roll/box
LM-TU452L White5.2mm dia. x 135m/roll1Roll/box

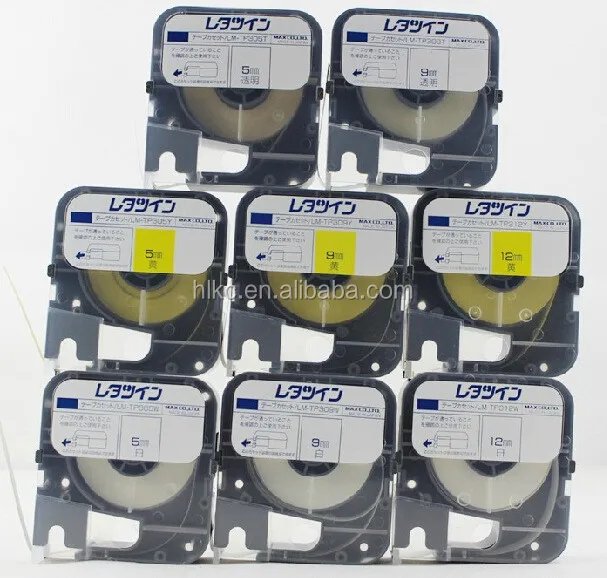

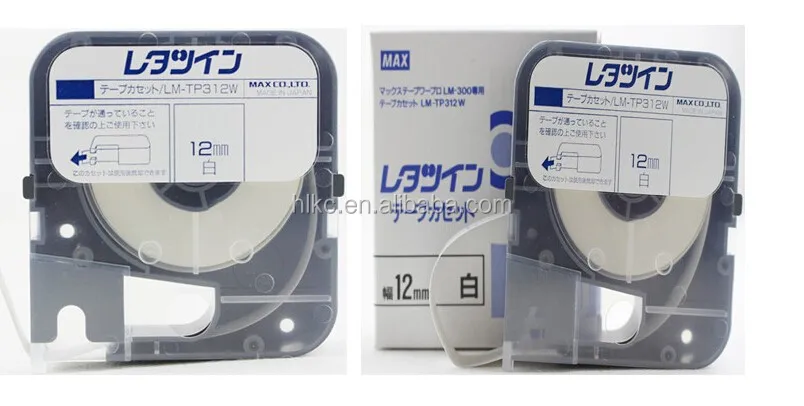

TAPE CASSETTE

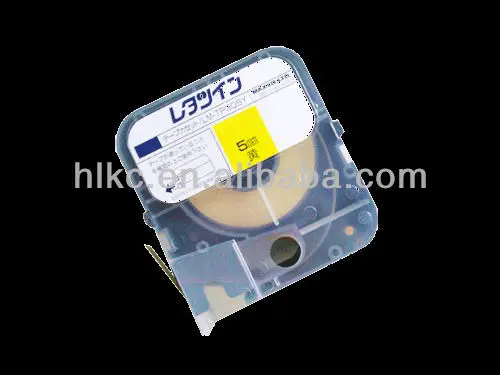

LM-TP305Y(Yellow)5mm(W) x 8m(L)/pc.10pcs./box
LM-TP305W(White)5mm(W) x 8m(L)/pc.10pcs./box
LM-TP305T(Transparent)5mm(W) x 8m(L)/pc.10pcs./box

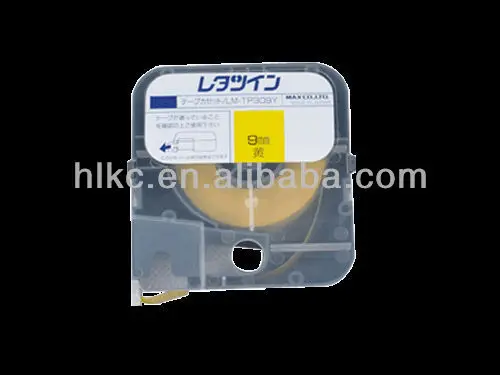

LM-309Y(Yellow)9mm(W) x 8m(L)/pc.10pcs./box

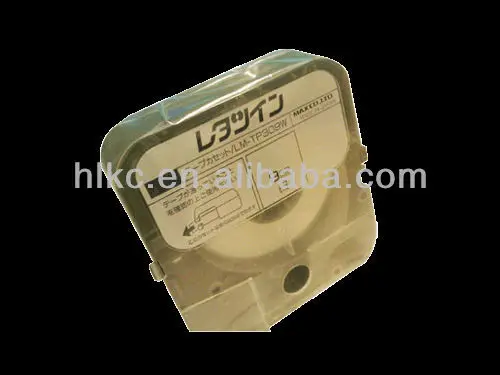

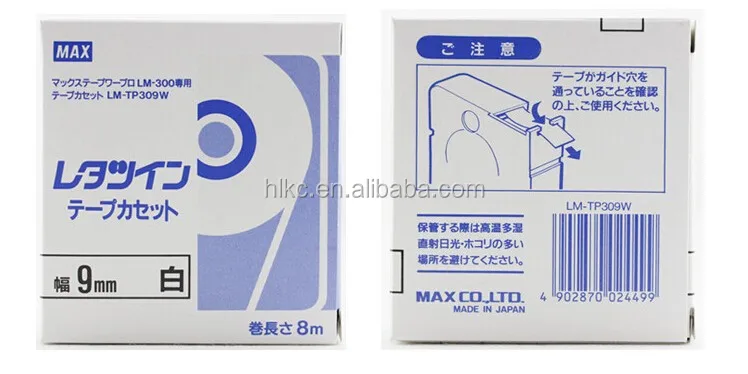

LM-309W(White)9mm(W) x 8m(L)/pc.10pcs./box
LM-TP309T(Transparent)9mm(W) x 8m(L)/pc.10pcs./box

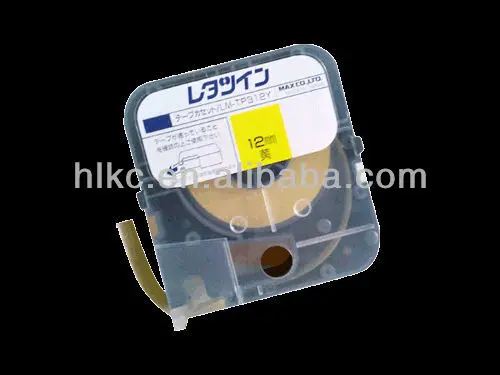

LM-TP312Y(Yellow)12mm(W) x 8m(L)/pc.10pcs./box

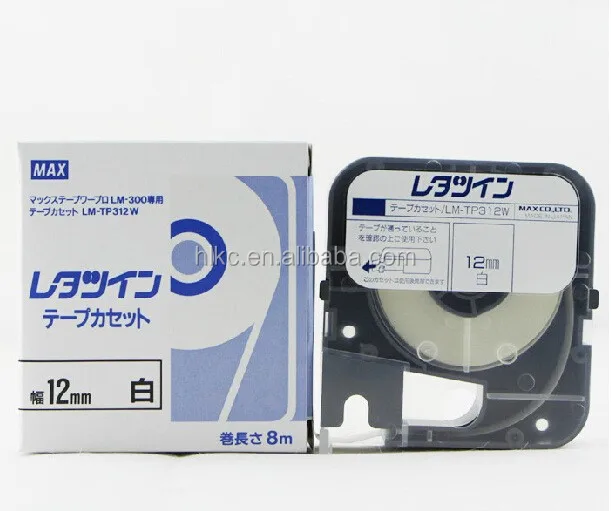

LM-TP312W(White)12mm(W) x 8m(L)/pc.10pcs./box


Features

*High-speed marking
LM-380E's printing speed is at 20mm/second
LM-380E can print 33pcs of 20mm-length tube
per minute.

*Maximum printing length
Tube : 12m
Tape : 2m

*Maximum 20,000 characters built-in large memory storage

*Easy access from your PC with compact flash
memory card
LM-380A can import text and setting data from PC with
standard compact flash easily.


*Cutting Depth Adjustment
You can adjust the half cutting depth with the "Half cutting depth adjustment lever",when half cutting is too deep.


*The pitch can be set up to maximum 60mm.
Marking on tape : 4 up to 60mm
Marking on tube : 10 up to 60mm

*Marking Materials
2.5mm dia.-5.5mm dia. tubes are applicable. MAX genuine
tapes of 5mm, 9mm and 12mm width are available
+ Heat-shrinkable tabe.

*Economical refillable
ink ribbon


Specifications
NameMAX ELECTRONIC LETTERING MACHINE
LM-380E
Dimensions286(W) x 265(L) x 95(H)mm
Weight2.0kg
Printing methodThermal transfer method(300dpi)
DisplayLCD dot matrix :
64 x 132Pixel
Printing speed20mm/s(Standard)
10mm/s(Low temperature mode)
Maximum printing lengthTube : 12m, Tape : 2m
Maximum number of characters to input2,000 characters per file
Character size2,3,4,6mm height
Usable tube sizeDia. 2.5mm to 5.5mm (PVC, Shrinkable tube)
Usable tape sizeWidth 5,9,12mm (MAX genuine tape)
Tube cutting methodAuto half cut, manual full cut
Internal memory20,000 characters(2,000 characters x 10files)
External memoryCompact flash card
Power supplyDC 12V, 1.25A
[Use only specified AC adapter(100V-240V)
included in the package.]
Power consumption13W (max.)
Operating environment15 to 35degrees celcius

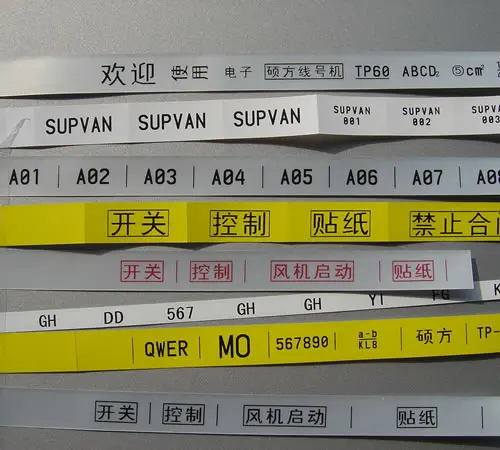

Application sample
