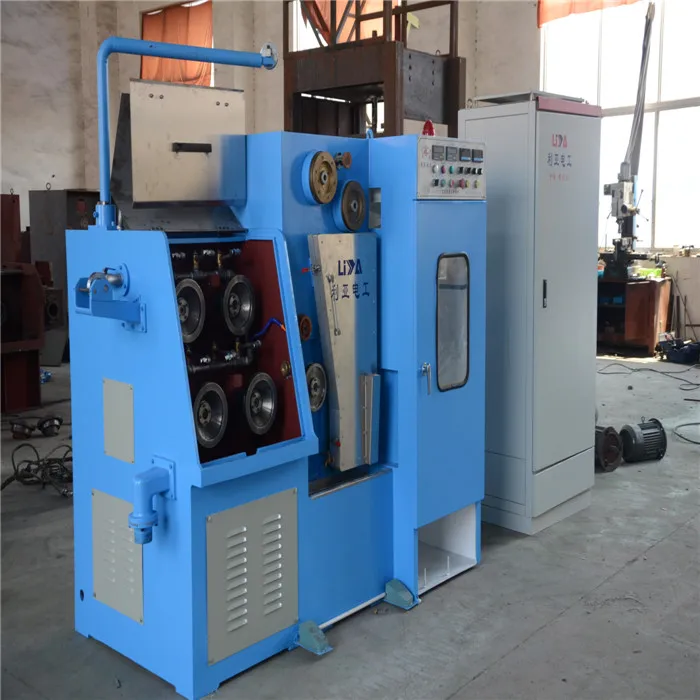

Intermediate copper wire drawing machine/ power cable making equipment

Product Overview

Description

Intermediate copper wire drawing machine/ power cable making equipment



Technical Parameters of intermediate fine copper wire drawing machine:

Power Control	Dual frequency control
Max. Drawing dies quantity	18
Inlet wire diameter	Φ0.8—Φ1.6 mm
Wire finished diameter	Φ0.20—Φ0.6 mm
Maximum line speed	MAX1500m/min
Slip ratio	15%
Constant speed capstan slip ratio	13%
Host body structure	Steel welding, tempering
Capstan	Spray tungsten carbide
Drawing motor	15KW
Take-up Power	4KW
Max.capstan diameter	Φ200mm
Fixed speed capstan diameter	Φ200mm
Annealing wheel diameter	Φ200mm
Annealing voltage	DC 0~60V
Annealing current	DC 0~600A
Annealing protect mode	Steam or water
Coiling shaft size	Φ300mm ( or as asked)
Take up method	Top center screw tight type
Traversing way	90W Geared Motor
Transmission	Flat belt / synchronous belt drive
Coiling control	PID automatic control variable bit detection
Deflection detection device	Arm type
Tension adjustment method	Counterweight way
Maximum load	50KG
Drawing Lubrication	Spraying
Brake	Electromagnetic brake
Voltage	380V 50HZ
Drawing oil	40L/minute
Weight	2000KG

(3). User requirements:

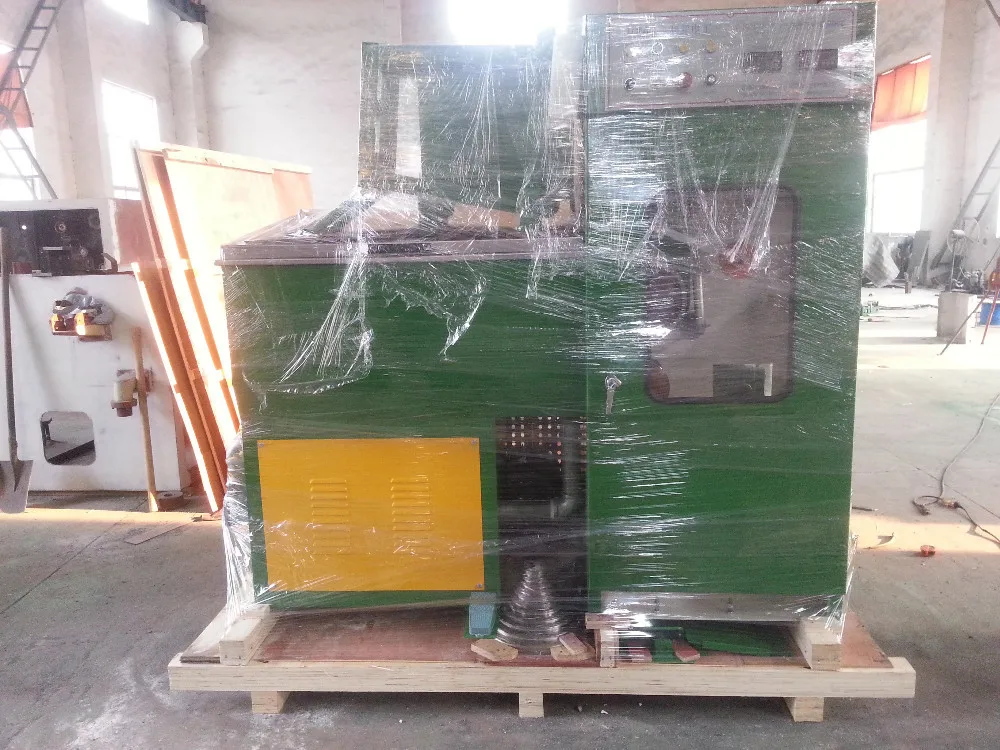

Delivery Pictures:

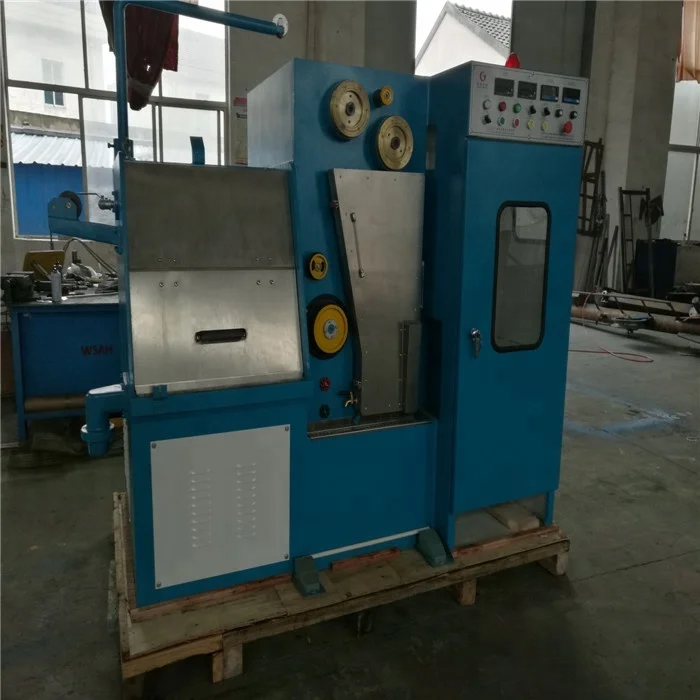

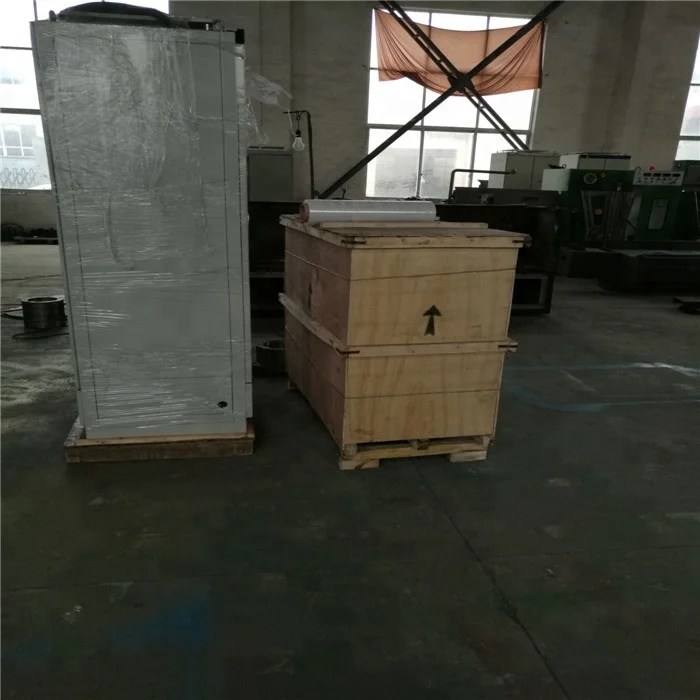

Packing wooden pallet picture

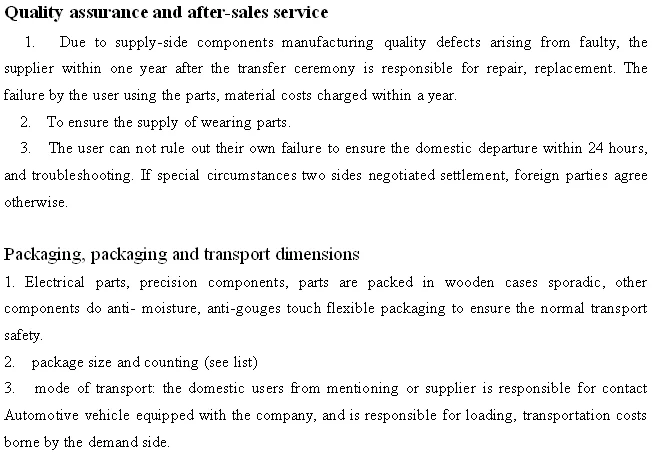

After-sales service:

Welcome you to contact us for the details.

Some model machines running vedio link:
https://youtu.be/O1bV1NhKx9o dual wire Take up machine
https://youtu.be/gFGqezzFdwk
400-13D cheap model Copper Rod Breakdown Machine

https://youtu.be/OIsjFdgKe2Y
https://youtu.be/Mirun20VU9o
https://youtu.be/4NKPJshyigs
https://youtu.be/1wSoJ8SHJuQ
https://youtu.be/8mwzfAFmC2A
Dual intermediate wire drawing machine with annealer+double take up
https://youtu.be/VAr4SBYh-zM
CJ DBT20- 10wires drawing machine with continuous annealer running vedio
https://youtu.be/pc6oNzIpHLM
https://youtu.be/giWIl8HBL9s
https://youtu.be/SjjdeWbB1lM

LHD-450-13DT Copper Rod Breakdown Machine with Continuous Annealer+630Double Take-up +Down Coiler
https://youtu.be/5wMHY7PL4Z0 LHD-450-13DT Aluminium Rod Rod Breakdown Machine with Continuous Annealer+Take-up +Down Coiler
https://youtu.be/q9PL5fMdkzk

18DT intermediate fine wire drawing machine with annealer

https://youtu.be/Cdzuvv4gBHk
flat wire production machine
https://youtu.be/OB7IhloJoyQ
automatically cable coil machine

https://youtu.be/hvkCReNY-fU
9D large intermediate wire drawing machine +650Down Coiler
