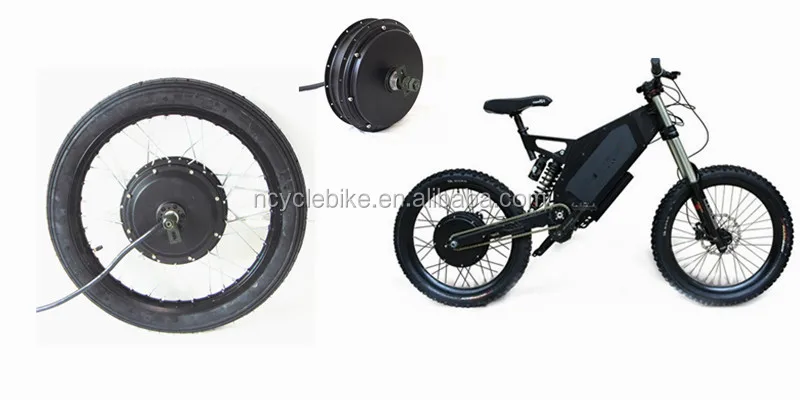

5000W ebike ! High speed full suspension electric bike hub motor 5000W for ebike
- Category: >>>
- Supplier: Changzhou Ncyclebike Co. Ltd.
Share on (60474383395):
Product Overview
Description
Product Specifications
Model | NC5000 | peak phase current | 300amp |
Motor power | 5000w | Max torque | 》 190N.m |
Axle | 10mm* 16mm | Max Efficiency | 89.80% |
motor diameter | 244mm | drop out | 149mm |
Voltage | 48v-96v | Max loading | 300kgs |
Magnet Height | 50mm | Hall sensor | 2 sets, one is for spare |
stator | aluminum alloy | hall sensor phasing | 120 degrees |
windings | 900rpm @72v | cross section of phase wire | 10mm2 |
waterproof grade | IP54 | temperature sensor | KTY82/122 |
KV | 12.5KV | color | dark black |
numbers of pole pairs | 16 | N.W | 12.75kgs |

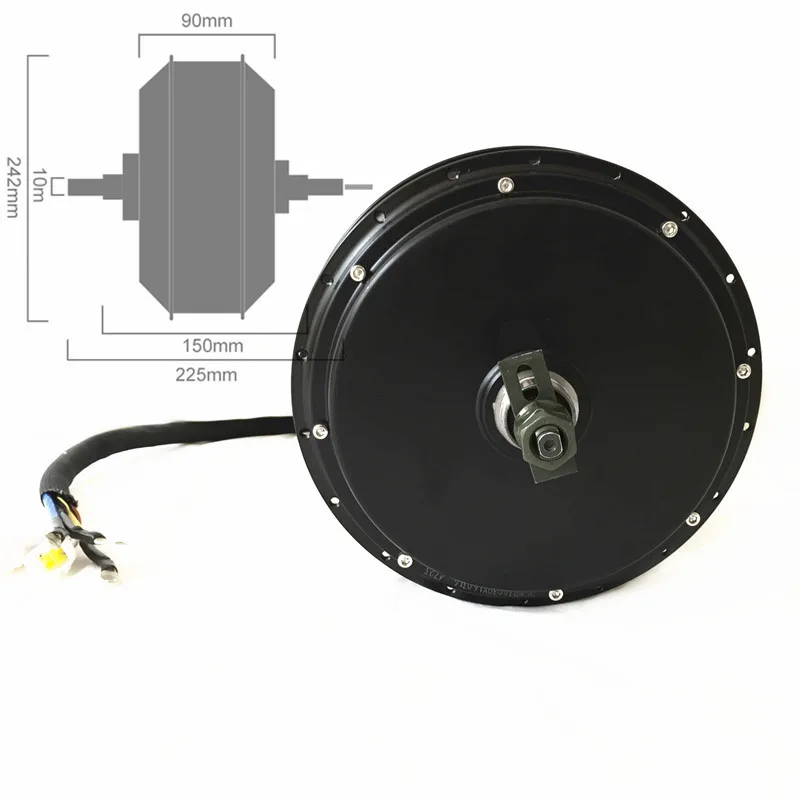

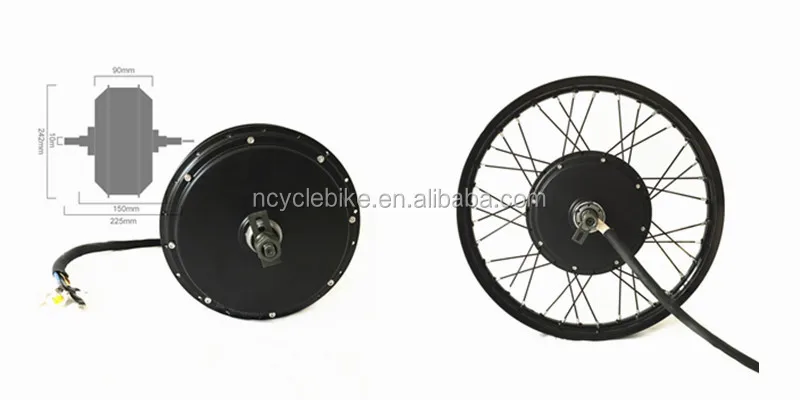

Product Drawing

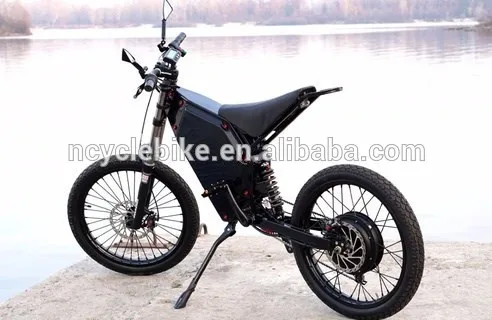

Application Show
1.Waterproof e-bike kit: which means you can fast install and release and better protect your motor and controller.
Making your e-bike more stronger in the rain.
2.Sabvoton sinw wave controller: lower noise, you won't worry it will disturb others.And you can enjoy programming
controller by PC and phone .And it has ebraking function , cruise function , regenerative breaking function .
3.Bluetooth app: you also can program with your phone directly.
4.TFT colorful display: Good looking and high level. And you can clearly see the speed and time.

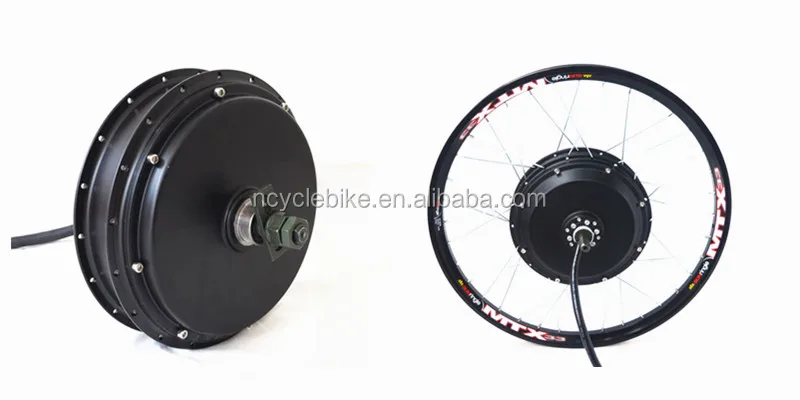

5.MTX sunringle strong rim: Very strong, won't damage when you ride at a fast speed.
6.Package with good foam :You can receive your goods of good condition.
Packing& Logistics
Our service
1.Warranty: 2 years from the date of purchase under normal using.
2. We offer OEM &ODM service.
3. Fast shipping .
4. 200% full inspection before shipping.
5. CE Approved
6. More than 8 years manufacturing experience, have professional R&D team.
7. 24 hours online service and 24 hours on call. .
4. 200% full inspection before shipping.
5. CE Approved
6. More than 8 years manufacturing experience, have professional R&D team.
7. 24 hours online service and 24 hours on call. .
Our exhibition
Our Company
CHANG ZHOU NCYCLEBIKE Co., LTD is producing electric bike and electric bike conversion kit for overseas customer since 2009, we mainly provide OEM service for customer, and already cooperated with some big chain store, supermarket, webshop.Due to cooperation with lots of buyers from EU, North America, South America and Oceania, we understand your concentrate as well as we understand the confusing felt by suppliers, most problems between clients and global suppliers are due to poor communication and different cultures, we can break those barriers and ensure you get what you want, when you want it and to the level you expect.
We are proud of supplying goods with manufacture's price and trading company's service class, and understand the importance of quality control as well as company reputation, here we promise the goods you received are strictly to meet samples.
Go ahead to call or email us, you will find we could be trusted, let us help you!
FAQ
1) Does your rear wheel support disc brake?
Yes, our motor wheel support standard 6-hole type disc brake. If you want to install hydraulic disc brake, we recommend you to put a 5mm washer between disc brake rotor and motor (to add distance between motor and rotor to put thicker caliper).
2) Why can't turn on power?
Please kindly check whether battery poles connect with controller is correct.
Please kindly check whether all connection correct and tight.
Please kindly check whether you connect electric lock plug and turn on throttle key.
Please kindly check whether you turn on LCD Display.
3) Why after I turn on power and turn throttle, motor doesn't work?
Please kindly check whether all power already turned on.
Please kindly check whether throttle connection is correct (Throttle is Red/Back/Blue wires).
Please kindly check PAS speed level on LCD, whether it is not 0 (0 will turn off PAS and throttle).
4) Why my speed display is not correct?
Please kindly check whether you have correct setting.
Correct wheel size setting: according to your wheel size.
Correct max speed setting: set it at max value 99.
Correct P1-P5 setting: P1=46,P2=0,P3=0,P4=0,P5=12 .
5) Why always cut off during riding?
Please kindly check whether your battery support enough discharge current (Battery has enough capacity and battery BMS board support max continuous discharge current at 40A).
Please check whether controller MOSFET is burned and short circuit.
6) How can I active cruise function?
If your controller connect LCD display, please don't plug the jumper on cruise connector:
SM-2Y Female Black Connector with Black/Blue wires.
Please set C7=1 from LCD, save and restart LCD.
With hold throttle and keep definite speed not change, press "Down" key of LCD display Button 3 seconds at same time, cruise function is activated.
Any other operation will cancel cruise function.
How to disable cruise function?
To set C7=0 save and restart will disable cruise function again.
If your controller doesn't connect LCD display, please plug the jumper on cruise connector: SM-2Y Female Black Connector with Black/Blue wires.
When hold throttle and keep definite speed not change about 3 seconds, cruise function is activated.
Any other operation will cancel cruise function.
How to disable cruise function?
Please turn on power.
Please remove cruise plug (small black plug of Black/Blue wires).
Turn off power.
Turn on power again .
7) Why after turn on, LCD show "03_Info"
This is because of hall sensor abnormal, and most time is because hall sensor wires connection doesn't contact well, please kindly check the 5-wire hall sensor connector and also inside whether any pin bent doesn't contact well.If use quick release wire, please kindly check whether connector plugged very tight. If every connection is ok, then the most possible reason is hall sensor burned.
(Very important: during installation, if need to remove the white hall sensor plug, please don't let hall sensor connector terminal touch phase connector terminal, otherwise hall sensor is very easy to be burned)
8) LCD C4 setting
C4=0: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level only valid for PAS but not for Throttle
C4=3: PAS 0 level will turn off only PAS, Throttle still work, PAS 1-5 speed level only valid for PAS but not for Throttle
C4=4: PAS 0 level will turn off both PAS and Throttle, PAS 1-5 speed level is valid for both PAS and Throttle
9) How to activate Regenerative Function?
Set C13=1 from LCD, save and restart LCD. During braking, battery will be charged back.
10) Which battery shall choose?
You can choose 36V/48V Battery (full charged voltage shall be maximal 43.8/58.4V), Battery capacity best should be more than 15AH, battery and battery BMS board must support max continuous discharge current at 40A, otherwise battery will always cut off!
