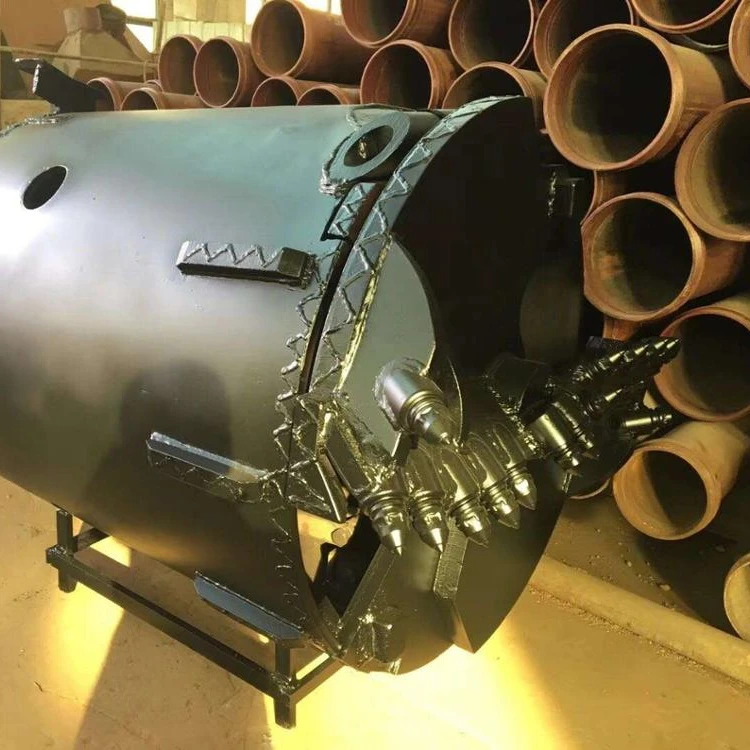

B47K 22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket
B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket

B47K 22 Teeth Rotary Drilling Rig Rock Drill Bucket

Share on (60474421040):


Price:RUB 66,297.36 - RUB 75,337.90

Quantity:


Product Overview

Description

Product Description

Product Application

Drilling buckets are mainly used for drilling water-bearing sandy soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and weathered soft formation. The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions. The opening and closing device can be operated manually, mechanically or mixed manner. The welding angle of bucket teeth can be designed according to formation conditions.

The bottom cover is made of high-strength Mn plate, and the cutting edge includes single-layer type and double-layer type; The soil inlet also includes single-bottom type and double-bottom type.

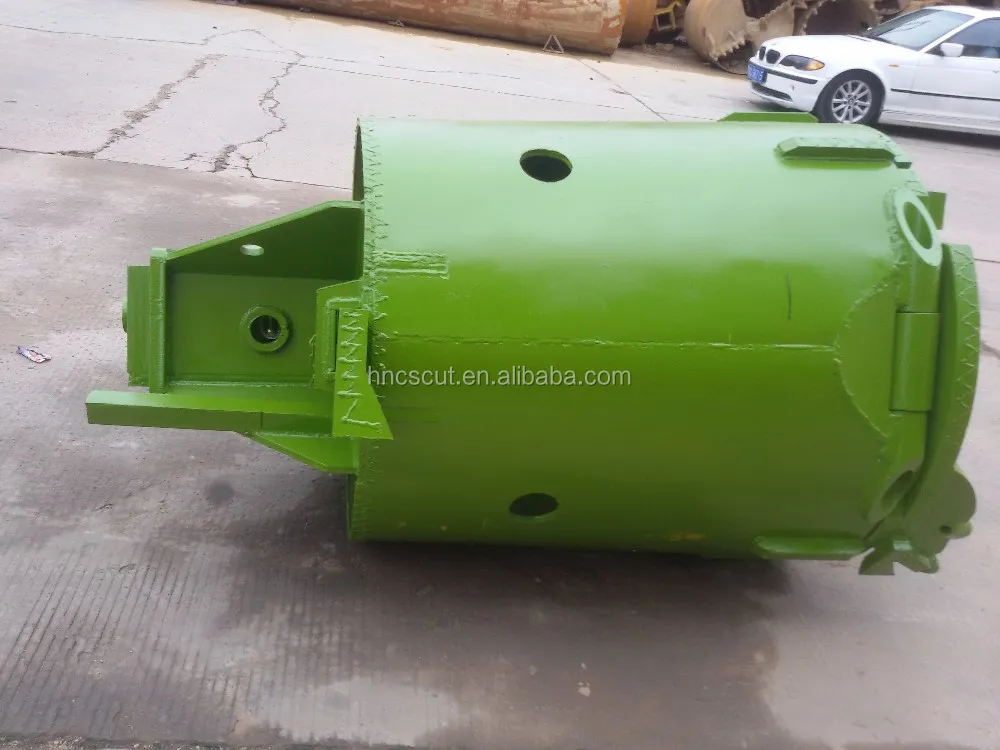

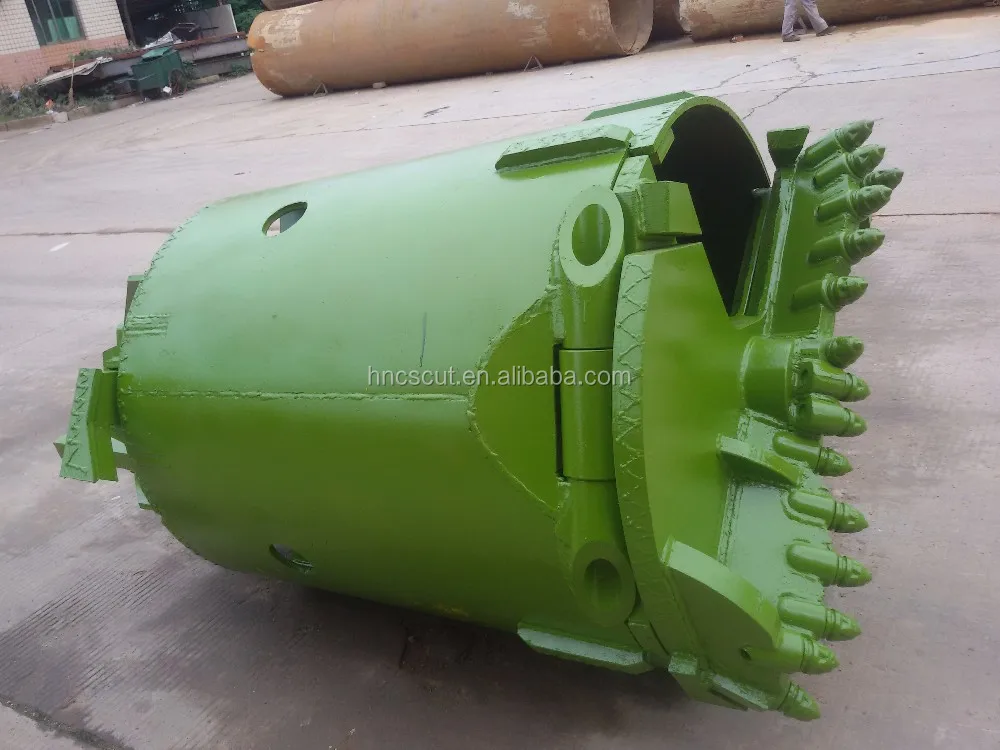

B47K-22 Teeth Rotary Drilling Rig Rock Drill Bucket

Dimension
Diameter
mm
1200
Shell Thickness
mm
20
Shell Length
mm
1200

Kelly Box
Type
/
Bauer
Dimension
mm
200*200
Application
/
For Bauer rig and most brand from China.

Base Bottom
Type
Double Bottom
Double Cut
Thickness
mm
40+50

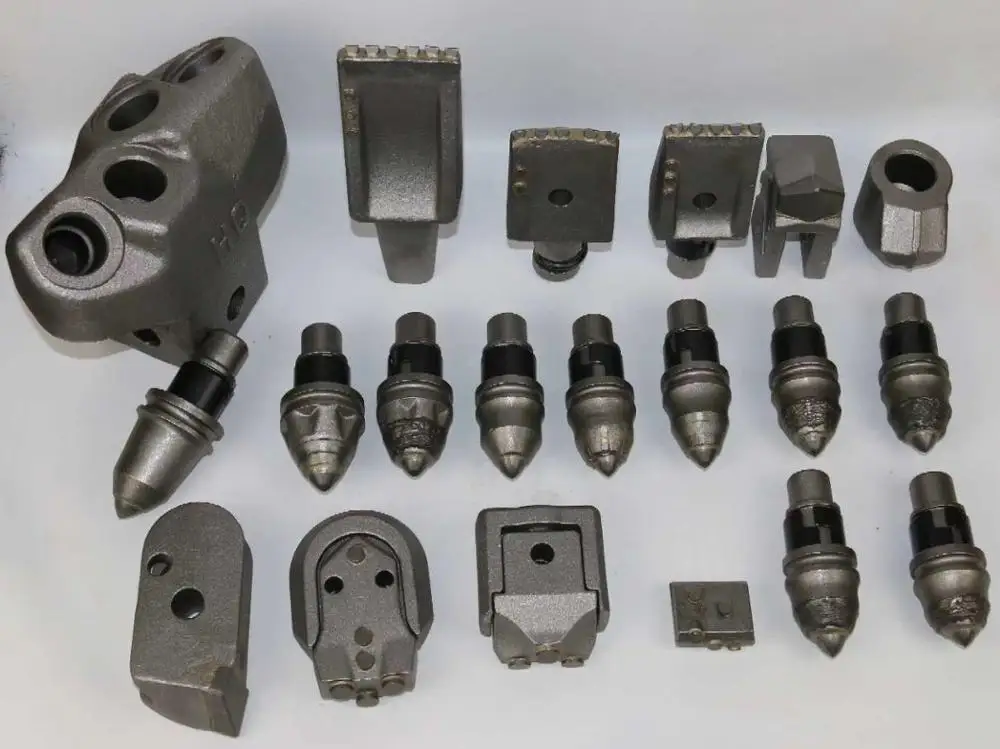

Teeth
/
B47K-22

Main Applications:

These drillling buckets are suitable for drilling in clay, silt and loose to medium dense sand and gravel.
1- Single cut drilling buckets are recommended up to coarse gravel.
2- Double cut drilling buckets are mainly used for bigger diameter uncased boreholes.
3- Single bottom drilling buckets are used for clay layer and sticky formation.

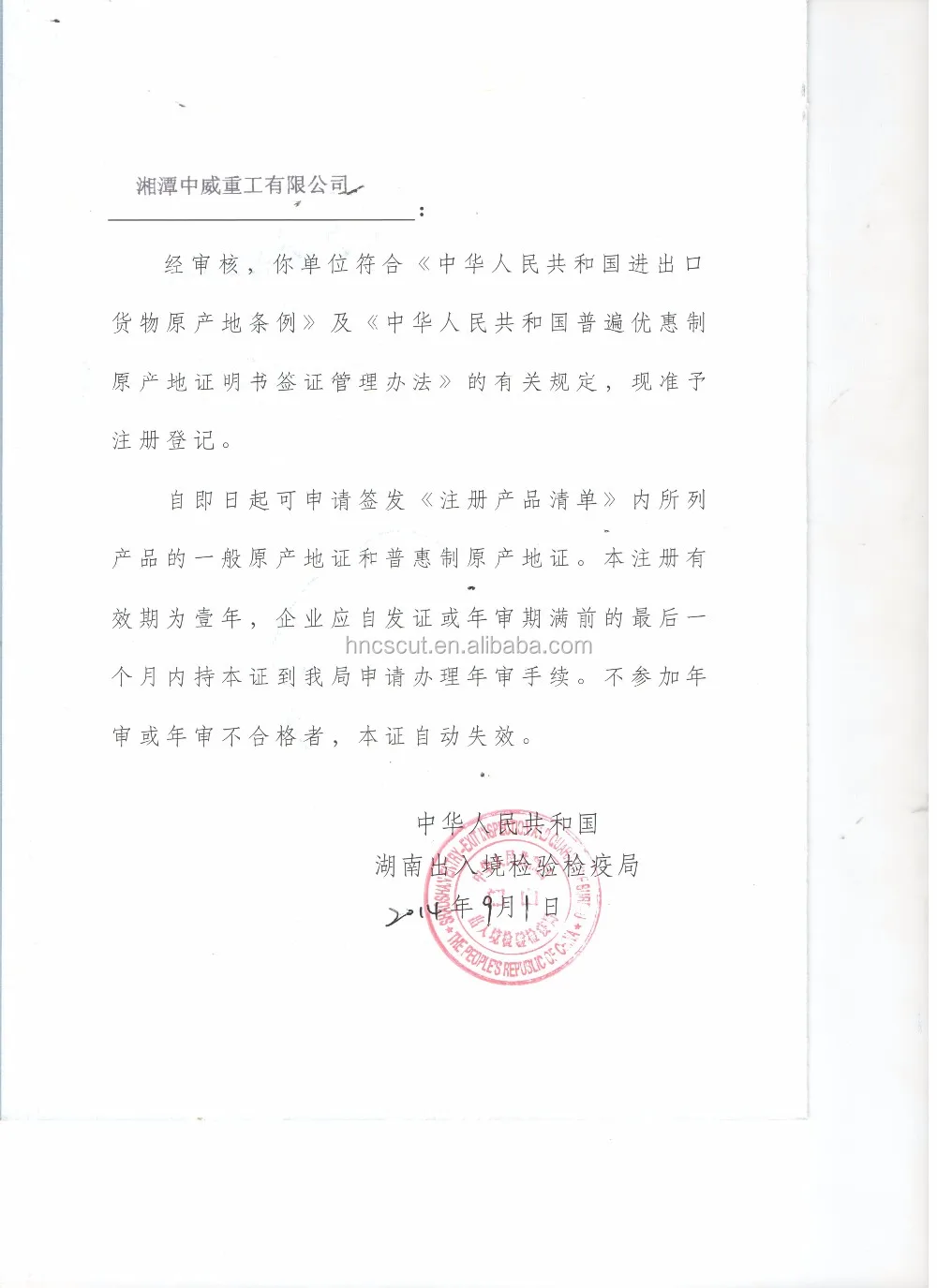

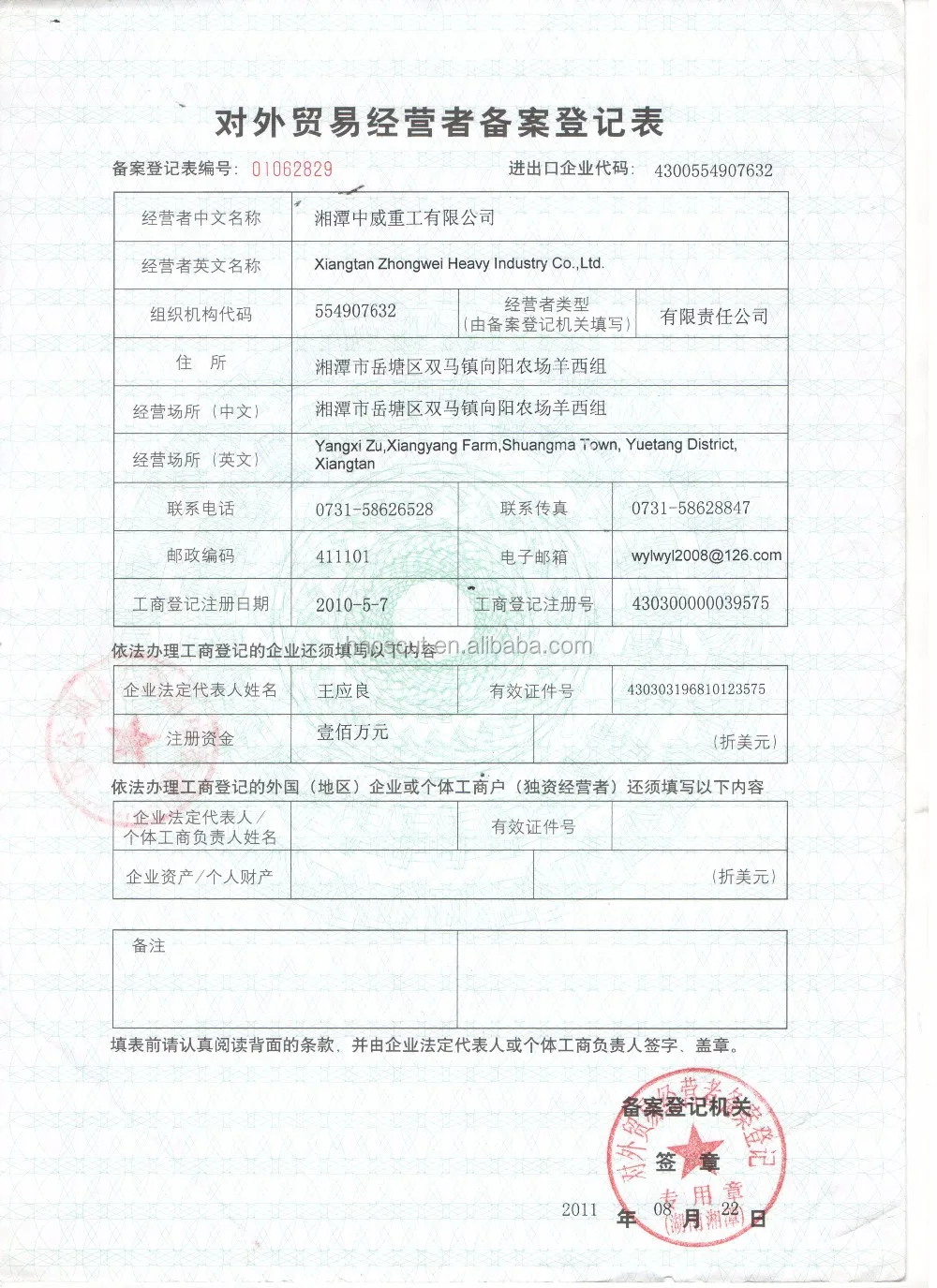

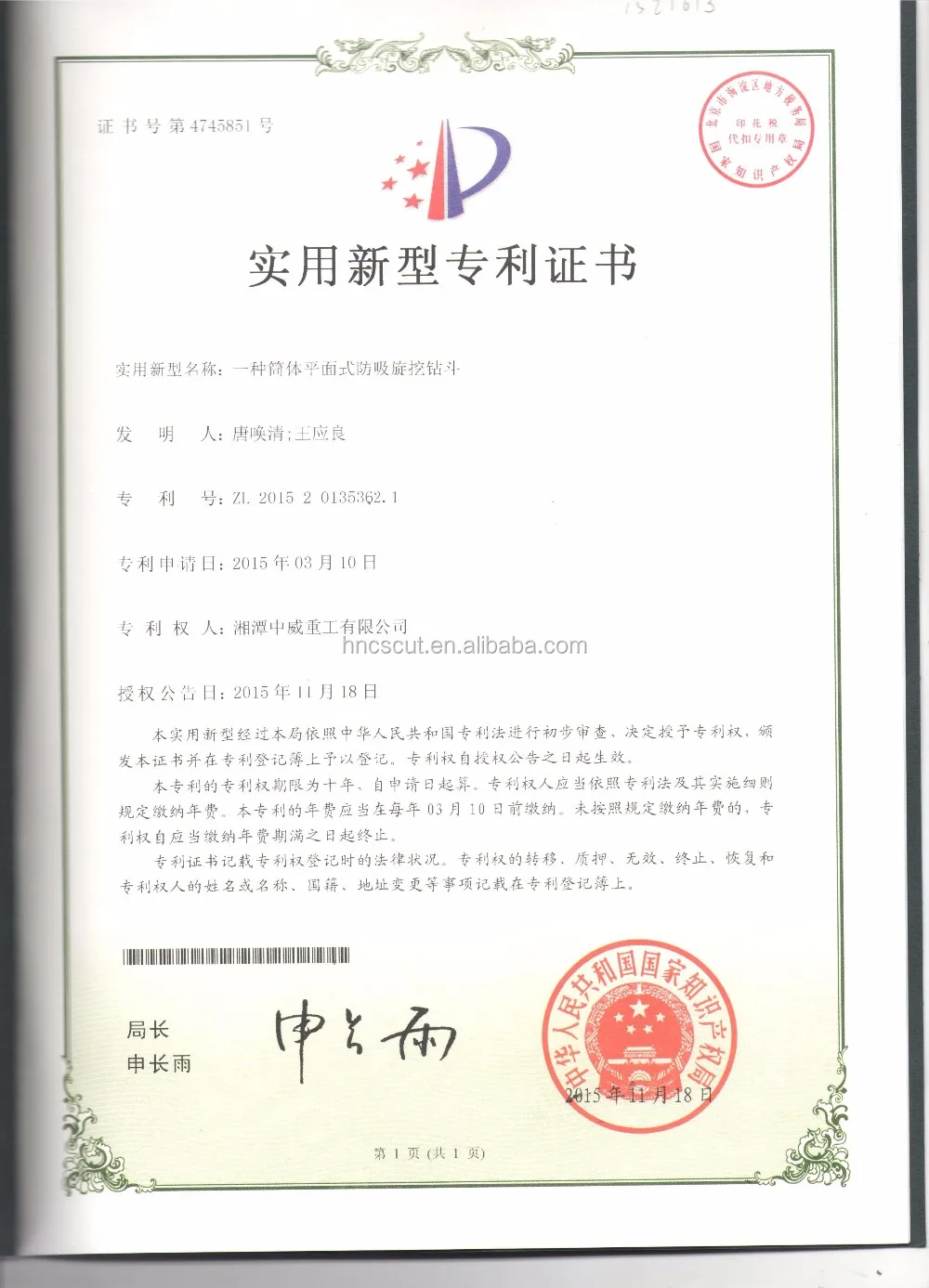

Certifications
Detailed Images

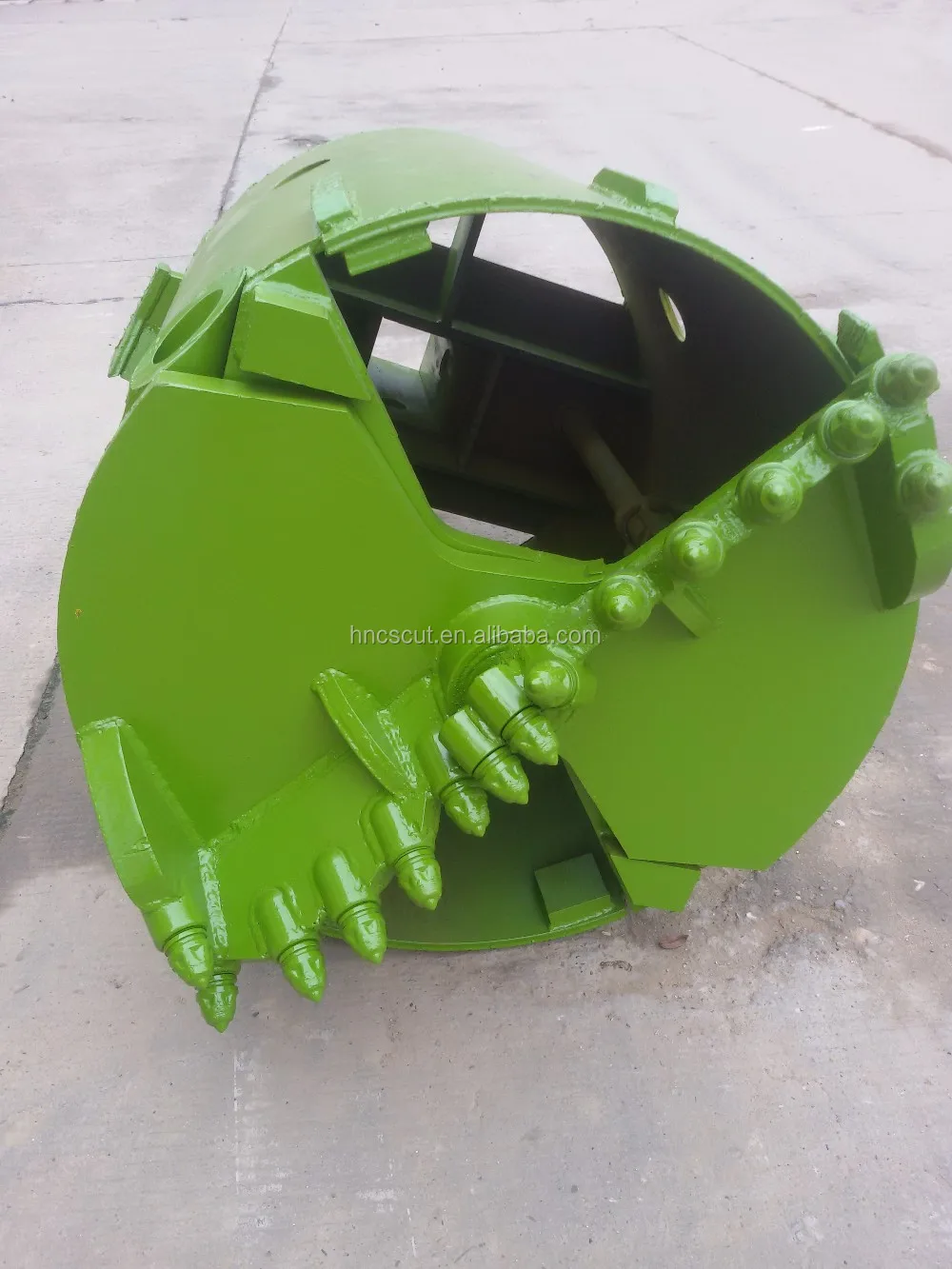

Base Plate

Type: Double bottom double cutting

Thickness: 40mm+50mm

Teeth: B47K-22

Teeth quantity: 14 Pcs

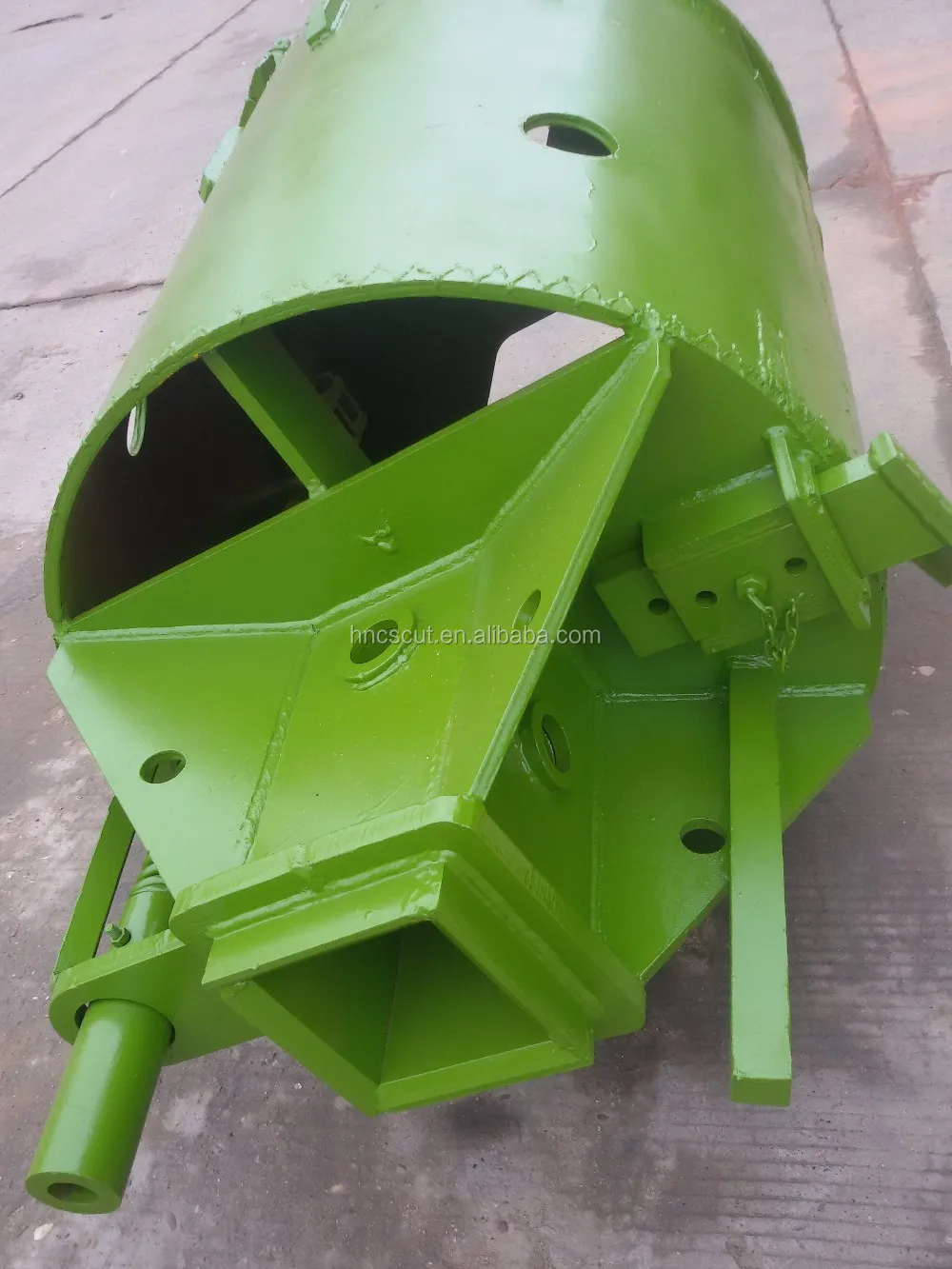

Kelly Box

Type: Bauer type
Dimension: 200mm*200mm
Application: For Bauer rig and most rigs of Chinese Brand.

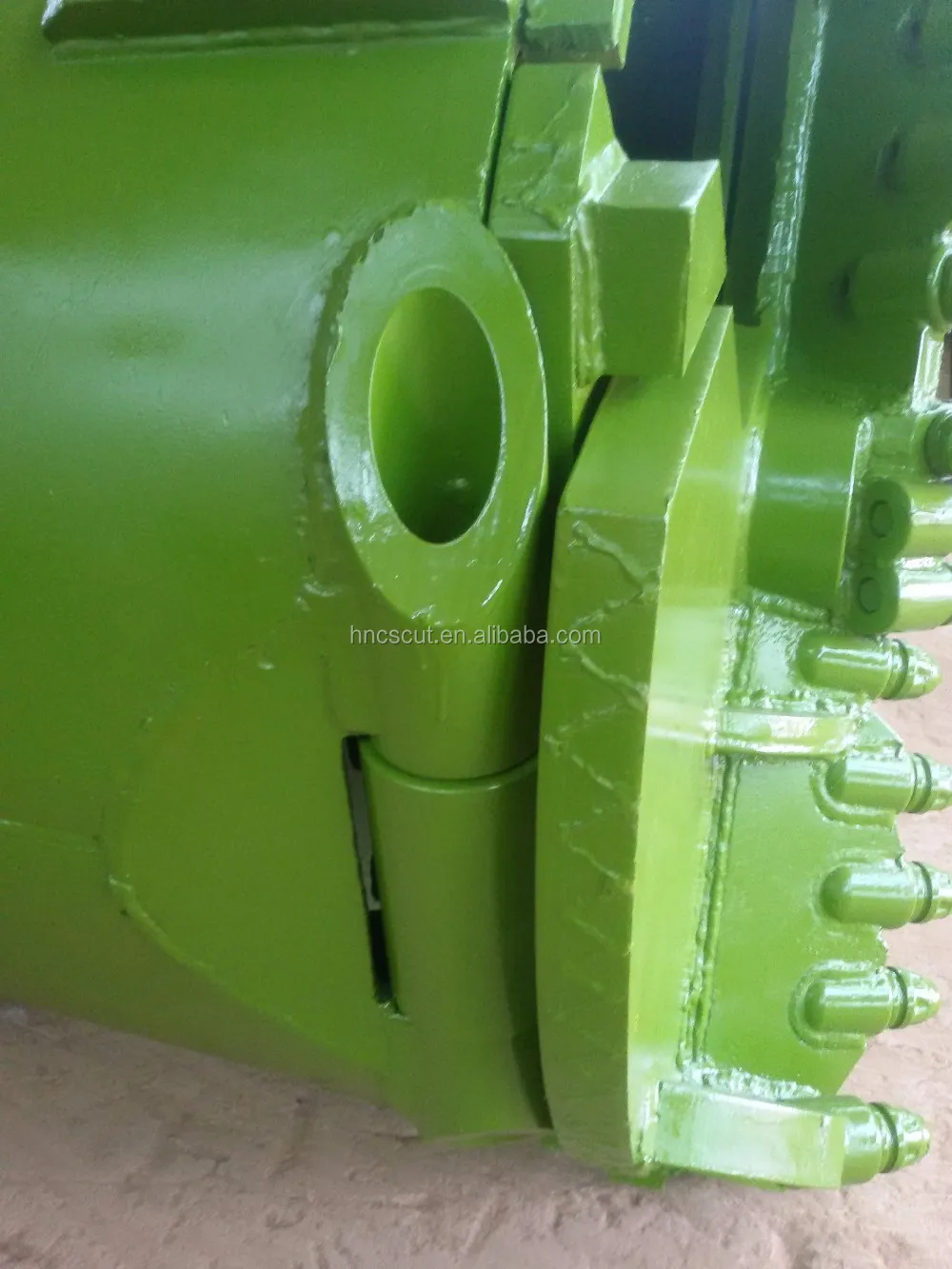

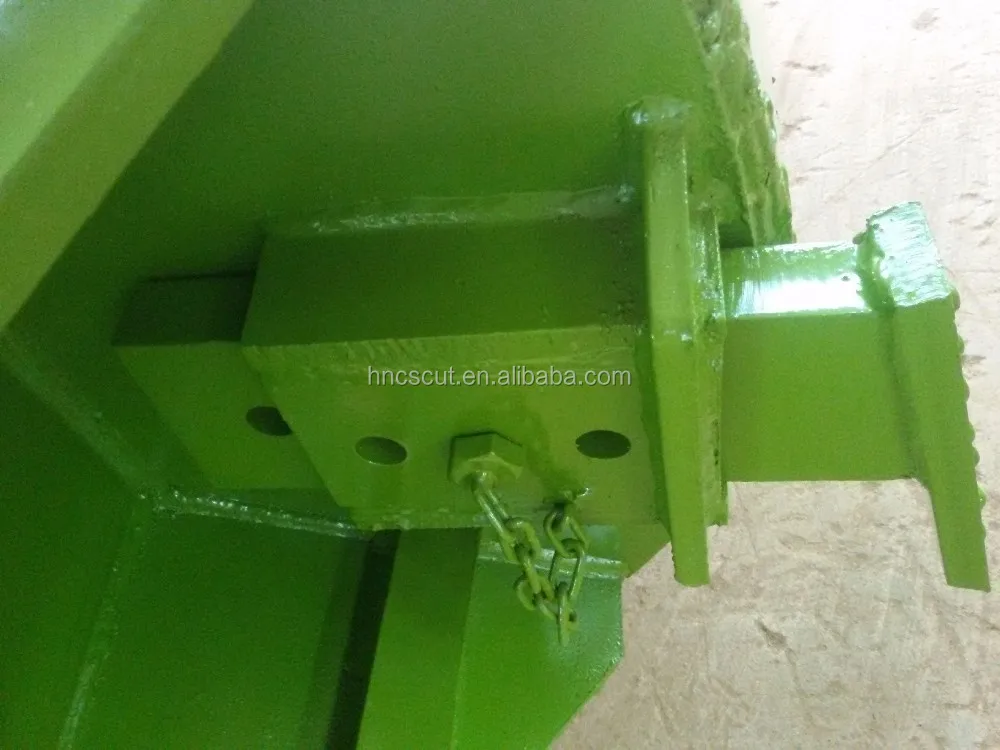

Hinge

Material: 40# steel

Applied Technique: Casting
Structure: side part (2Pcs), middle part (1Pc), pin (1Pc)

Reaming Tool

Type: Adjustable
Max Valid Diameter: 200mm
Structure: reamer, box, bolt

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

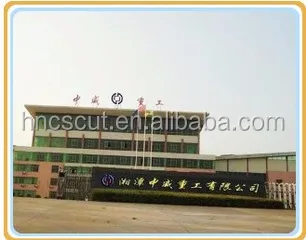

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

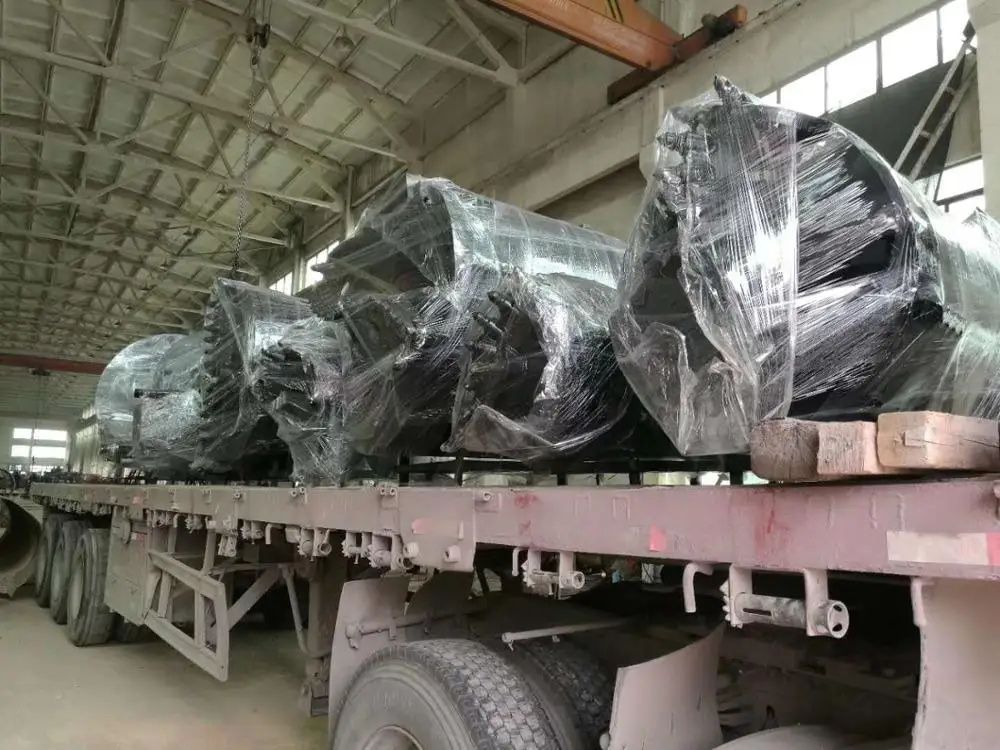

Packing & Delivery
Packaging
Size
1950 (L) * 1200 (W) * 1200 (D)
Weight
1.4 T



Packaging Details
Packaging:

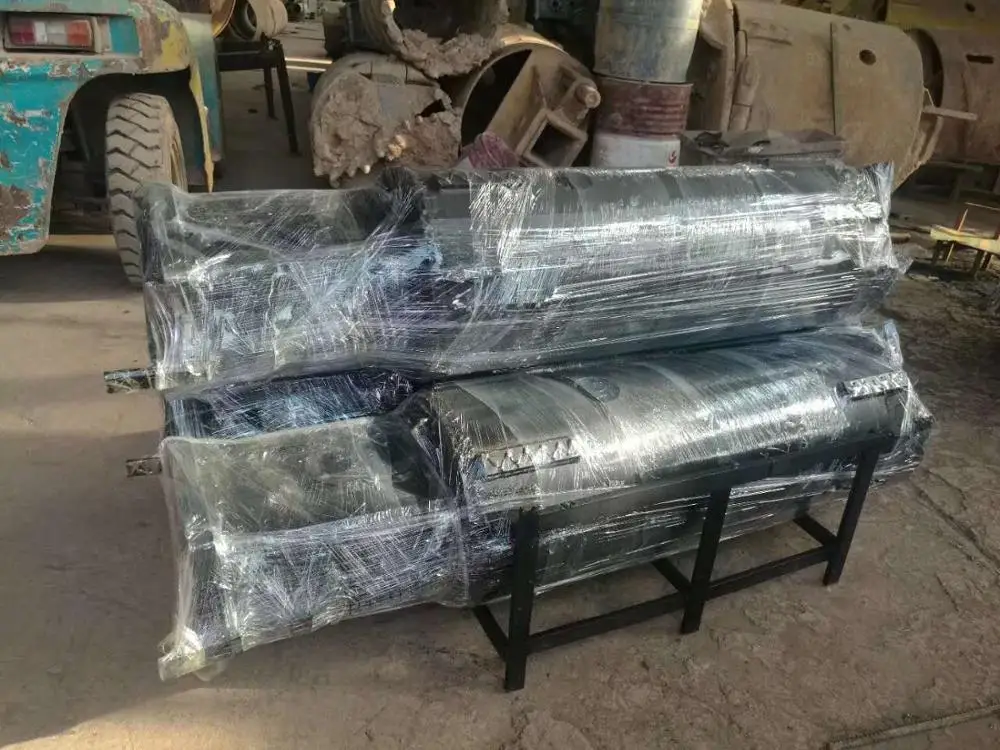

Wrapped with plastic film and fixed with iron support.
Port:
1. Changsha Port for FCL as usual
2. Tianjin or Shanghai or Shenzhen Port for LCL or bulk cargo as usual
3. Any port in China as customers' special demand

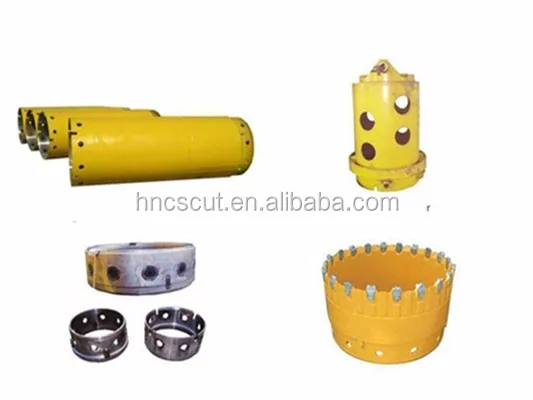

Related Products
