Descriptions
1. This Autoclave is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work.
2. This Autoclave is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation.
3. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.
Specifications
1. Model: SUN3-I
2. Inner chamber of the quick steam sterilizer (Diameter X Depth) 125mm X 195mm
3. Rated Voltage: 220V±22V,50Hz±1Hz ; 110V±11V,60Hz±1Hz
4. Rated Power: 500VA
5. Sterilizing:(Pressure/Temp.): 200~230Kpa/134℃
(Both of above are Under Standard Atmospheric pressure)
6. Fuse-Melting pipe: T15A;T30A
7. Water Consumption volume per recycling round: 0.15L
8. Operating Temp: 0-40oC
9. Net weight:7.5kg
10. Gross Weight:7.75kg
11. Appearance size:30*19*35cm
12. Package Size:38*29*45cm
13. Power:500W
14. Sterilization time: 11min
15. Sterilizar Volume: 3 Litres
16. Required Water: Distilled water or purified water
Power |
Sterilization
Temperature
|
Sterilization Time |
Sterilization Cycle
time
|
SteriliZar
Volume
|
Required
Water
|
Appearance
Size
|
Outside
Dimension
|
G"W |
500W |
134 ℃ |
4min |
11min |
3Litres |
Distilled Water
or purified water
|
300×190
×350mm
|
370×260
×440mm
|
7.5kg |
CHARACTER
Quick sterization within 11 minutes.

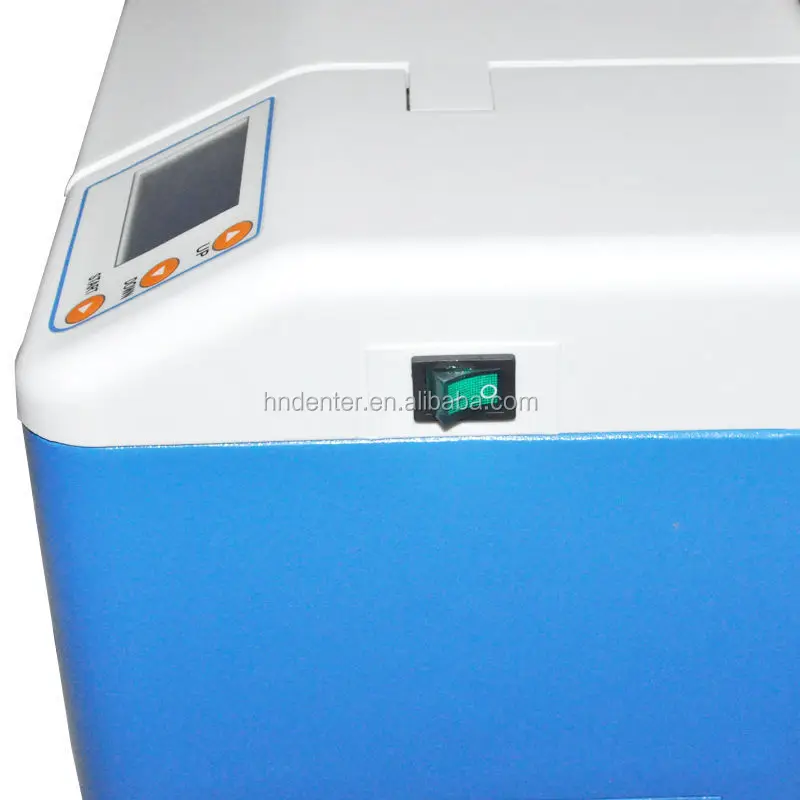

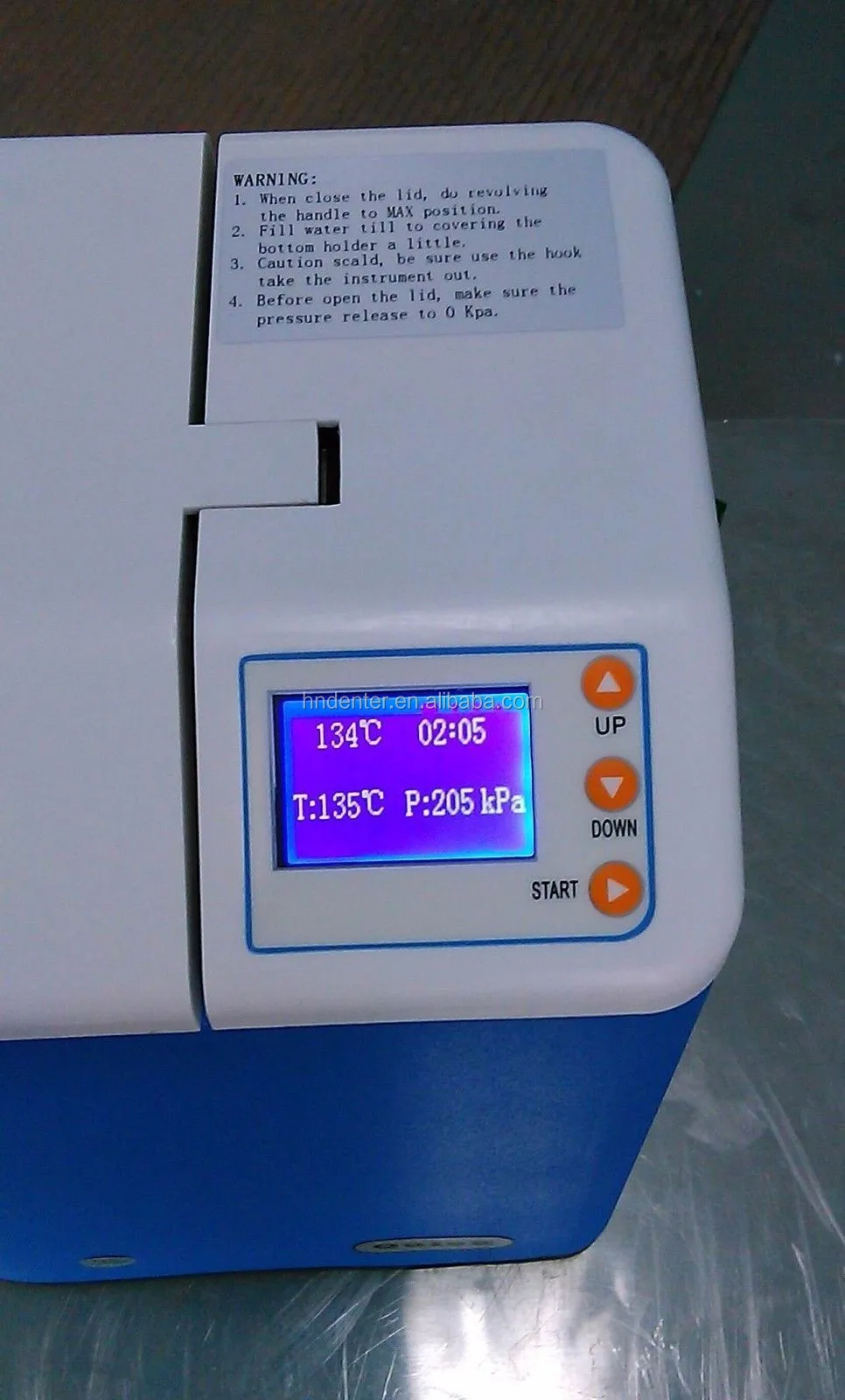

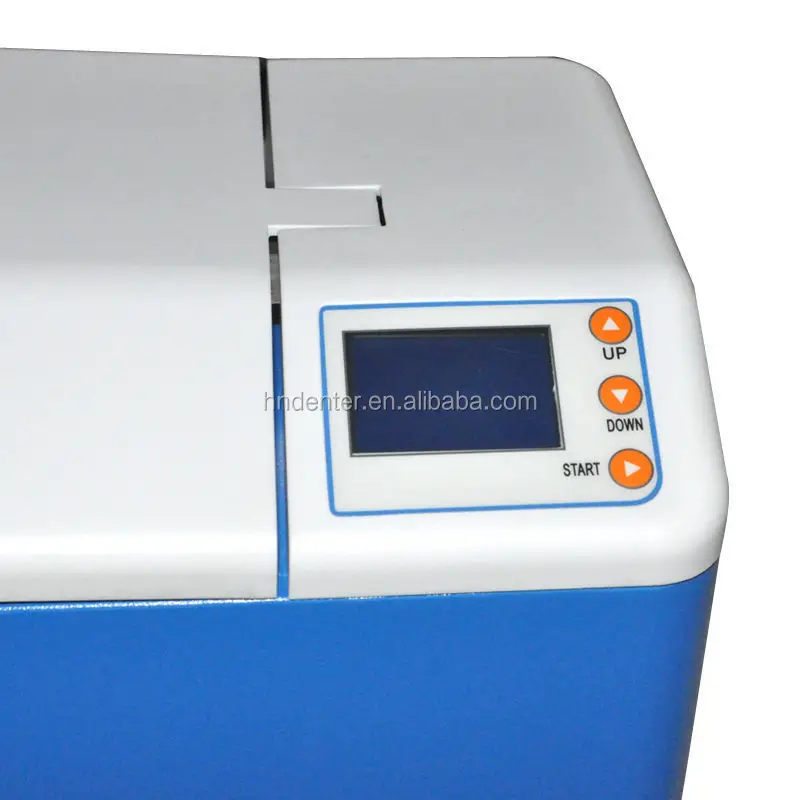

LCD display
With overheat protection.
Installed safety valve.
APPLICATION SCOPE
Easy operation.
Special designed for the sterilizing of Handpiece and other necessary.dental device.
