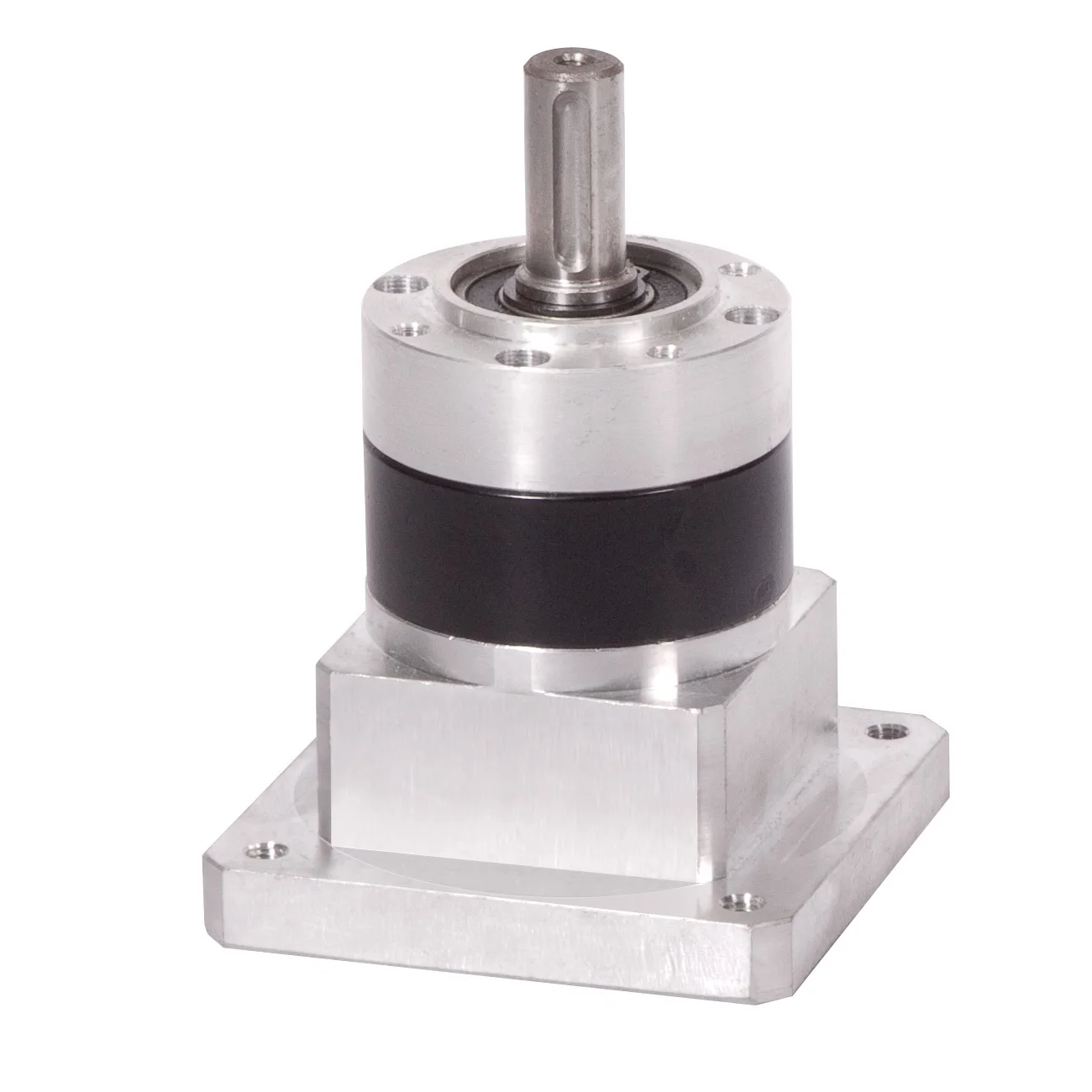

56MM, 60MM AC/DC/Stepper Motor Precision Reduction Planetary Gearbox
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (60474475847):
Product Overview
Description
Product Description
56mm Outer Diameter Helical Gear Low Noise Planetary Gearbox Permissible Load Range: 3N.m~30N.m | ||
内齿圈材料 Housing material | 金属+塑料斜齿 Metal or plastic helical gearbox | |
输出轴轴承形式 Bearing at output | 滚动轴承Ball bearings | |
最大允许径向负载(离法兰12mm处) Max. Radial load(12mm from flange) | ≤200N | |
最大允许轴向负载 Max.shaft axial load | ≤100N | |
径向间隙(测量点尽量接近法兰 Radial play of shaft(near to flange) | ≤0.04mm | |
轴向间隙 Axial play of shaft | ≤0.3 mm | |
背隙(无负载时) Backlash at no-load | ≤1.51 | |
输出轴最大承受压入力 Shaft press fit force,max | ≤300N | |
AC/DC/Stepper Motor Reduction Planetary Gearbox
Transmission gearbox/reduction gearbox/gear reducer
High Torque 56mm and 60mm Diameter Planetary Gearbox
Options:
Optional gear material: plastic; metal; powder metal; bronze; steel
Fitted motor: Brushed/brushless/stepper/AC motors
Special shaft & flange material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Input speed within 8000 RPM
Options:
Optional gear material: plastic; metal; powder metal; bronze; steel
Fitted motor: Brushed/brushless/stepper/AC motors
Special shaft & flange material and dimensions
Custom design; OEM products available
Features
Ball bearing at output shaft
Input speed within 8000 RPM
Output speed 0.5 ~ 1200rpm
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
Certificates & Qualifications
REACH, CE, UKCA, CCC, RoHS, ISO9001: 2015, ISO14001: 2015, OHSAS18001: 2007
Various gear ratios enable either speed reduction or to increase the torque capability
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position
Certificates & Qualifications
REACH, CE, UKCA, CCC, RoHS, ISO9001: 2015, ISO14001: 2015, OHSAS18001: 2007

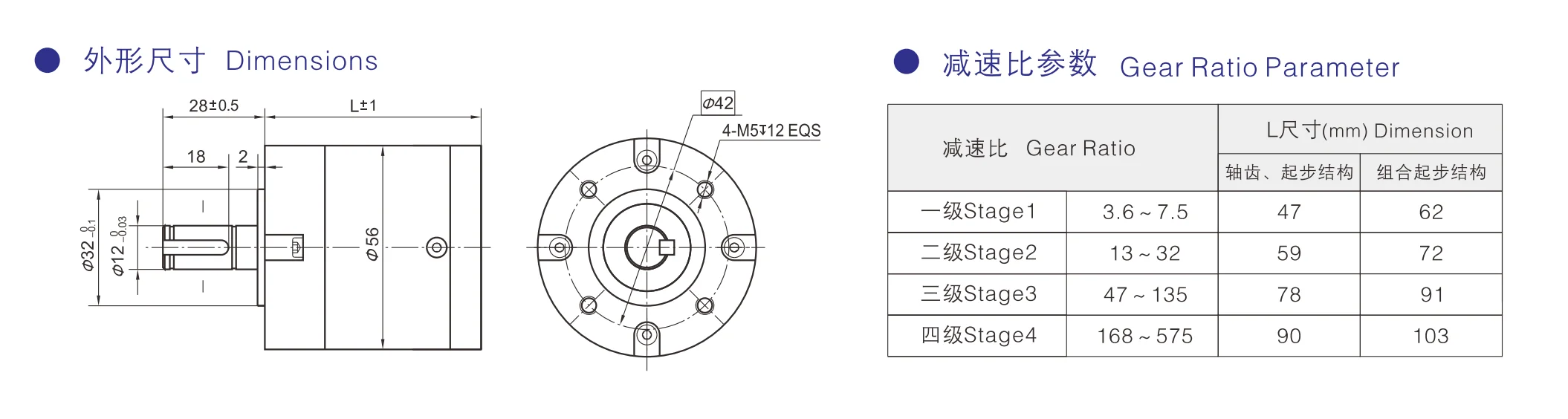

Gearbox Technical Data:
参数 Parameter | 一级 Stage1 | 二级 Stage2 | 三级 Stage3 | 四级 Stage4 | |||
传动效率 Transmission efficiency | 90% | 81% | 73% | 66% | |||
额定允许扭矩 Rated tolerance torque | 3N.m | 12N.m | 20N.m | 30N.m | |||
瞬间允许扭矩 Max momentary tolerance torque | 3倍额定扭矩 Three times of the rated torque | ||||||
工作温度 Operating temperature | -10℃~+80℃ | ||||||
使用相对湿度 Operating ambient humidity | 20%～85%RH | ||||||
推荐输入转速 Recommend input speed | ≤4000rpm | ||||||
输入与输出转向 Input and output direction | 同向 Same direction | ||||||
