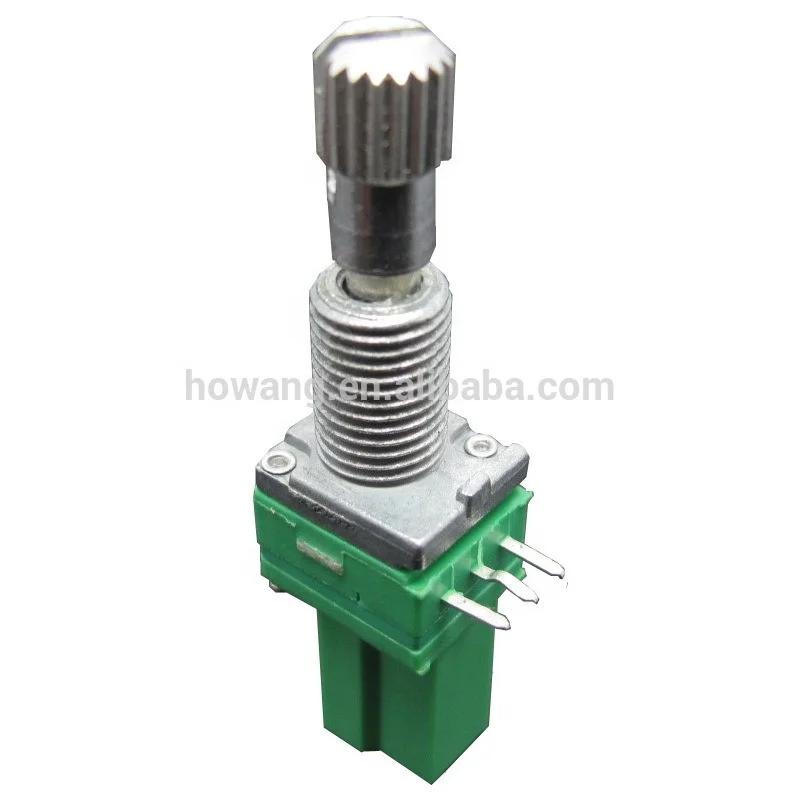

F091 Series Metal shaft long rotational life bushing rotary potentiometer with switch option
- Category: Potentiometers old >>>
- Supplier: HUIZHOU HOWANG ELECTRONICS CO. LTD.
Share on (60474648066):
Product Overview
Description
Introdution
F091 Series
Metal shaft Potentiometer
Feature
1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Long Life Type Available
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω1MΩ:±30% |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC50V.DC10V |
| Rated Power | Linear Taper B: 0.05W Other Tapers: 0.025W |
| Rotational Noise | Less than 100mv |
| Insulation Resistance | More than 100MΩ at DC 250v |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | Term.1~2: Less than 20Ω Term.2~3: Less than 20Ω |
| Gang Error (Dual Unit or Multi Unit) | -40dB~0dB ± 3dB |
| Mechanical characteristics | |
| Total Rotational Angle | 300°± 10° |
| Rotational Torque | 5~90gf.cm |
| Click Torque | 50gf.cm~200gf.cm |
| Rotational Stopper Strength | 4.0Kgf.cm Min. |
| Push-Pull Strength | 6.0Kgf Min |
| Bushing nut tighten strength | 8.0Kgf.cm Min |
| Number of detents (click) | 1C (Center Detent), 11C, 21C, 41C |
| Durability | |
| Operating temperature range | -10°C ~ +70°C |
| Storage temperature range | -30°C ~ +80°C |
| Rotational Life | 15,000 Cycles |
| Switch characteristics | |
| Contact resistance | Less than 100mΩ |
| Switch rated power | Push: 0.5A at DC 12V Rotational:3.0A at DC 16V |
| Switch push stroke length | 0.5+0.5/-0.3mm |
| Switch Rotational Angle | 50° Max |
| Switch torque | Push: 250~550gf Rotational: 100~350gf.cm |
| Switch circuit | S.P.S.T & D.P.S.T |
| Switch life | 15,000 Cycles Min. |

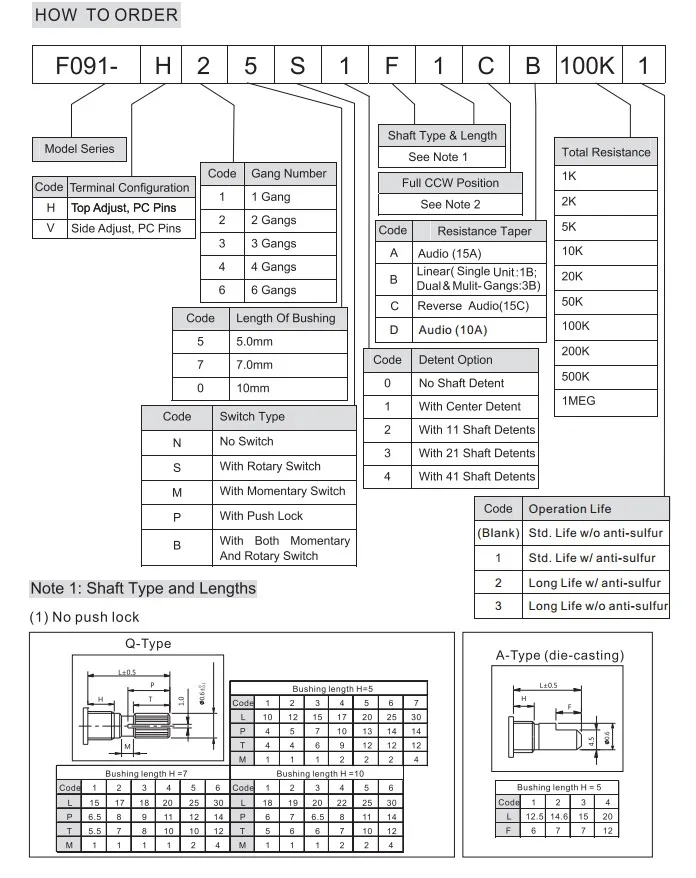

HOW to Oder?
Quality Certificates
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
 |  |
 |  |
 |  |
