Carbon Dioxide Purification and Gas Generating Equipment
Product Description

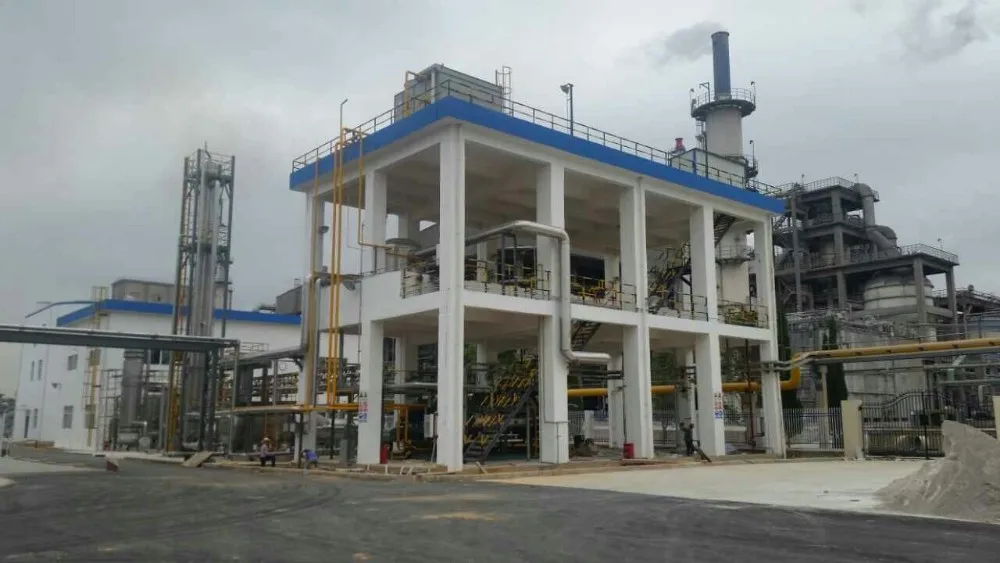

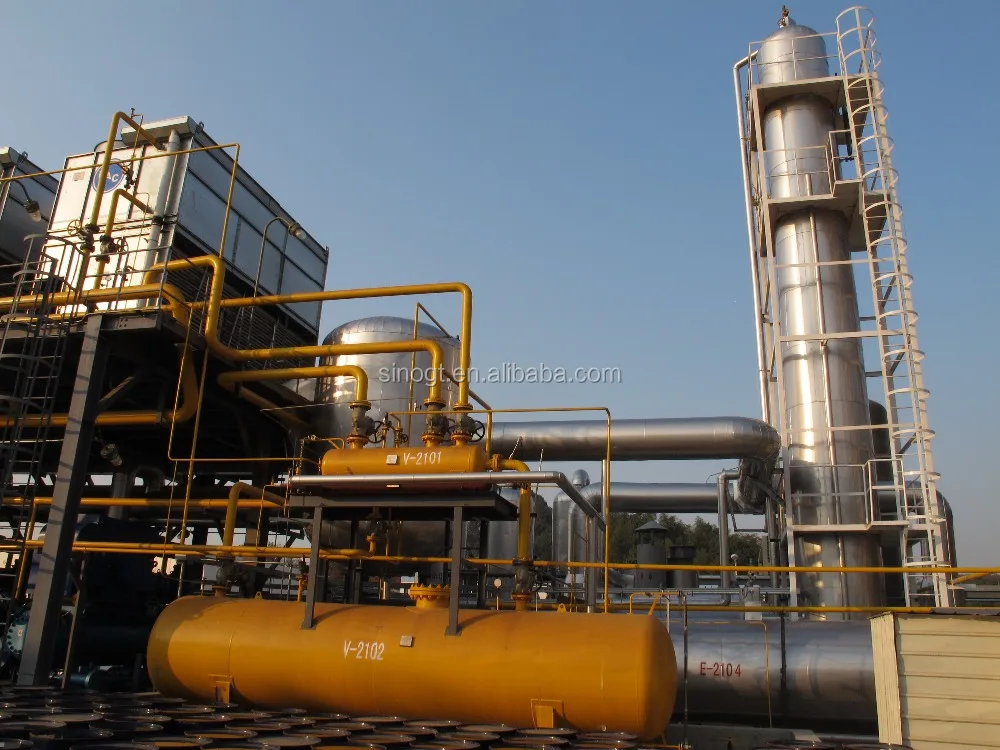

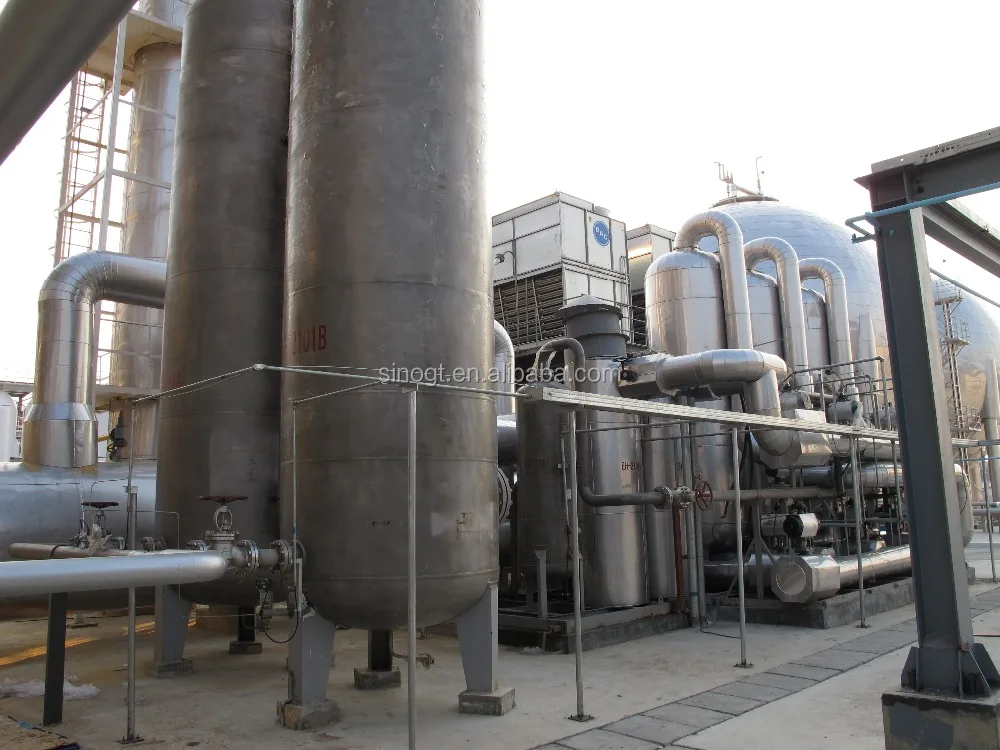

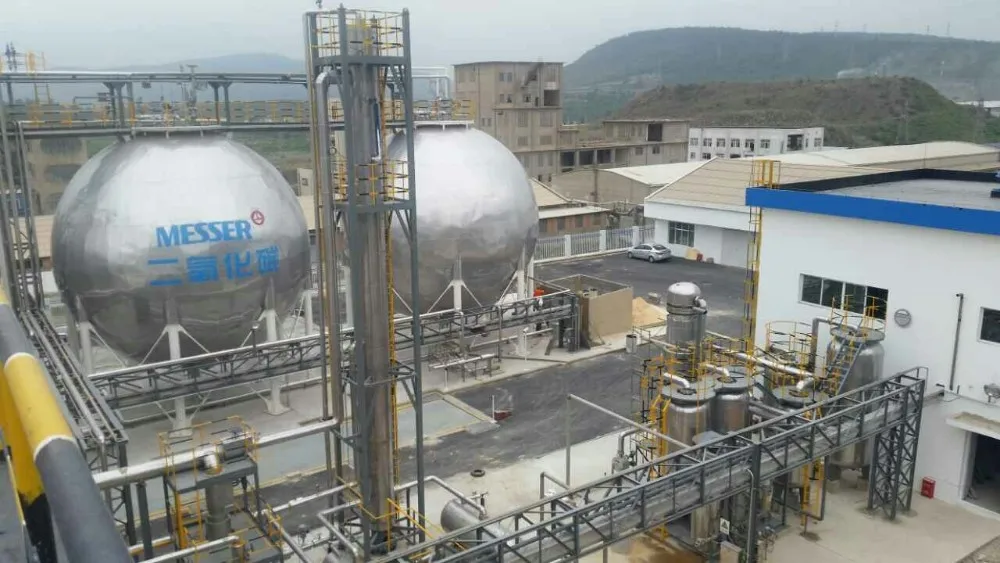

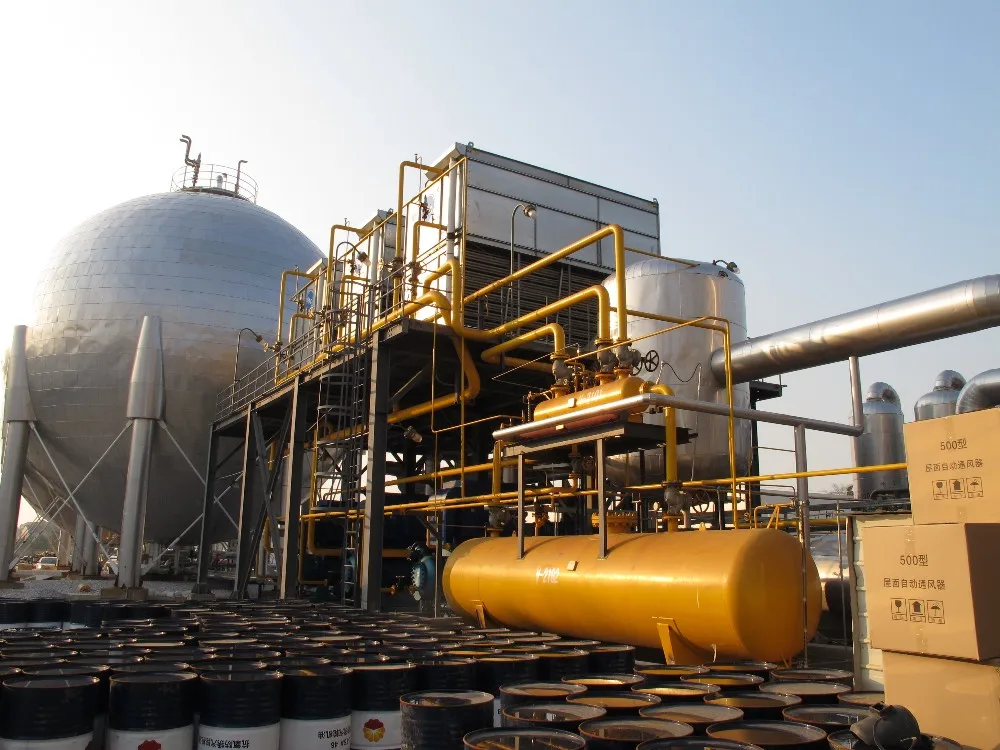

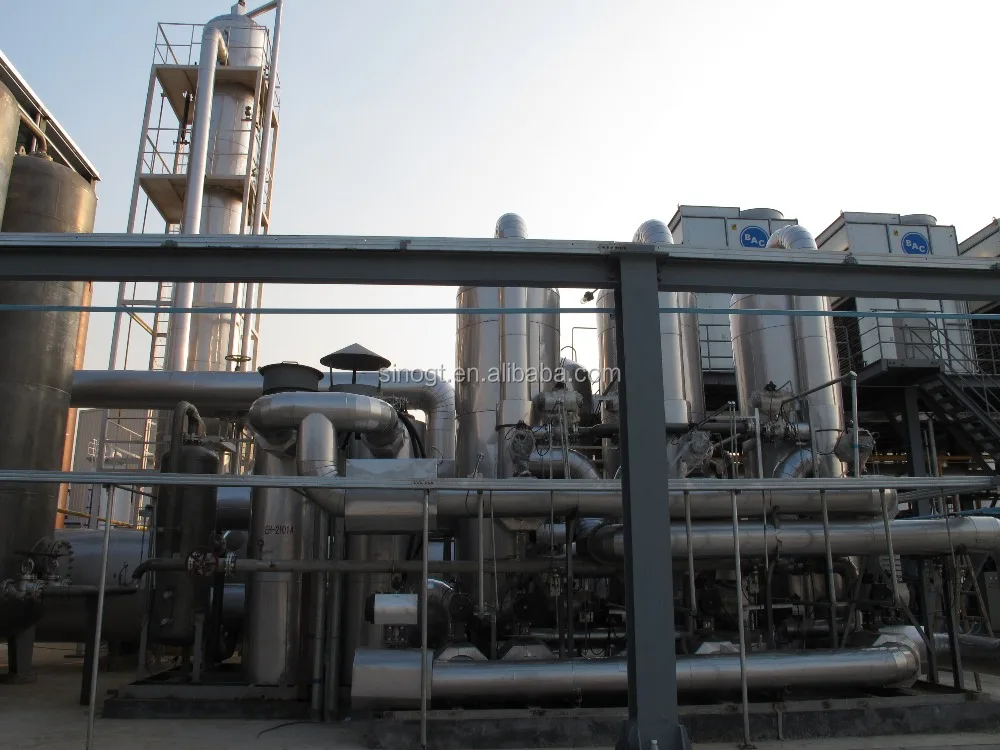

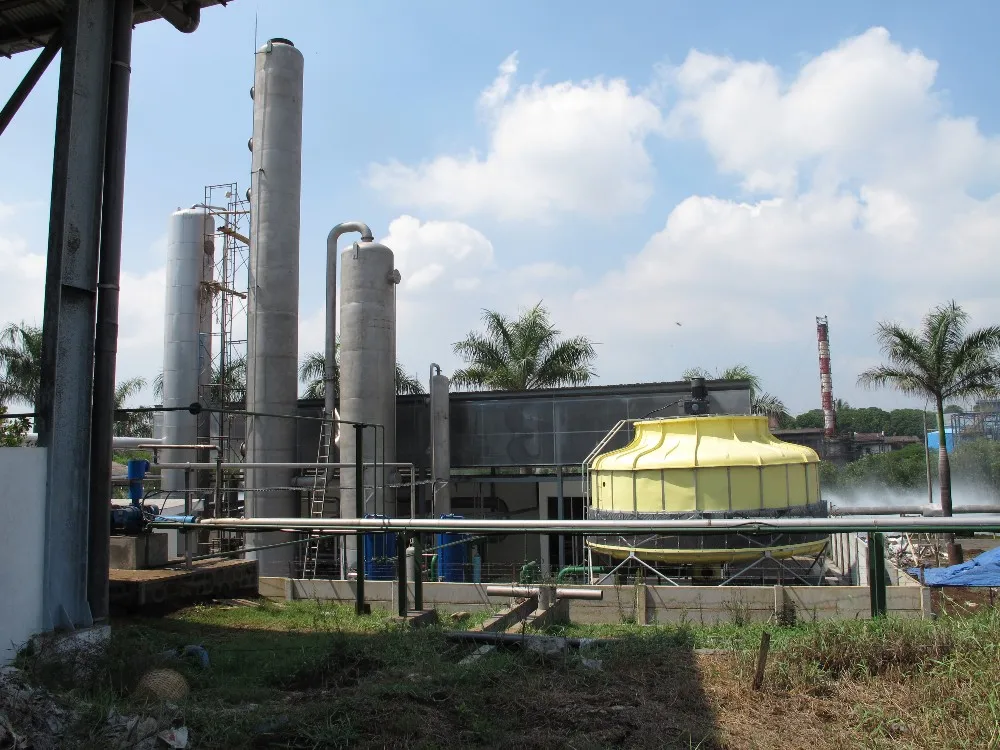

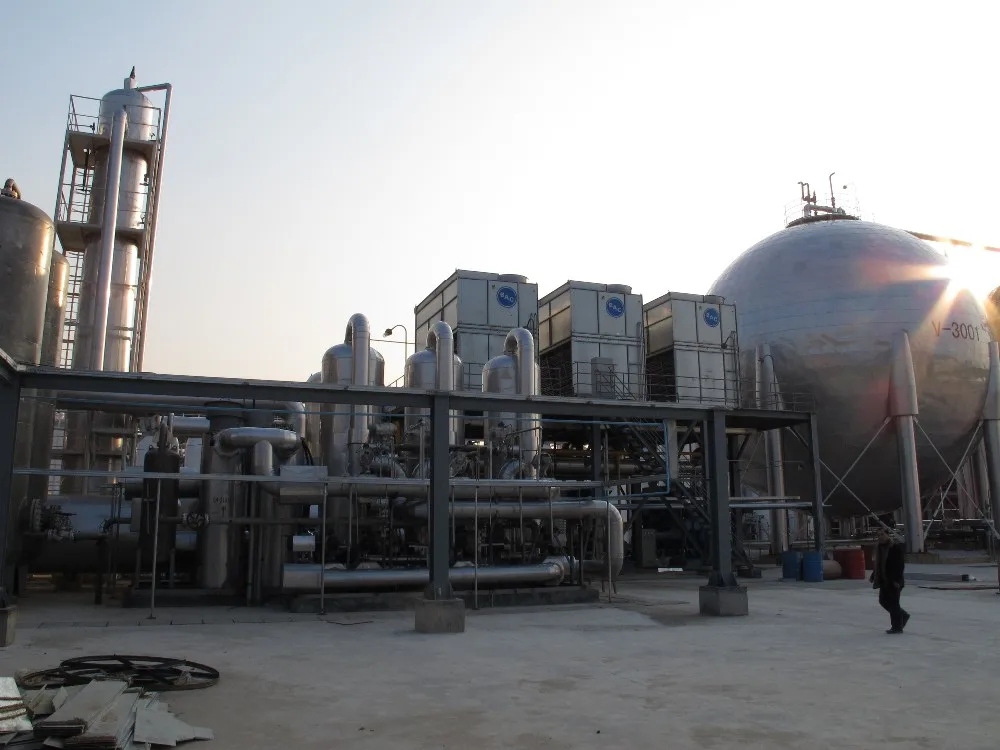

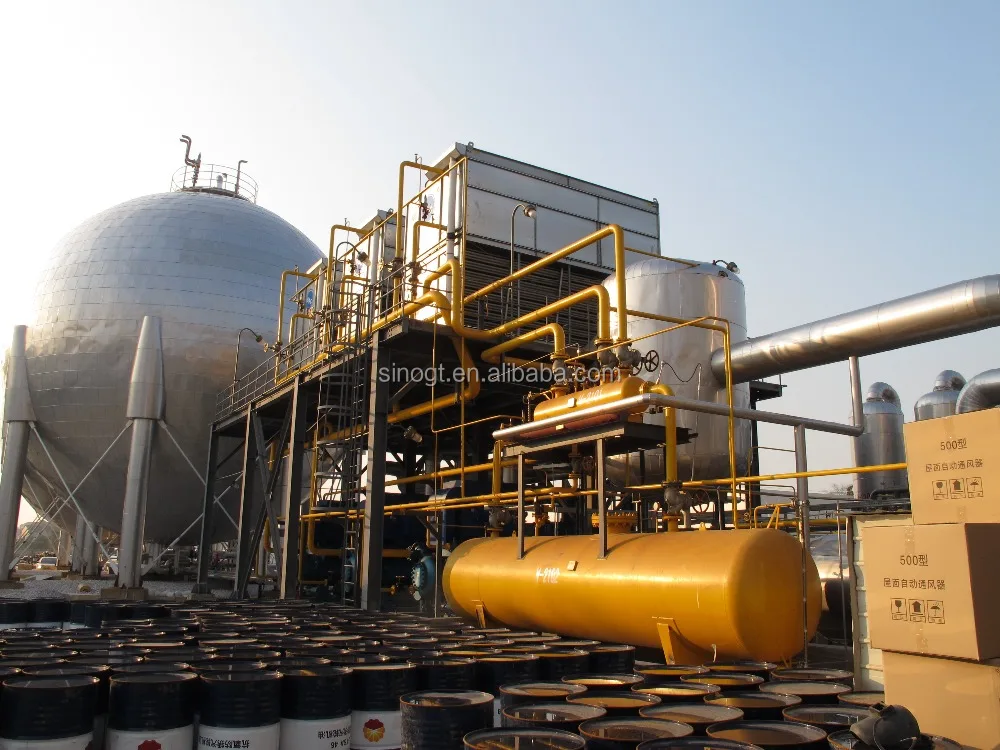

CO2 Recovery Plant for CO2 Recovery from Fermentation
As the names suggestd, this CO2 recovery plant is and ideal choice alcohol plant, brewery,and sugar refinery, to capture the CO2 in the tail gas, which is composed of CO2m alcohol, aldehydes, methane, hydrogen, nitrogen, vapour, as well as amount of NO and lipid. The CO2 content in the tail gas is up to 90% to 99%.
Perfectly combining water scrubber, water separator,and special adsorbent, the CO2 capture equipment is capable of removing alcohol, aldehydes, lipid, and NO. Upon the completion of water,methane, hydrogen, nitrogen removal, the clean CO2 is then obtained with this CO2 recovery plant.
Features:
CO2 recovery plant is specially designed in line with the feed gases of different components. Therefore, equipment investment and energy consumption are reduced while the equipment function is also guaranteed.
The equipment is featured with simple design, small occupation area and easy insyallation.

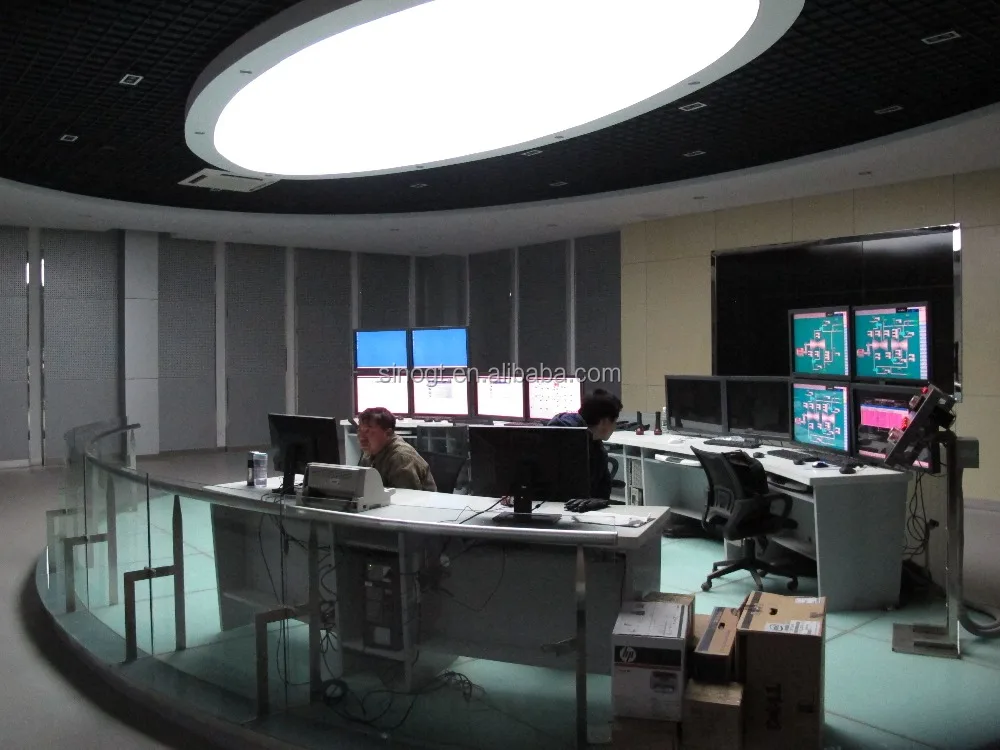

CO2 recovery plant adopts a distributed control system(DCS). Therefore, it is easy to operate. Moreover, it can automatically function for 24 hours on end.
Specifications
Type
Production(ton/h)
Co2 purity
Power cnsumption per ton(kw/ton co2)
Occupation area(m²)
GTCO2-2.4K
0.3
99.99%
250
6*12
GTCO2-1W
1.2
99.99%
230
12*24
GTCO2-2W
2.5
99.99%
220
12*24
GTCO2-3W
3.7
99.99%
210
12*30
GTCO2-4W
5
99.99%
200
12*36
GTCO2-10W
10
99.99%
190
15*40
Our Services
Full-range of service
The combination of eight key elements is Process Design,Equipment Design,Automatic Control System Design,Manufacture, Engineering Design,Installation,Commissioning & Training, After-sales Service,providing the company with the ability of undertaking turnkey projects independently.
Company Information
Company Profile
ZhuHai GongTong Low Carbon Technology Co., Ltd.,located in ZhuHai City(a special zone of reforming and opening),Guangdong Province,is a professional corporation of designing and manufacturing complete equipments for gas separation,purification,liquefaction and storage.The conpamy has deep research and extensive practice in adsorption and rectification process,equipment and automatic control etc. Main products include CO2 Recovery Plant,LNG Liqudfaction Plant, Air Separation Plant,Cryogenic Liquid Storage & Transportation System etc. We can customizedly designed according to actual requirements of users.
Besides self scientific research system and manufacture system, the company owns import-export license. The company has obtained the ISO 9001 Quality System Certificate by QA Corporation in Britain, the U Stamp certificate Authorized by American Society of Mechanical Engineer(ASME),and certificate of design, manufacture,and installation for Grade 1,2,3 pressure vessels awarded by General Administration of Quality Supervision, Inspection and Quarantine of People’s Republic of China.
Company Qualification

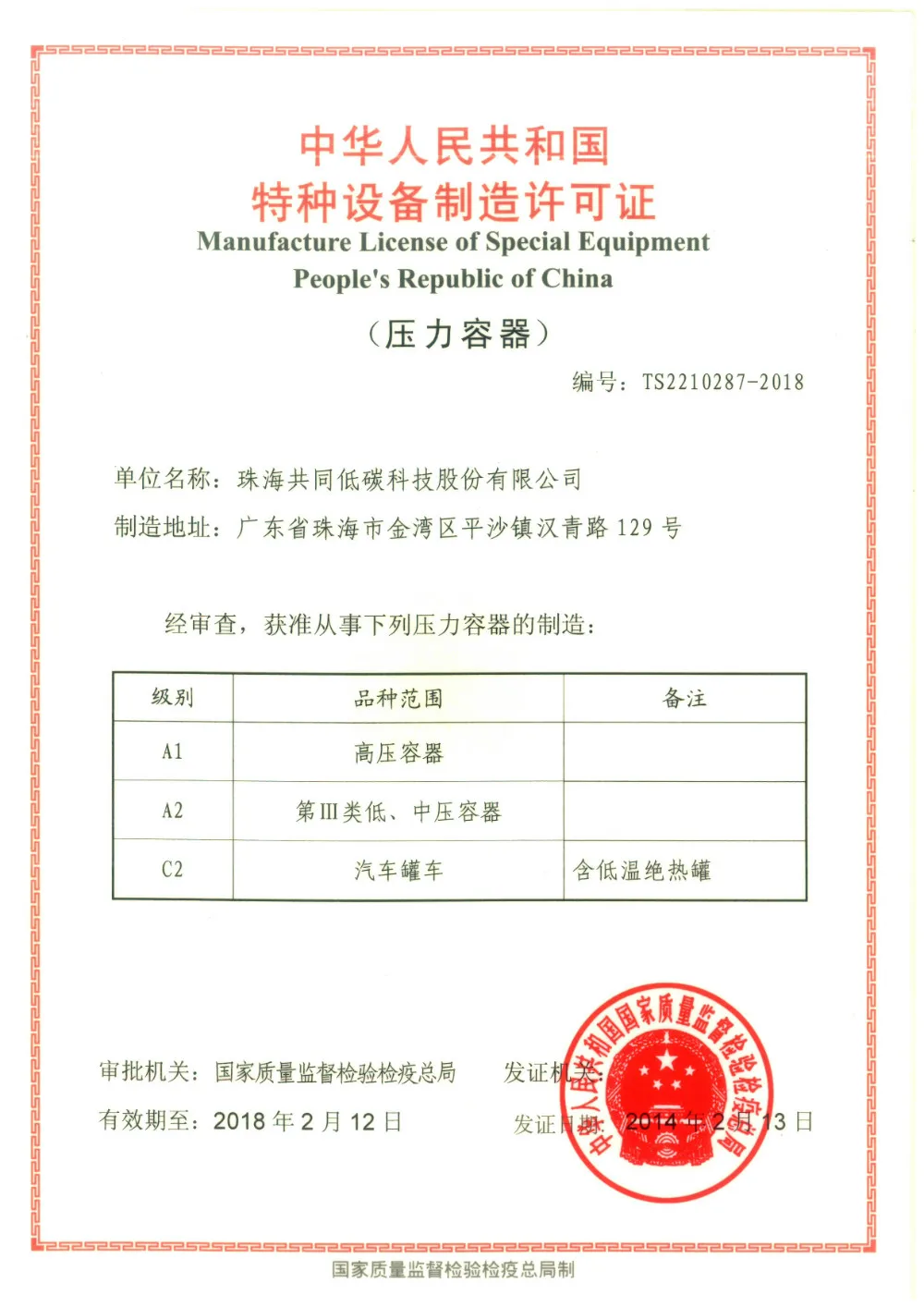

Manufacture License of Type Three Low Pressure,Medium Pressure and High Pressure cessel authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)with capacity of manufacturing pressure vessels of design pressure 0~100MPa.
Design License of Type Three Low Pressure and Medium Pressure Vessel authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)with capacity of manufacturing pressure vessels of design pressure 0~10.0MPa.
“NB”Stamp Manufacture Certificate authorized by American Society of Mechanical Engineer(ASME)
“U”Stamp Manufacture Certificate authorized by American Society of Mechanical Engineer(ASME)

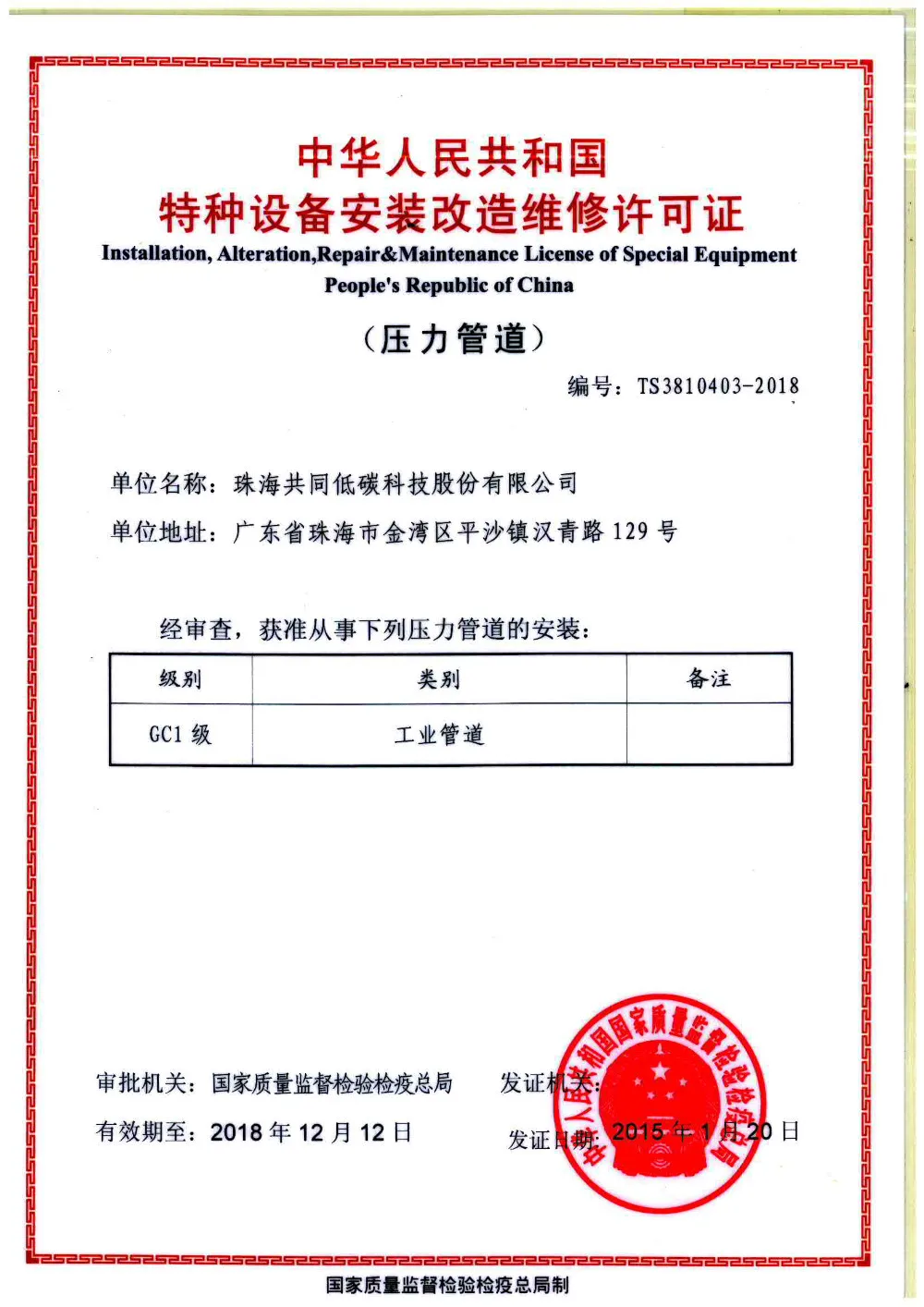

GC1 Grade Industrial Pipeline Installation,Alteration,Repair & Maintenance License authorized by AQSIQ(State Adminstration for Quality Supervision and Inspection and Quarantine)

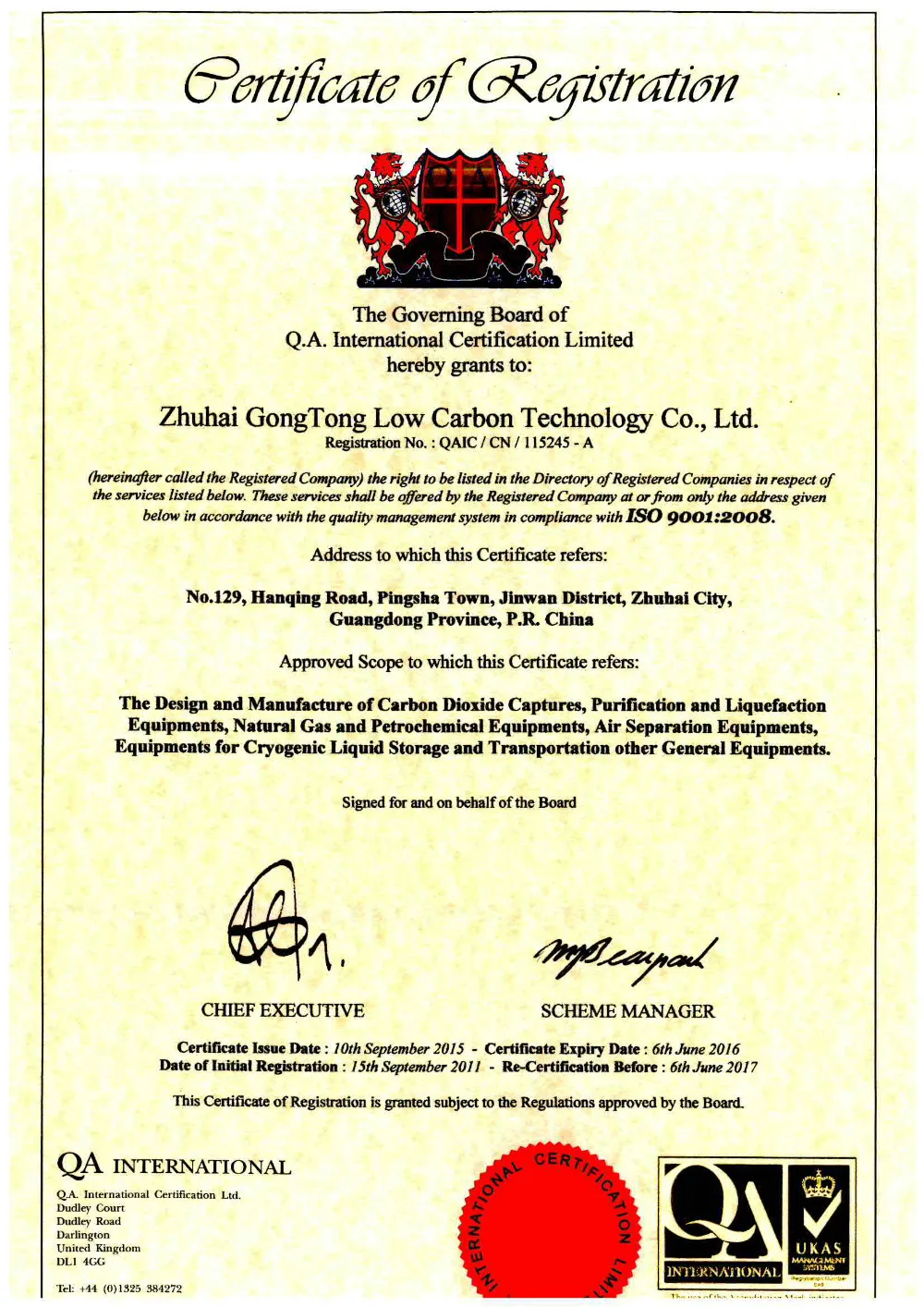

ISO9001:2008 Quality System Certificate authorized by QA corporation in Britain.
UL Certificate for “Underground Flammable-Liquid Tank”authorized by Underwriters Laboratories.
National patent of invention:“Hydrocarbon Removal Technology of Carbon Dioxide”
Credentials of Non-governmental-run Manufacturing Science and Technology Enterprise authorized by Zhuhai Science & Technology Bureau
Our self designed and manufactured automatic CO2 purification and liquefaction equipment has been authenticated by CCIEA
Member of China Chemical Industry Equipment Association(CCIEA)
National High-tech Enterprise Certificate authorized by Guangdong Science and Technology Department.
Our company is the teaching practise base for Beijin Institute of Technology.
