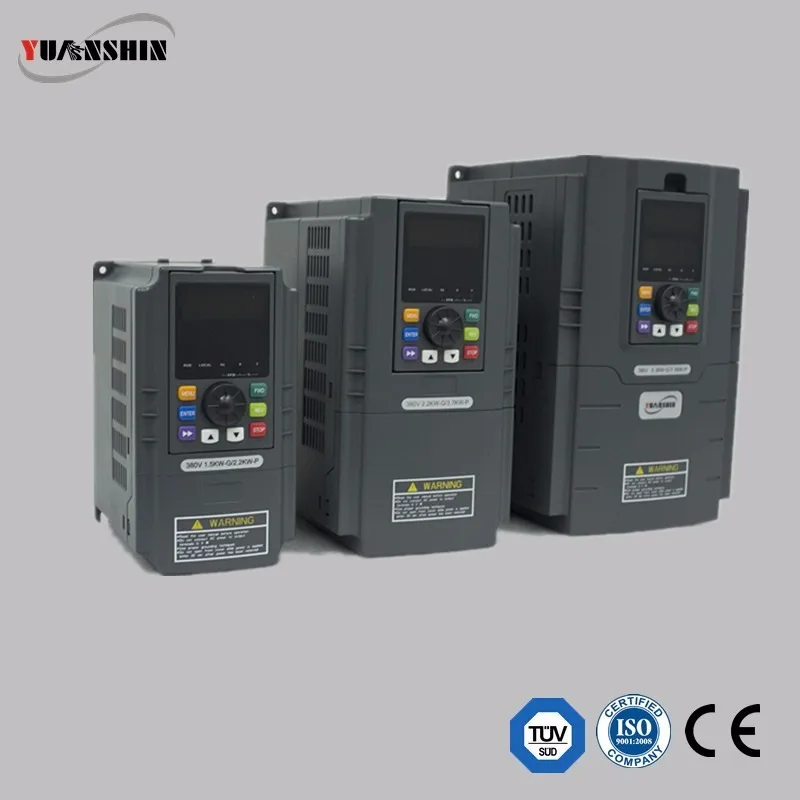

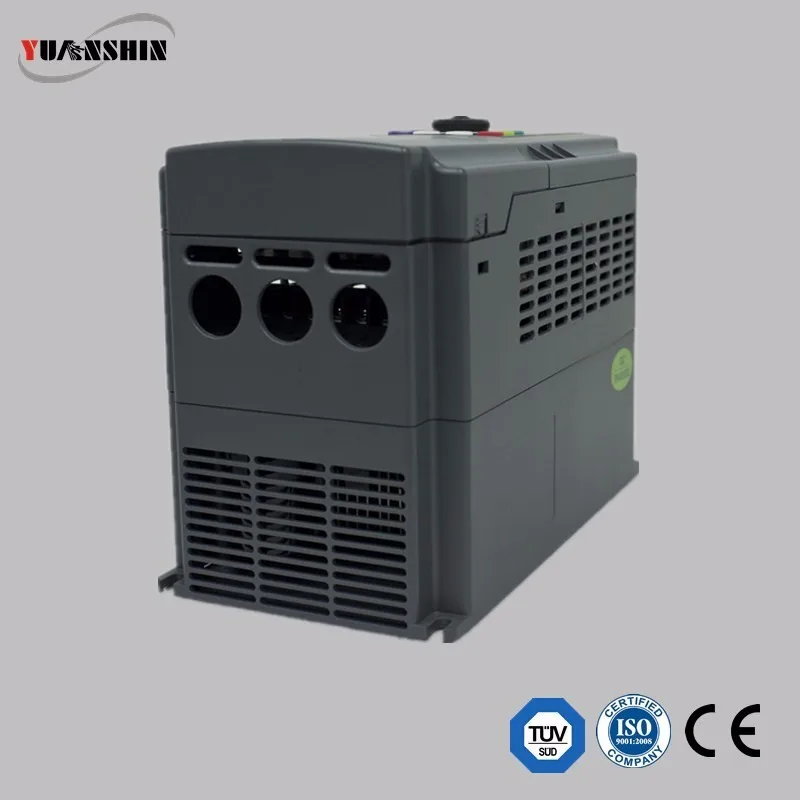

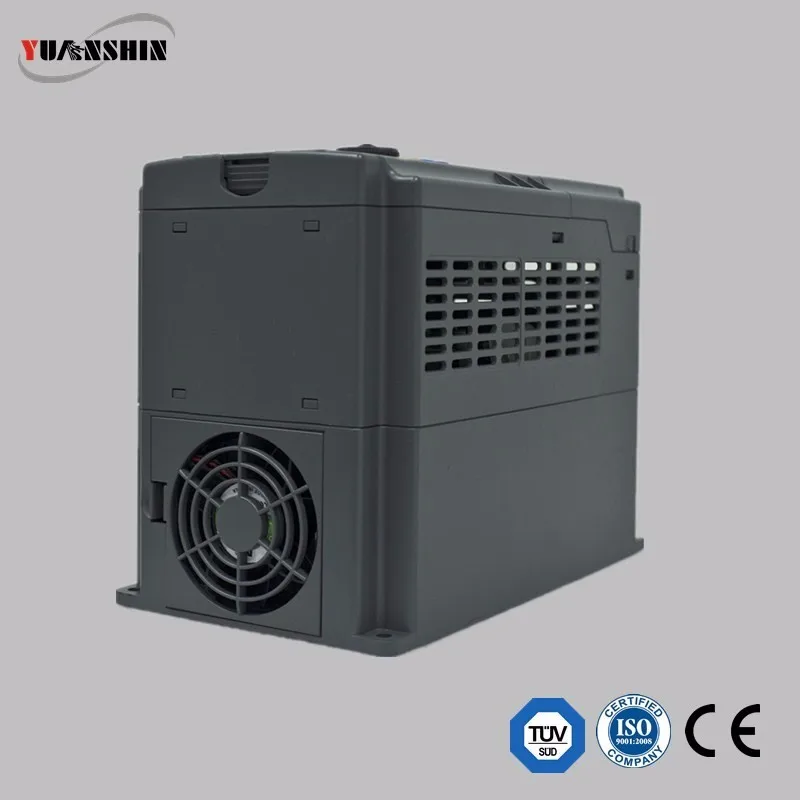

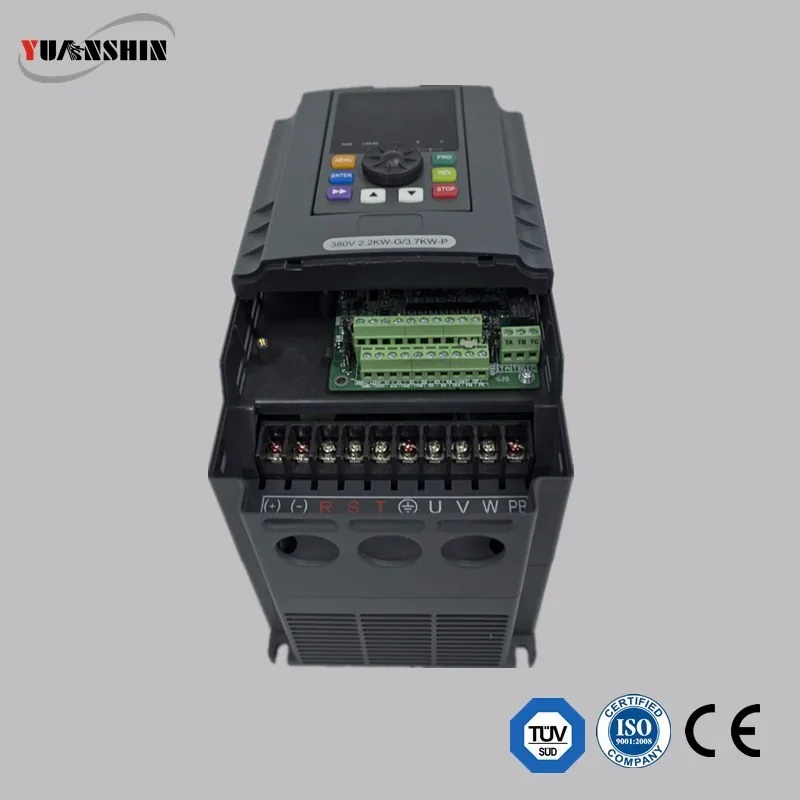

YX3000 series single/three phase automatic frequency converter 0 400Hz 2.2kw

Product Overview

Description

YX3000 series single/three phase automatic frequency converter 0-400Hz 2.2kw







Technical Features

1. 1. Two control modes: V/F control, and sensor-less vector control;
   2. Starting torque: 0.4Hz-20Hz;
   3. Internal brake unit has been deployed, and the braking resister can be connected outside for a quick stop;
   4. Five kinds of V/F control, which are constant torque V/F curve, One kind of customer defined V/F curve, 3 kinds of down torque curve (2.0/1.7/1.2 times the power).
   5. Through PLC or internal control terminal, multi-speed control and PID control could be realized. And users could combine a variety of operating modes while it’s necessary;
   6. Supporting multi-frequency deploy methods: digital setup, PID setup, analog quantity setup, and communication setup;
   7. Supports starting and stopping DC brake;
   8. YX3000 is Equipped with jump frequency control, which prevents mechanical resonance and makes the system more stable and reliable;
   9. YX3000 has build-in PI in order to establish close-loop control system easily;
   10. YX3000 is designed with the central frequency switch function, which let the end user to fix the central frequency while it is necessary;
   11. YX3000 has been equipped with RS485 communication interface, which support MODBUS protocol with ASCII and RTU forms;
   12. Working with water supply accessory to realize multiple-pump stable pressure water supply function.





Machine Size



Frequency Inverter Machine size and mounting size
Wall hanging type				Machine size			Mounting size		Diameter of mounting hole(mm)
General type		Fan,pump type		H(mm)	W(mm)	D(mm)	H1(mm)	W1(mm)
YX3000-2S0004G				142	85	113	144	74	Φ5
YX3000-2S0007G
YX3000-2S0015G
YX3000-4T0007G		YX3000-4T0015P		184	98	135	174	88	Φ5
YX3000-4T0015G		YX3000-4T0022P
YX3000-2S0022G
YX3000-4T0022G		YX3000-4T0037P		230	118	153	220	108	Φ5
YX3000-4T0037G		YX3000-4T0055P
YX3000-4T0055G		YX3000-4T0075P		280	181	183	267	100	Φ7
YX3000-4T0075G		YX3000-4T0110P
YX3000-4T0110G		YX3000-4T0150P		339	231	214	323	138	Φ8
YX3000-4T0150G		YX3000-4T0185P
YX3000-4T0185G		YX3000-4T0220P		423	258	230	407	195	Φ9
YX3000-4T0220G		YX3000-4T0300P
YX3000-4T0300G		YX3000-4T0370P		500	296	276	480	200	Φ10
YX3000-4T0370G		YX3000-4T0450P
YX3000-4T0450G		YX3000-4T0550P		560	320	269	538	217	Φ10
YX3000-4T0550G		YX3000-4T0750P
YX3000-4T0750G		YX3000-4T0900P		618	398	306	594	278	Φ12
YX3000-4T0900G		YX3000-4T1100P
YX3000-4T1100G		YX3000-4T1320P		760	485	324	736	322	Φ12
YX3000-4T1320G		YX3000-4T1600P
