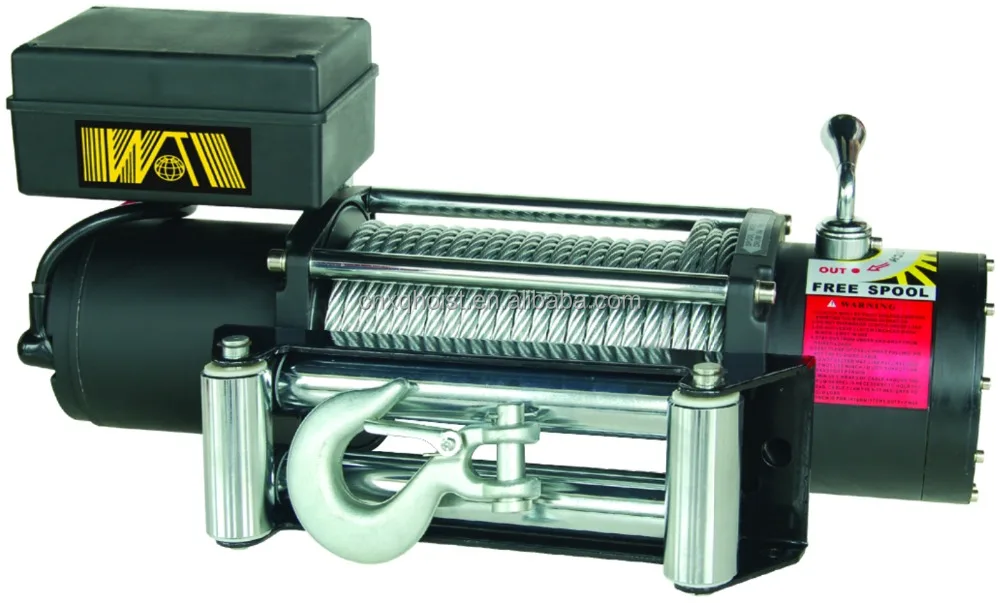

4X4 WINCH 12v ELECTRIC WINCH 10000LBS

Name: 4X4 WINCH 12v ELECTRIC WINCH 10000LBS
SKU: 60475350302
Availability: InStock

Price:

Quantity:

Product Description

Truck Winch with CE Approval

DETAIL

Main technical parameters:
Rated line pulling	10000lbs (4536kgs) Single-line
Gear Ratio	317.7: 1
Gear train	3-Stage Planetary
Clutch	Sliding Ring Gear
Motor	Permanent magnet DC 12V motor with 3.6HP/2.7kw output

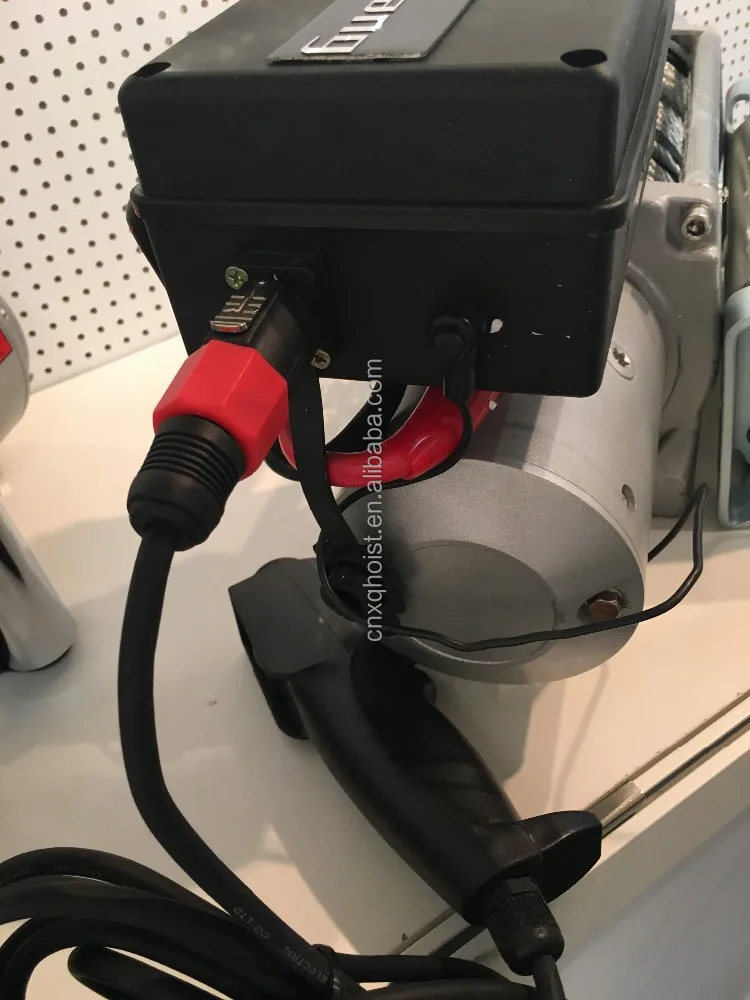

Control	Remote switch, 9.8'( 3m) lead
Brake	Automatic In-The-Drum
Overall Dimension	(LxWxH) 22" X 6.3" X 10" (560 x 160 x 254mm)
Drum size	Diameter 2.5" (63.5mm) Length 8.82" (223mm)

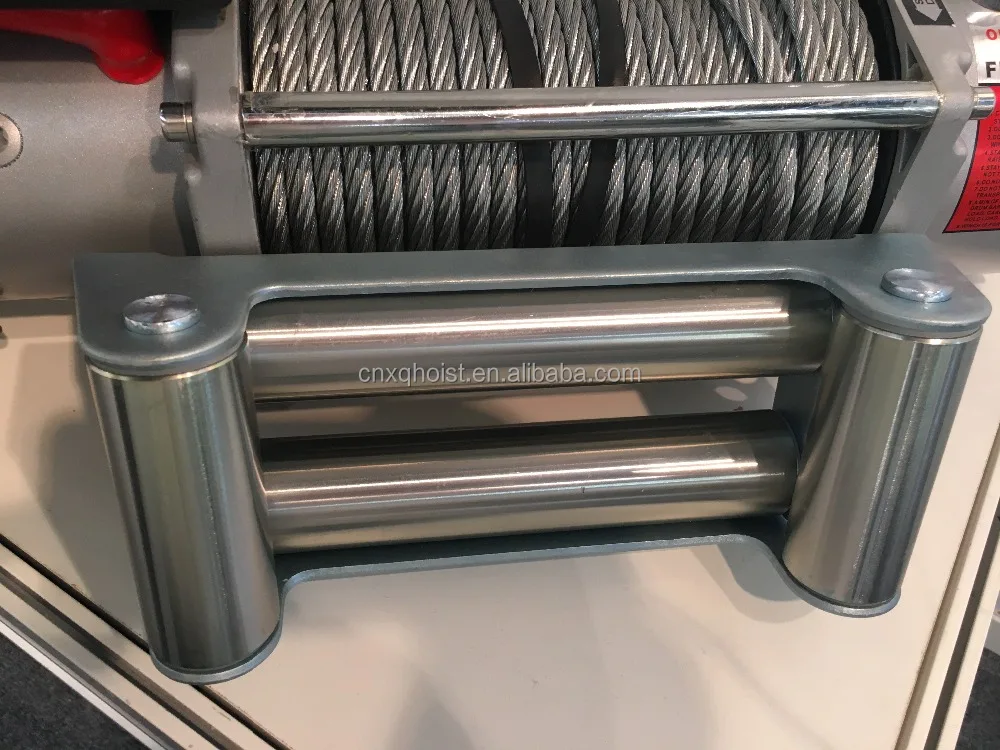

Fairlead	Included
Cable length	95ft of 23/64" Diameter (29m of 9.1mm diameter)
Mounting Pattern	10.00 ± 0.015" X 4.50 ± 0.010" (254 x 114.3mm)

Packing
Packing size: 63× 24.5× 33cm
Qty. /CTN.: 1PC
G. W. /N. W.: 42/40kg
