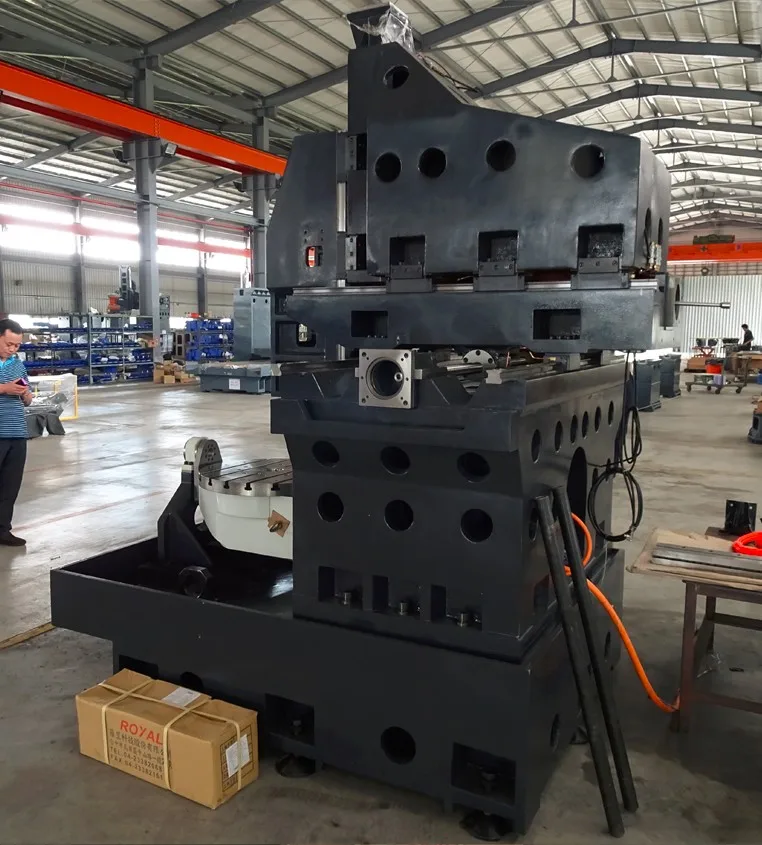

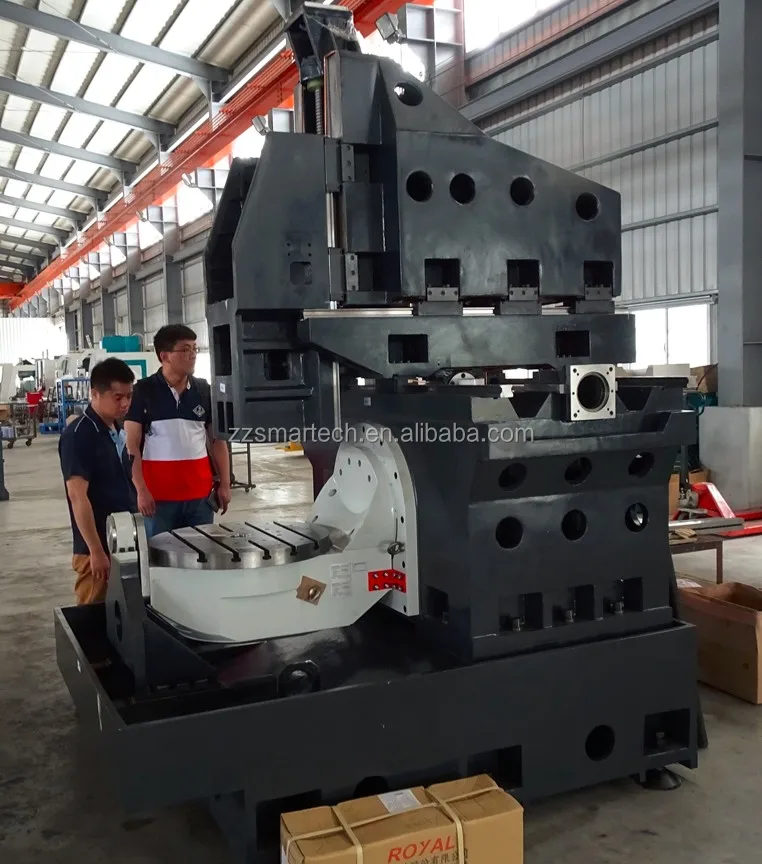

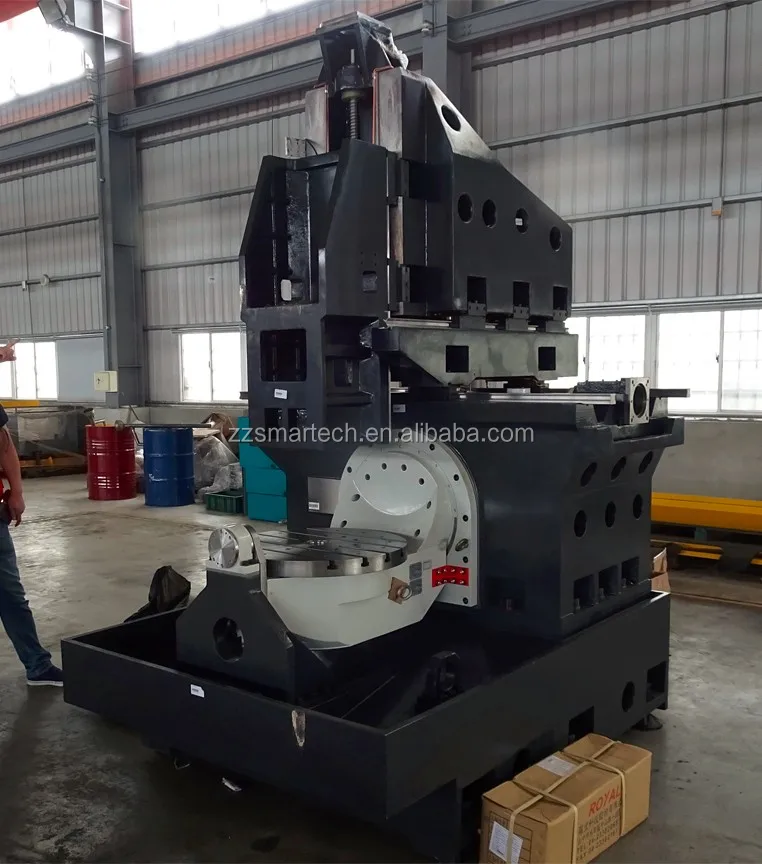

5 Axis Machining Center WZ545

Vertical Machining Centers (VMC) with Table:

VMC without table optional:

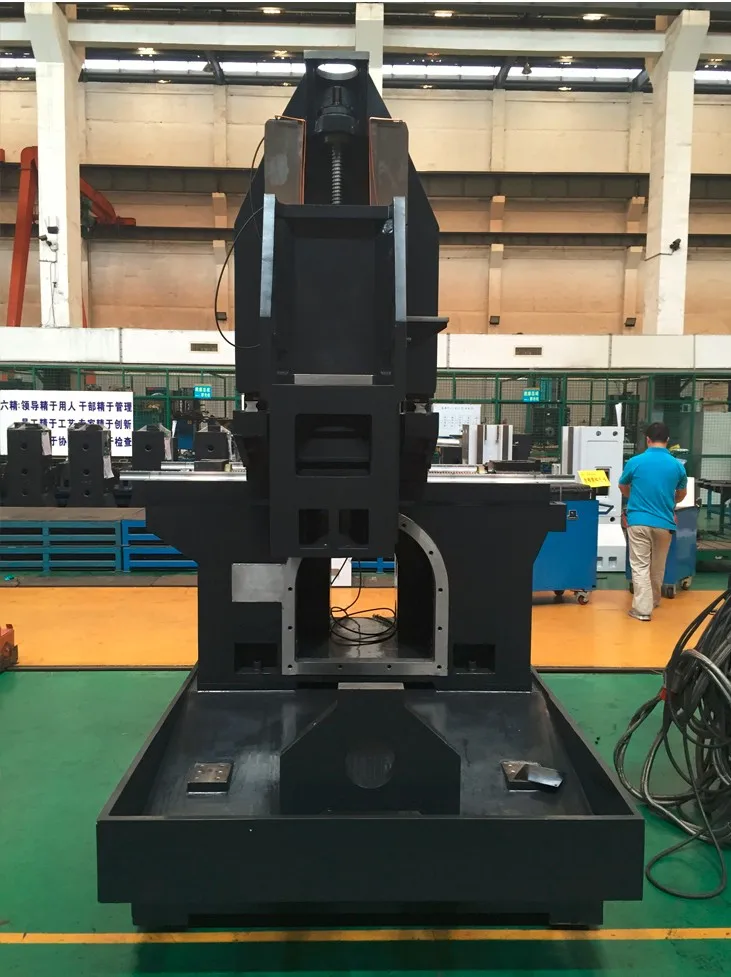

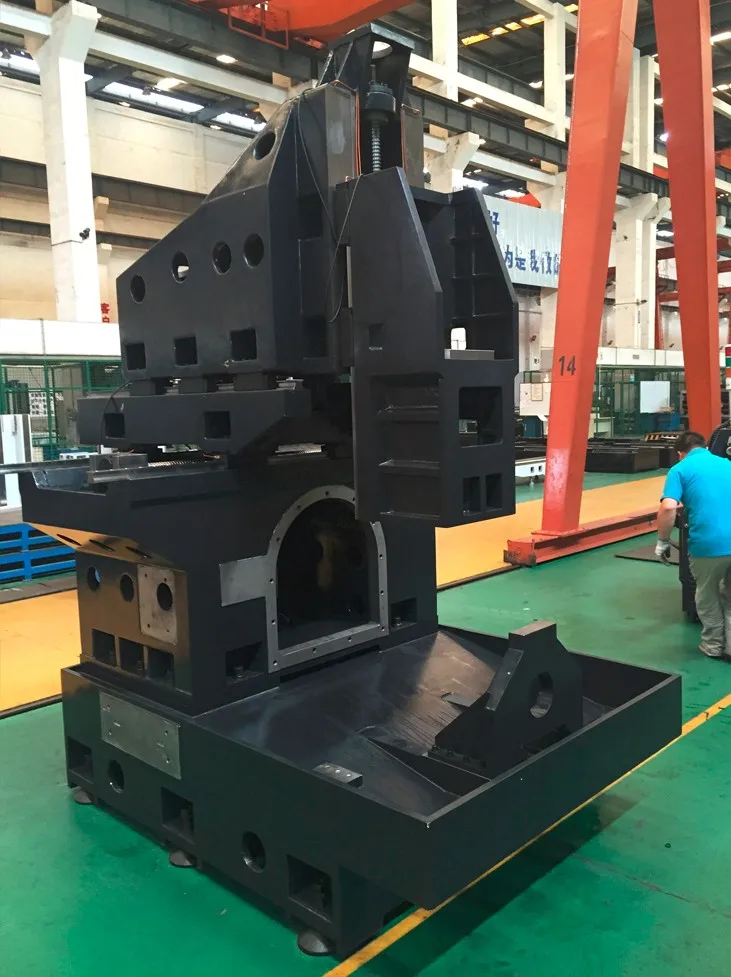

SMARTECH VMC FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported 12000/15000 rpm spindle & tool clamping system from Taiwan ;

4     Imported R&W couplings;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8     Coolant through spindle ;

9     X,Y&Z axes Linear slideways type;

• OPTIONAL:

1     Tilting & rotating table from Taiwan Detron, Parkson, GSA, etc;

2    Centralized oil coolant for the spindle ;

3     ATC: drum type, arm type or chain type ;

4     Outside guarding: standard or special made according to clients design

5     Chip conveyor

6    CNC pre-installed for clients: whole full ready package delivery according to clients design

• SPECS:

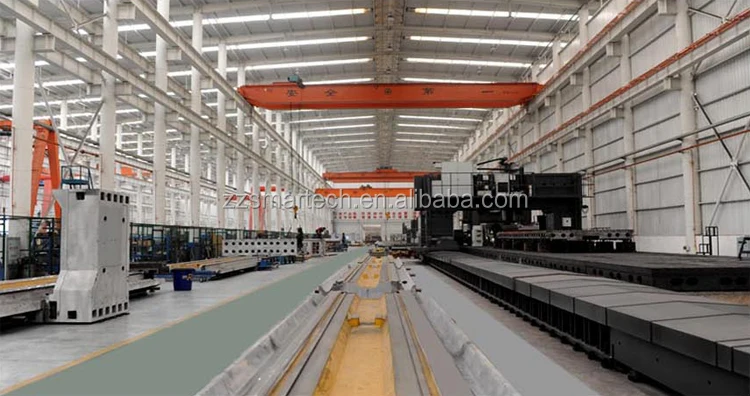

Machining Equipments Imported from Nicolas Correa Spain

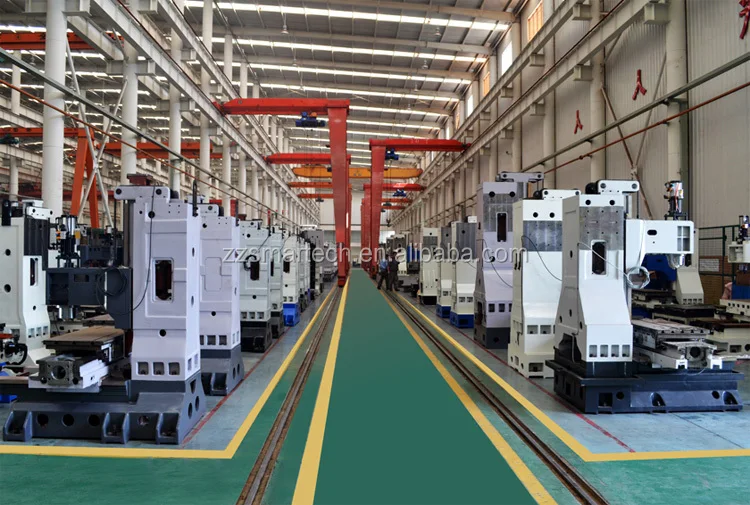

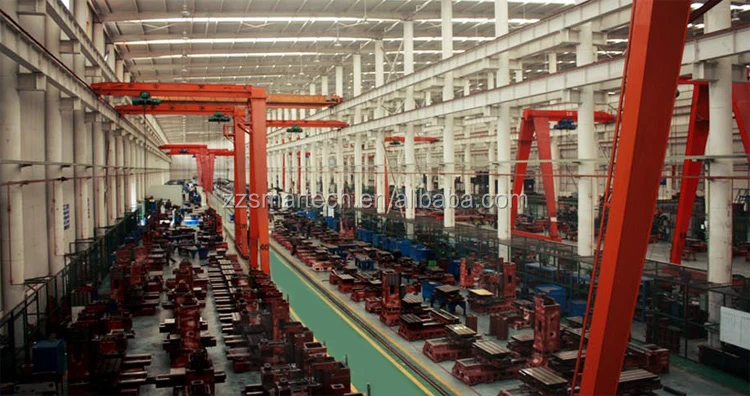

A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
