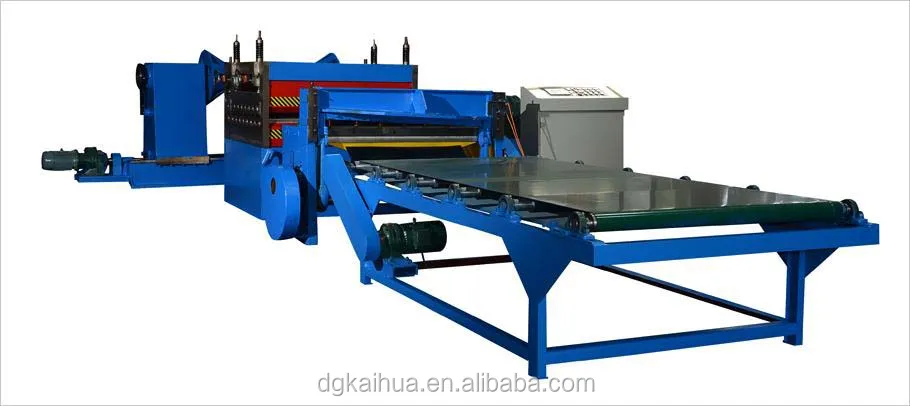

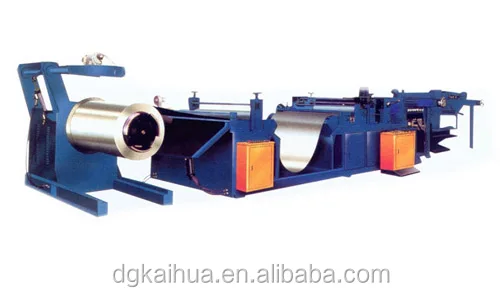

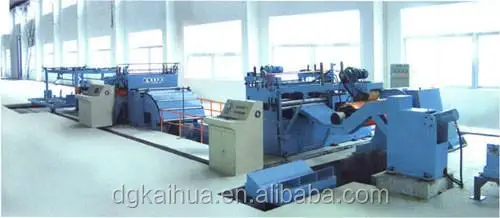

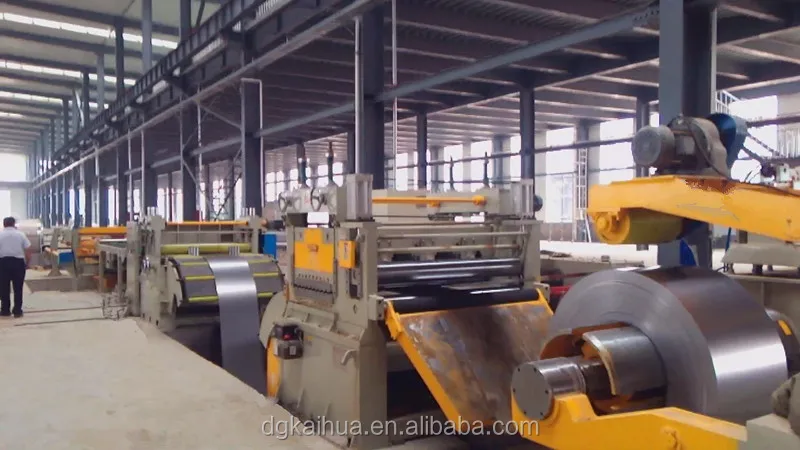

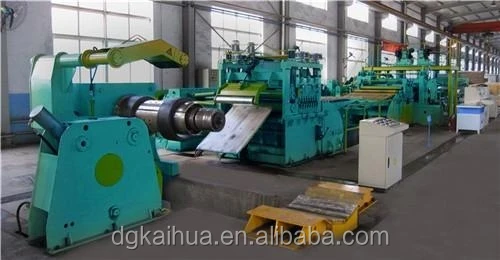

metal coil uncoiling and cut to length process line
- Category: Cut to Length Line >>>
- Supplier: Dongguan City Haiwei Intelligent Equipment Incorporated Company [Guangdong China]Dongguan
Share on (60475524617):
Product Overview
Description
Product Description
Uncoiler machine main specification
| Model | MTC-800 | MTC-1000 | MTC -1300 | MTC-1600 |
| Material width(mm) | 800 | 1000 | 1300 | 1600 |
| Material thickless(mm) | 0.2-6.0 | 0.2-6.0 | 0.2-6.0 | 0.2-6.0 |
| Coil I.D. | Φ450-530 | Φ500-580 | Φ530-600 | Φ530-600 |
| Coil O.D. | Φ1200/1500 | Φ1200/1500 | Φ1200/1500 | Φ1200/1500 |
| Material weight(T) | 5T/8T | 8T | 10T | 12T |
| Speed(m/min) | 15 | |||
| Expansion Weight(kg) | 2000 | 2500 | 3000 | 3500 |
| Machine Weight | 1.8*1.4*1.4 | 2.0*1.5*1.6 | 2.5*1.8*1.8 | 3.0*2.0*2.0 |
| Power | AC 380V 3 phase 60 | |||
Main Features
This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length. The production line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating and digital display. The production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel, etc.
compoments of cutting to length line machine
(1) Feeding trolley

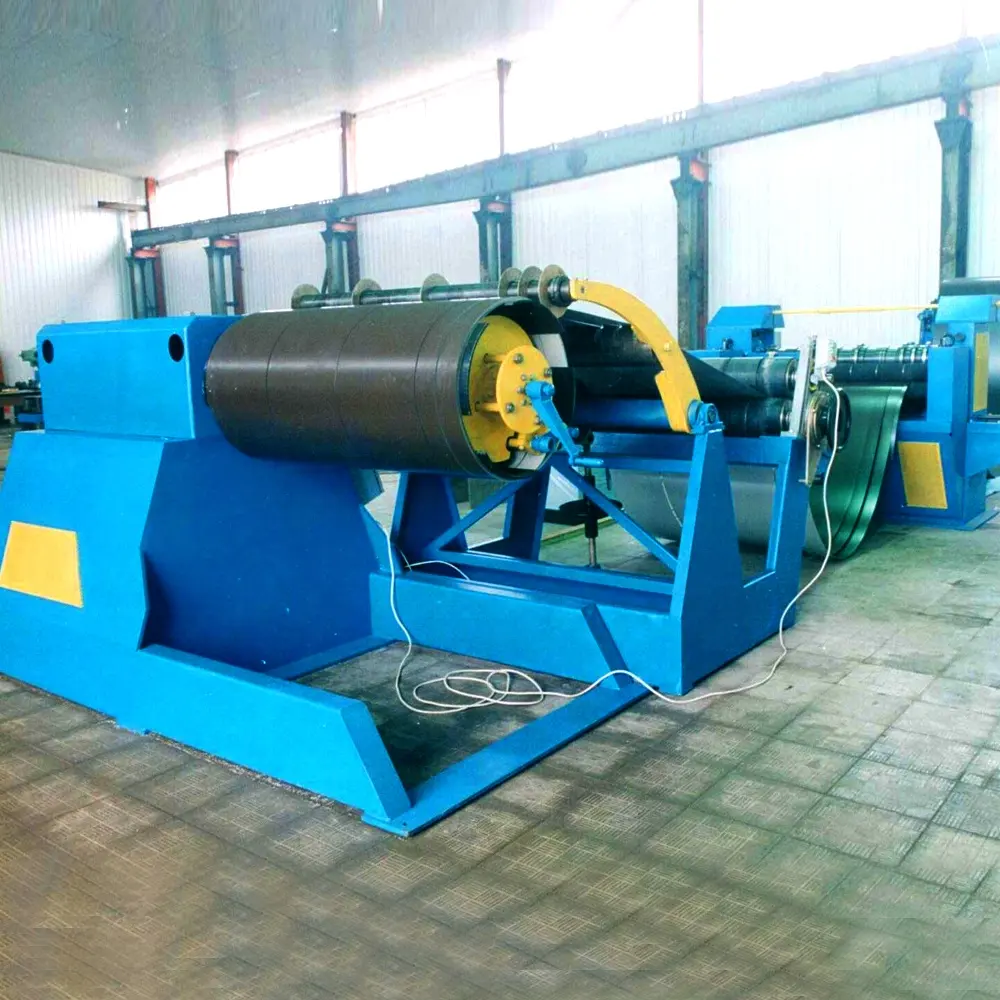

(2) Hydraulic dual cone decoiler
(3) Guiding device

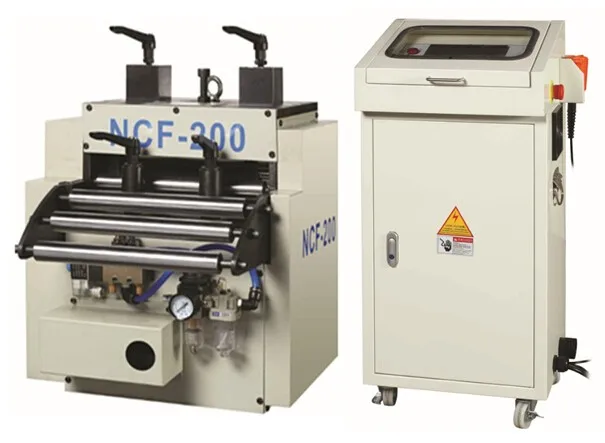

(4) Feeder
(5) Calibrating and centering unit
(6) 4-Hi Precision leveler
(7) Shear
(8) Auto- stacker
(9) Hydraulic station
(10) Electric control system
Technical Process
Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table
leveler and shearing machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

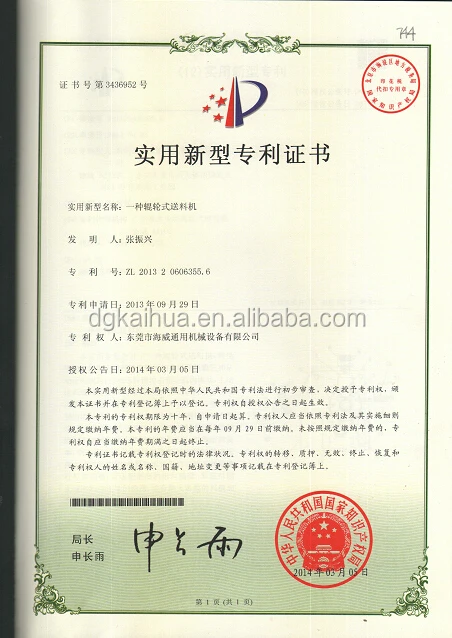

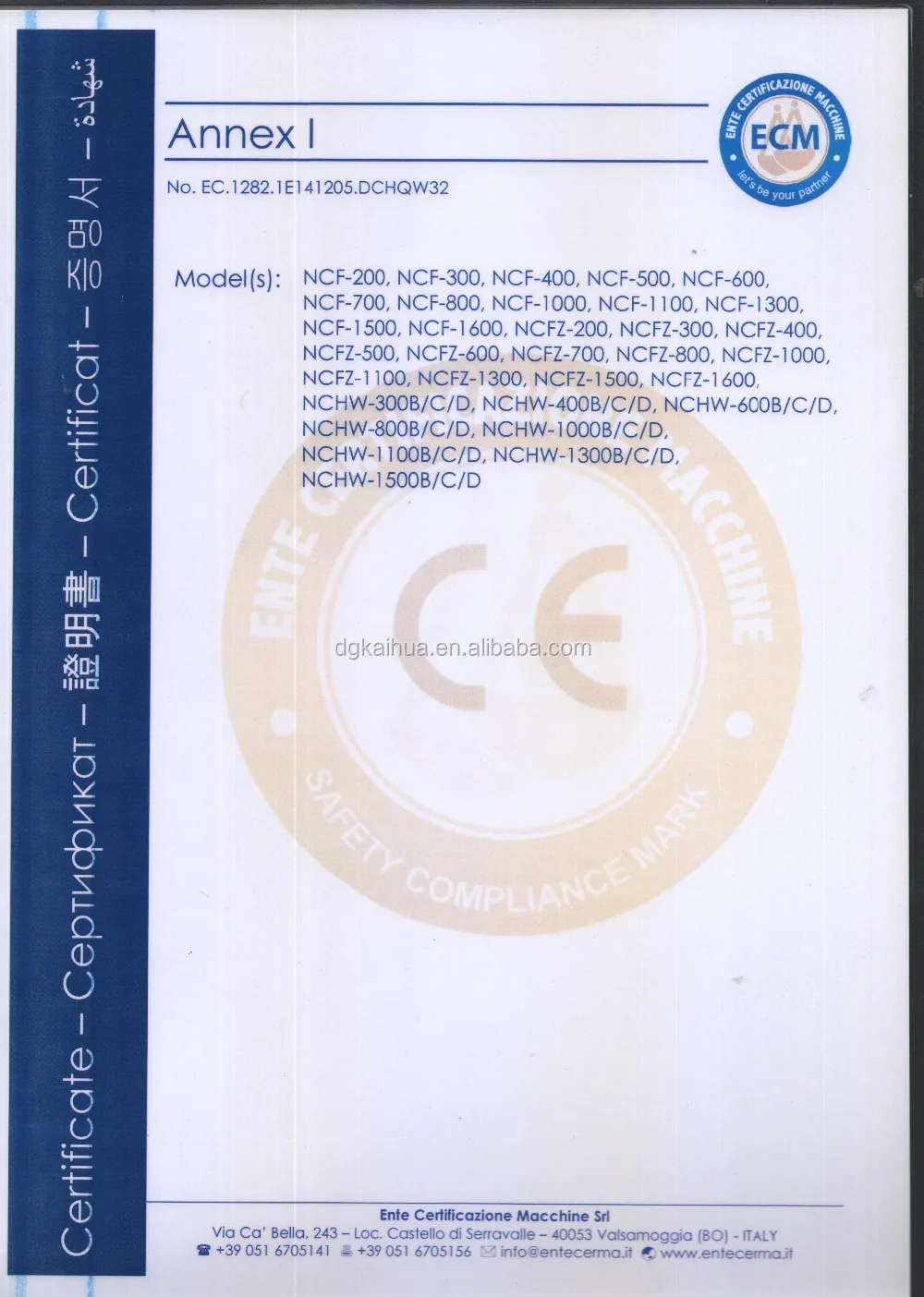

Certifications

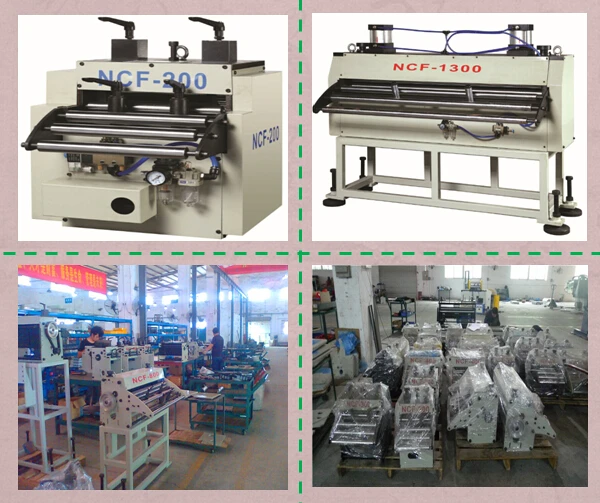

Equipment picture
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
