TYT TH 7800 50W Dual Band 136 174/400 480MHz Mobile Radio Amateur HF/VHF/UHF Transceiver
- Category: >>>
- Supplier: Shenzhen Anysecu Technology Co. Ltd.
Share on (60475533159):
Product Overview
Description
Product Description
Item Number | TH-7800 | |
General | ||
Frequency Range | Dual band:TX: 134-174MHZ and 400-480MHZ RX(AM and FM):108-180mhz, 134-174MHZ and 350-520mhz | |
Channel Capacity | 809 Channels | |
Channel Spacing | 2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz | |
Modes of emission | F3 | |
Antenna Impedance | 50 Ohms,unbalanced (Antenna Duplexer built-in) | |
Frequency Stability | ±5PPM@-140℉~+140℉(-10℃~+60℃) | |
Operating Voltage | -4℉~+140℉(-20℃~+60℃) | |
Operating Temperature Range | 13.8VDC (±15%),Negative ground | |
Current Consumption(Approx) | RX:0.5A(Squelched) TX:8.0A(50/430MHZ),8.5A(29/144MHZ) | |
Case size(W×H×D) | 140*41.5*168 mm (w/o knobs & connectors) | |
Weight | 1000g | |
Transmitter | ||
output power | 50/20/10/5W( 144MHZ),40/20/10/5W(430MHZ) | |
Modulation Type | Variable Reactance | |
Maximum Deviation | Better than -60dB(29MHZ: Better than -50dB) | |
Modulation Distortion | Less than 3% | |
Microphone Impedance | 2kΩ | |
Receiver | ||
Circuit Type | Double-conversion super-heterodyne | |
Intermediate Frequency | 49.95MHz/450KHz (left band) 38.85MHz/450KHz (right band) | |
Sensitivity (for 12dB SINAD) | Better than 0.2μV | |
Squelch Sensitivity | Better than 0.16μV | |
Selectivity(-6dB/-60dB) | 12KHz/30 KHz | |
Maximum AF output | 2W@8Ω for 5% THD | |
AF output Impedance | 4-16Ω | |
Note: if you need software, please contact us.
Features:
V+U Full Duplex Operation
Cross-band Repeater Function
Ultra-size LCD Screen Dual Display
800+Memory Channels
A+B dual band Operation
50 CTCSS Tones /1024 DCS Codes
8 Group;s scrambler option
Detachable Front Panel
50W output power for 144MHz
35W output power for 430MHz
Features:
V+U Full Duplex Operation
Cross-band Repeater Function
Ultra-size LCD Screen Dual Display
800+Memory Channels
A+B dual band Operation
50 CTCSS Tones /1024 DCS Codes
8 Group;s scrambler option
Detachable Front Panel
50W output power for 144MHz
35W output power for 430MHz

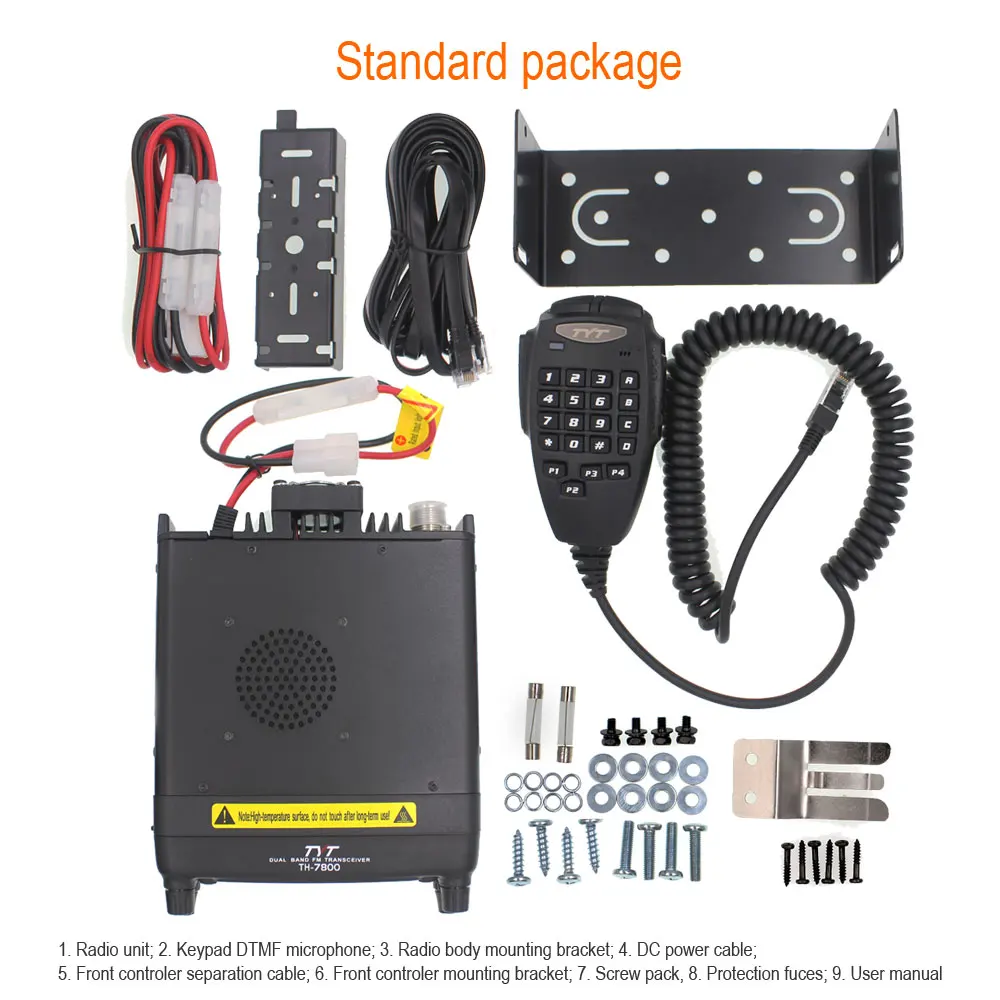

Packing:
1 X Radio unit

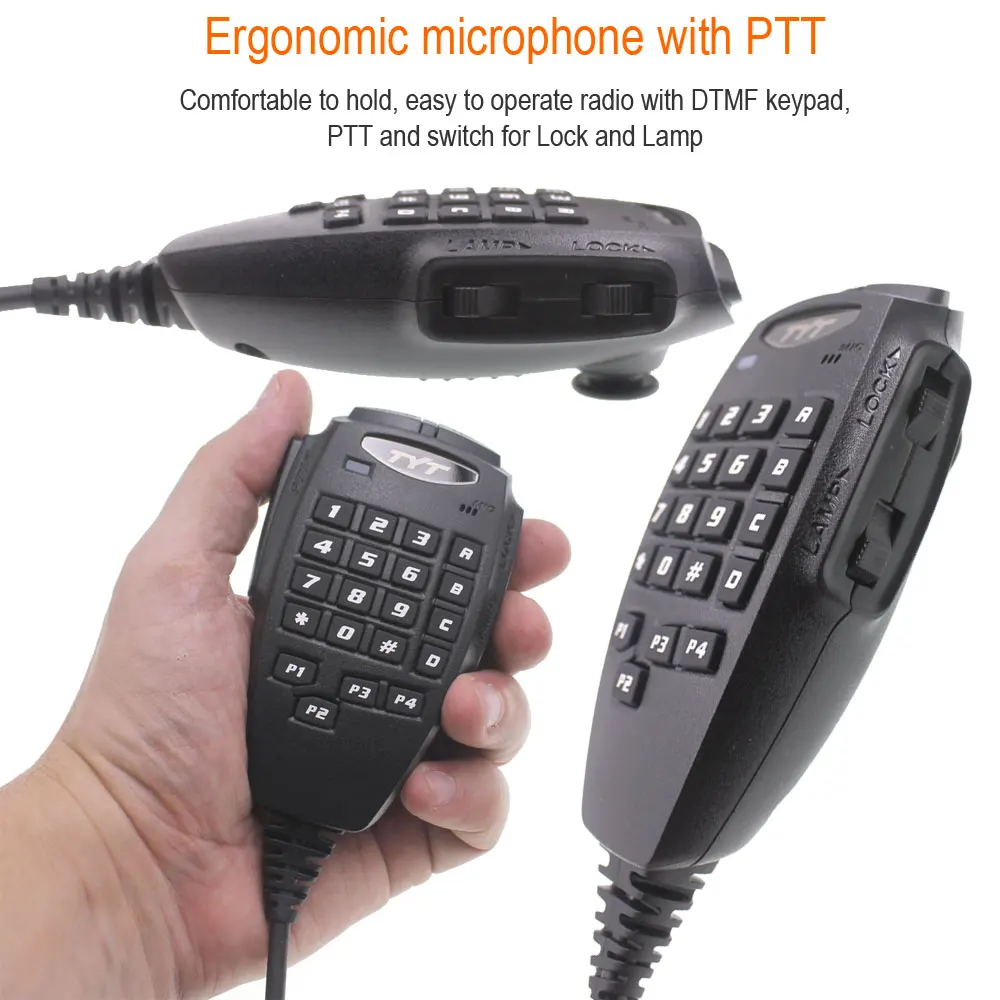

1 X Keypad DTMF microphone
1 X Radio body mounting bracket
1 X DC power cable with fuse holder

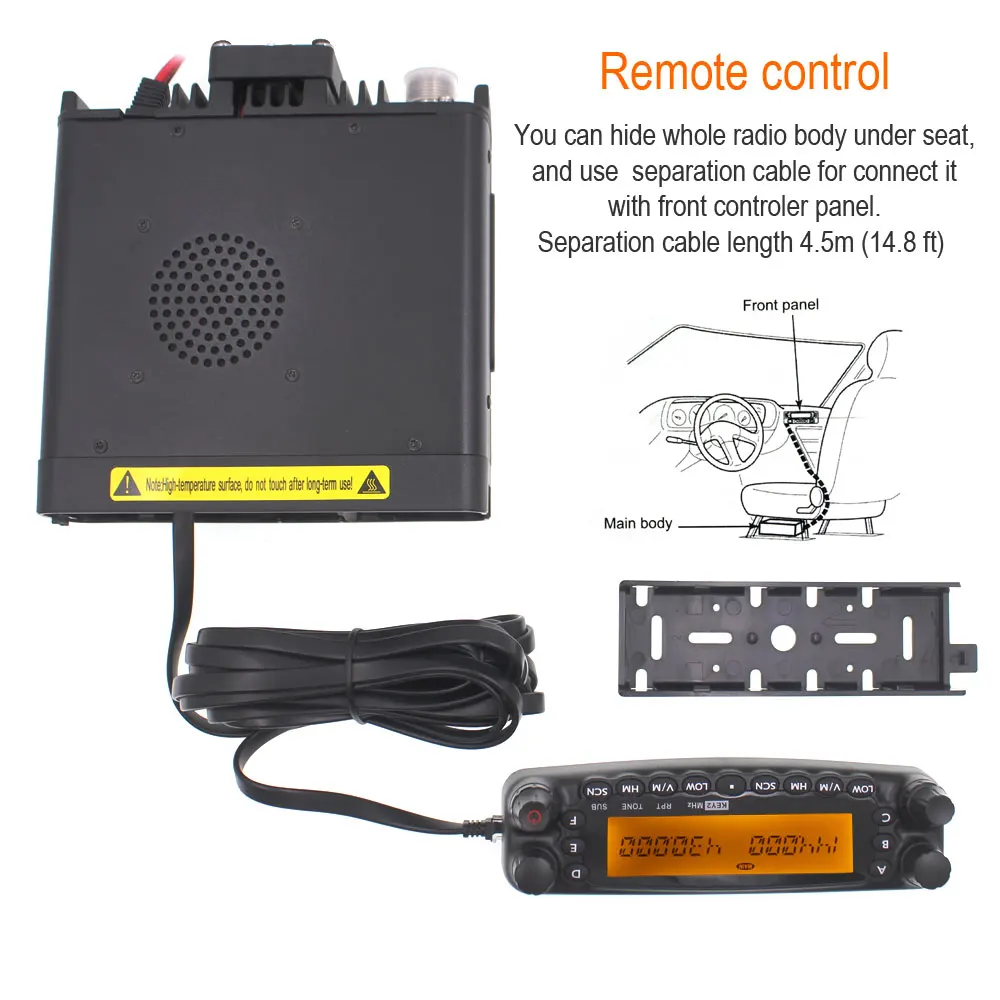

1 X Front controller separation cable
1 X Front controller mounting bracket
1 X Screw packs
1 X Use`s manual
1 X Radio unit
1 X Keypad DTMF microphone
1 X Radio body mounting bracket
1 X DC power cable with fuse holder
1 X Front controller separation cable
1 X Front controller mounting bracket
1 X Screw packs
1 X Use`s manual
