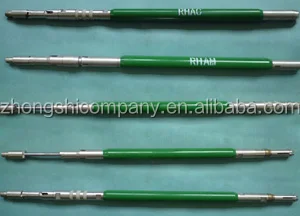

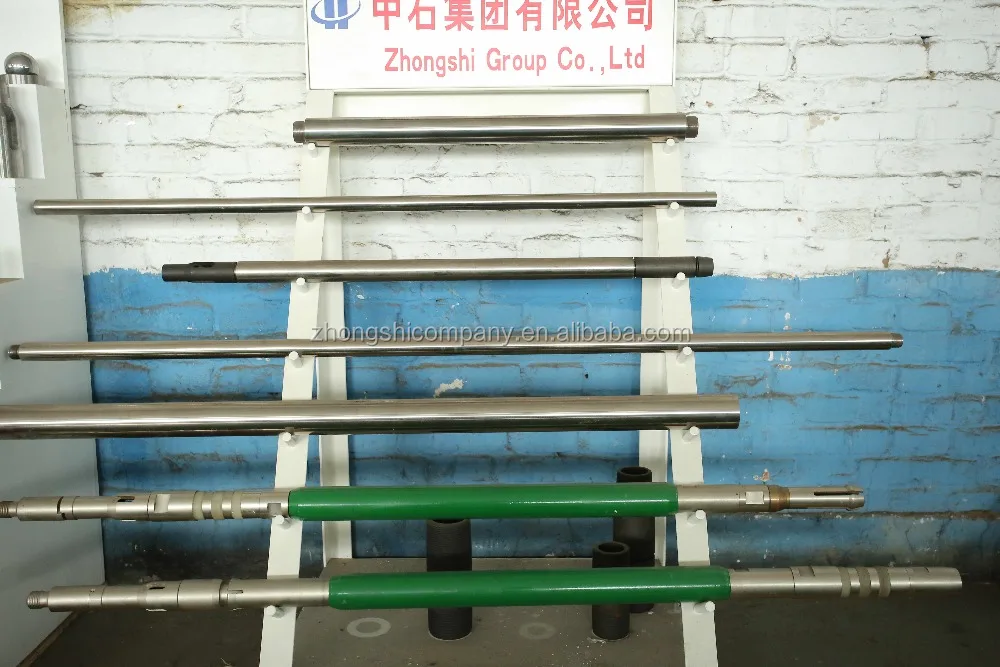

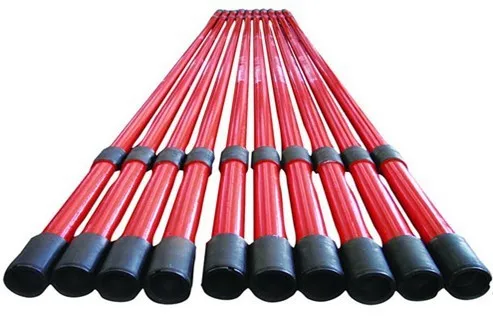

API 11AX sucker rod pump anda Tubing pump

Product Description:

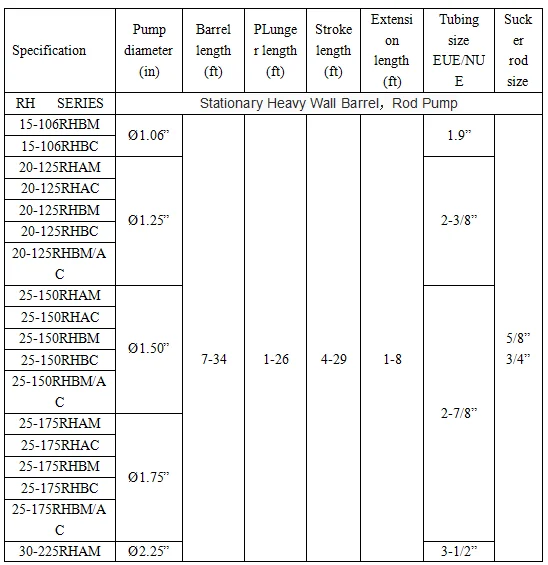

API-RHAM, Rod, Stationary Heavy Wall Barrel, Mechanical Top Anchor Pump

API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump

API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump

API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump

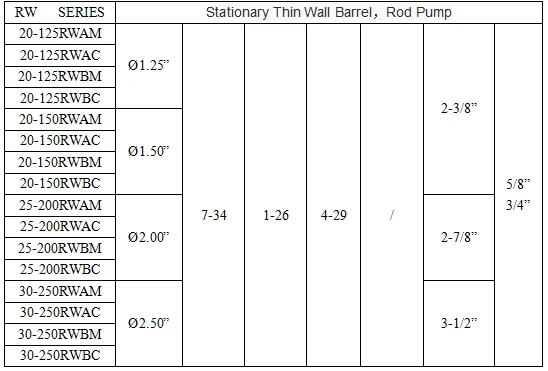

API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump

API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump

API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

API-RWBC, Rod, Stationary Thin Wall Barrel, Cup Bottom Anchor Pump

API-RHBM-AC, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor And Cup Top Anchor Pump

Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection is on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection is on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple.Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.

If the pump meet quality problem, it needn't to put forward the tubing string, only need to put the whole pump forward well through the sucker rod string together , operation is simple.

Main parts process and material:

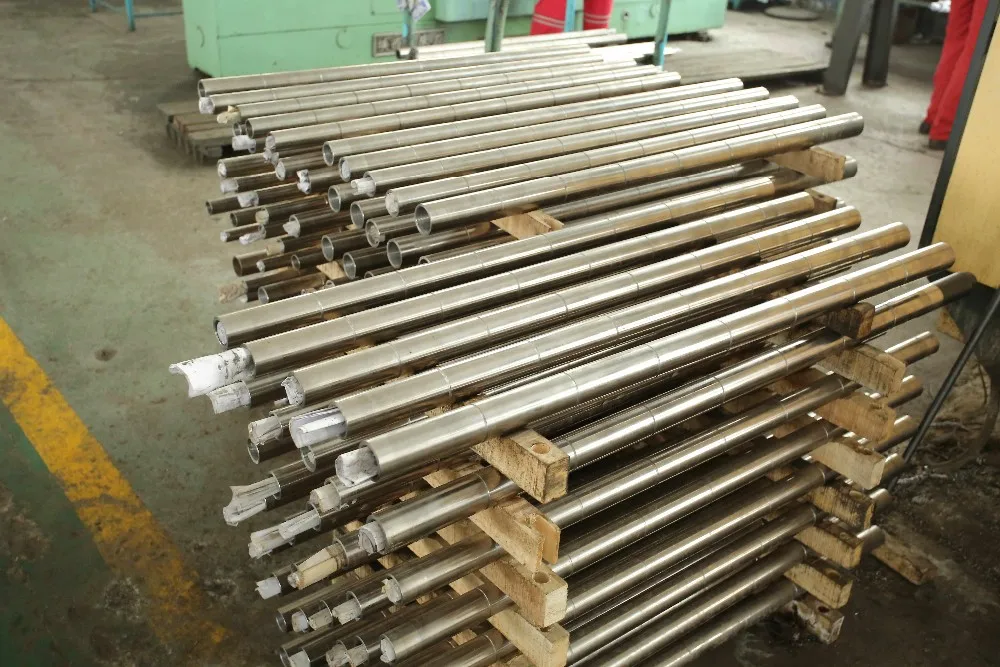

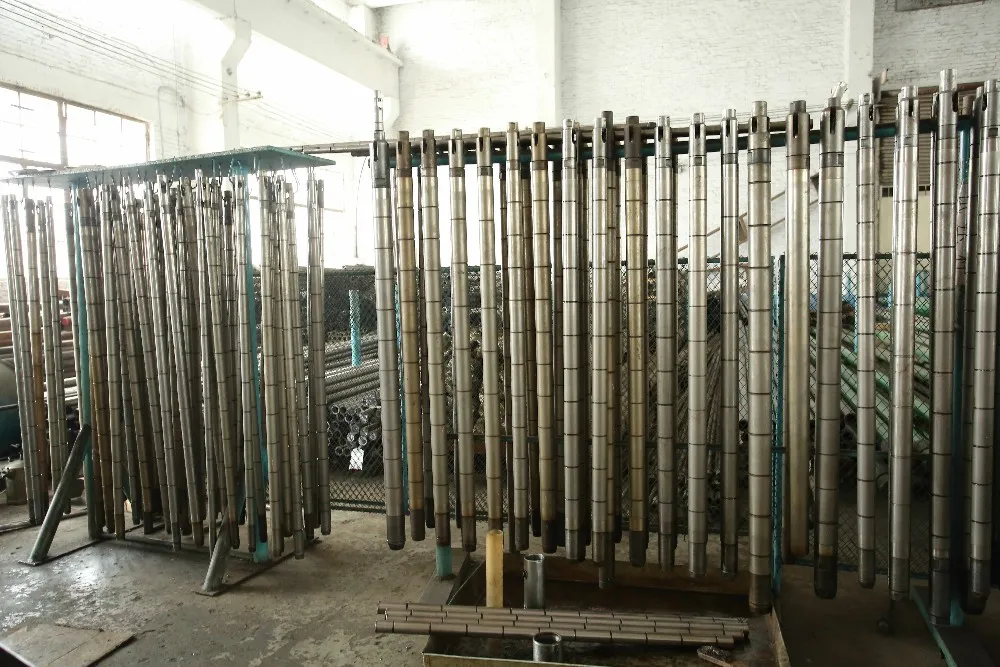

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).

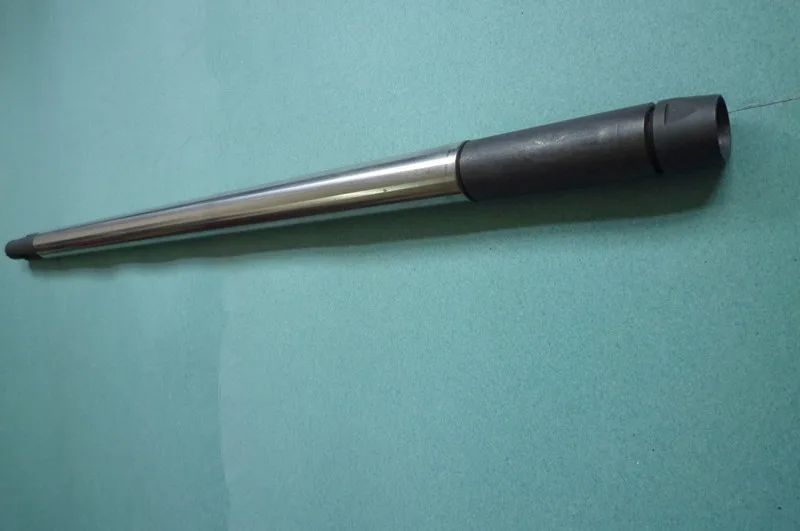

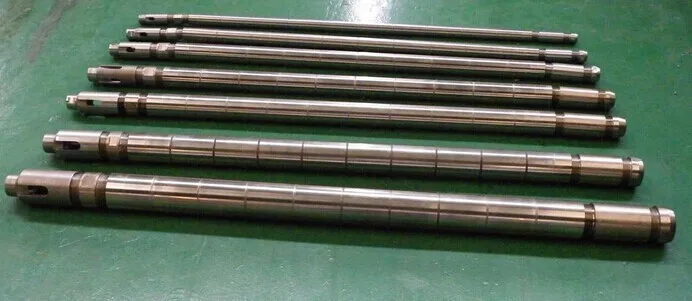

Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).

Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).

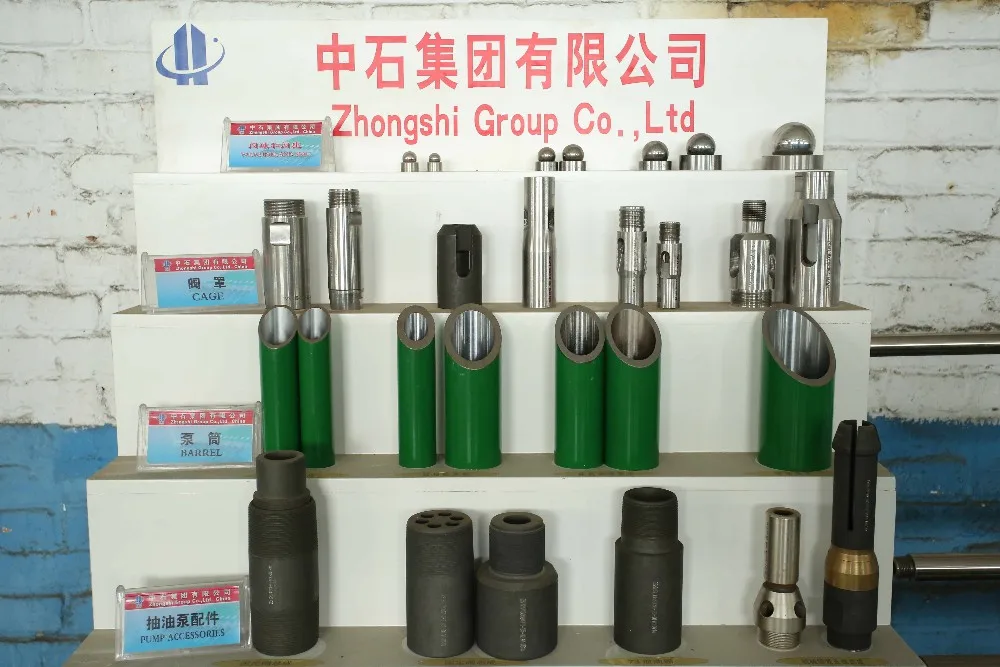

Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.
