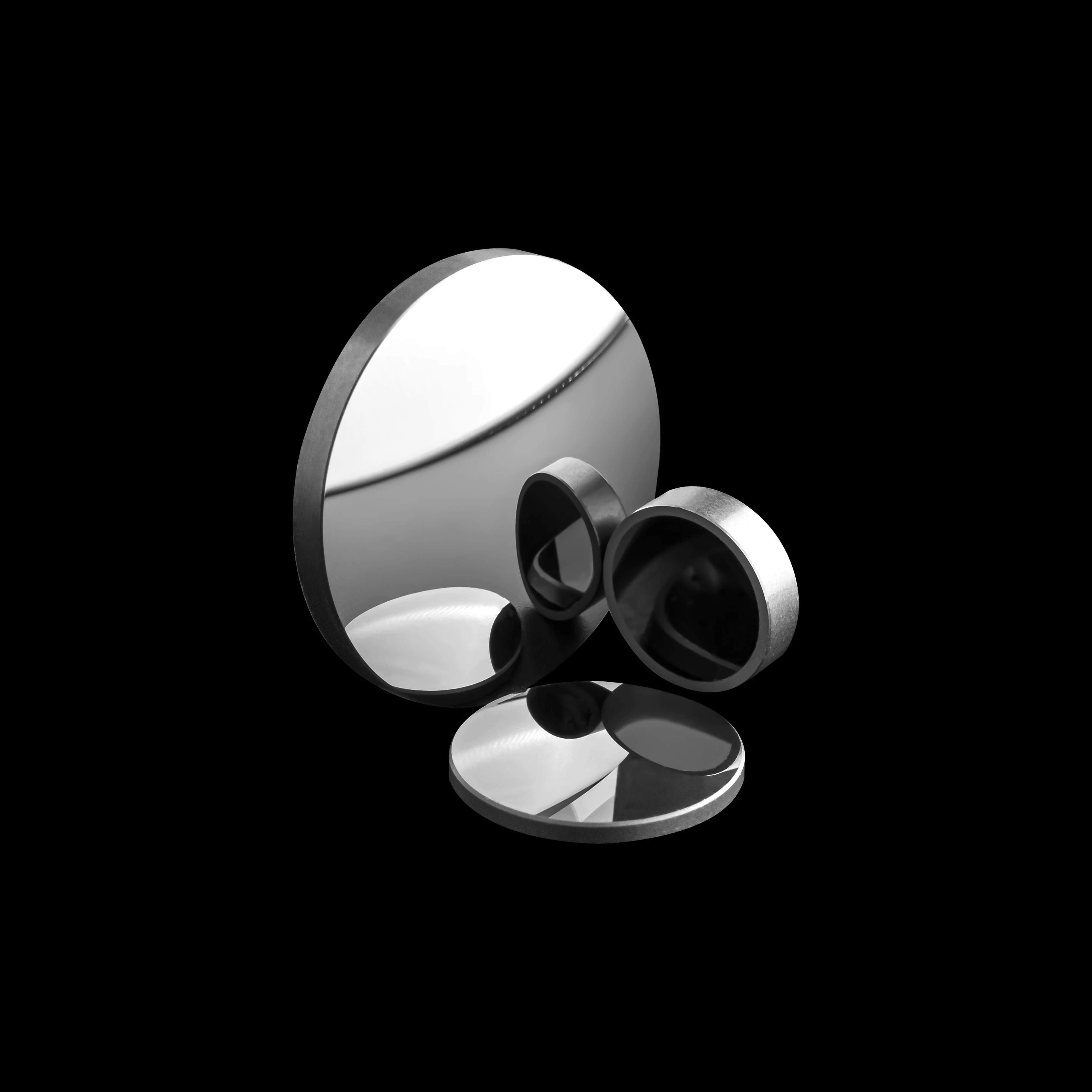

12.7mm Dia. x 50mm FL Uncoated Germanium Meniscus Lens
- Category: >>>
- Supplier: Qinhuangdao Intrinsic Crystal Technology Co. Ltd.
Share on (60475729945):
Product Overview
Description

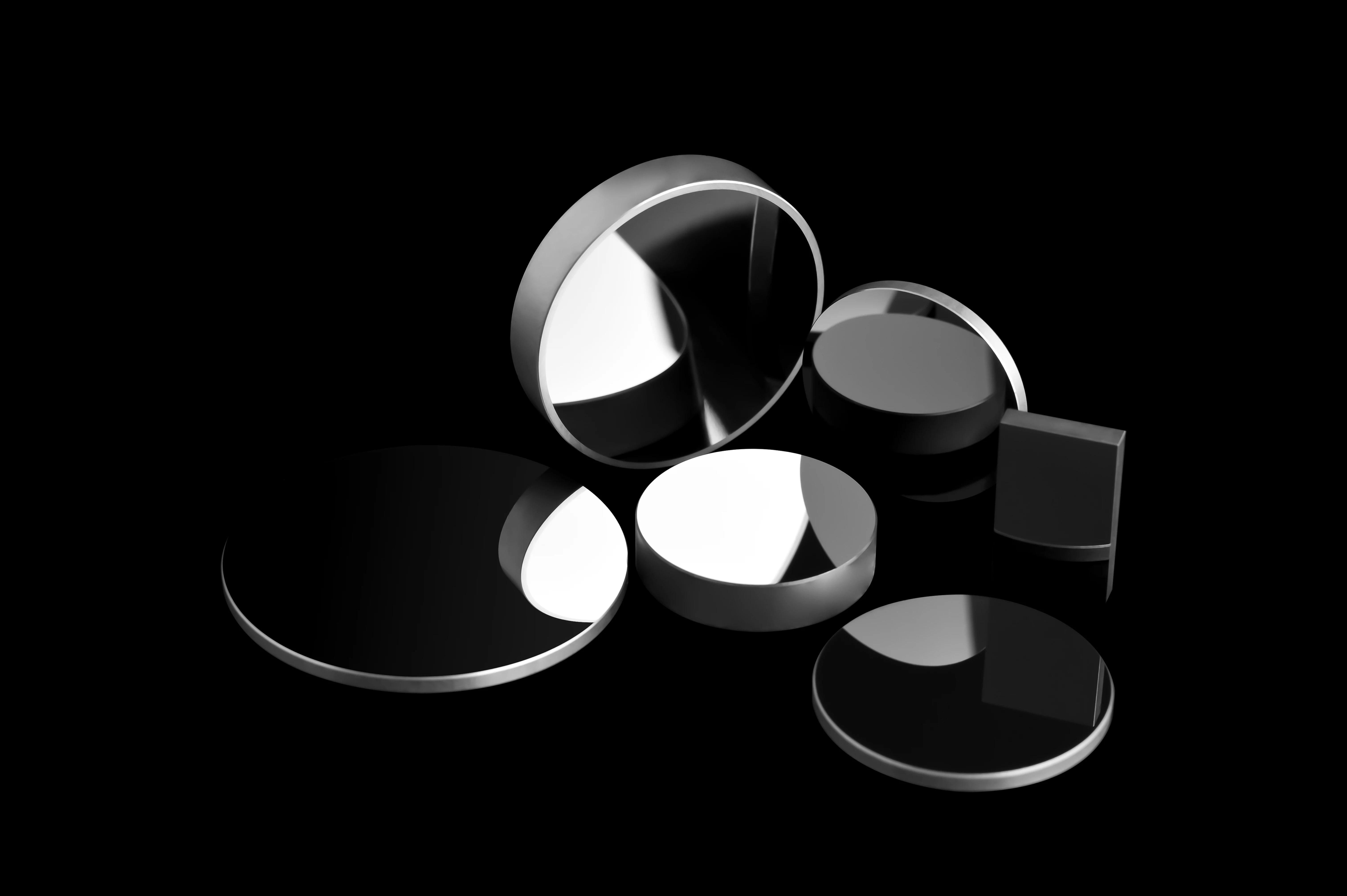

Products Show
Material: Germanium
Performance: Germanium is a high index material that is used to manufacture Attenuated Total Reflection (ATR) prisms for spectroscopy. Its refractive index is such that Germanium makes an effective natural 50% beamsplitter without the need for coatings. Germanium is also used extensively as a substrate for production of optical filters. Germanium covers the whole of the 8-14 micron thermal band and is used in lens systems for thermal imaging. Germanium can be AR coated with Diamond producing an extremely tough front optic.
Product Paramenter
Material | Germanium |
Density | 5.33g/cm3 |
Solubility | Insoluble in water |
Transmission range | 1.8 to 23 μm |
Refractive Index | 4.0026 at 11 μm |
Reflective loss | 53% at 11 μm (Two surfaces) |
Absorption Coefficienet | <0.027 cm-1 @ 10.6 μm |

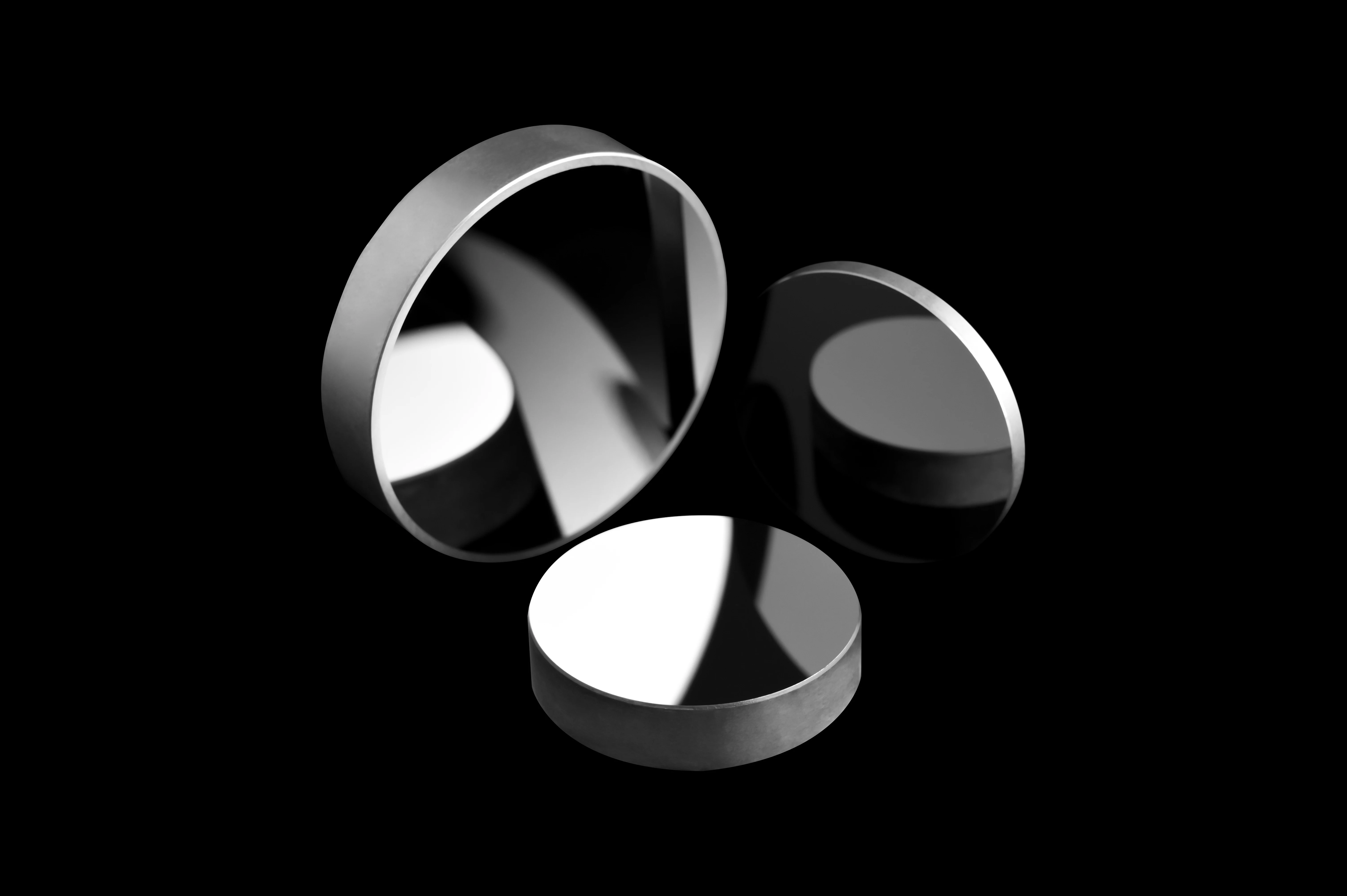

Germanium Meniscus Lenses
Substrate:Germanium
Diameter tolerance: + 0.0 / -0.1mm
Thickness tolerance: ±0.1mm
Flatness: 1 /4λ
S / D: 60-40
Beveling:<0.35mm or can be customized according to requirements
Ships: <0.35 or can be customized according to requirements
Company Profile
Exhibition Display
Certificate Display
Shipping Methods
FAQ
1. Product choosing
Our company have the large quantity of standard products in our stocks. Customer can choose the products according to the
acquirement, such as size, technical data and Coating characteristics. Also, we can produce the special optical products according
customers’ demand.
2. Product preserving
Optical components should be protected with dry situation and suitable temperature without being used. Please clean it with gauze
and cotton dipped in special cleaner (20% anhydrous alcohol + 80% ether mixture)
3. Quality assurance
Please check out the products when you received with the courier being attendance. Within 30 days after receiving the products,
you can contact me freely and provide your testing report if there is something unartificial damage and disqualification technical
data. We will be responsible for free charge repairmen, change and return.
4. Payment terms
The payment terms can be flexible and can be cash, T/T and Paypal.
5. Delivery terms
We can deliver stock products within 7 work days, and within promissory delivery time for customized products.
Our company have the large quantity of standard products in our stocks. Customer can choose the products according to the
acquirement, such as size, technical data and Coating characteristics. Also, we can produce the special optical products according
customers’ demand.
2. Product preserving
Optical components should be protected with dry situation and suitable temperature without being used. Please clean it with gauze
and cotton dipped in special cleaner (20% anhydrous alcohol + 80% ether mixture)
3. Quality assurance
Please check out the products when you received with the courier being attendance. Within 30 days after receiving the products,
you can contact me freely and provide your testing report if there is something unartificial damage and disqualification technical
data. We will be responsible for free charge repairmen, change and return.
4. Payment terms
The payment terms can be flexible and can be cash, T/T and Paypal.
5. Delivery terms
We can deliver stock products within 7 work days, and within promissory delivery time for customized products.
