thin and thick turret punch press cluster tools for multi holes punched
- Category: >>>
- Supplier: Maanshan Tenroy Machinery Equipment Co. Ltd.
Share on (60475768561):
Product Overview
Description
Product Description
1. High endurance surface, longer tool life;
2. Small distortion of material;
3. Smooth molding, Fast adjustability;
4. Nice interchangeability.
5.cooking oven stamping die.

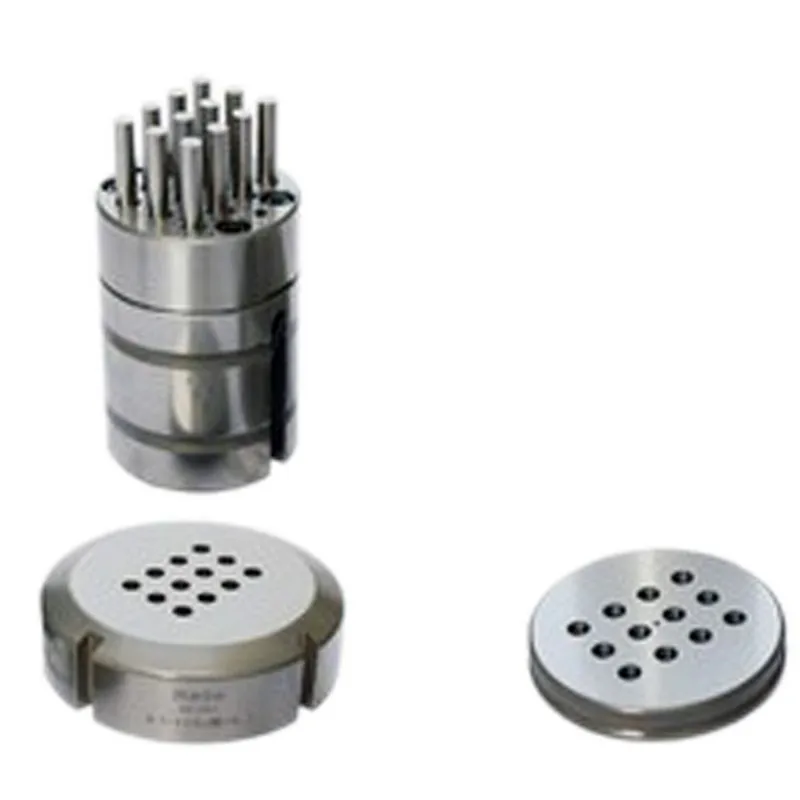

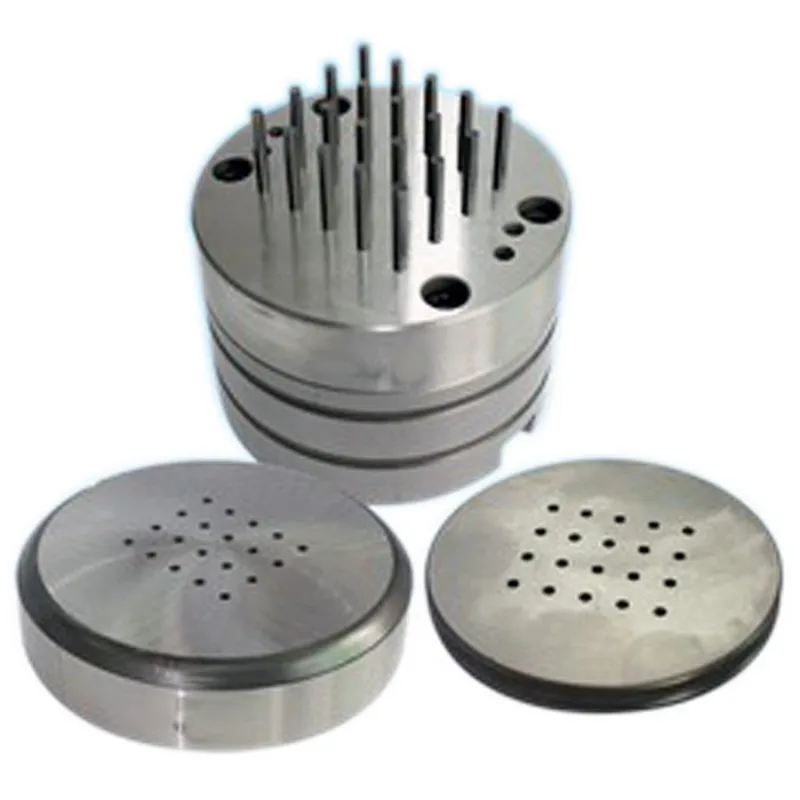

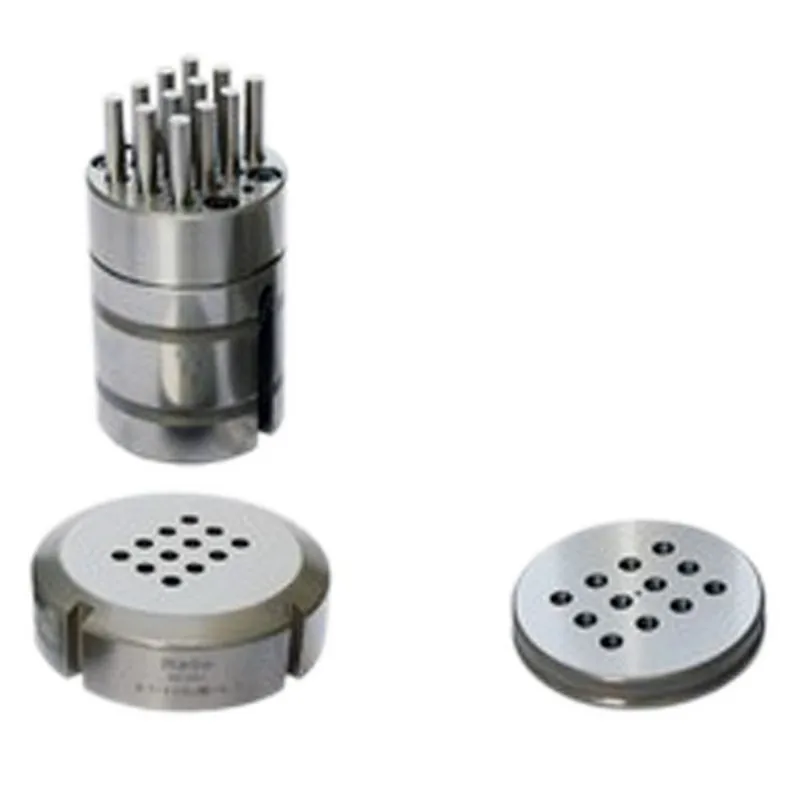

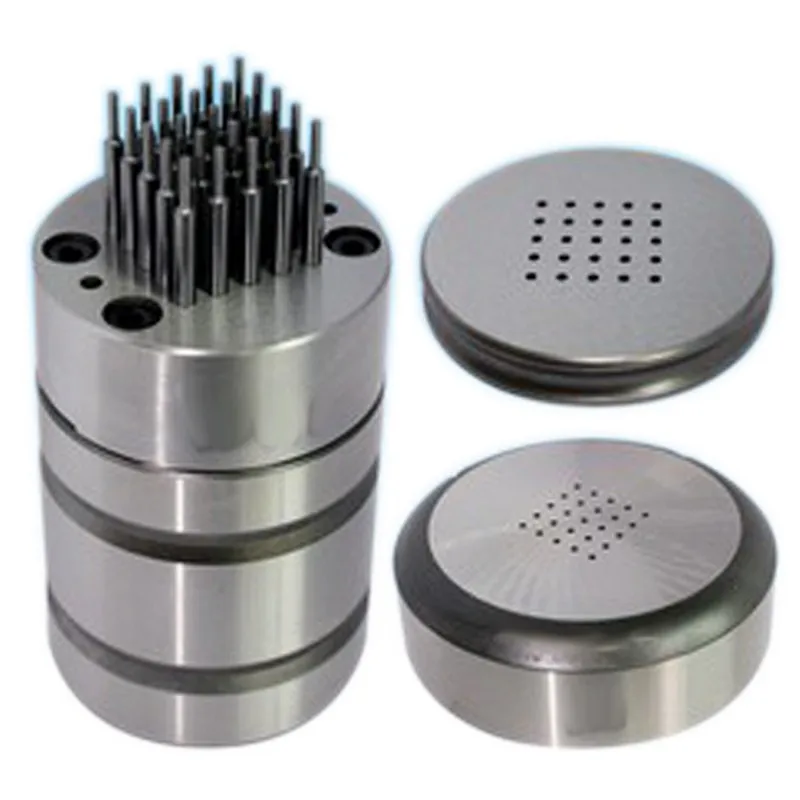

Cluster tool round and shape
1. Punch insert is changeable, save cost.
2. When punch hole smaller than 2.0mm, mold need to be designed as full guide.
3. Must avoid to punch one hole repeatedly.
4. The punching pitch must be larger than hole diameter, or else it may damage the die.
5. To comfirm the die strength, the distance between holes must be larger than 3.2mm or hole distance must be bigger than 2 times of plate thickness.
6. Cluster tool has intergral type and split inserts structure type, we can design tooling’s structure according to customer’s
requirements.
7. Generally, customer only need to buy punch assembly, die and stripper plate (PDS).
8. If customer’s inner guide is not enough, he should order guide assembly together when release order.
Product Name | thin and thick turret punch press cluster tools |
Material | SKH51 for punch; SKD11 for die |
Heat Treatment | HRC 61°- 63° |
Hits before regrinding for stainless steel | About 30000 hits |
Hits before regrinding for mild steel | About 50000 hits |
Tooling Life for round | About 800000 hits |
Tooling Life for shape | About 600000 – 700000 hits |
Delivery Time | 3-5 working days |
Our Service
Professional R & D Team
Tenroy has its own R & D team formed with 5 professional technicians, providing customers with mould design and selection, mould usage problem solution, mould maintenance and repair knowledge.
Quality Assurance
We adopt imported high quality tool steel. Each of ourtools and bladewill be tested before shipment. And their stable quality with long working life will be your best choice.
Lightning Delivery
Mass production of standard parts, smart stock! The lead time for standard type is 3-5 working days. And for special shape tools and blades, lead time is around 10-15 working days.
Packing & Delivery
Packing Details: pack with carton box, 1set/small box, many sets/big strong carton box or wooden case.
Delivery Details: 3-5 working days
1. Anti rust oil before packing
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
Our Product Range
Full Range
A various types of tools and blades are available in our company. From punch press tools,bending toolsto shearing blades and industrial cutters; from world famous brands of Amada, Strippit, Trumpf, Murata, Finn-Power, Nisshinbo etc. to China JFY, Yangli, Yawei, Jinan Jieda etc; from communications equipment, kitchen equipment, hotel equipment, solar energy equipment, power and electrical control cabinets, to aviation, military, ships, locomotives, cars, refrigerators, air conditioners, stoves, elevators, security door manufacturing, stainless steel decoration, cabinet manufacturing, and other sheet metal industries; we provide a full range of design and manufacturing for all the tools and blades that refer to above types, brand and application.
Other Advantages
Service-Oriented
A full range of pre-and after-sale technical support services to help customers improve product value. Continued after-sales service will lift the customer's worries in using our toolings. For each of our tools and blades, we will provide one year warranty!
Price Advantage
Standardized and mass production! Factory direct sales with reasonable prices! Customize toolings with professional design will be more in line with customer's product, cost-effect and save your money and time.
Best Material
Forpress brake toolsadopt 42CrMo and advanced processing technology. For punch press tools, we produce it with SKH-51 which can make the tools more durable and wear-resistant. Forshearing blades& variousindustrial cutters, they are made from a special analysis of high carbon, high chrome tool steel.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the tools are standard. or it is 15-20 days if the tools isspecial formingshape.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
