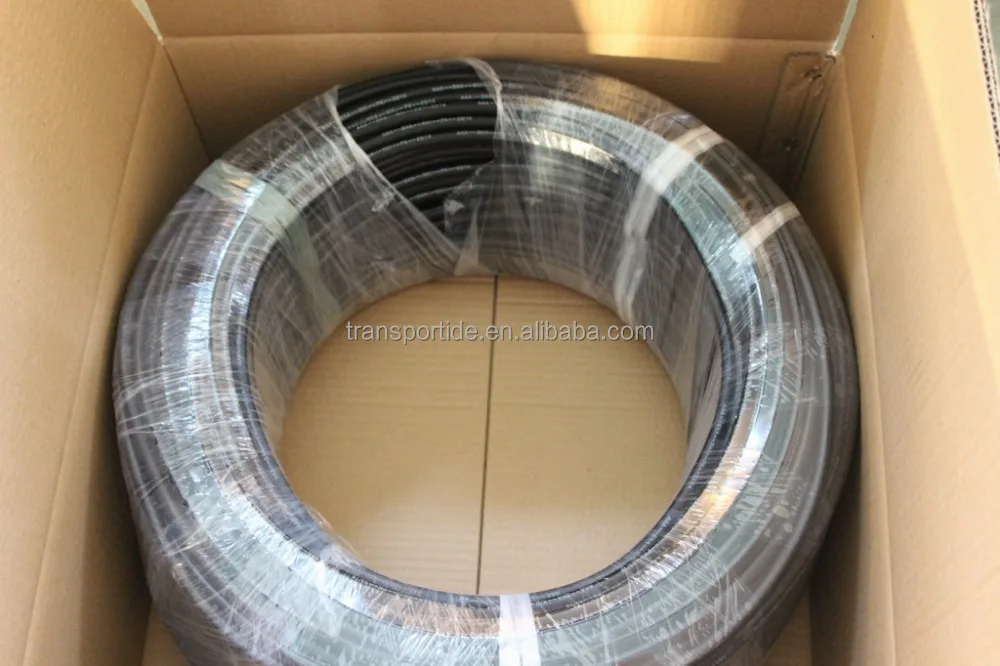

Hydraulic Brake Hose

Product Overview

Description

Hydraulic Brake Hose:



Application: Hydraulic system of all kinds of automobile and motorcycle to transfer the hydraulic power.
Commodity	Hydraulic brake hose
Standards	SAE J1401,FMVS 106
Quality control	ISO/TS16949:2009
Material	Tube: EPDM, perfectly resist oil, heat and permeation of water
	Reinforcement: high strength polyester fiber treated by special resin;
	Middle layer: using viscosity-strengthen middle rubber between reinforcement to provide high dynamic capability
	Cover: EPDM, perfectly resist heat and ozone
Brake fluid	DOT3, DOT4
Features	Low volumetric expansion;
	Ozone resistance;
	Low and high temperature toughness range -55℃ - 125℃;
	Exclusive whip performance;
	High tensile performance;
	Burst pressure≥60Mpa;
	Excellent moisture resistance;
	Stable, safe and reliable brake performance.
Length/piece	10 - 50m
Guaranteed	100000kms or 5 years



Size	I.D	O.D	Inch	Length	Unit packing	Package
Normal	3.2mm	10.5mm	1/8”	10-80m/pc	200m/roll	carton,pallet
	3.2mm	12.5mm	1/8”	10-80m/pc	200m/roll	carton,pallet
	4.8mm	12.5mm	3/16”	10-80m/pc	200m/roll	carton,pallet
Special	3.0mm	11.0mm		10-80m/pc	200m/roll	carton,pallet
	3.0mm	11.5mm		10-80m/pc	200m/roll	carton,pallet
	3.5mm	10.5mm		10-80m/pc	200m/roll	carton,pallet









For You Choose......









Your enquiry is welcome!
