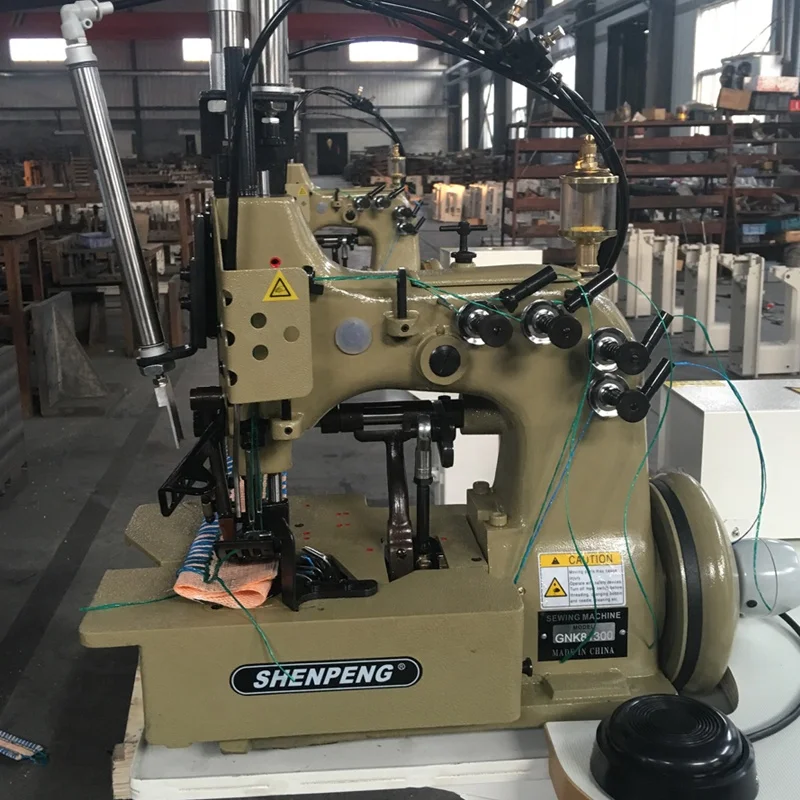

SHENPENG 81300 A1HL Double Needle Four Thread Safely Stitch Made In China Sewing Machine

Product Overview

Description

81300A1HL Double Needle Four Thread Safely Stitch Made-In-China Sewing Machine



Applications



81300 A1HL Double Needle Four Thread Safely Stitch Made-In-China Sewing Machine With Lower and Upper Feed is double needle four threads sewing machine ,it is suitable in sewing container bag ,jumbo bag ,bulk bag,FIBC bag ,big bag and other thick materials.



Features



1. Safety stitch 401.502 (one double thread chain stitch and one overedge stitch);


2. Maximum sewing speed up to 1,400spm;


3. Maximum sewing capacity up to 19mm (3/4in.), 58 plies of paper;


4. Adjustable stitch length from 6 to 13mm;


5. Built-in walking foot feed system;


6. Main parts apply copper alloy and high duty alloy;


7. Easy maintenance semi-closed structure;


8. Manual lubricating with built-in sight feed oiler;


9. Built-in electro-pneumatically operated hot thread chain cutter;


10. Built-in electro-pneumatically operated presser foot and upper feed dog lifter;


11. Closed type rolling beating apply in every crankshaft;


12. Well assembly quality, ensure the stable running and long service life;


13. High level polywoven bag making machine for all sorts of material with different weights in side sewing for container bags;


14. Servo motor drived;


15. Special designed pedestal fitted;


16. Low noise, low vibration.



Specifications



Model	81300A1HL
Stitch Length	6-13mm
Max. Sewing Speed	1,400spm
Max. Sewing Capacity	19mm (3/4in.)
Stitch Type	Safety Stitch 401.502
Needle Gauge	5mm (13/64in.)
Overedge Stitch Width	10mm (25/64in.)
Total Overedge Stitch Width	15mm (19/32in.)
Feed Mechanism	Walking Foot
Lubrication	Manual with Built-in Sight Feed Oiler
Presser Foot Lifter	Electro-pneumatically Operated
Needle	UY9853G
Thread	Polyester 20/6, 20/9 (2×3, 3×3)
Net Weight(head)	42kg
Gross Weight(head)	45kg
Net Weight(with motor and pedestal)	126kg
Gross Weight (with motor and pedestal)	133kg
Dimension	490×380×520mm

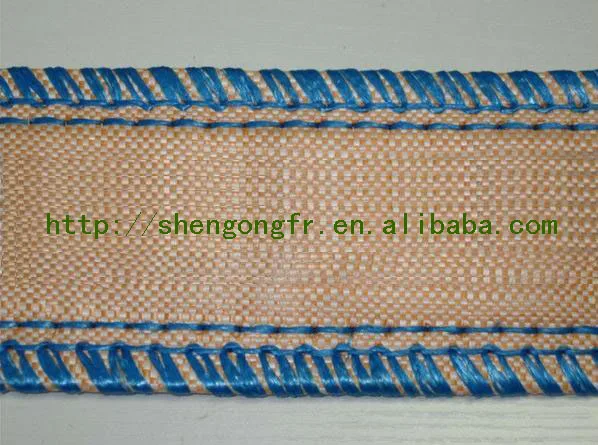

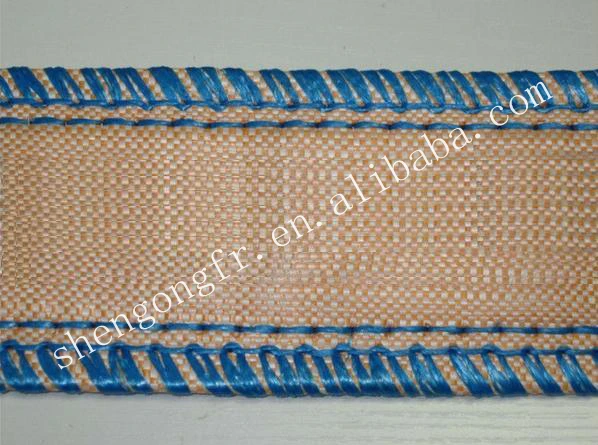

81300A1HL Sewing Sample

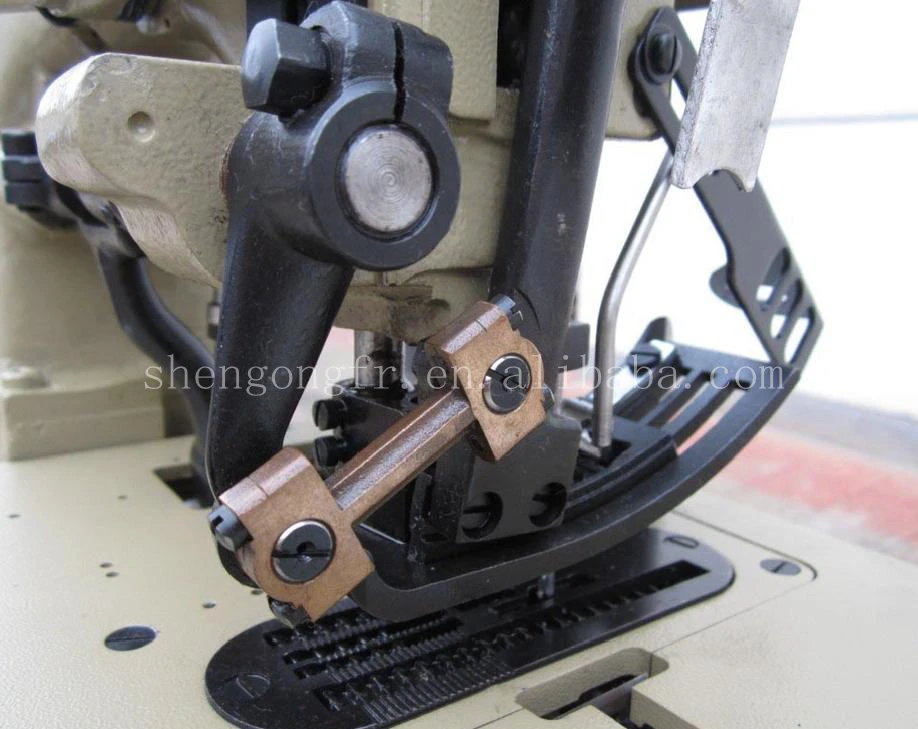

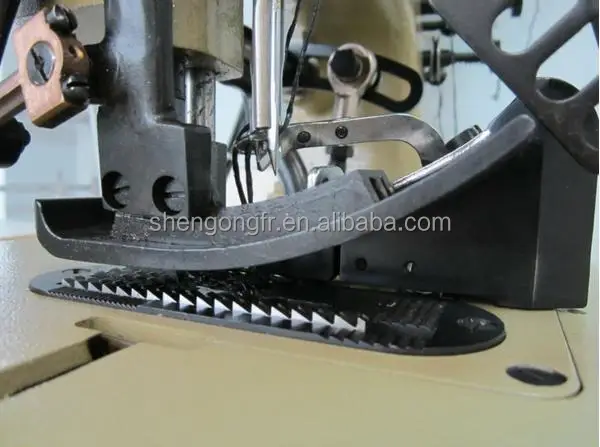

81300A1HL Presser Foot

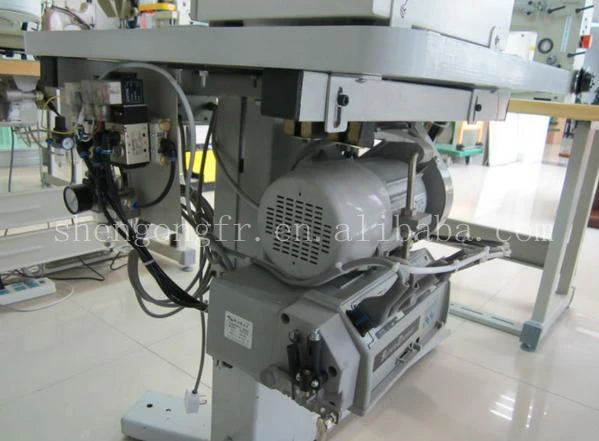

81300A1HL Sewing Machine Head ,Table And Motor









1. Q: Do you have your own export right ?

    A: Yes, we are able to export the sewing machine to any country or region



2. Q: What service you can supply?

    A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Could i visit your factory ?

A: Yes, at the same time you can enjoy more favorable price if buy sewing machine



4. Q: Is your machine could replace Union Special or Newlong sewing machine function?

    A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.



5. Q: Do you supply spare parts?

    A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.



6. Q: What gurantee you supply?

    A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
