stable quality parking sensor with LED display.Parking assist system,buzzer built in display

Product Overview

Description

Model No.:   HDS3-4-TF0

1) Car Premium Rear 4 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Display range: 40cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;

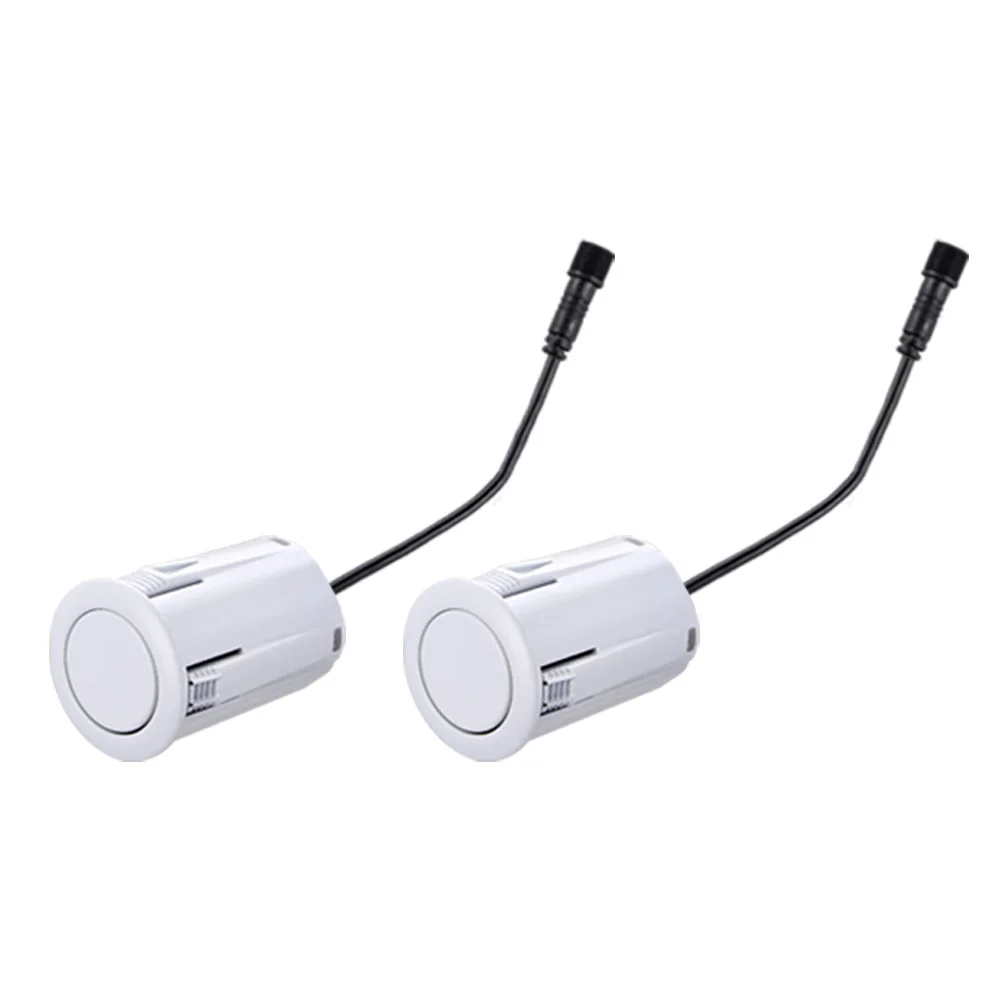

6) 4*TF0 double angle sensor, 18.5mm plastic flat, 15cm+2.5m cable;with connector;Connectors for sensor cable to control box are with click lock.
7) Precision accuracy: CM;

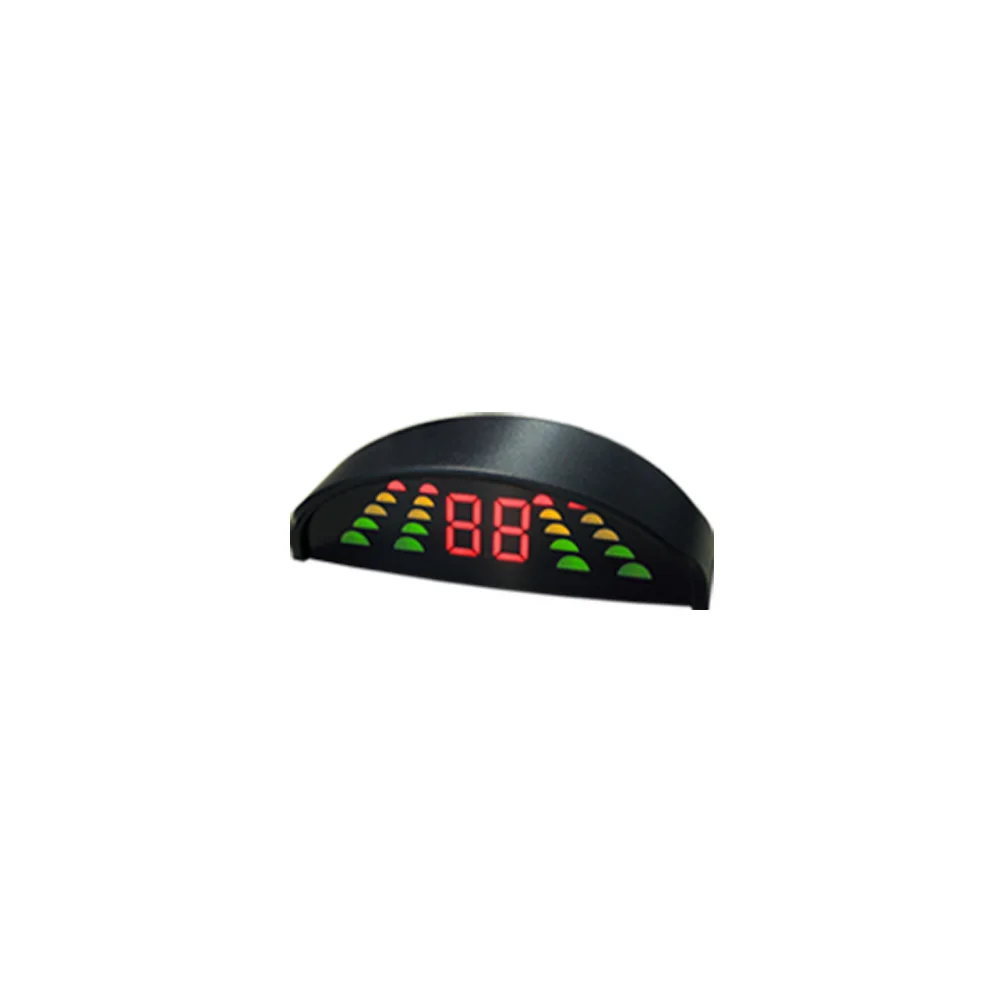

8) DSPS3 super slim display, 3 Color LED 2 Channel
9) Power Input: 9.6~15V DC;
10) Industrial cables and connectors, Microchip MCU.
11)Intelligent detect tow bar/ spare tire (memory function) special designed for SUV;









Detailed Specification:

Application	General Car, SUV
Function	Ultrasonic wave detected obstacle when car is reversing.
Voltage	DC 12V-24V
Operating current	150mA
Operating temperature	-20 to +80 °C
Operating frequency	39.3 to 40.7 KHz
Sensor Horizontal detection angle	120 °
Sensor Vertical detection angle	60 °
Distance detection accuracy	1 cm; dm available
Sensor Detection range	0cm-2.5m
Buzzer sound volume	75-105 dB
RF Frequency	433 MHz
Sensor Eye	4 sensors
Sensor cable	2.5m 64 braided pure copper cable, pull force>12KG
Sensor Color	customized color ≥200 set for one color
Sensor Option	MF0,TF0,OL1
Buzzer Option	BUZ01: 'High-Low-Off' switch to adjust volume; BUZ02: fixed volume alam
Warranty	2 years
Sample	Available
Wholesale business	Small order wholesales is avaiable, retail business is not available
Delivery Date	15-25 working days after payment receipt
Trade Term	EXW, FOB, CIF, available
Payment	Paypal, TT, Western Union, L/C





Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.

We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.

We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
