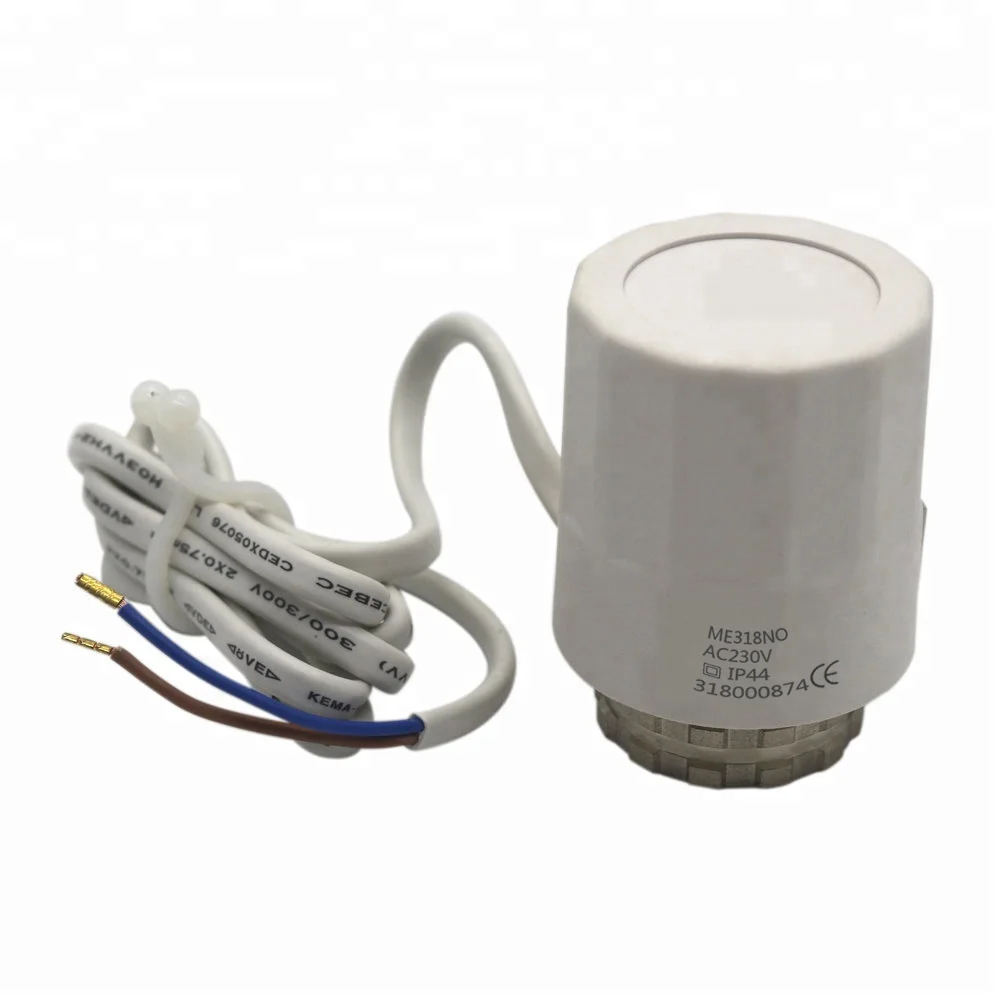

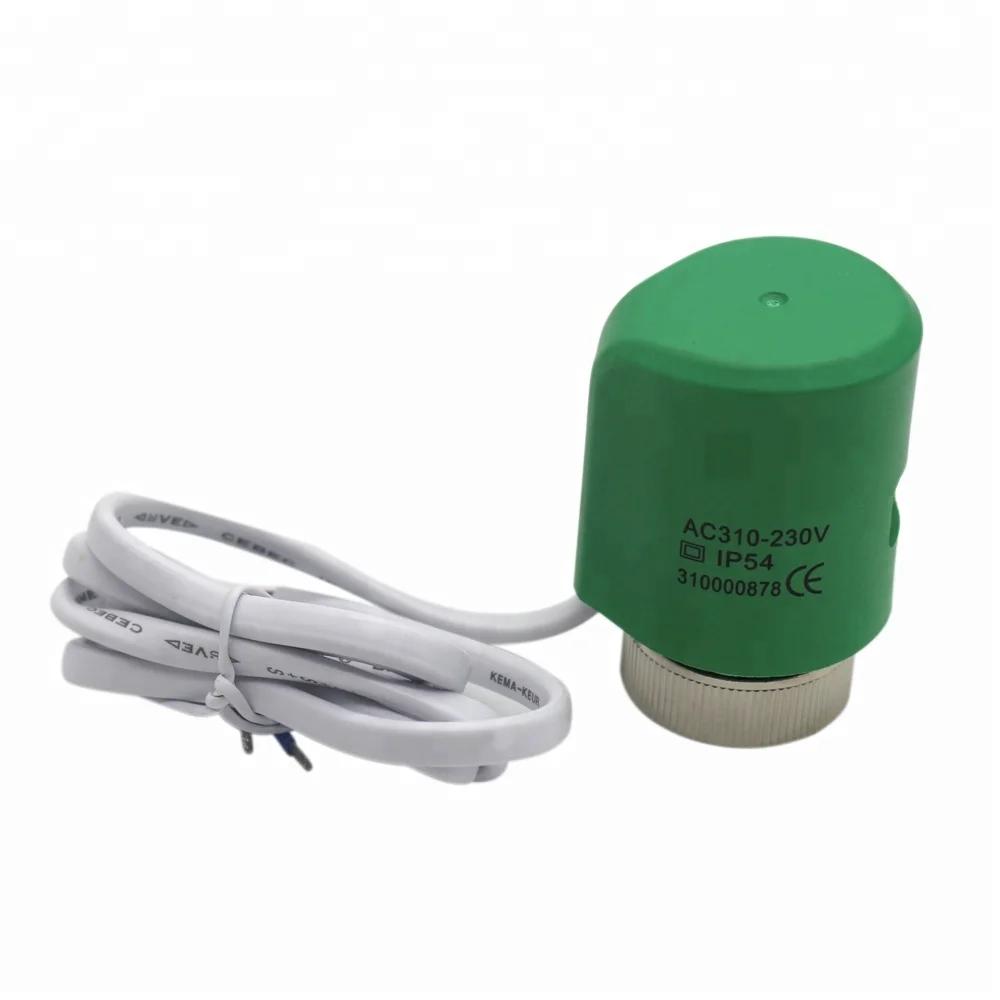

Electric Thermal Actuator for water radiant heating system
- Category: >>>
- Supplier: Shenzhen Myuet Energy Saving Equipment Co. Ltd.
Share on (60476201734):
Product Overview
Description
Product Description
Application
The thermal actuator is suitable to be mounted on all manifolds, thermostatic valve bodies and three-way valves. The actuator is made for either 24V,110 V or 230V supply in normally Open.
Product Features:
1. Long service life of 100,000 hours.
2. High degree of safety, both housing and side parts by using special material of Nylon+35% fiber with its anti-flammable at grade V1-V0(the hightest level)for heat resistant and anti-deformation,as well as anti-cracking while heat and cold transfer.
3. High quality of cable-heat resistant & cold resistant.The thermo bulb is possible to reach 85 ℃ max. ,our cable temperature range of -20~125 ℃ in case short-circuit due to over heat. It is very safe to use and with long service life.
4. Low power of 2W.
5. Working theory:mechanical therory
Techinical Data:
Voltage AC230|V
Power consumption: 2W
Force: 110N
Stroke: 3.5~4.0mm
Running time: 3.5--4.0min
Valve interface: Cap nut M30X1.5mm
Housing material: Nylon+35% fiber, anti-flammable of grade V1-V0( the highest level)
Inside parts material: Nylon+35% fiber, anti-flammable of grade V1-V0( the highest level)
Length of cable: 800mm.
Power:2W
Force: 110N
Ambient termperature: -5℃~60℃
Product display
Packaging & Shipping
weight:151g/pcs
each unit packed in a netural single retail box
retail box size: 5.6*5.6*7.6CM
120pcs/carton
carton size: 47*29*24.5CM
Transport: express,air freight, sea freight.
