Product Overview

Description

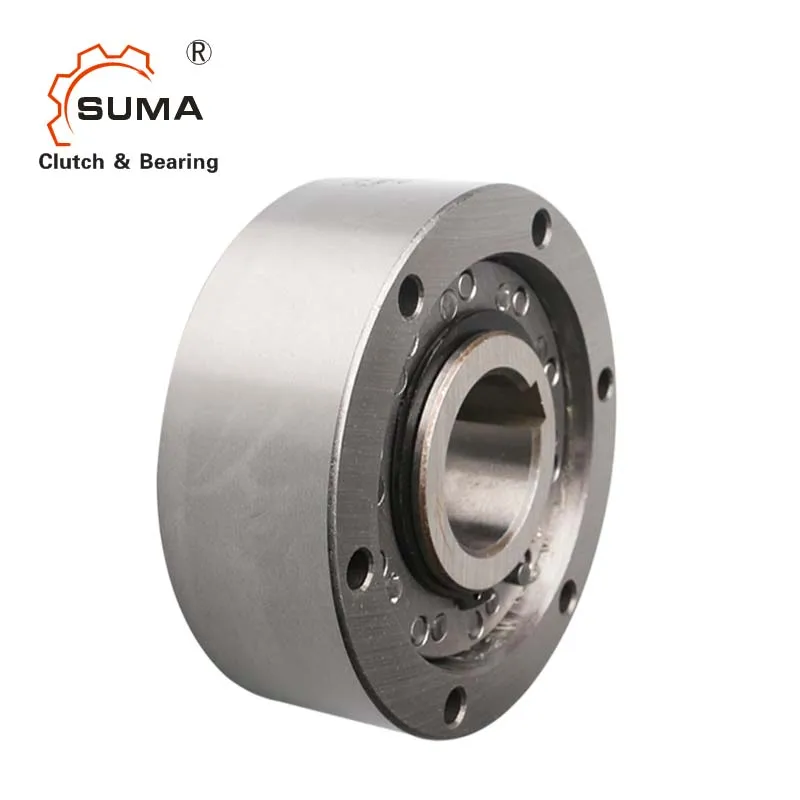

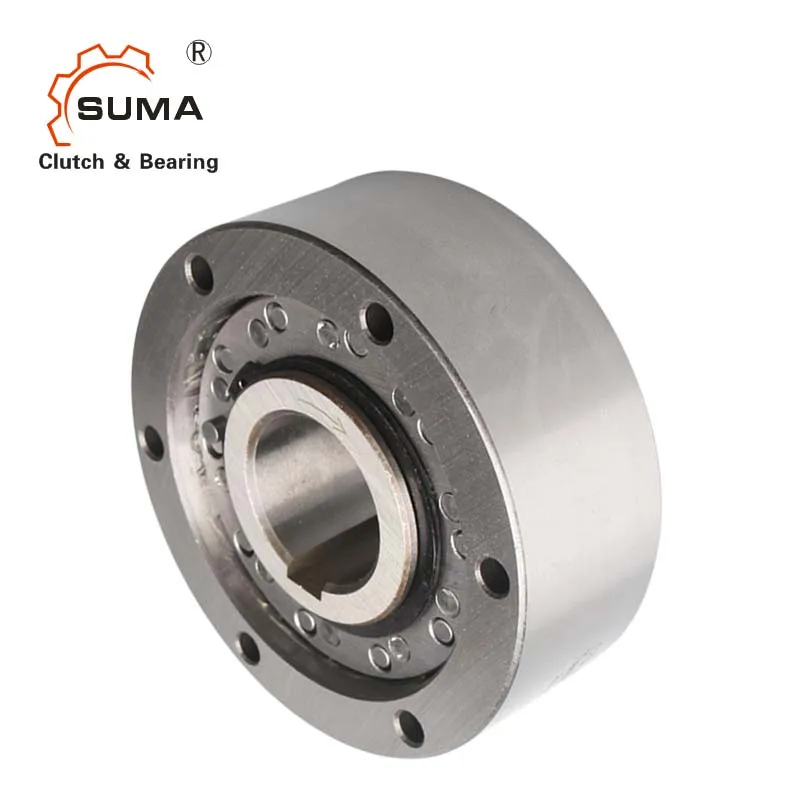

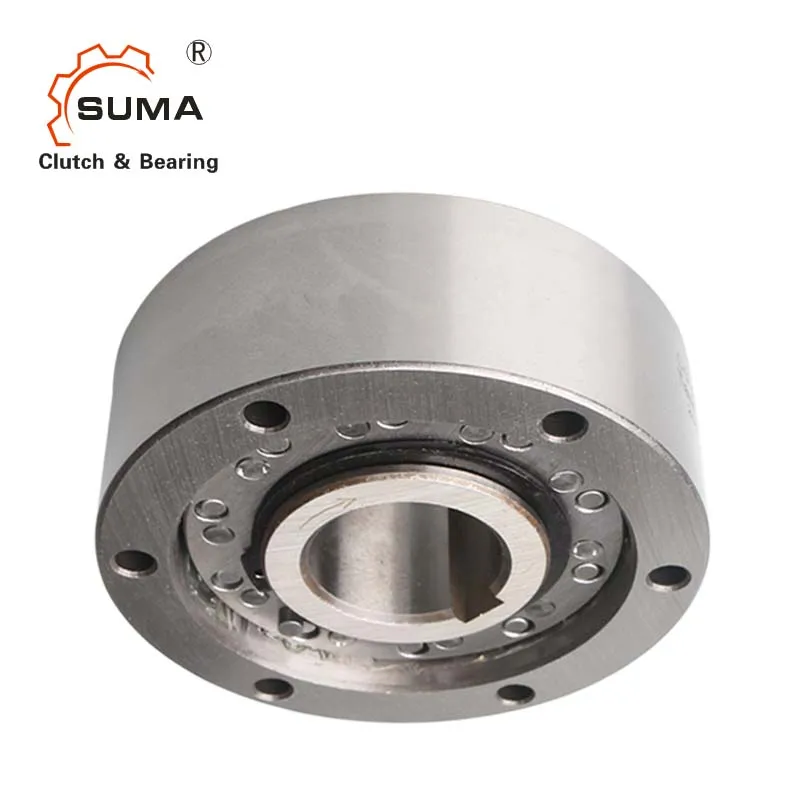

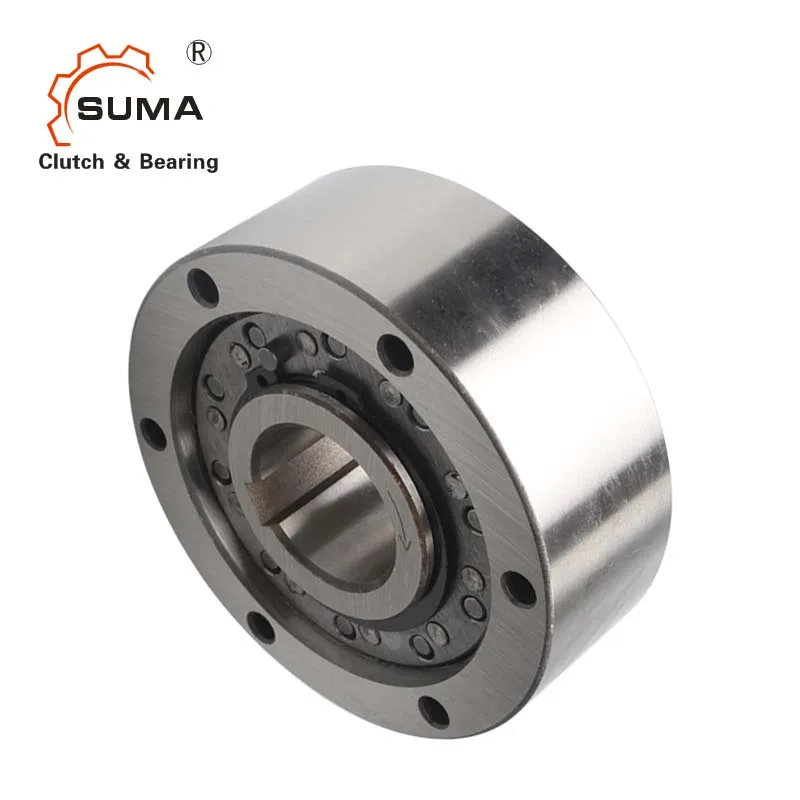

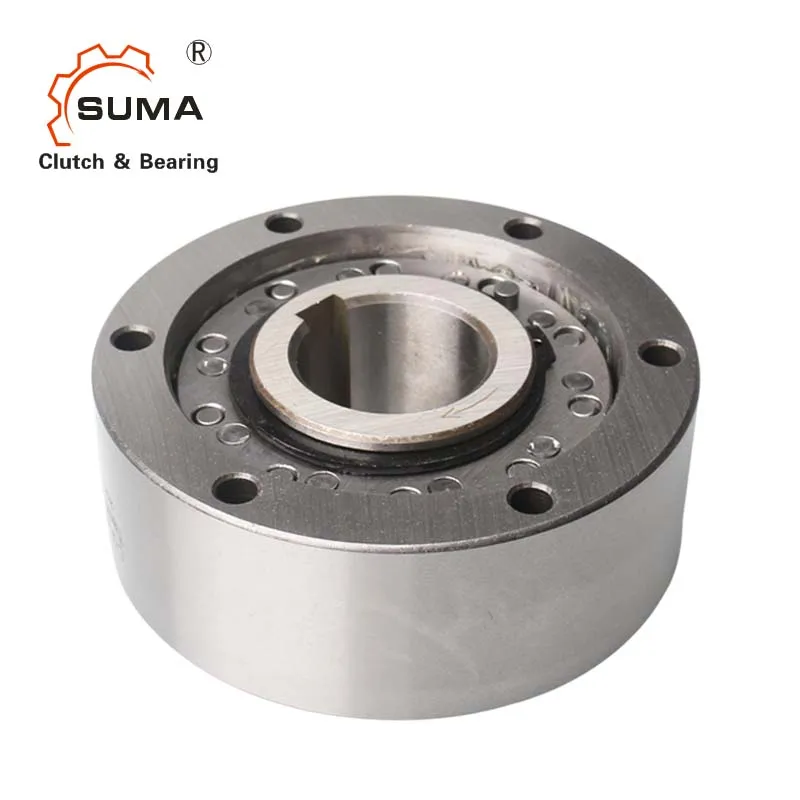

RSCI 50 Jiangsu Bearing One Way Sprag Clutch RSCI50



Product Description

 RSCI

Features of sprag clutch rsci

RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. It is a non self-supported type. So, bearings must be provided to ensure concerntricity of the inner and outer races and support axial and radial loads.

Product name

sprag clutch rsci

Model

RSCI 50

Material

GCr15

Inner diameter

50mm

Outer diameter

150mm

Torque capacity

1400Nm

Weight

4.3kg

Structure

Sprag type without bearing supported

Application

Reducer, Pump Machine, Air blower, Gearbox

Package

Carton Box / Wooden box

Payment terms

TT, L/C, D/A,D/P,Western Union

Delivery time

10-15 days for big order



Catalogue of bearing for sprag clutch rsci for your choice  12.jpg

TypeSize Speeds

Num

ber

 Weight
RSCIdH7TKN1)nmax2)nimin3)nimax4)D5)D1h6D2H7D3D4zLII1mI2I3RSCIF8
[mm][Nm][min-1][min-1][min-1][mm][mm][mm][mm]  [mm][mm][mm][mm][mm][mm][kg][kg]
202123157501500090366678M6635352558161.50.3
253193007251400095407082M6635352558161.60.4
3037529070011000100457587M6635352558161.80.4
3555028067011000110508096M6835352558162.10.5
4080026063080001256090108M88353525510212.70.7
4591225561070001306595112M88353525510212.90.9
501400235560600015080110132M884040257.510214.31
602350210510600017585125155M1086050361212356.51.8
7030501954704000190100140165M10126050361212358.61.9
8045001804404000210120160185M101270603617123512.52.6
80M58001553754000210120160185M101270604612123513.12.6
9056001704103000230140180206M121280703622123517.43
90M87001453503000245140180206M121280704617123518.33
100105001453553000290140210258M1612908052.618.61537285
100M160001403402400290170210258M161290806313.51235305
130157501353302400322170240278M1612908052.618.61537356

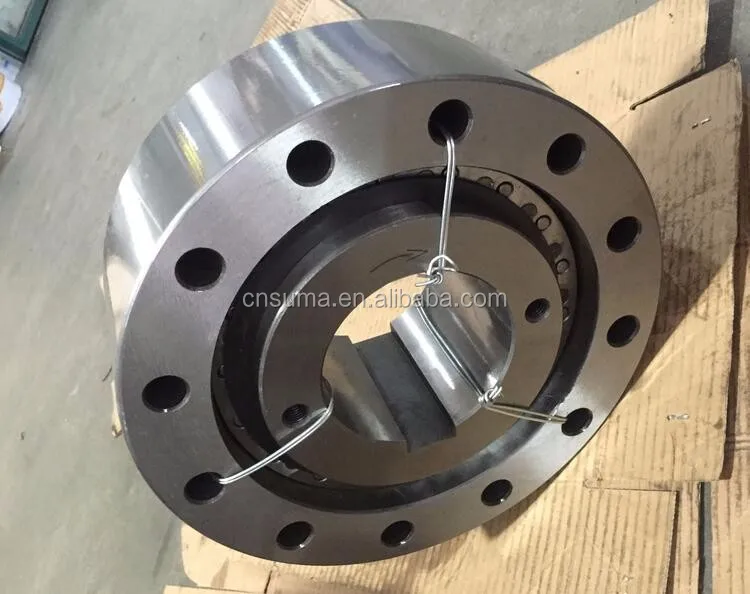

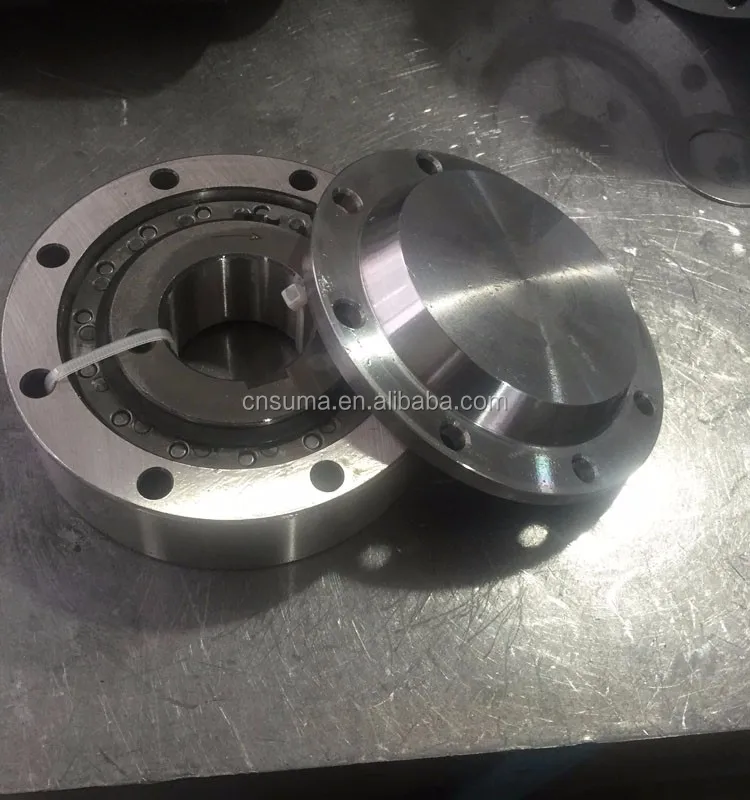

Detailed Images



ckf-a35110 rsci-1CKF-A35110 rsci-2

RSCI CKFARSCI


Germany client for visit






Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.



FXM

Production flow

production flow

Certifications



FAQ

Q: How do you pack the goods?

  •  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box
  •  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
