2023 г., высокая яркость, изготовление панелей EL, сырье

Product Overview

Description

EL Panel Car Sticker making.
EL phosphor, Silver ink, Barium powder, ITO film
KPT conductive Paste, Copper tape,Zebra Tape etc.
EL panel technology transfer.

















KPT Company Supply Silver conductive ink Paste for Electroluminescent LIGHT EL panel sheet poster paper making  and Technology Supply, It function as Back Elecrode Printing Layer with very good Conductibility.

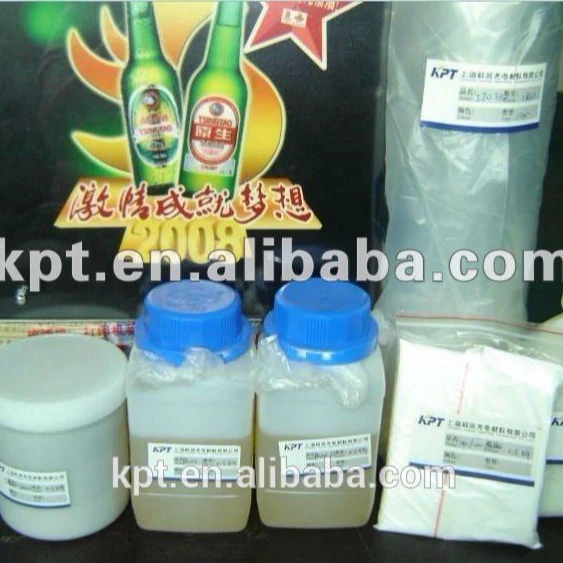

EL Sheet ,Panel,Poster Making  RAW MATERIAL AND TECHNOLOGY





1. EL ,ELECTROLUMINESCENT PHOSPHOR,





2. KPT PasteAB, Electroluminescent Paste







3. Barium power,



4. ITO film

5.  Silver paste, Silver conductive ink

6. UV Insolation Ink

7. Copper Tape

8. A4 Zebra sheet

9. Inverter /Driver etc.





Type:

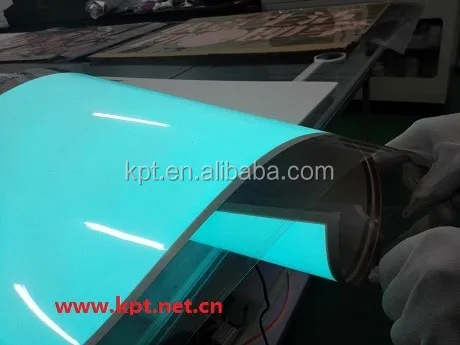

1. Back light EL panel

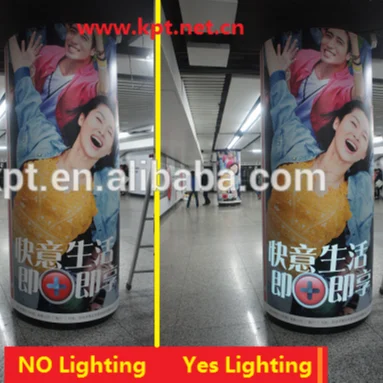

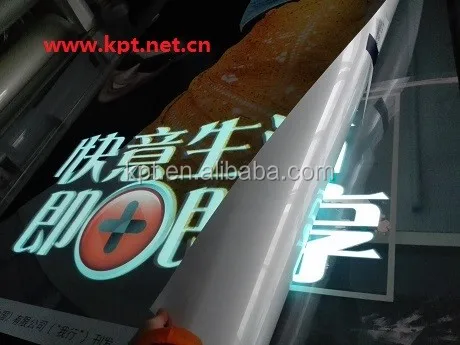

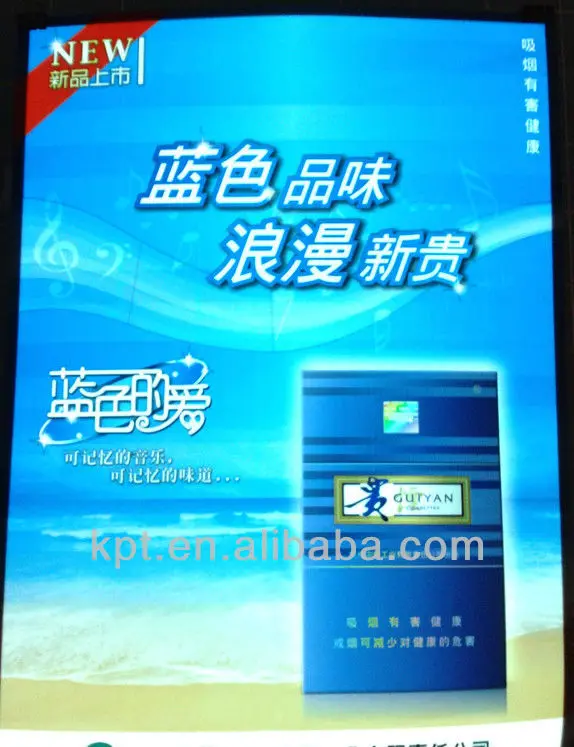

2. Advertisement EL panel and sheet























                         EL PANEL (Back light and Advertisment ) PANEL  MAKING MATERIAL



Voltage 40V-400V,  Frequency 50Hz-4KHz,  Temperature from under zero 40 to 60 centigrade degree, Current 0.02-0.2mA/ cm2, Electric Capacity 0.2-0.7nF/cm2, humidity 0%90%, Power Consumption 2-7mW/ cm2, Application lifetime over  1000-20000hrs, Brightness 5-100cd/ m2



TYPE	APPLICATION	CHARACTERISTIC
Paste AB(glue)	Lighting Layer Printing	Mix with EL phosphor, with strong adherence, Keep dry within 3-4 Hrs under 110 centigrade degree
Paste AB(glue)	Median Layer Printing	Mix with median power , improve conductivity, Keep dry within 3-4 Hrs under 110 centigrade degree
Median Power(Carrier)	Median Layer Printing	High reflectivity, High conductivity
Property-adjustable Solvent	Additive for A, B Paste	Solidify Improvement
Diluter, Wash thinner	Viscidity Adjusting, Washing Tool	Dilution, Washing
ITO Film	Transparent Plastic Electric Film	Transparent, Flexible
Paste AB(glue)	Lighting and Median Printing	Easier and Prompt Application                              Be dry within 20 minutes with 110 centigrade degree
Electric Paste	Back Electrode Printing	Good Conductibility
Insulating Coating	Back Electrode Protection	Easier Application



To be able to supply consulting service for EL instruments production technics











You're warmly welcomed to pay a visit to our company KPT CO. , Thank you !
