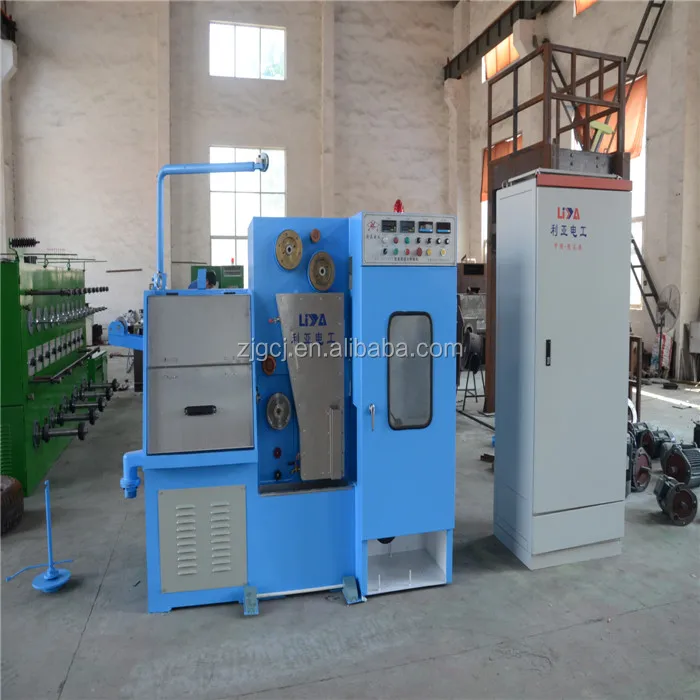

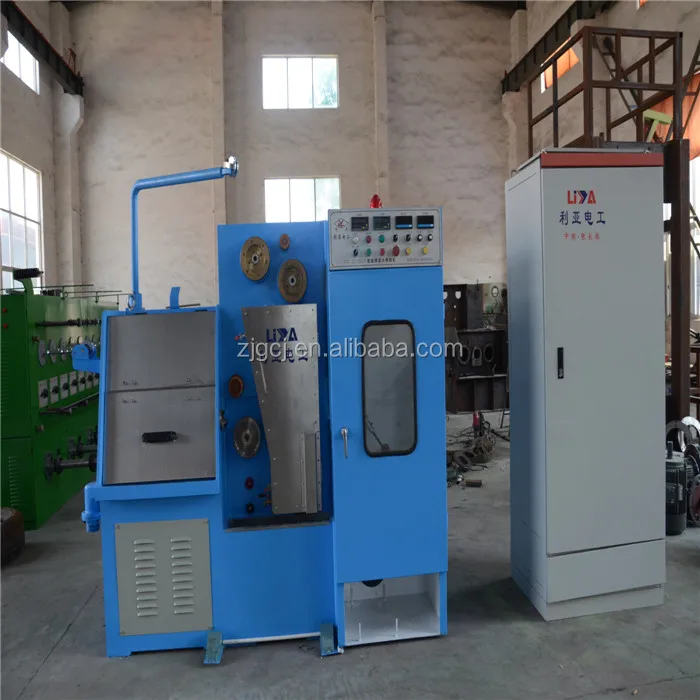

Cable making machine/Intermediate fine copper wire drawing machine and annealing machine

Power Control

Dual frequency control

Max. Drawing dies quantity

18

Inlet wire diameter

Φ0.8—Φ1.6 mm

Wire finished diameter

Φ0.20—Φ0.6 mm

Maximum line speed

MAX1500m/min

Slip ratio

15%

Constant speed capstan slip ratio

13%

Host body structure

Steel welding, tempering

Capstan

Spray tungsten carbide

Drawing motor

15KW

Take-up Power

4KW

Max.capstan diameter

Φ200mm

Fixed speed capstan diameter

Φ200mm

Annealing wheel diameter

Φ200mm

Annealing voltage

DC 0~60V

Annealing current

DC 0~600A

Annealing protect mode

Steam or water

Coiling shaft size

Φ300mm ( or as asked)

Take up method

Top center screw tight type

Traversing way

90W Geared Motor

Transmission

Flat belt / synchronous belt drive

Coiling control

PID automatic control variable bit detection

Deflection detection device

Arm type

Tension adjustment method

Counterweight way

Maximum load

50KG

Drawing Lubrication

Spraying

Brake

Electromagnetic brake

Voltage

380V 50HZ

Drawing oil

40L/minute

Weight

2000KG
