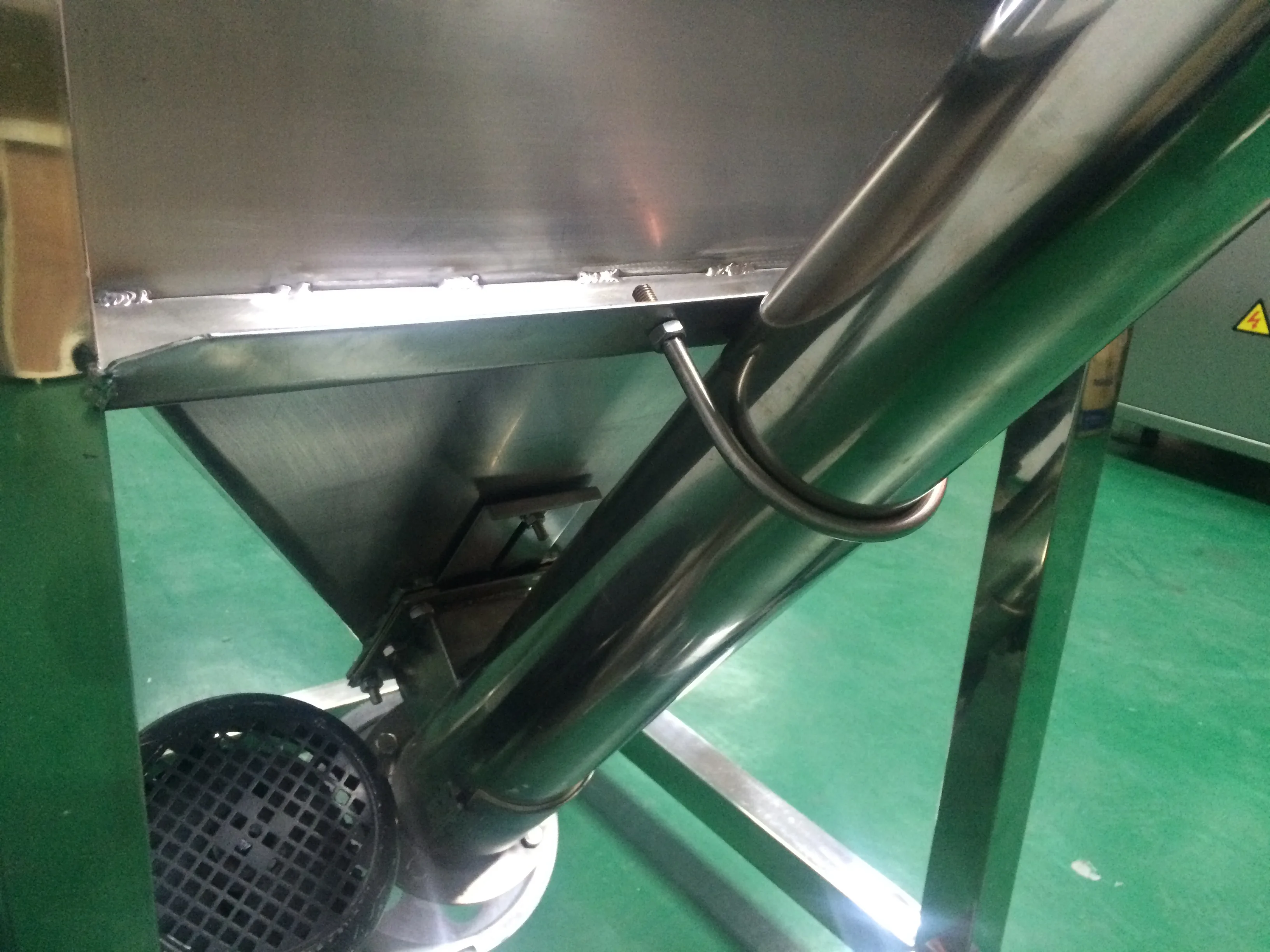

HH89 Inclined Screw Feeder Without Hopper Used Stainless Steel Screw Auger Conveyor Screw Conveyor Blade

Share on (60476571615):


Price:

Quantity:


Product Overview

Description



Product Description


HH89 Inclined Screw Feeder Auger Feeder,Screw Conveyor

The screw conveyor can be divided into level, inclined and combined types according to configuration style.It can finish concentrated transportation, respectively conveying, mixing materials, dewatering, mixture,customized batching, discharging and stacking, being used with other conveying device together.



SPECIFICATIONS FOR HH89 INCLINED SCREW FEEDER
Model No.
HH-89
HH-114
HH-141
Coil diameter
Φ89
Φ114
Φ141
Capacity
1.5 m³
3 m³
5 m³
Power Source
380V 50HZ
380V 50HZ
380V 50HZ
Power
0.55 kw
1.1 kw
1.5kw
Inlet high
850mm
900mm
900mm
Outlet high
1600mm
2000mm
2000mm
Volume
110L
230L
230L






Main Features

 1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position a-rranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.

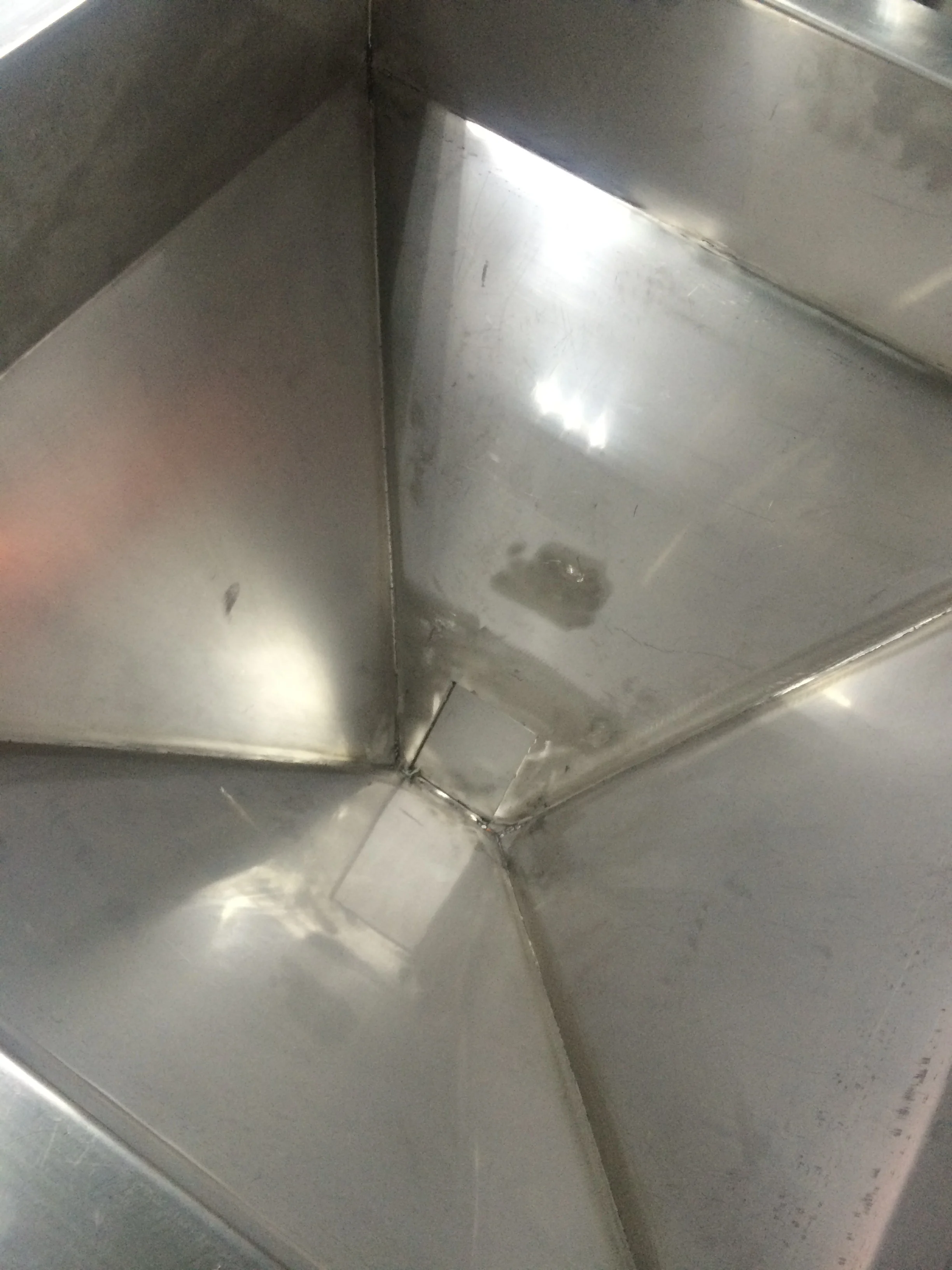

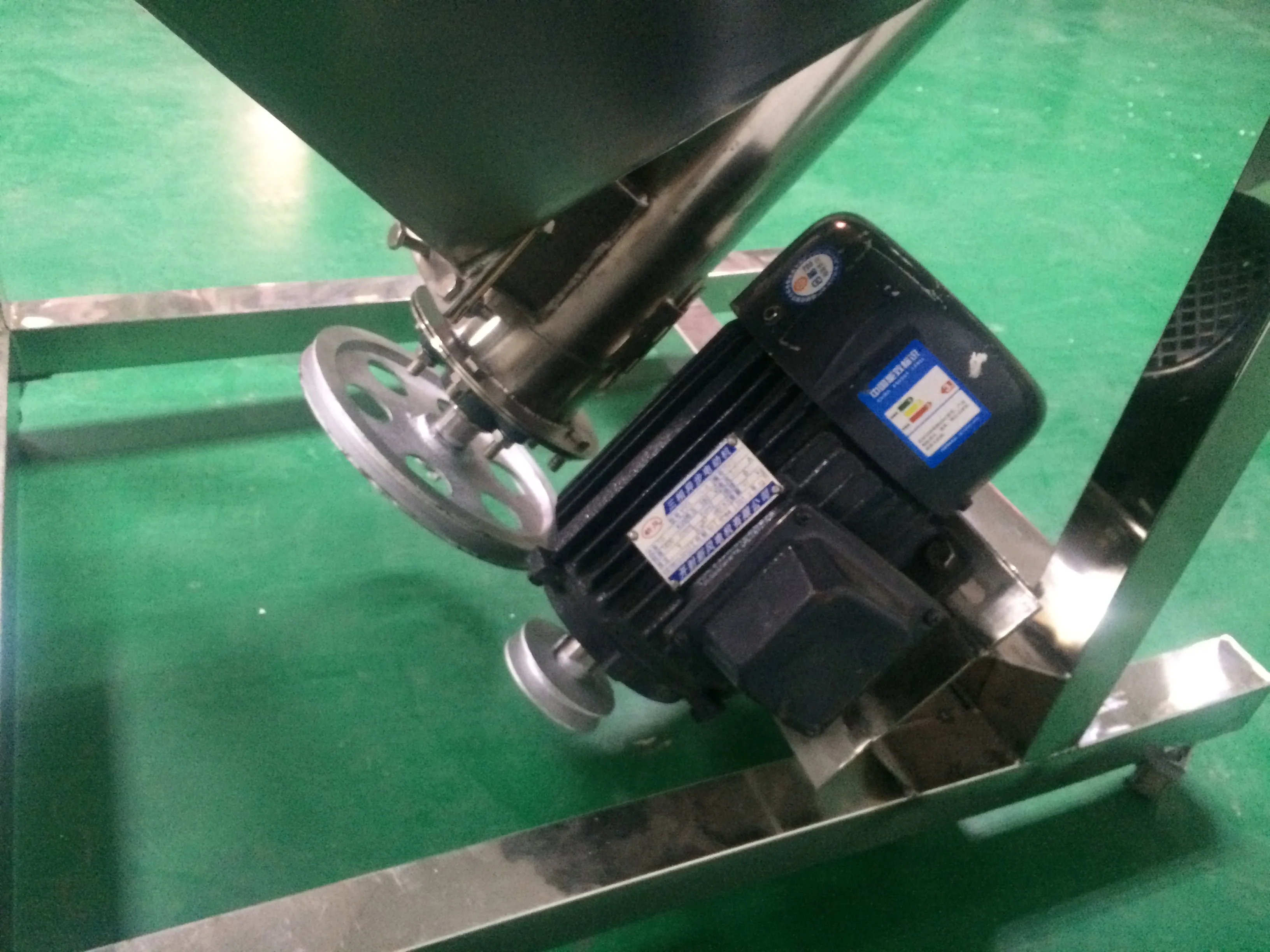

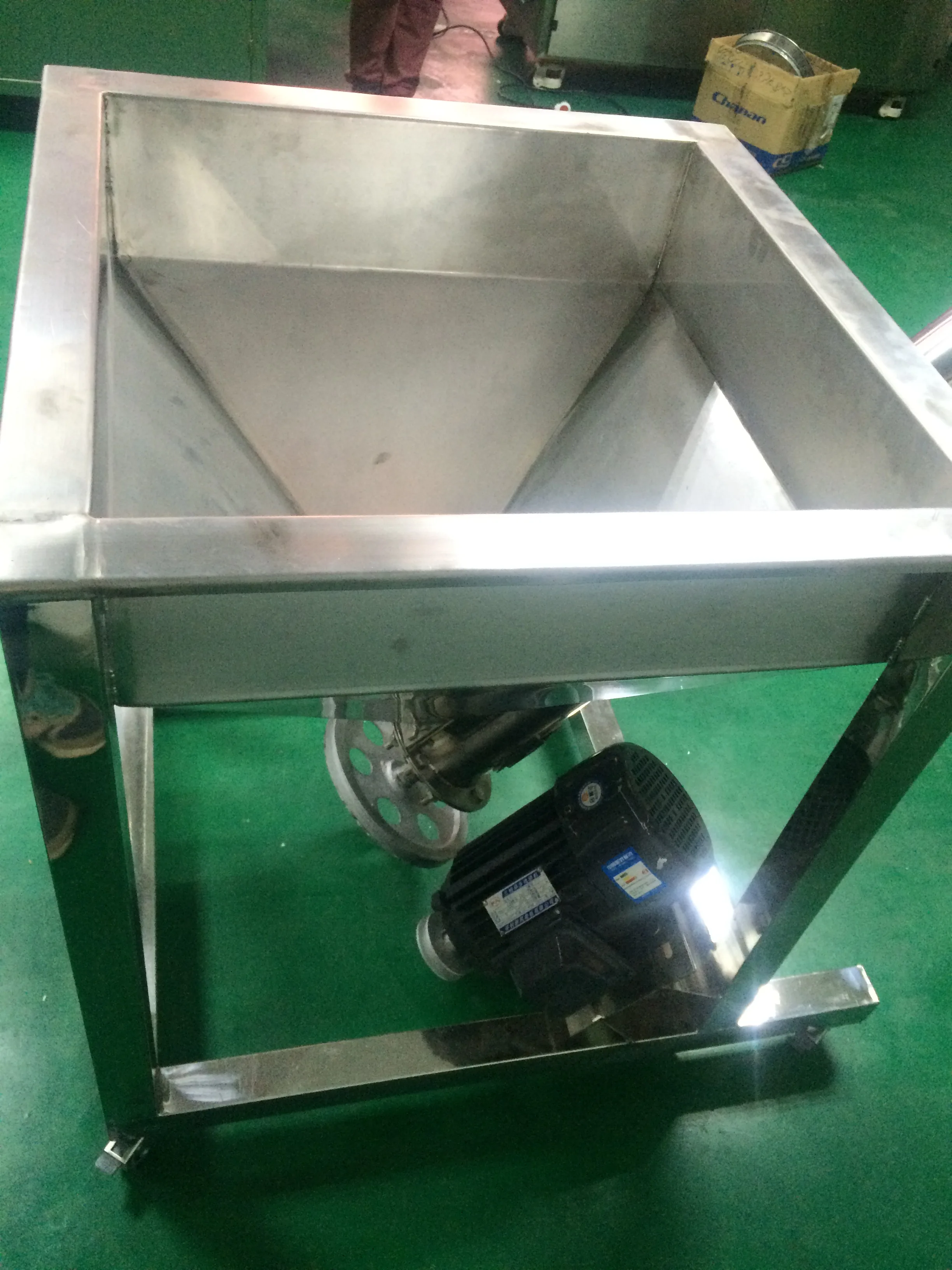

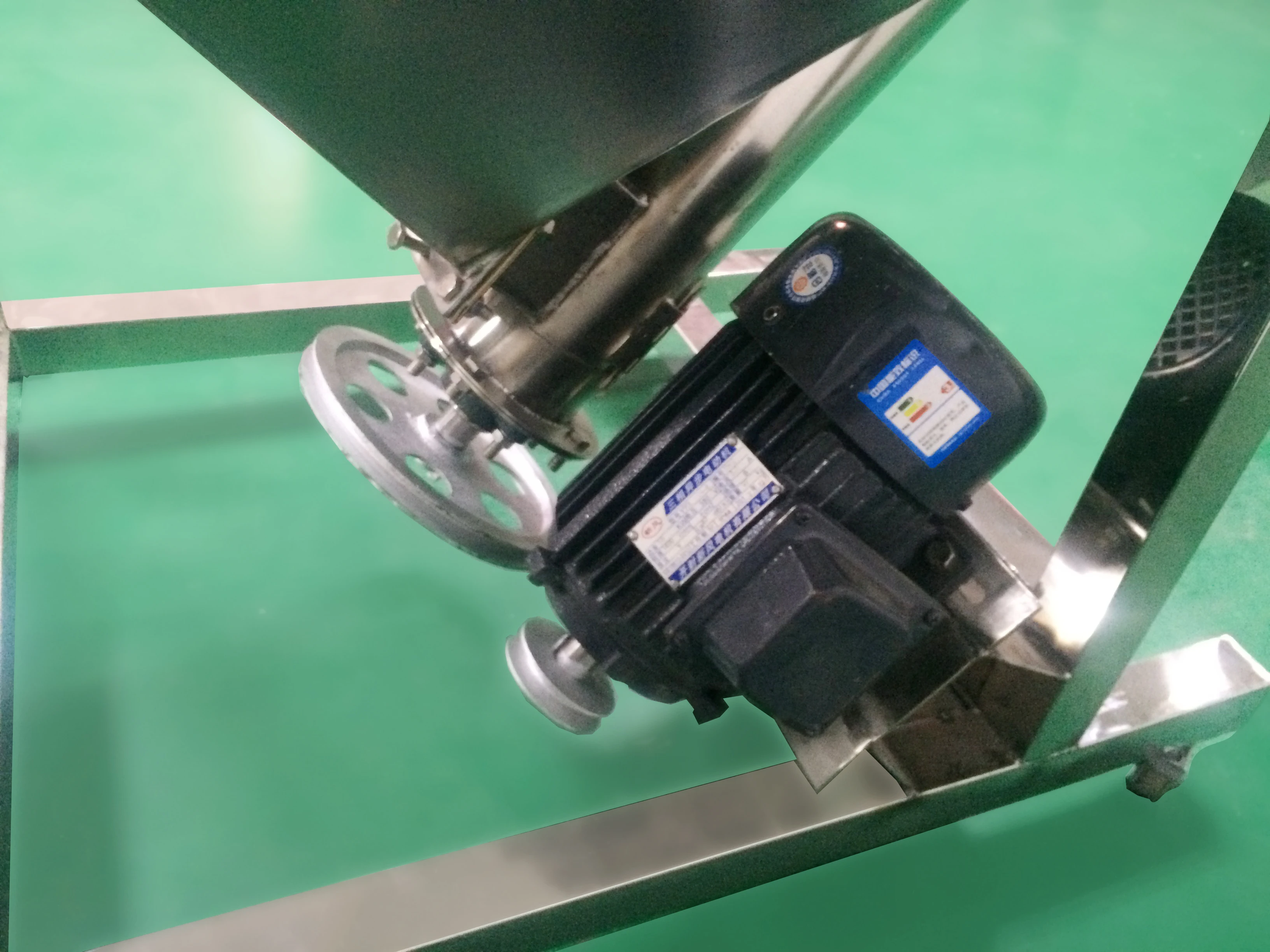

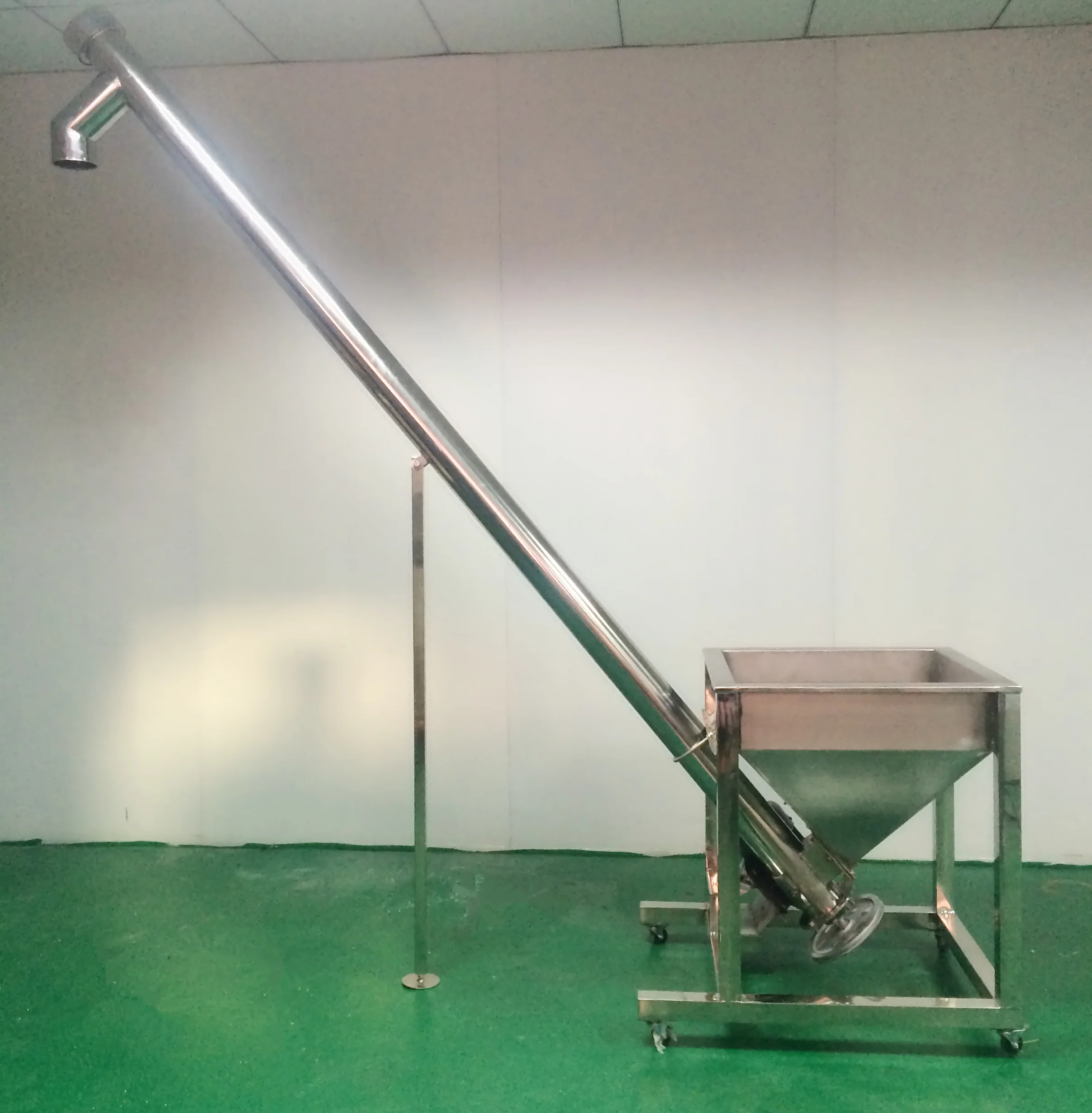

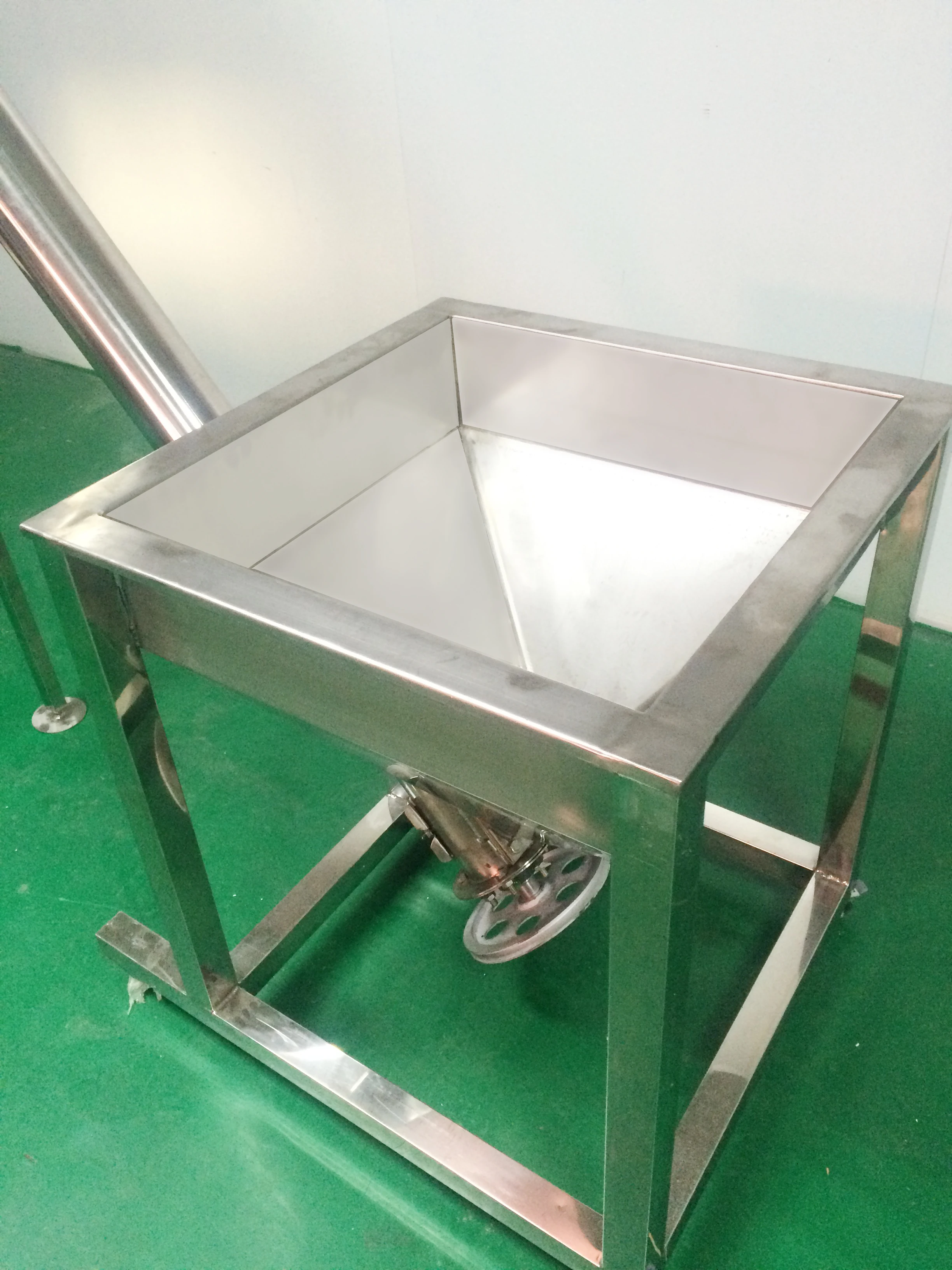

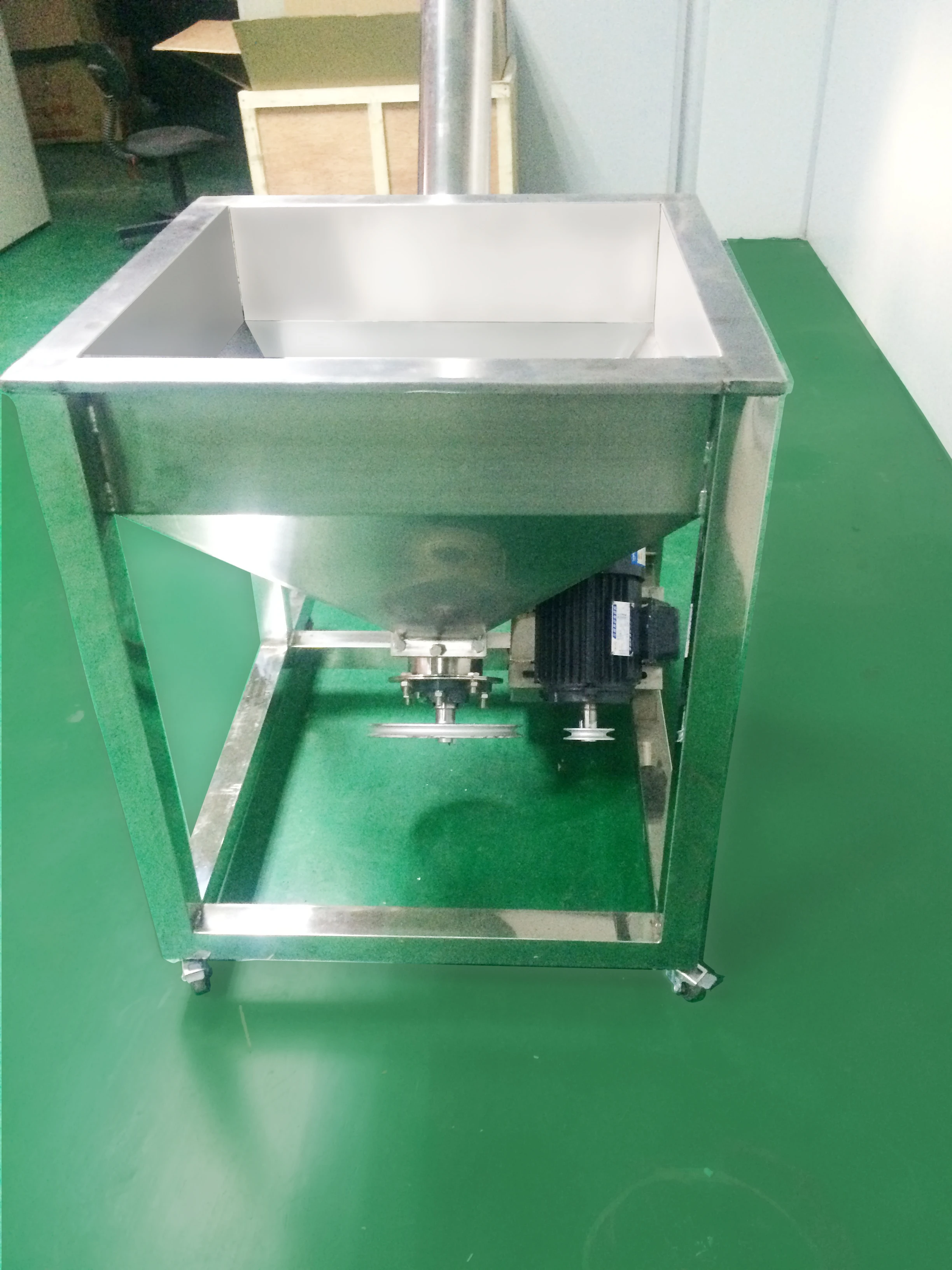

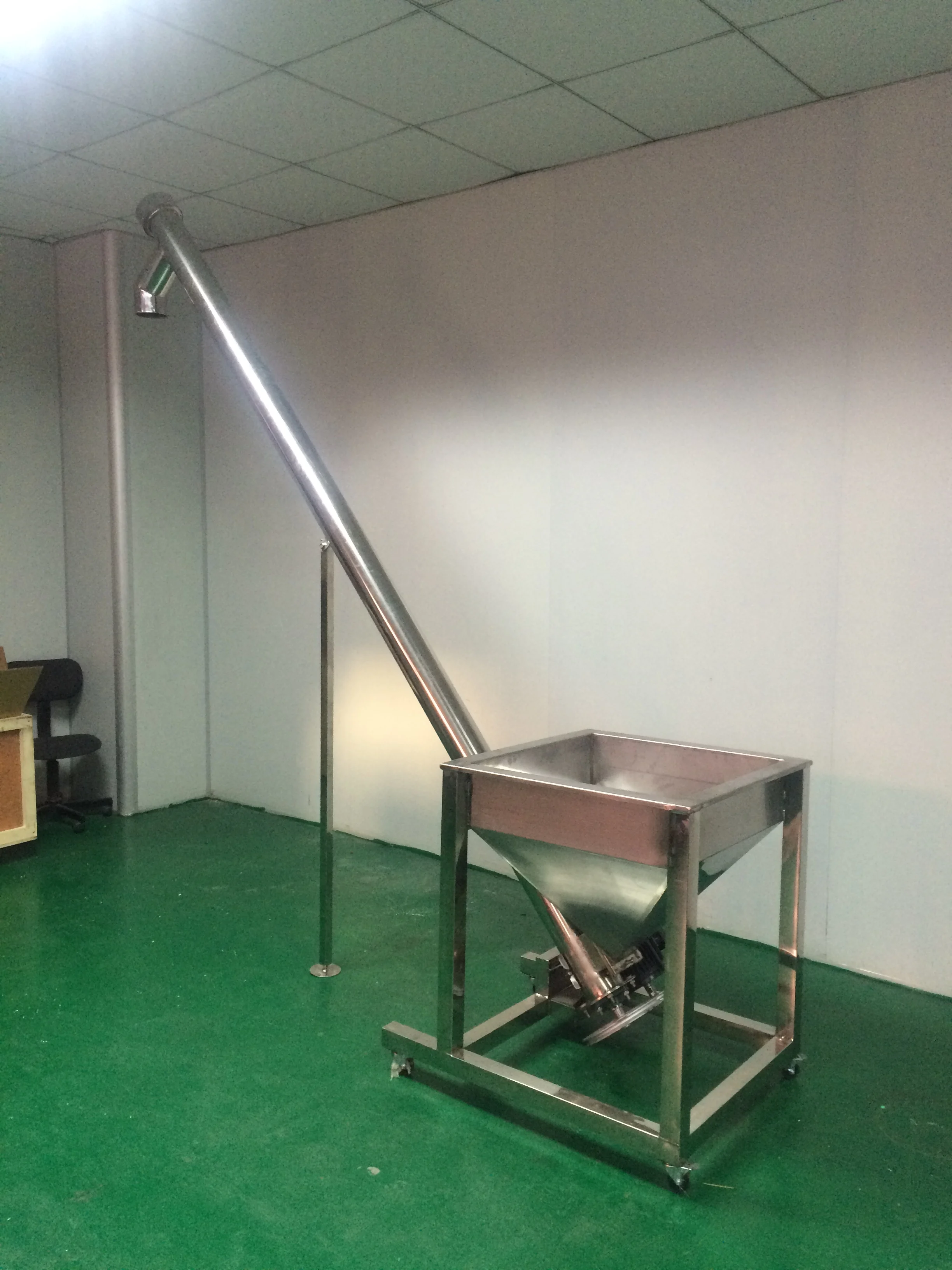

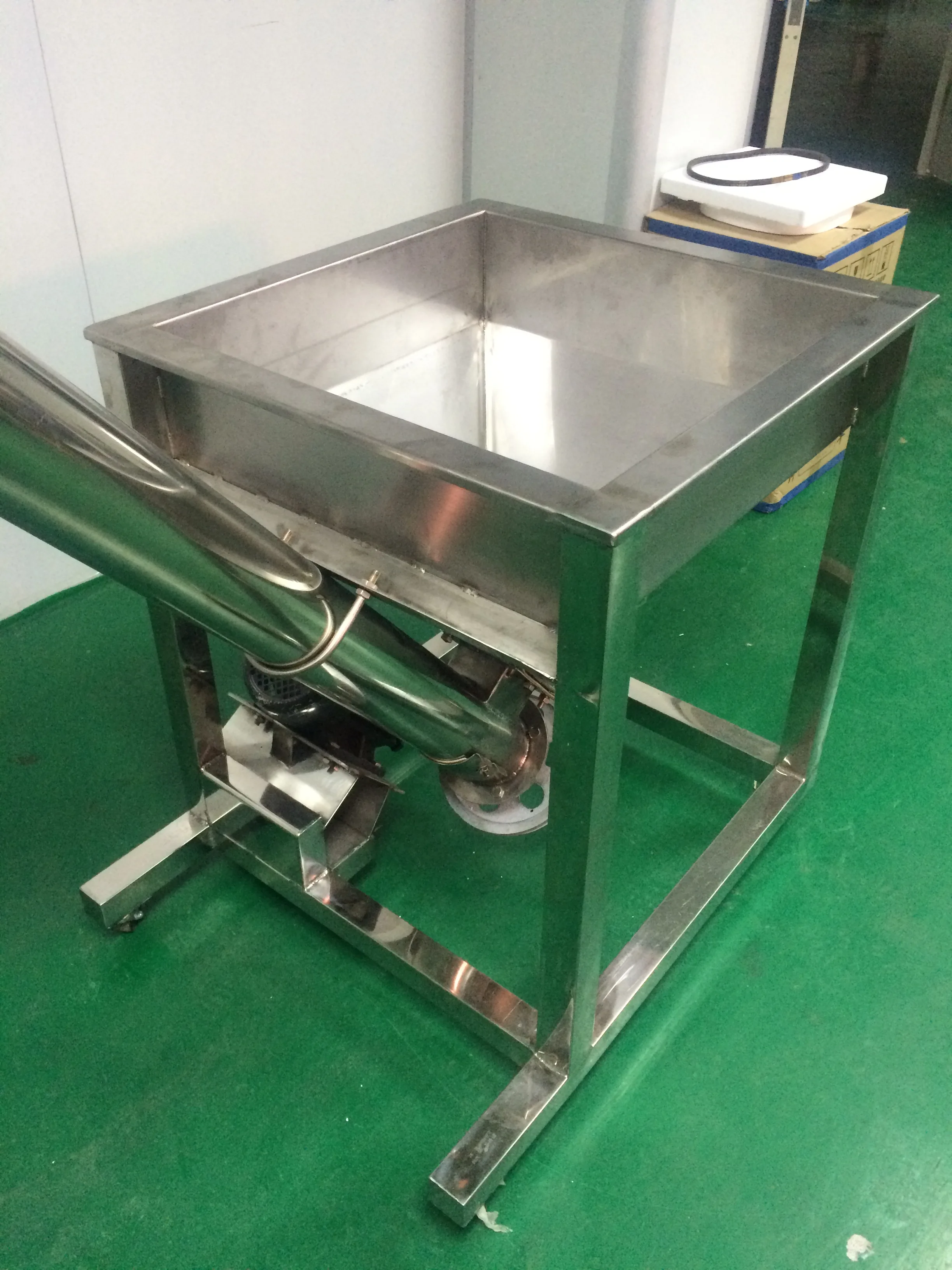

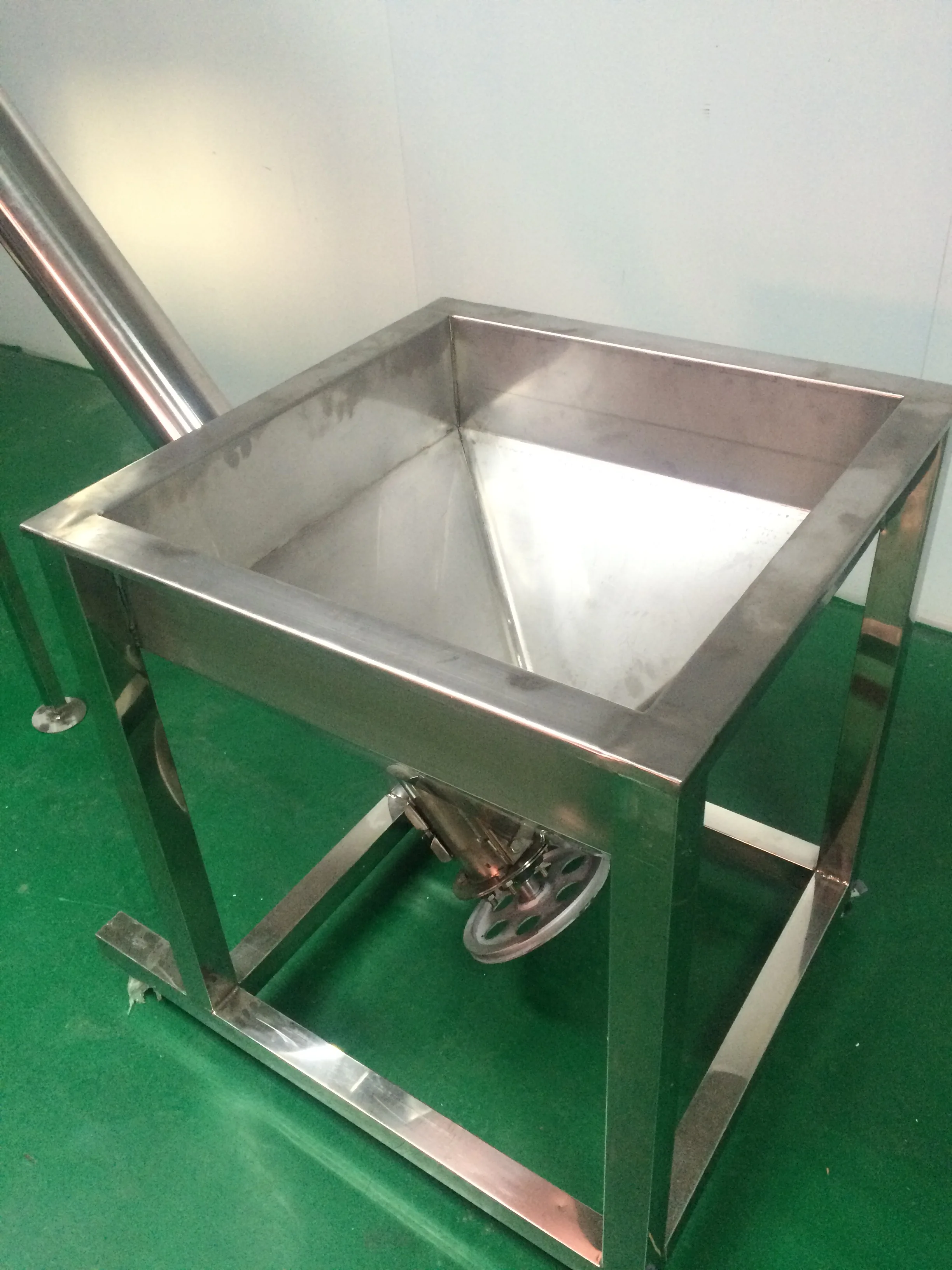

Detailed Images








Applicable Industries:

Screw conveyor is a major industrial and agricultural departments mechanization transportation job unit, can make the shipping work to reduce the intensity of labor, improve work efficiency, a wide range of applications. Applicable to various industries, such as building materials, chemical industry, electric power, coal, metallurgy, food and other industries, applicable to horizontal or oblique conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, food, etc.





Application.

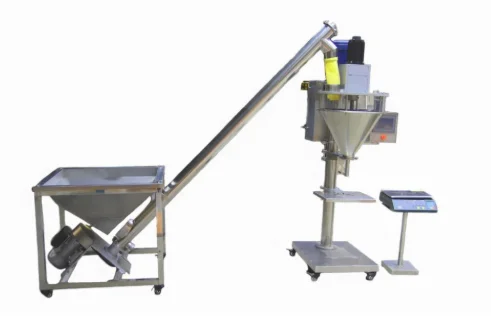

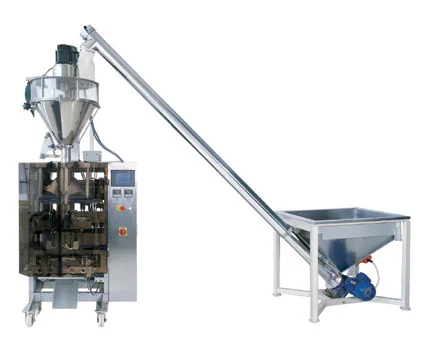

Screw conveyor can work with powder filling machine ,pulverizer ,powder/pellet packing machine etc..




Certifications




Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging

Size
HH89:1480(L) *1480(W) * 1020 (D)MMHH114:1480(L) *1480(W) *1150 (D)MM
HH141:1480(L) *1480(W) * 1280(D)MM
Weight
850KG ,950KG,1050KG



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
