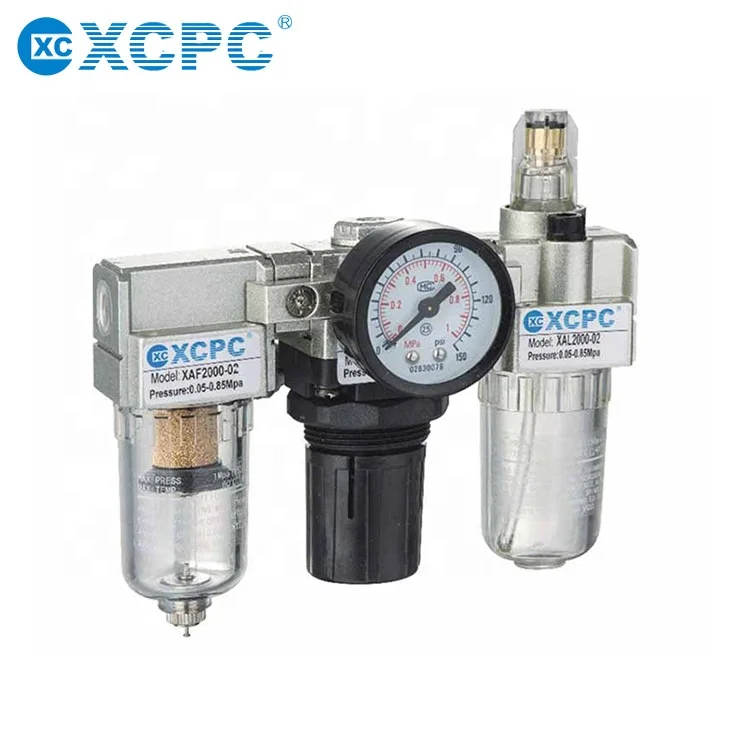

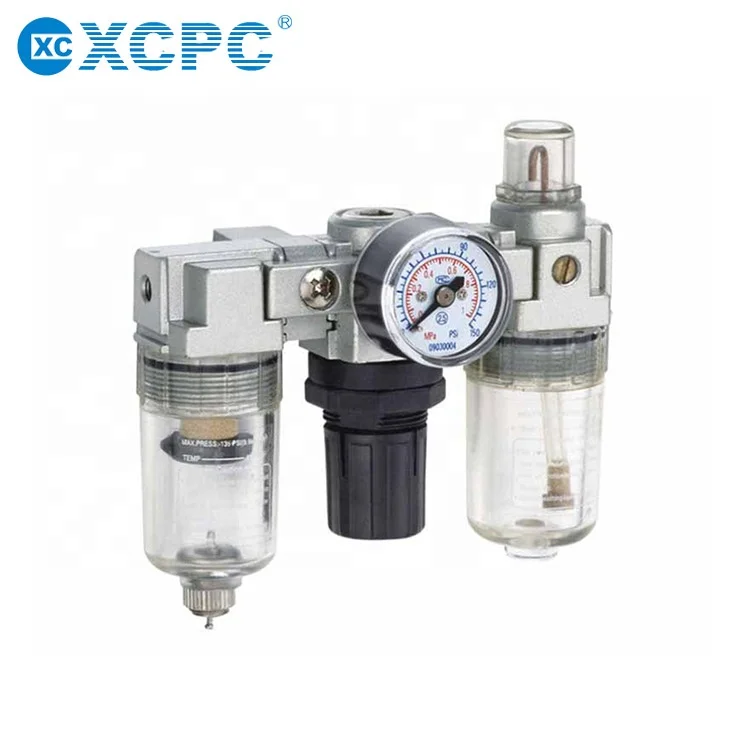

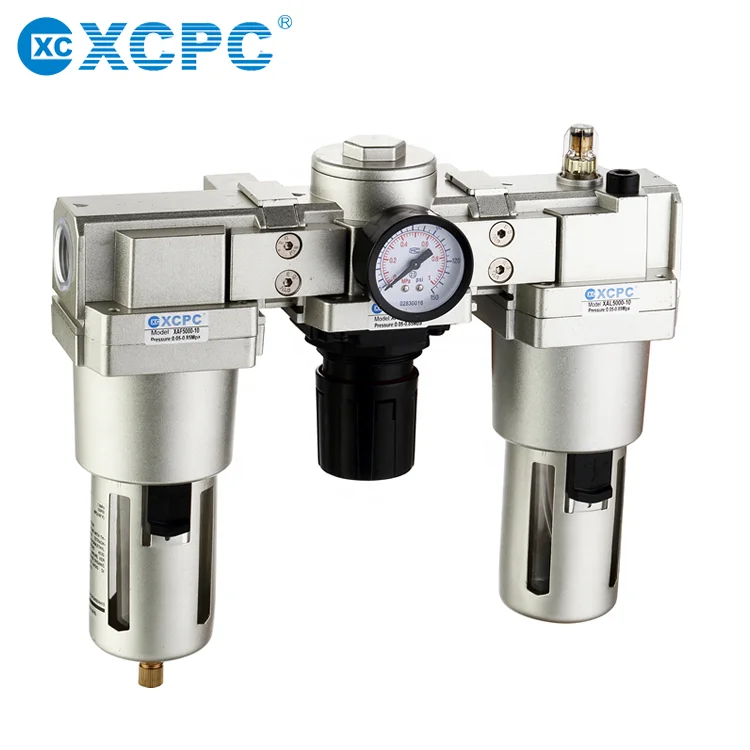

XAC series smc type Air Source Treatment Unit FRL Combination
- Category: >>>
- Supplier: Ningbo Xinchao Automatization Component Co. Ltd.
Share on (60476615641):
Product Overview
Description
XAC series Air Source Treatment Units FRL Combination
Product Description
| Model | XAC1000-M5 | XAC2000-01 | XAC2000-02 | XAC3000-02 | XAC3000-03 | XAC4000-03 | XAC4000-04 | XAC4000-06 | XAC5000-06 | XAC5000-10 | |
| Rated Flow | 90 | 500 | 500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | |
| Filter Precision | 25µ | ||||||||||
| Highest Working Pressure | 1.0MPa | ||||||||||
| Ensured pressure Resistance | 1.5MPa | ||||||||||
| Operating Temperature Range | 5-60℃ | ||||||||||
| Range of Adjustable Pressure | 0.05-0.7MPa | 0.05-0.85MPa | |||||||||
| Recommended Oil Use | lSO VG 32 | ||||||||||
| Container Material | Polycarbonate | ||||||||||
| Protective Cover | Not Available | Available | |||||||||
| Drain Function | Differential Drain | Differential Drain/Automatic Drain | |||||||||
| Valve Type | |||||||||||
| Composing | FiIter | XAF1000-M5 | XAF2000-01 | XAF2000-02 | XAF3000-02 | XAF3000-03 | XAF4000-03 | XAF4000-04 | XAF4000-06 | XAF5000-06 | XAF5000-10 |
| Elementsl | Regulator | XAR1000-M5 | XAR2000-01 | XAR2000-02 | XAR3000-02 | XAR3000-03 | XAR4000-03 | XAR4000-04 | XAR4000-06 | XAR5000-06 | XAR5000-10 |
| Lubricator | XAL1000-M5 | XAL2000-01 | XAL2000-02 | XAL3000-02 | XAL3000-03 | XAL4000-03 | XAL4000-04 | XAL4000-06 | XAL5000-06 | XAL5000-10 | |

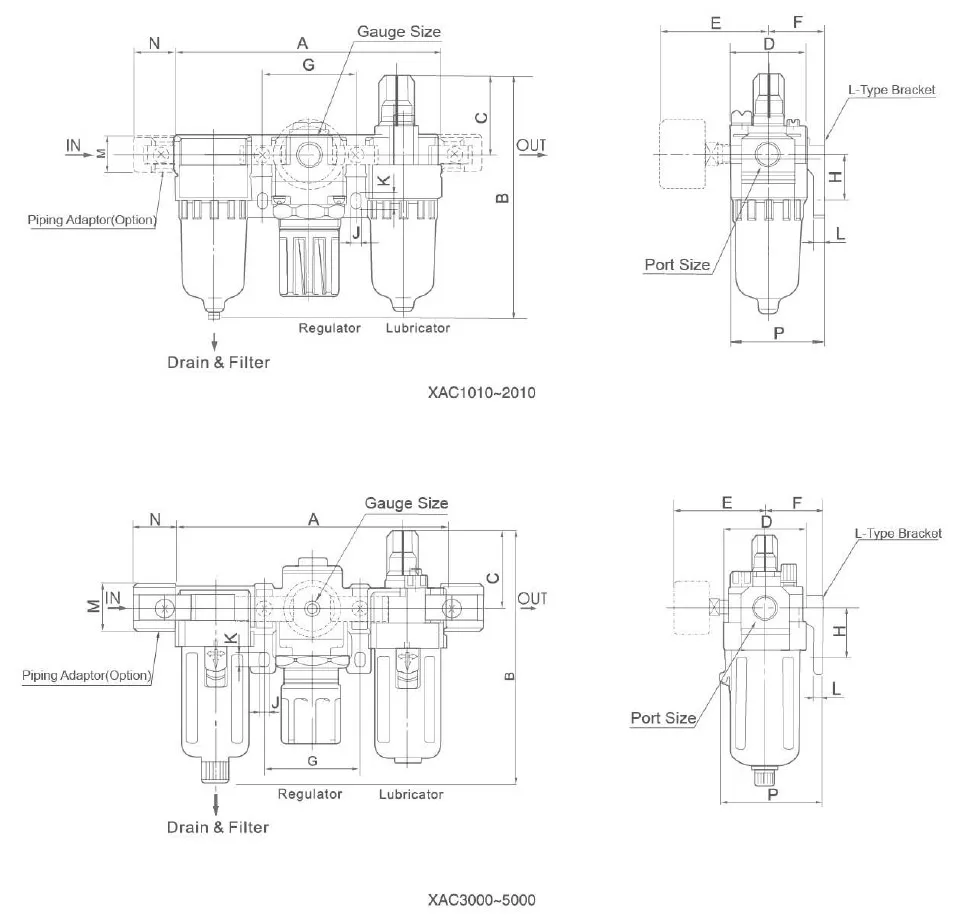

| Model | Port Size(G) | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| XAC1000 | M5 | 91 | 84.5 | 25.5 | 25 | 26 | 25 | 33 | 20 | 4.5 | 7.5 | 5 | 17.5 | 16 | 38.5 |
| XAC2000 | G1/8"-G1/4" | 140 | 128.5 | 38 | 40 | 56.8 | 30 | 50 | 24 | 5.5 | 8.5 | 5 | 22 | 23 | 50 |
| XAC3000 | G1/4"-G3/8" | 181 | 166 | 38 | 53 | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 | 34.2 | 26 | 70.5 |
| XAC4000 | G3/8"-G1/2" | 238 | 201 | 41 | 70 | 65.5 | 50 | 84 | 40 | 9 | 13 | 7 | 42.2 | 33 | 88 |
| XAC4000-06 | G3-G4" | 253 | 201 | 40.5 | 70 | 69.5 | 50 | 89 | 40 | 9 | 13 | 7 | 46.2 | 36 | 88 |
| XAC5000 | G3/4"-G1" | 300 | 276 | 48 | 90 | 75.5 | 70 | 105 | 50 | 12 | 16 | 10.5 | 55.5 | 40 | 115 |
Packaging & Shipping
International packings,pallets,carton.
Our Services
1.This time, we can supply XA series smc standard air source treatment unit.
1). Port size: M5,1/8",1/4",3/8",1/2",3/4",1"
2. We also can supply XA series assembly kits, brackets and pressure gauge to all over the world clients.
3. In order to support our clients business, we also can send catalogues to them together with their orders.
Company Information
XCPC Pneumatic is the leader pneumatic components manufacturer in China.
We produce and export pneumatic cylinder,solenoid valve,air source treatment units and pneumatic fittings to 100 countries.
Application:
Customized Solutions:
FAQ:
1. Can we buy XA series air source treatment unit from you? How about the port size you can supply?
Yes, we can supply port size M5 to 1", manual drain and auto drain type.
2. We want to buy XA series assembly kits ,brackets and pressure gauge,can you supply?
Yes, we can supply assembly kits,brackets and pressure gauge to you.
3.How about the trade items you can accept?
We can accept trade items are EXW,FOB,CFR,CIF,DDP
4.How about the payment iterms?
We can accept payment items are T/T,L/C AT SIGHT,Western Union.
More information,don't hesitate to contact me.
