HTF high temperature Mixed Axial Fan fire control fan fire smoke fume exhaust extraction blower
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (60476821118):
Product Overview
Description
header
Product Description

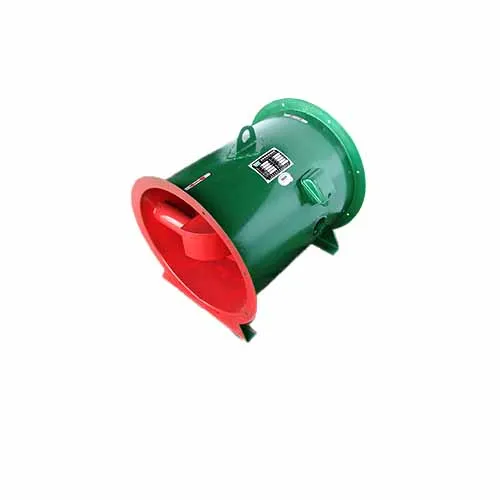

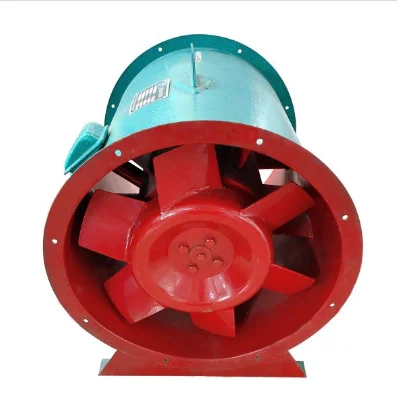

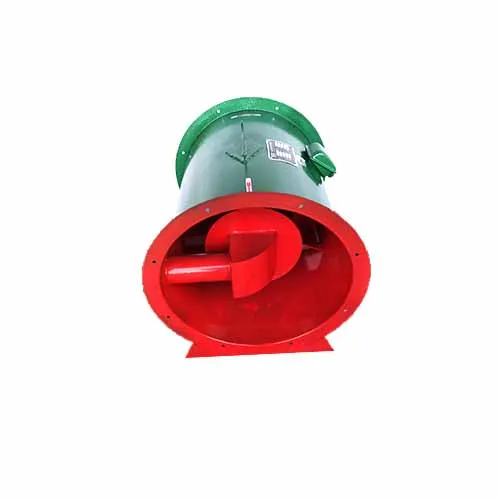

Mixed Axial Flow Fan
1.Typical Feature and Application
| New type fan has the advantage of axial fan's large air volume and centrifugal fan's high pressure |
| Higher efficiency ,lower noise |
| Suitable for duct pressurizing,supplying and exhaustingair in high-rise building,basement,factory,etc |
2. Performance Range
Fan Type | HFT-I Fir-Control Axial Flow Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 380V |
Frequency | 50HZ |
Power | 0.25KW-30KW |
Speed | 960-2900RPM |
Air Volume | 2045m³/h up to 84386 m³/h |
Static Pressure | 128Pa up to 1266 Pa |
Motor | Standard Motor with full copper |
3.Composition
Fan Housing | fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground. |
Impeller | the punch forming blades are made of aluminum or galvanized steel. The impellers also has manually adjustable pitch blades. |
Inlet and Outlet Ducts | Connect with flanges |
Motor | Standard Motor, cast Iron with pure copper |
4.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c |
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away. |
5.Fan Certificate and Quality Control
By our efforts,our company Gaoze was selected as the member of China General Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institute China"; Furthermore, a number of products are applied patents, which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification, most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System. |
6.Fan Maintain
Periodically clean the inner dust, dirt and other impurities |
Periodlically check the fan to avoid rusting |
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
7.Technical Specification
Model (No.) | Size | Voltage | Power | Revolution | Air Flow | Pressure | Product Size | ||
| (V) | (KW) | (rpm) | (m3/h) | (Pa) | (CM) | ||||
| HTF-I-3.5# | 14" | 380/50Hz | 1.1 | 2900 | 2550-3684 | 344-229 | 42X42X50 | ||
| HTF-I-4# | 16" | 380/50Hz | 1.5 | 2900 | 3800-5500 | 450-300 | 48X46X57 | ||
| HTF-I-4.5# | 18" | 380/50Hz | 2.2 | 2900 | 6120-8500 | 670-410 | 52X50X61 | ||
| HTF-I-5# | 20" | 380/50Hz | 3 | 2900 | 6871-9824 | 752-510 | 58X65X67 | ||
| HTF-I-5.5# | 22" | 380/50Hz | 4 | 2900 | 10900-15200 | 900-530 | 68X70X78 | ||
| HTF-I-6# | 24'' | 380/50Hz | 5.5 | 2900 | 13197-16090 | 760-510 | 72X65X79 | ||
| HTF-I-7# | 28'' | 380/50Hz | 7.5 | 1450 | 18908-24380 | 728-610 | 80X83X87 | ||
| HTF-I-8# | 32'' | 380/50Hz | 7.5 | 1450 | 26012-31421 | 723-600 | 89X89X95 | ||
| HTF-I-9# | 36'' | 380/50Hz | 11 | 1450 | 27613-33510 | 840-562 | 95X89X104 | ||
| HTF-I-10# | 40'' | 380/50Hz | 11 | 1450 | 35000-45679 | 770-630 | 100X96X108 | ||
| HTF-I-11# | 44'' | 380/50Hz | 15 | 1450 | 48500-51552 | 690-580 | 110X98X118 | ||
| HTF-I-12# | 48'' | 380/50Hz | 18.5 | 970 | 57748-62763 | 740-624 | 120X98X126 | ||
| HTF-I-13# | 52'' | 380/50Hz | 18.5 | 970 | 56031-74708 | 807-600 | 130X110X142 | ||
| HTF-I-15# | 60'' | 380/50Hz | 22 | 970 | 76041-93800 | 819-623 | 140X111X152 | ||
| HTF-II-5# | 20'' | 380/50Hz | 3/2.5 | 2900 1450 | 6817-9824 3410-4912 | 752-510 188-127 | 42X42X50 | ||
| HTF-II-6# | 24'' | 380/50Hz | 5.5/4.5 | 2900 1450 | 13197-16090 6599-8045 | 760-510 190-127 | 48X46X57 | ||
| HTF-II-7# | 28'' | 380/50Hz | 8/6.5 | 1450 960 | 18908-24380 12518-16141 | 728-610 319-267 | 52X50X61 | ||
| HTF-II-8# | 32'' | 380/50Hz | 8/6.5 | 1450 960 | 26012-31421 17222-20800 | 723-600 317-263 | 58X65X67 | ||
| HTF-II-9# | 36'' | 380/50Hz | 11/9 | 1450 960 | 27613-33510 18216-22186 | 840-562 368-246 | 68X70X78 | ||
