Lift push button,elevator call button,Xinda elevator push button switch ZL 30

Product Overview

Description

Push button for elevator,elevator push Button,elevator touch button
Lift push button,elevator call button,Xinda elevator push button switch ZL-30

♦ MOQ and delivery:
1. Mini order quantity is 20pcs, Order can be mixed in different button type.
2. If you wan to deliver to your place by sea, or by air, or send to your appointed wareroom in China,
We also can arrange the delivery according to your request.
3. When order,please list your demand details as follows:
(1) you plan to show what content such as symbol or number on the button?
(2) you want to choose which color for the button LED(Red, Blue,white,or Yellow)?
(3) You need the symbol(Or number) is flat type, or convex(raised up)type on the button?
(4) On the button surface, you need braille, or not?

We can produce according to your request.



♦ Product Parameters:

Push button for elevator,elevator push Button,elevator touch button
Lift push button,elevator call button,Xinda elevator push button switch

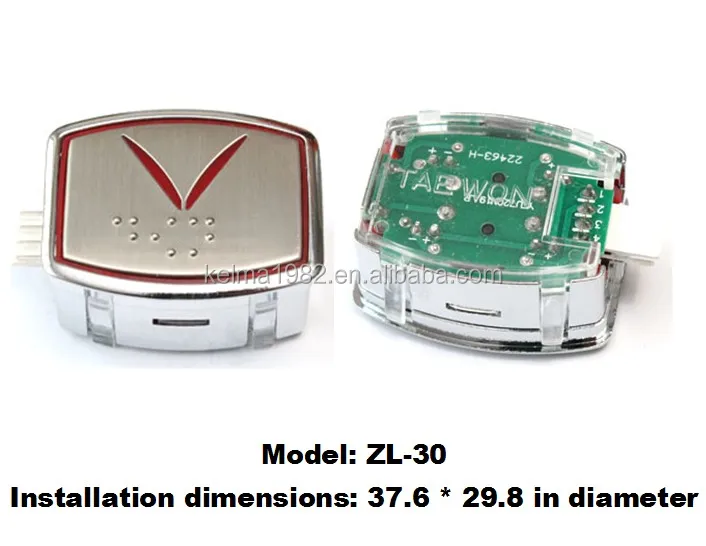

Model: ZL-30
Installation dimensions: 37.6 * 29.8 in diameter
Voltage is 24v
Aluminum alloy casingN

Emitted color is red, blue, yellow, according to customer requirements

♦ Button optional:
LED color: Red LED, Blue LED, Yellow LED, White LED, other special color LED.
Braille: without Braille, or with Braille in button surface.
Button Surface: Flat surface(normal), high relief surface.
Connection: wire connection,  terminal connection.
Voltage: 24VDC,12VDC,6VDC
Normal open, normal closed.

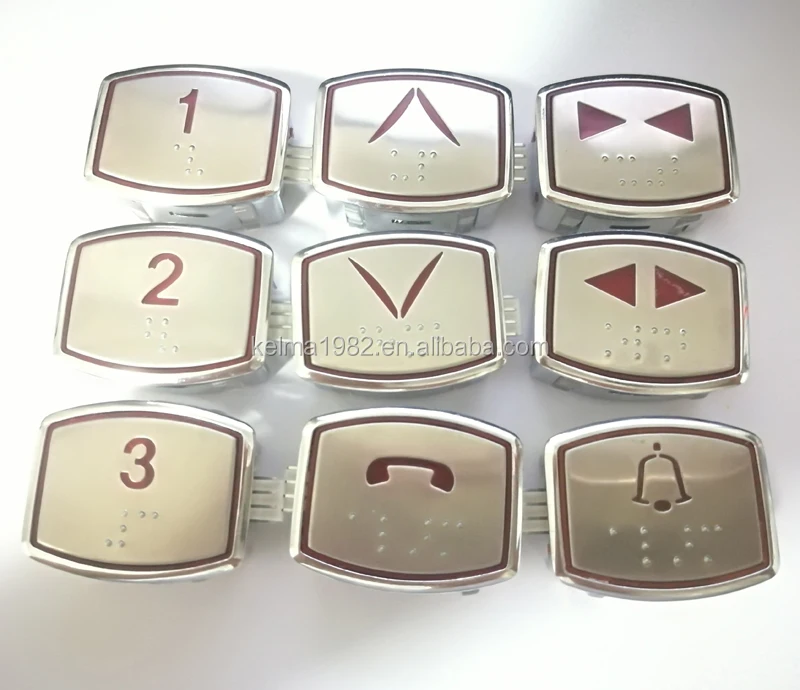

Number & Figure in button surface: Number -6,-5, -4, -3, -2, -1, 0,1,2,3,......64,
figure: door open, door close, arrowup, arrowdown, alarm bell, telephone, G, B, P, B1, B2, etc.


♦ Feature:                                                                                                                                                              Button surface material: outer frame material is ABS/ stainless steel plating, button surface cover material is stainless steel.
The thickness of installation plate: 2-3mm, installed by plastic clipping.
Fire-proof components, in accordance with European astandard EN-81.
Life: >5 million time of operation life.

General use type,suitable for all elevator.



♦ Dimensions (mm):

Button Dimensions (mm):	Installation Dimensions (mm):



♦ Our quality advantage:

Our Button:	Others:		Our Button:	Others:
Body material is high quality ABS/PC,button surface cover material is stainless steel.	Outer frame and button surface cover material is poor plastic or recycled material.		Use OMRON Miro Switch, Good performance and long operation life.	Use local cheap miro switch, Unstable performance and short operation life
Our Button:	Others:		Our Button:	Others:
Use high brightness LED, button light enough bright and long life	Use cheap LED, poor brightness, LED light easy become weakened		Fire-proof components, in accordance with European standard EN-81	No Fire-proof             components
