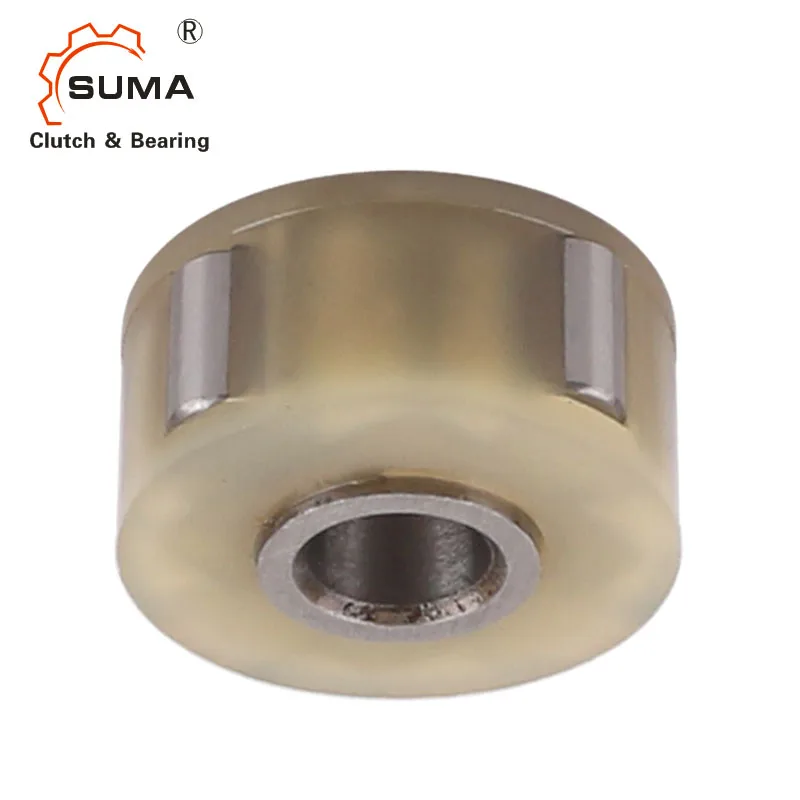

KI 2610* China Supplier Small Bearing One Way Bearing Roller Type Freewheel KI2610
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60477156465):
Product Overview
Description
KI 2610* China Supplier Small Bearing One Way Bearing
Product Description
KI Series
Data Sheet
| Item | KI |
| Material | GCr15 |
| Outer Diameter | 26 mm |
| Bore size | 10 mm |
| Thickness | 14 mm |
| Weight | 0.019 kg |
| Overrunning speed(outer race) | 5000 min-1 |
| Overrunning speed(inner race) | 6000 min-1 |
| Port | Shanghai;Ningbo |
| Delivery time | 7-10 days |
Feature

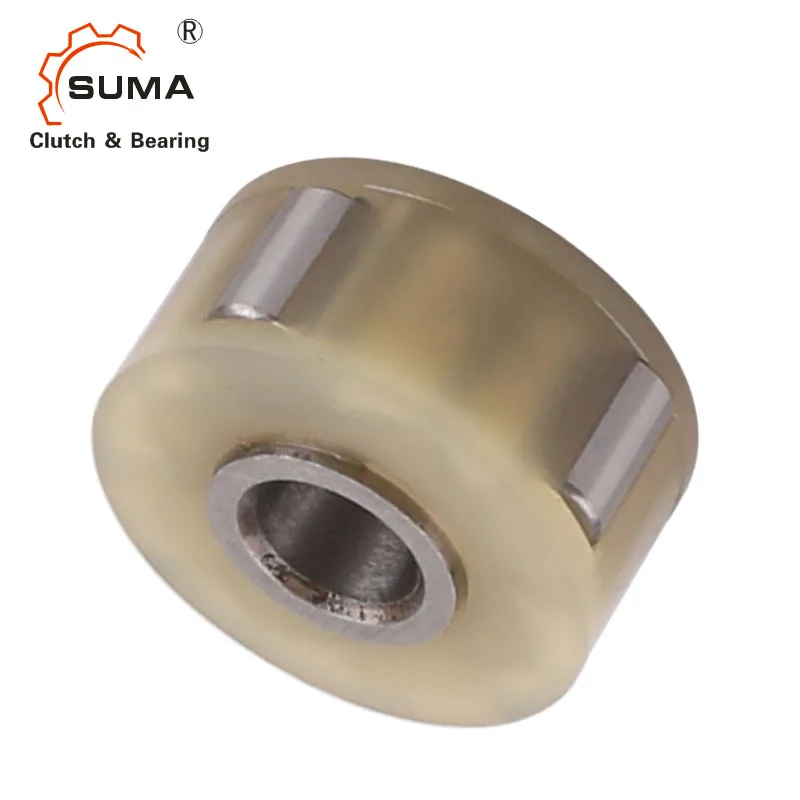

Type KI is a roller type freewheel. It is an assembly comprising of an inner race and rollers fitted into a polyamide cage. This type of unit can not be dismantled. It is designed for small mechanisms in office equipment, or packaging machines, to be mounted inside gears or feed rollers.
The gear or feed roller inner diameter is used as the outer race. Additional bearing support is required, and the freewheel must not be subjected to axial loading; mounting examples are shown on the following page. The outer race does not need to be hardened; min. strength: 700 N/mm2
The surface roughness will not exceed 22 CLA.Mounting onto the shaft can be a press fit to r6 tolerance or a glue fit with a clearance of 0,02 to 0,05mm.
Sizes 8 mm and above can be supplied with a keyway.Temperature range: –40°C to +100°C (continuous operation).Peak temperatures of +120°C are acceptable for short periods of time.

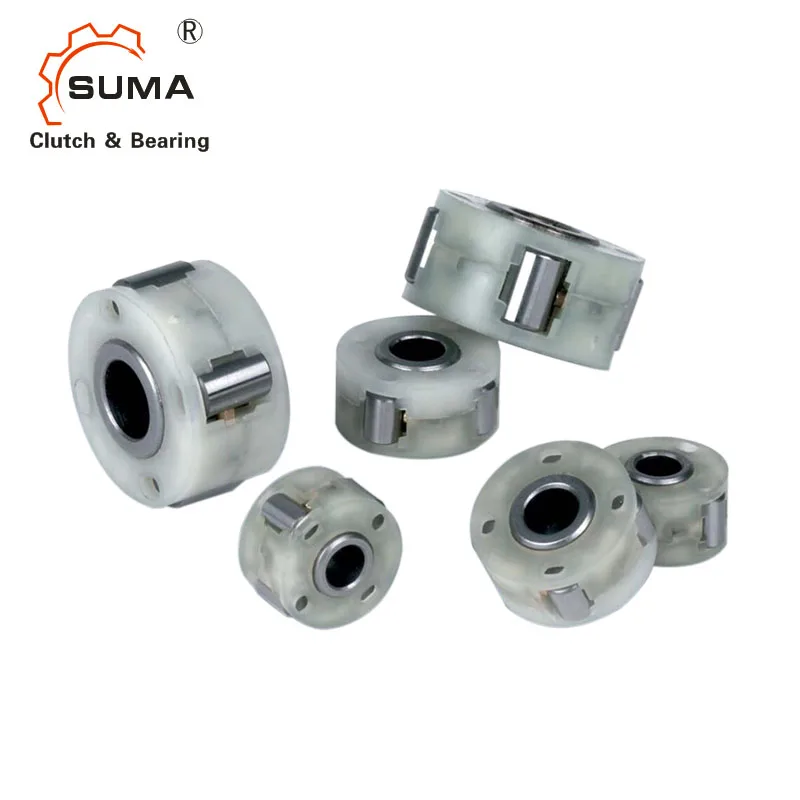

Different sizes Of KI Series For Your Reference
Type | Size | Overrunning speed | Outside Diameter |
|
| Weight | |||
KI |

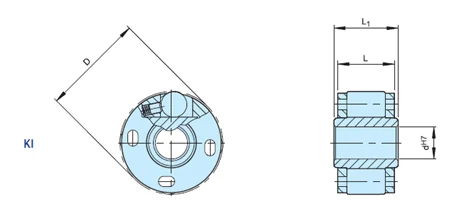

| DH7 (mm) | TKN1) (Nm) | Nimax2) (min-1) | Namax3) (min-1) | DH7 (mm ) | L1 (mm) | L (mm) |
(kg) |
164 | 4 | 0.8 | 8000 | 10000 | 16 | 10 | 9 | 0.008 | |
165 | 5 | 0.8 | 8000 | 10000 | 16 | 10 | 9 | 0.007 | |
194 | 4 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.012 | |
195 | 5 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.011 | |
196 | 6 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.010 | |
268* | 8 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.023 | |
269* | 9 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.021 | |
2610* | 10 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.019 | |
1) Tmax = 2 × TKN
*) Can be also supplied with a keyway to DIN 6885.1
2) Inner race overruns
3) Outer race overruns

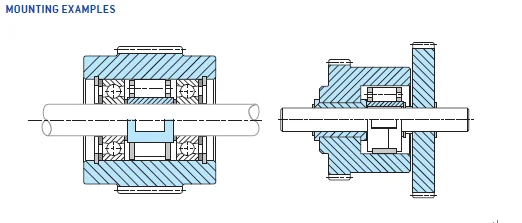

Mounting

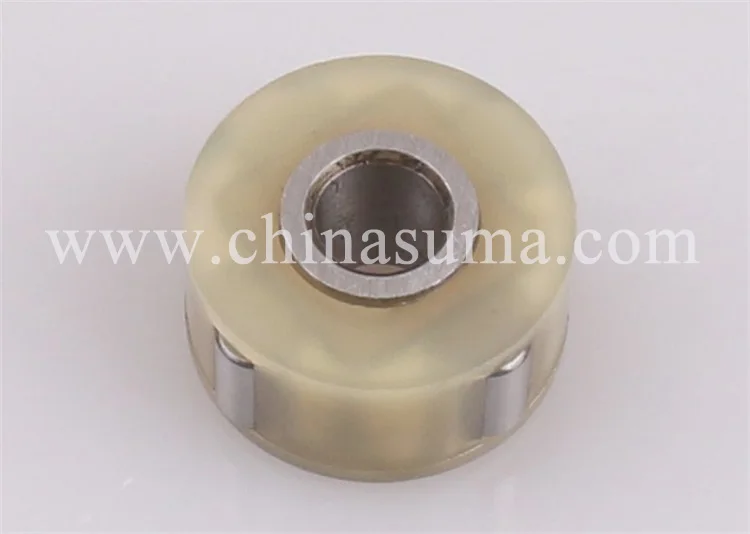

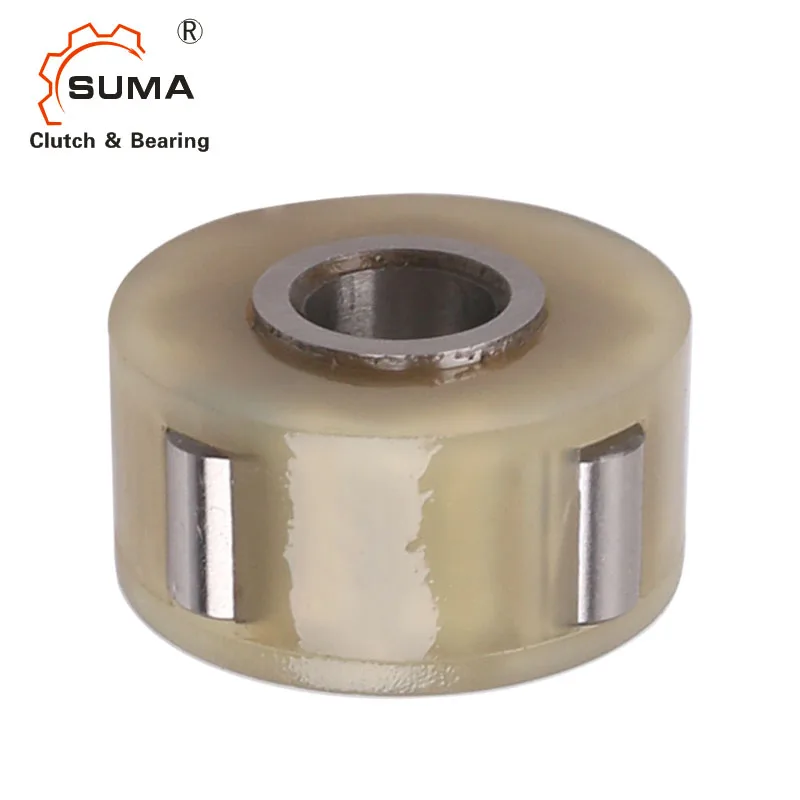

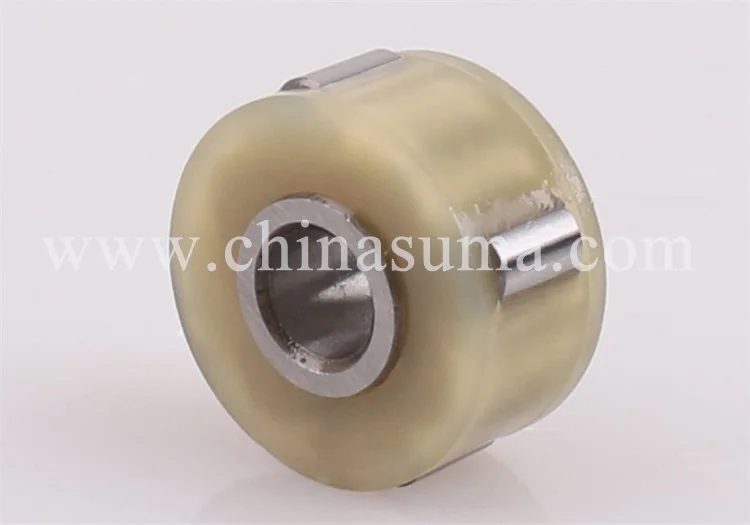

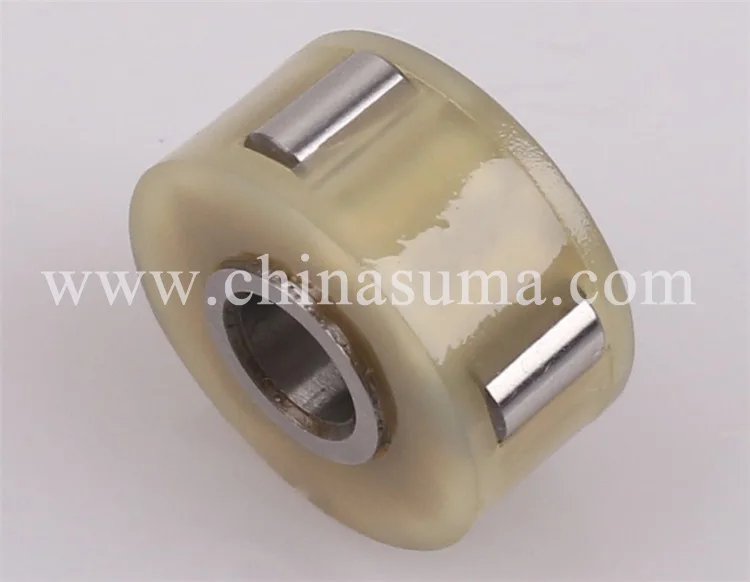

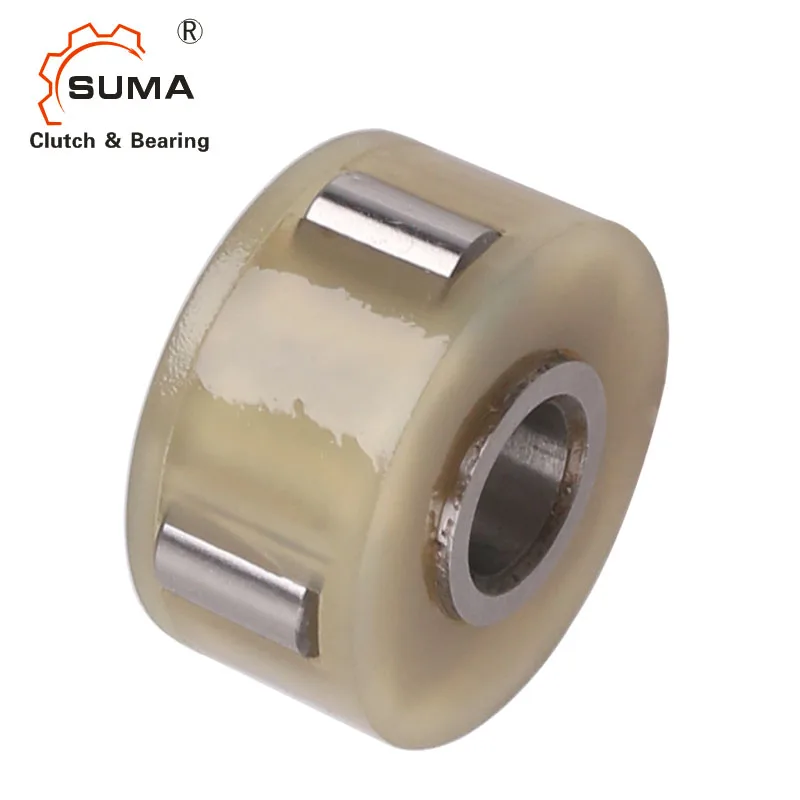

Detailed Image
FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
