metal and non metal mdf co2 laser cutting machine / laser machine co2 / co2 laser machine 1530

Share on (60477171249):


Price:$7,400.00 - $7,600.00

Quantity:


Product Overview

Description

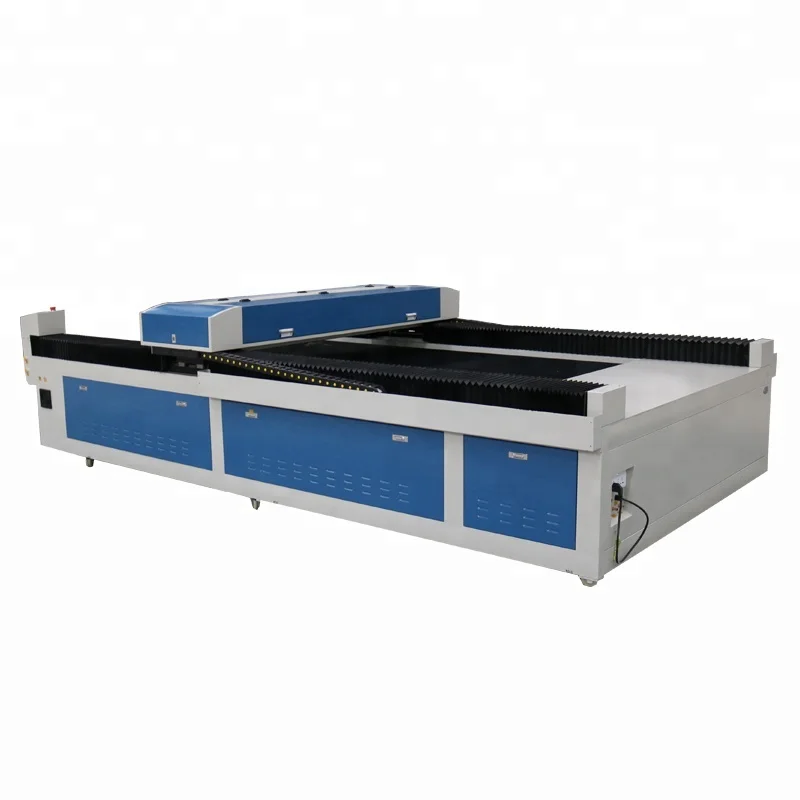

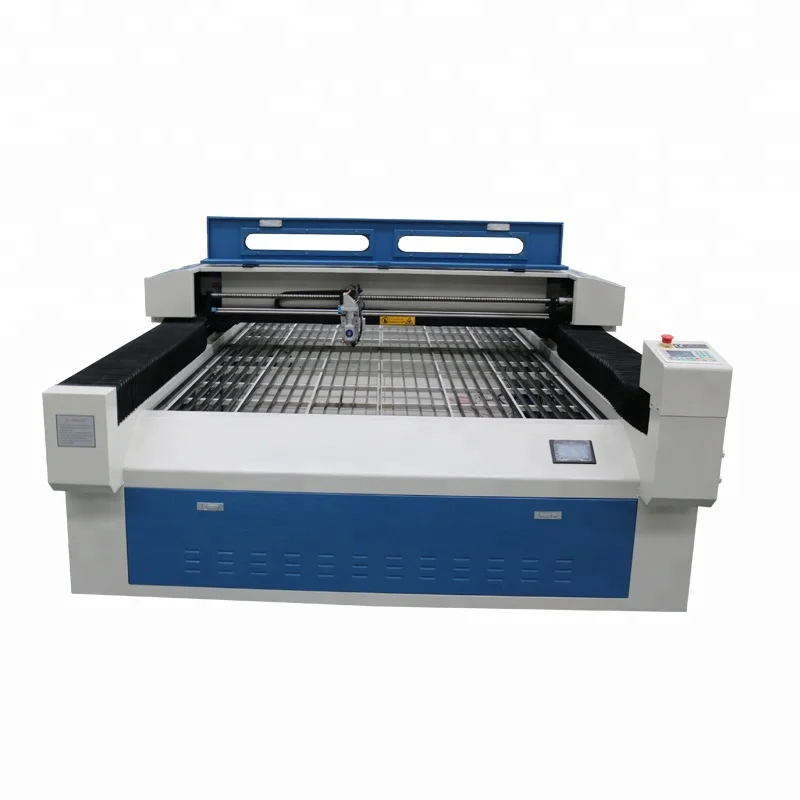

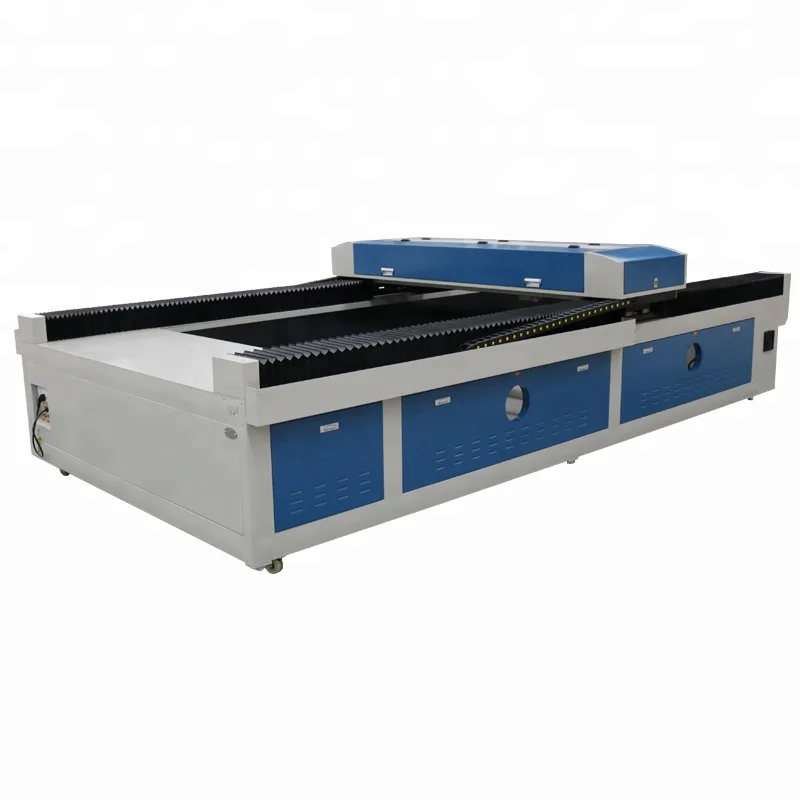

metal and non-metal mdf co2 laser cutting machine / laser machine co2 / co2 laser machine 1530






Hot Sales
























Product Description























































































































ModelLXJ1325-H
Working area1300*2500mm
Laser typeCo2 sealed laser tube
Laser power130w/150w/280w/300w
Cutting PlatformBlade table
Control systemRuida conrol system 6332XM
SoftwareMetalcut software
Drawing softwareCorelDraw, PhotoShop, AutoCAD
Data transmissionUSB off-line

Thin metal(SS, CS), leather, cloth, paper, wood , plastic, bamboo ware, acrylic, crystal,


ABS board,


double color board , polywood , MDF , EVA foam etc.


Driving motor

Leadshine stepper motors and drivers(Optional :


servo motor and drivers)


Transmission WayShanghai Dongfeng Belt(Optional TBI ball screw)
Guide railsTaiwan Hiwin linear square guide rail
Lens and MirrorsSingapore Lens and mirrors
Cooling methodCirculating-water-cooling and protection system
Engraving Speed0-64000mm/min
Cutting Speed0-36000mm/min
Resetting positioning accuracy≤±0.01mm
Supported graphic formatBMP, PLT, DST, DXF, AI
Operating Temperature5°C-45°C
Operating Humidity5-95%(Free of Condensed Water)
Working voltageAC220V/380V

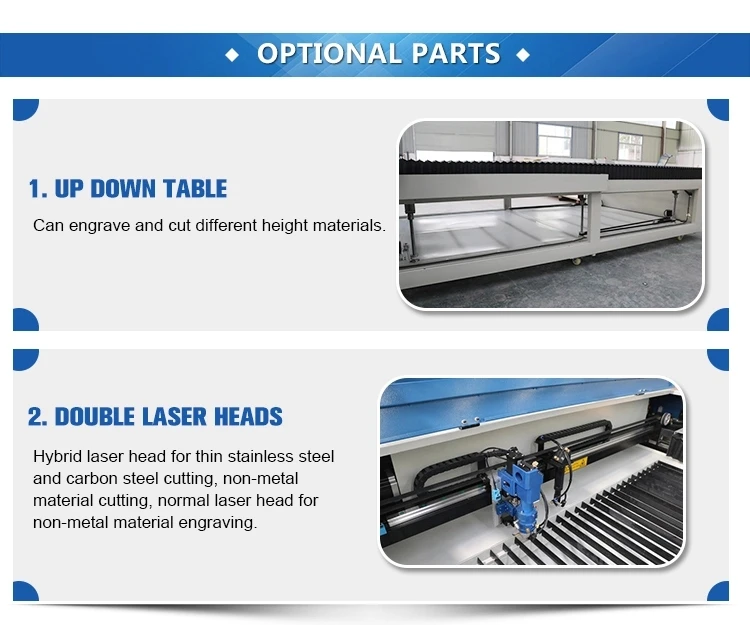

 1)Industrial Chiller
Optional Spare Parts2)Rotary system
 3)Up-down table
 4)Auto focus system
Laser tube working lifetime

RECI:8000h-10000h;10months warranty


 (Counted from the date of produced).


Auxiliary devicesExhaust fan, smoke pipe, air pump

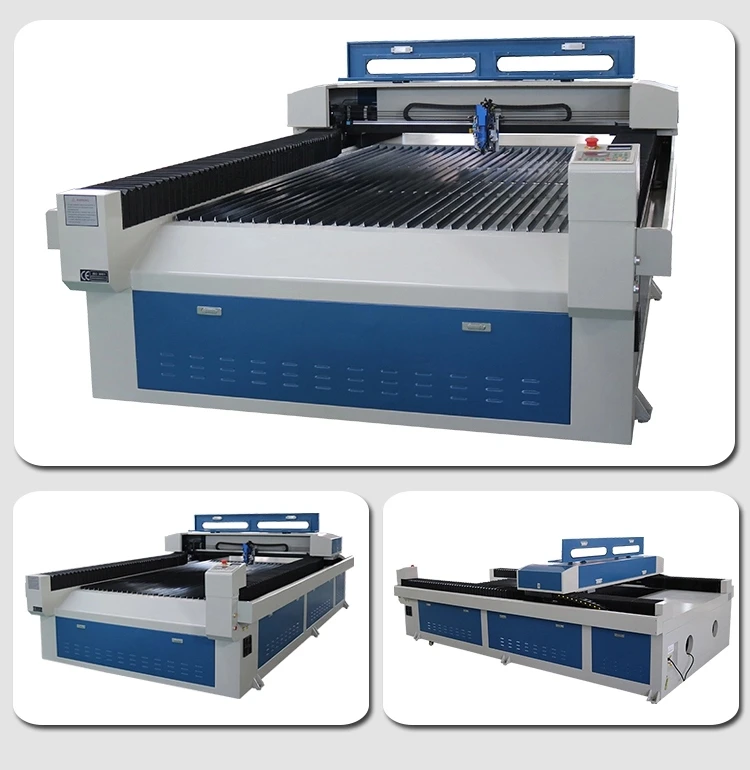

 1 (2).jpg





Product Applications


1.Nonmetal industries: acrylic products, logo signs, electronics, furniture, toys, flooring, advertising display, gifts, models, industrial panel.


2.Metal cutting industry: sheet metal structure, high and low voltage electrical cabinet making, hardware, tools, advertising signs, metal crafts, decorating, automotive, petrochemical, medical, mechanical parts, electrical meter parts, saw blades, spring-chip and other industries.


Applicable material :


1.Metal materials: stainless steel, carbon steel ;


2.Non-metallic materials: acrylic, wood, plastic panels,paper,leather and more.

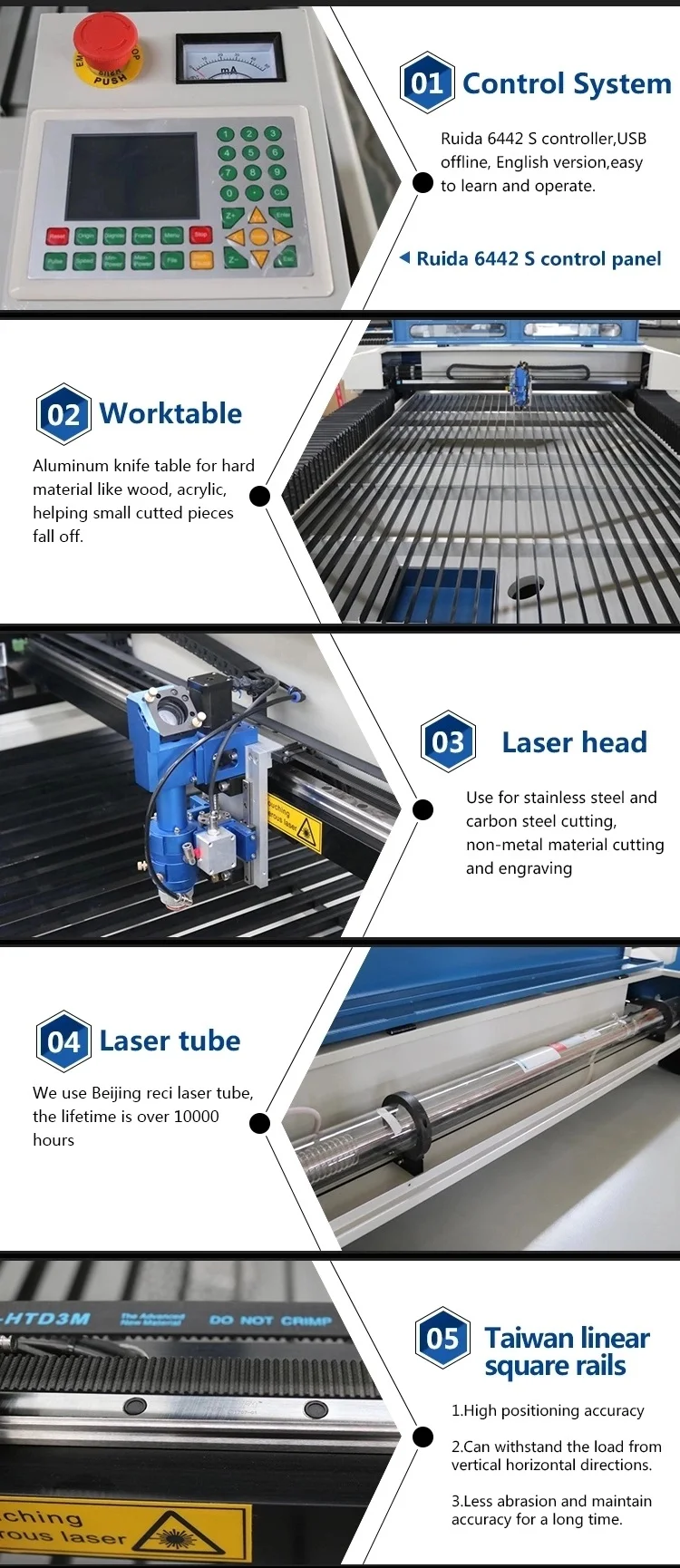

Product Details






Company files





JINAN UNICH MACHINERY CO.,LTD


Is established in July 2004 ,owns more than 500 square meters of researching and office space,


more than 32000 square meters factory.All machines ,passed the European Union CE authentication. Products are sold to USA, Canada,Australia, Europe, South east Asia, Africa etc,more than 120 countries and areas, and supply


OEM service for more than 30 manufactures.



Our Products includes All kind of


1. CNC knife cutting machine.


2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.


3. Fiber cutting machine.


4. Plasma cutting machine.


5. Cnc router machine.


6. Co2 laser machine and so on.





We can also customized non-standard assist equipment as your detailed work requirements.

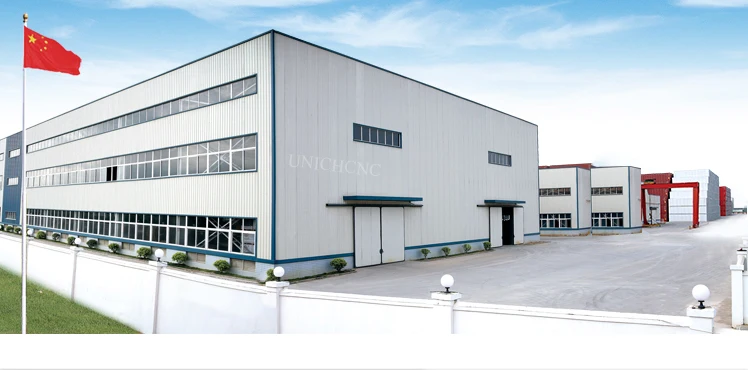

U1-_08_02


FAQ


Q1 :How about warranty?


A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be   changed free of charge(some parts will be maintained) when if any problem during the warranty period.





Q2: I don’t know which one is suitable for me ?


A2:Please tell me your


1) Max work size:choose most suitable model.


2) Materials and Cutting thickness::choose most suitable power.





Q3:Payment terms?


A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.





Q4:Do you have CE document and other documents for customs clearance?


A4:Yes,we have Original. At first we will show you and And after shipment we will give you      CE/Packing list/Commercial Invoice/Sales contract for customs clearance.





Q5:I don’t know how to use after i receive Or i have problem during use,how to do?


A5:


1) We have detailed user manual with pictures and CD,you can learn step by step.And our user   manual update every month for your easy learning if there is any update on machine.


2) If have any problem during use,you need our technician to judge


The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.





Q6:Delivery time


A5:General configuration:7 days. Customized:7-10 working days.
