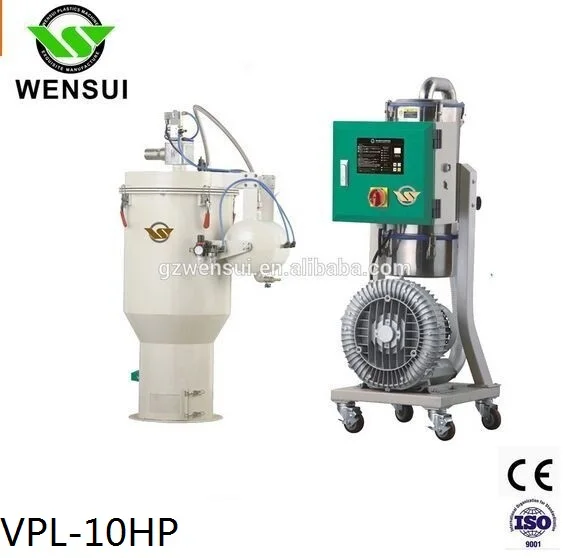

Wensui Хоппер порошка Автозагрузчик для ПП, пе, VPL 10HP/пластик Материал бункер погрузчик/вакуумная загрузочная воронка автоподатчик
- Category: Plastic Loader >>>
- Supplier: Wensui Intelligent Equipment Inc.
Share on (60477409216):
Product Overview
Description
Product Features
✔Controlled by microprocessor, and user operates via buttons and a simple system interface.
✔High pressure pump features small volume, lower noise, and easy installation.
✔Large conveying capacity which can feed one to one (standard up) to one to four (optional).
✔Consisted of dust separator and dust collecting bin, both of which are easy to clean and maintain.
✔Features blowback valve to automatically clean hopper to enhance air conveying.
✔Indicator light shows the working status or faulty status.
Specifications
Model | Power(HP) | Conveying Capacity (kg/h) | Pump Lift (m) | Static Wind Pressure (bar) | Storage Tank Volume (L) | Conveying Tube Inner Diameter (mm) | Size of Standard Hoses | Dimension (L×W×H)(cm) |
VPL-3HP | 3 | 300 | 4 | 0.28 | 24 | Φ51 | Φ51mm*4m 2pcs | 52*43*123 |
VPL-5HP | 5 | 500 | 4 | 0.31 | 24 | Φ51 | Φ51mm*4m 2pcs | 52*43*123 |
VPL-7.5HP | 7.5 | 800 | 4 | 0.41 | 24 | Φ51 | Φ63mm*4m 2pcs | 60*47*160 |
VPL-10HP | 10 | 1100 | 5 | 0.41 | 24 | Φ51 | Φ63mm*4m 2pcs | 60*47*160 |
Product details

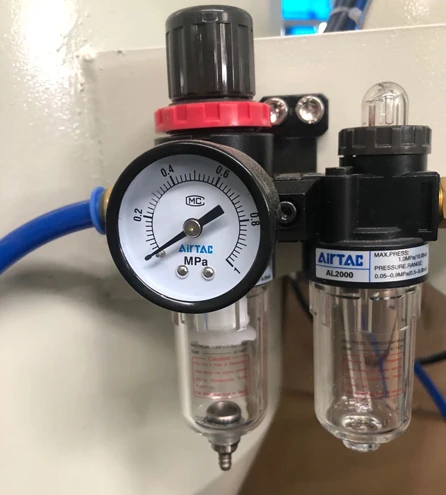

Precision water & oil filter, adjusting the powerder autoloader pressure and oil easily

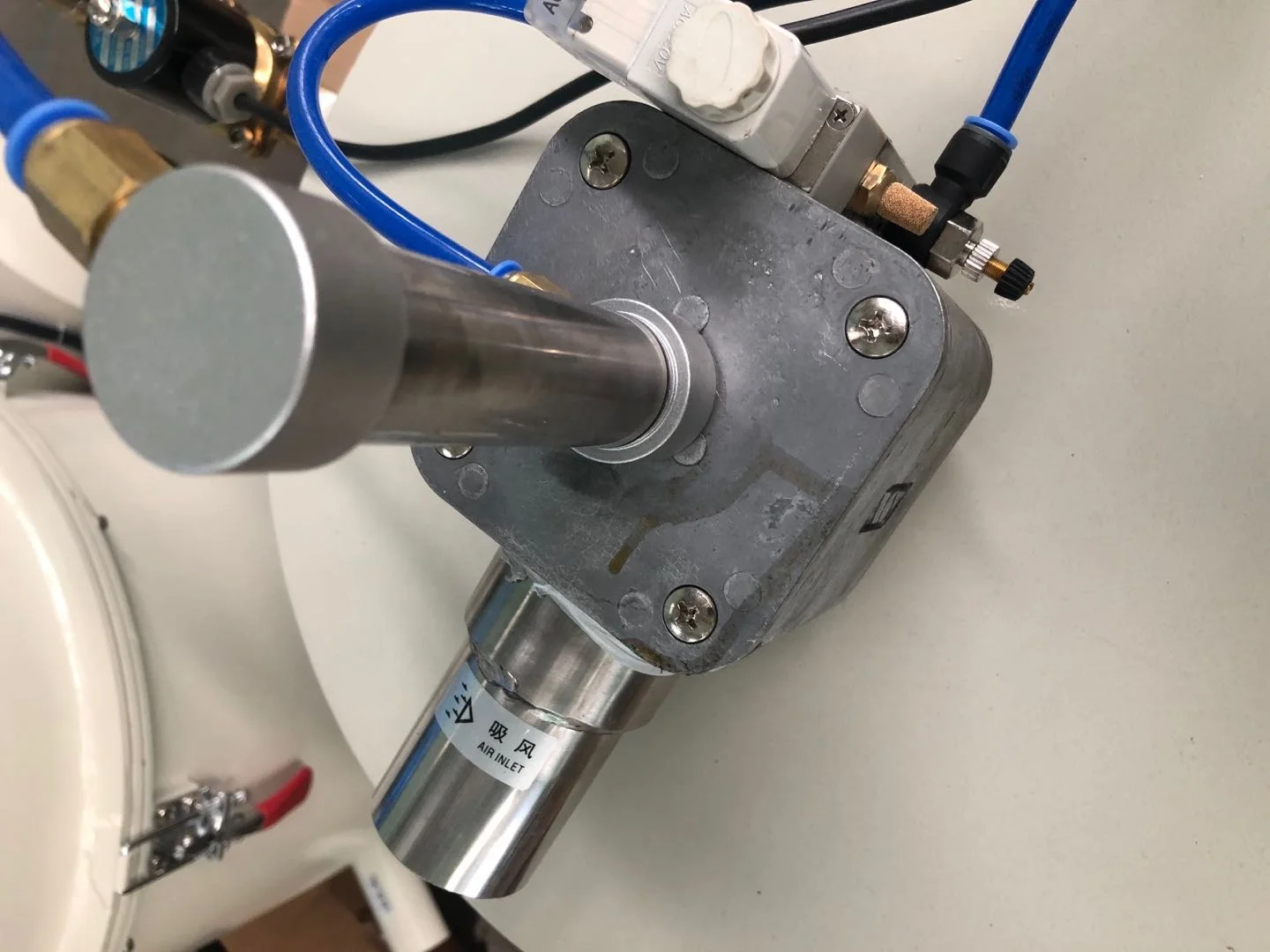

Air inlet provide autoloader energy
Certifications
Exhibition
Package
Our Company
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
