RC Lipo Battery Cable Harness EC5 Series Connection Battery Cable with 8AWG 10AWG 12AWG Silicone Cable

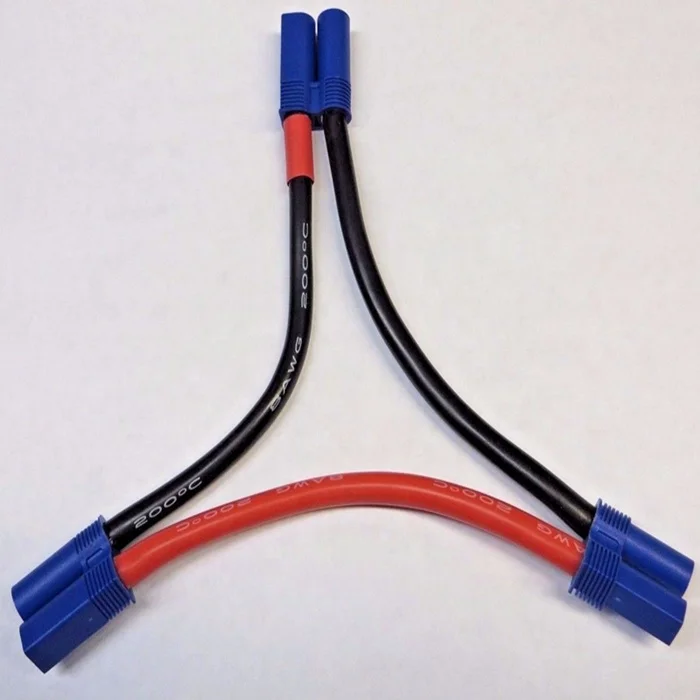

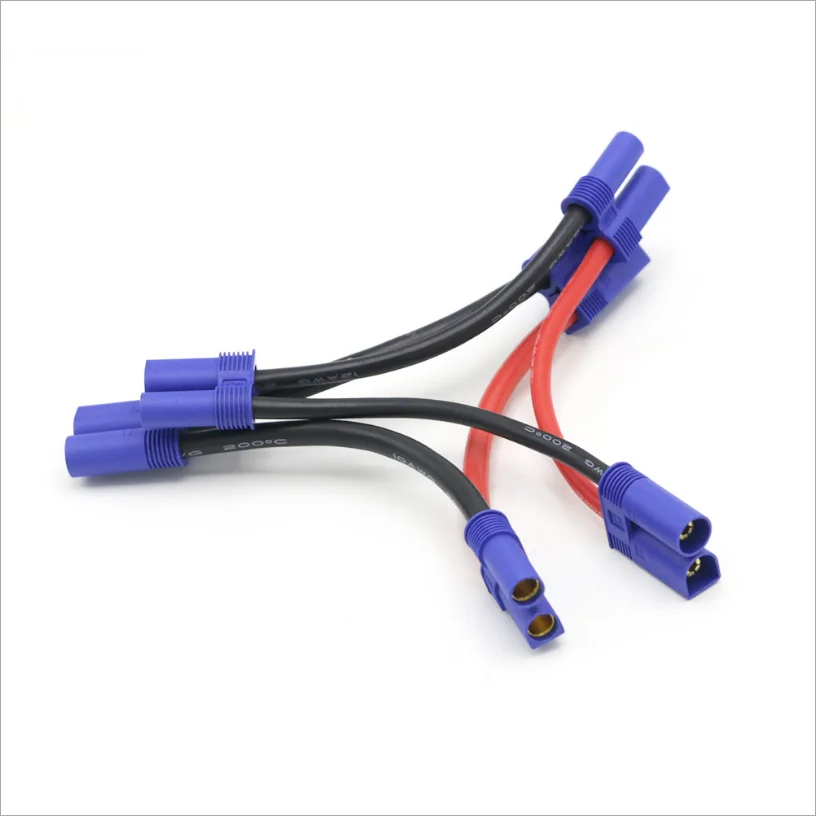

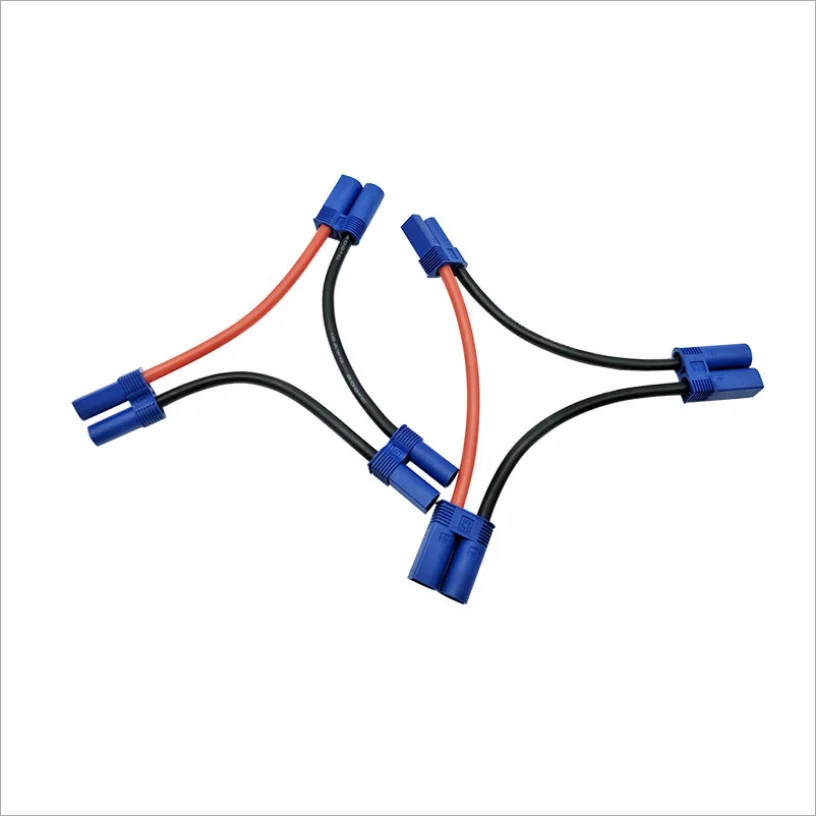

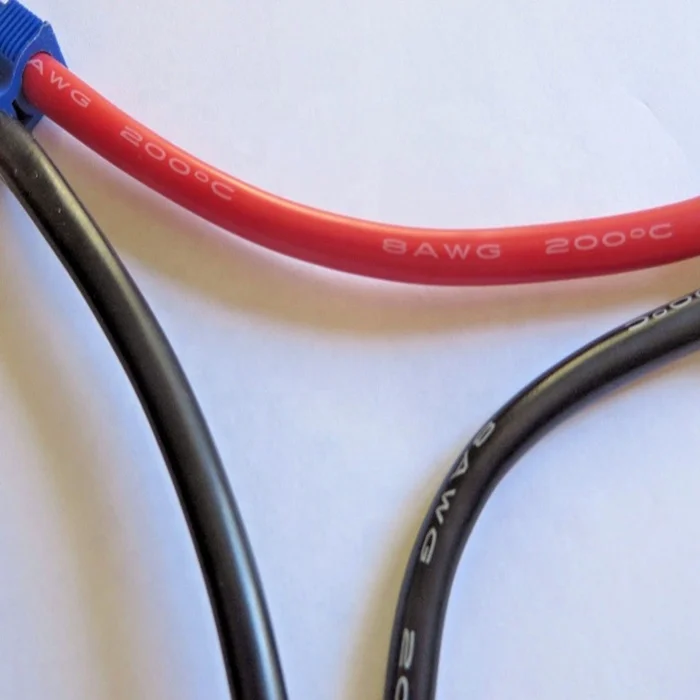

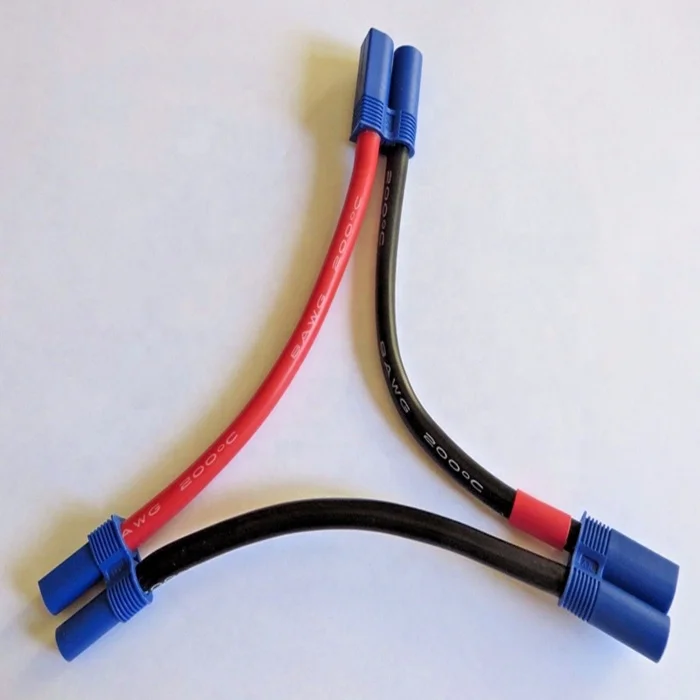

EC5 Battery Serial Series Quality Harness Adapter Cable Connector Plug 8 AWG Brand New EC5 series harness 2 male EC5 connectors 1 female EC5 connector made with 8 Gauge wire. The wire is Soft Flexible 200° C Silicone Wire 1050 Strands .08mm Tin Coated Copper, The series harness is 6 inches long per section 2-Male EC5 Connectors in series to 1-Female EC5 Connector. This series harness doubles your voltage (example 2 3s 5000mah lipo batteries are now 1 6s 5000 mah battery) doubling your voltage from 12.6v to 25.2v. The harness is a beast and is made for today's monstrous motor esc lipo setups.

Product name:EC5 Battery Series Serial Power Cable Battery Power Adapter

Application:RC Model Power cable   RC Hobby LiPo Battery Power Adapter

Certification:RoHS IATF16949

Connector:EC5 Connector Male*2Pcs and Female*1Pcs

Connector Pin Size:5mm Bullet Contacts

Connector Material:Brass Gold Plated and Heat-resistant Nylon Material

Wire gauge:12AWG or 10AWG Silicone Wire

Wire length:100mm or Customization

Max. Continuous Current Load: 120A with 10AWG Silicone Wire

Wire color:Red&Black

Usage:Used for connecting two LiPo Battery in Series (Double Voltage)

Dongguan Hexie New Energy Technology Co.,Ltd. was founded in 2009.

We mainly produce new energy vehicle wiring harness,connectors,battery holders;RF Coaxial Cable, RF Connectors and Antenna Cable,USB&HDMI cables,audio cables and other cables for digital products,specialty cables, PV cable etc.

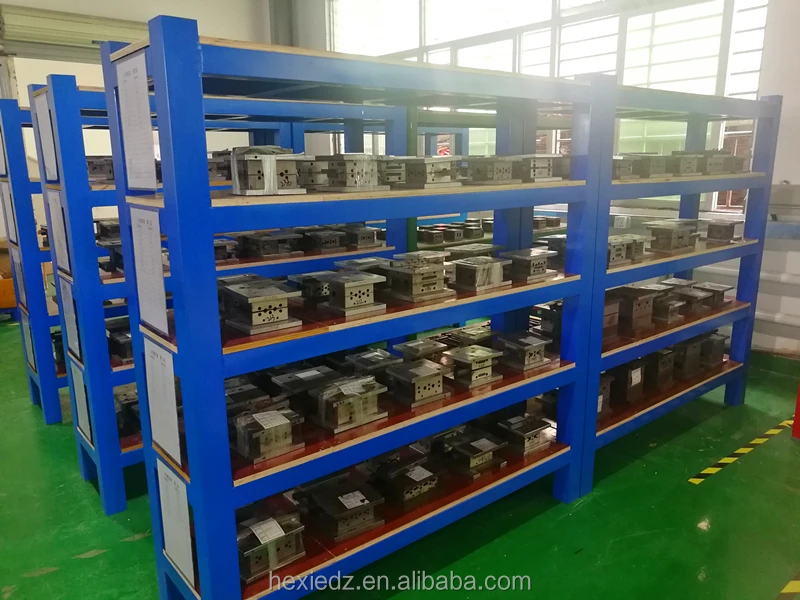

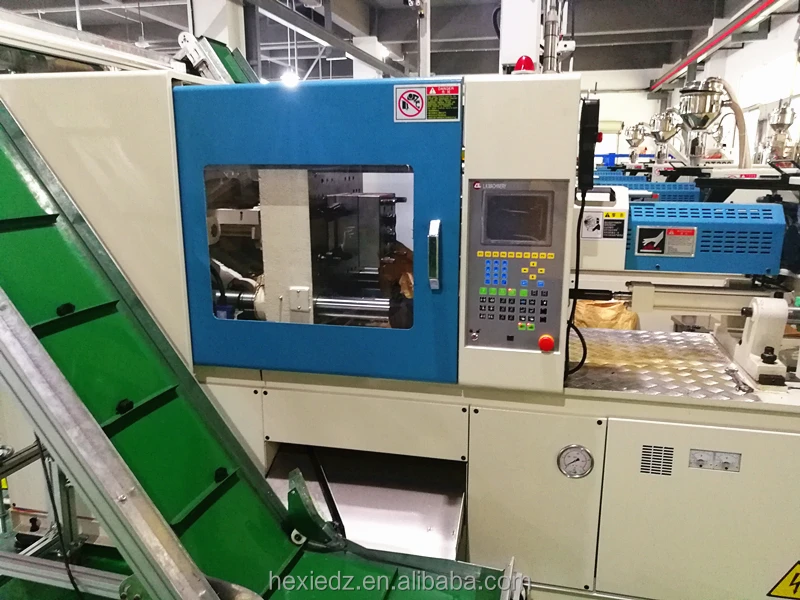

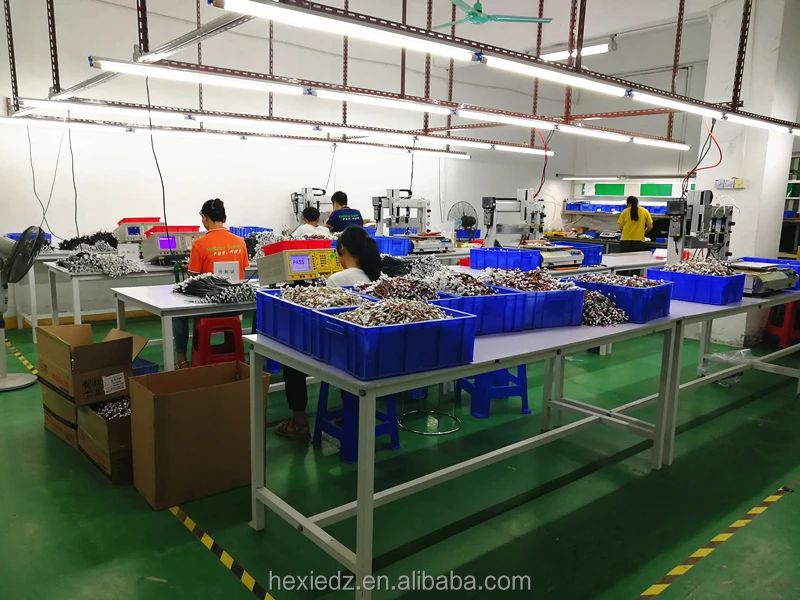

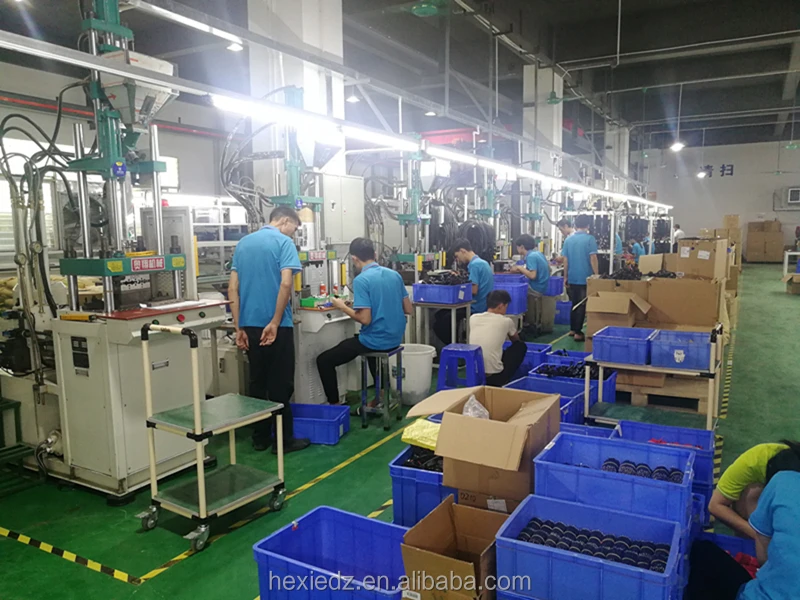

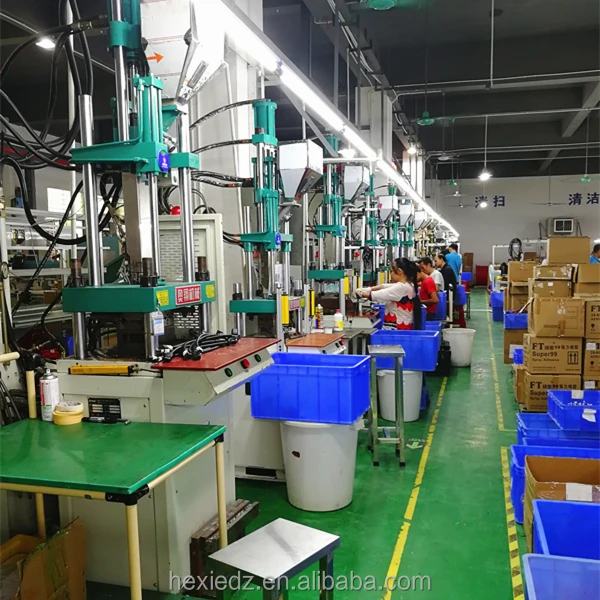

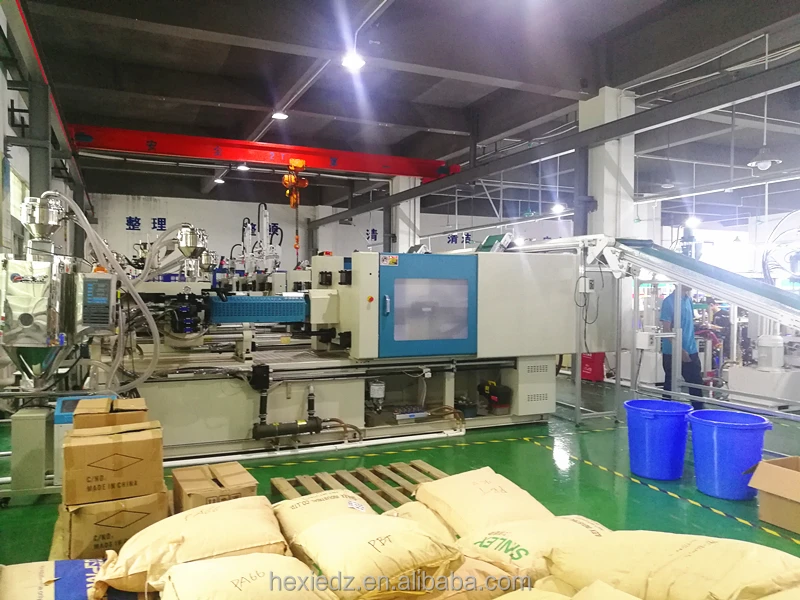

Hexie New Energy Technology is a cost effective manufacturer with advanced equipments located inHumen, Dongguan.
