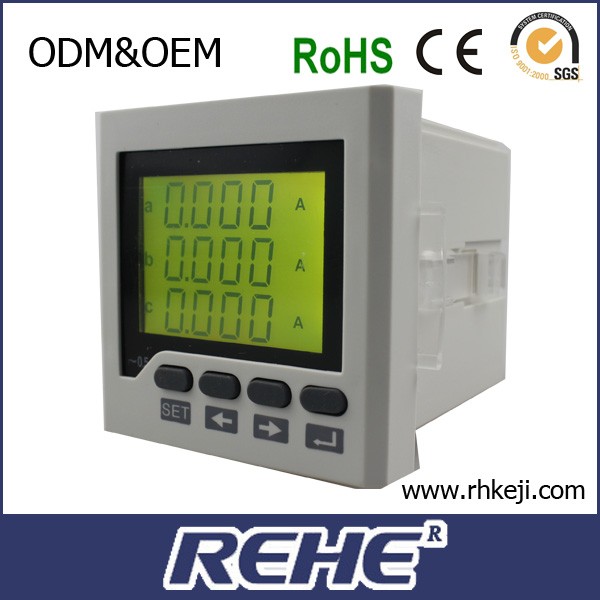

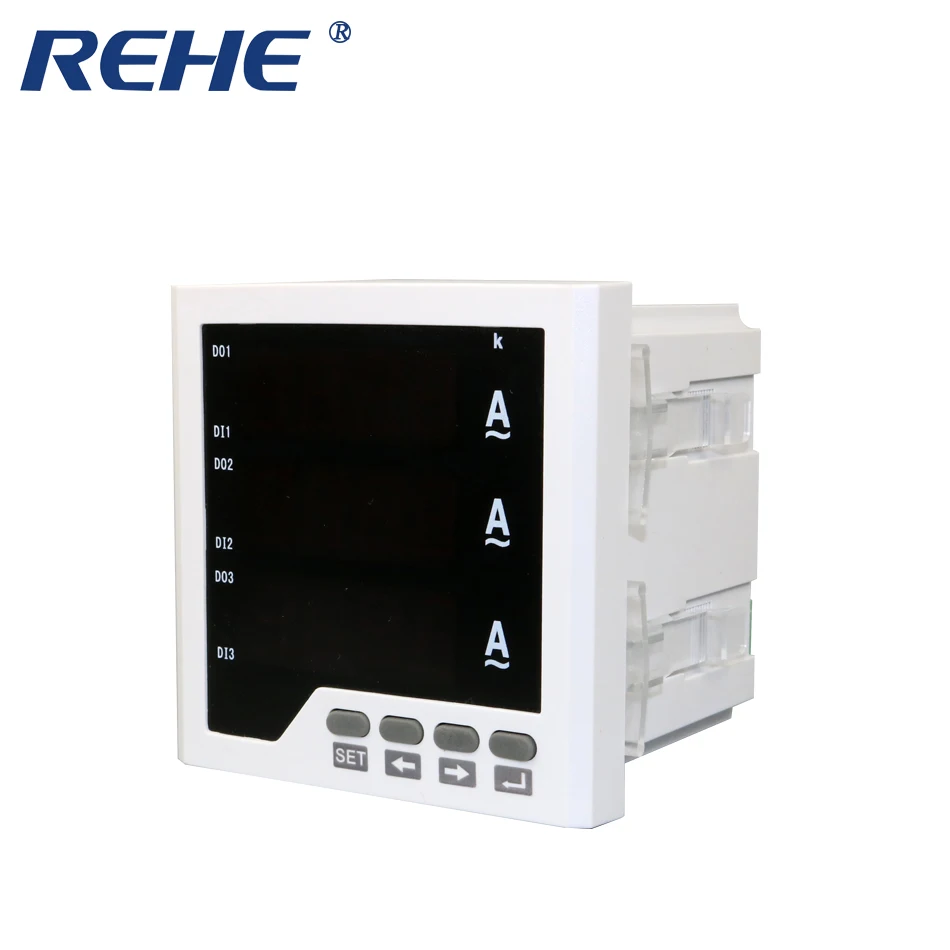

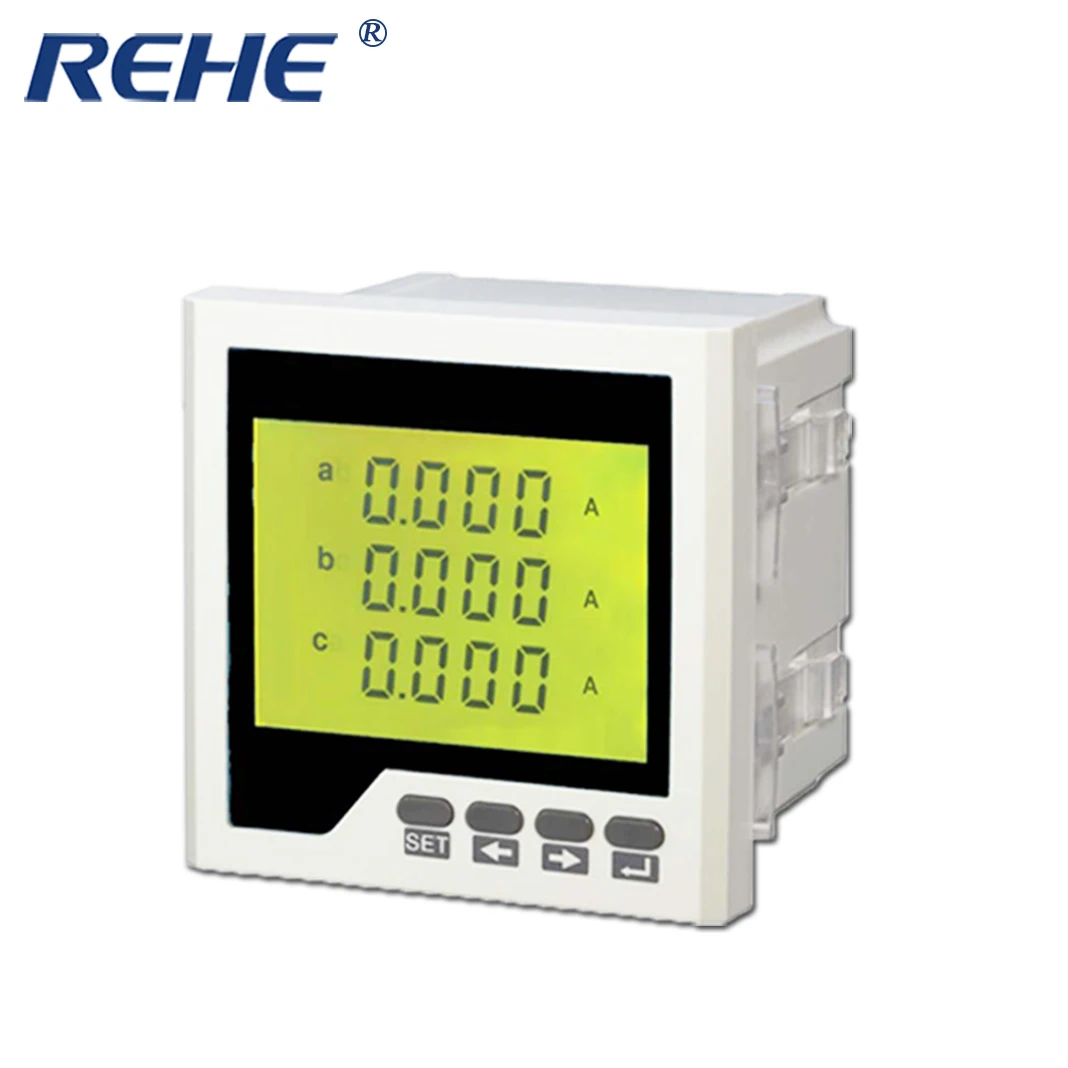

Analog output RH-3AA6Y LCD Three-phase digital analog ac Ammeter

Current meter Detail

3-p ammeter

Dimension:customized	custom processing:Yes	Measuring range:0-9999
Model NO.: RH-3AA	accuracy class: 0.5	Installation:embedded
Brand name: REHE	Usage: high precision measurement of three phase AC ampere	Auxiliary power supply:DC 80V-270V, DC48V, DC24V, AC220V
Performance Characteristics
High precision measurement measurement of three phase AC current
Provide the digital tube display, local data query
Programmable voltage ratio
Support for RS-485 communication, Modubus-RTU protocol
Support for switching input, output, analog quantity transmitting output
Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement	Electric current 0.5

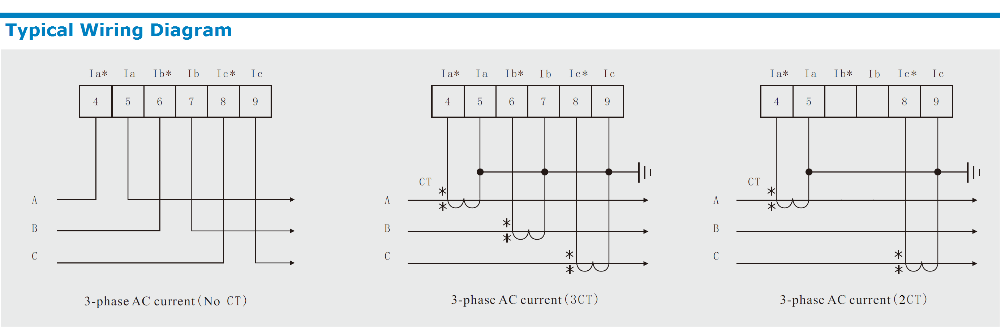

Signal input	Connection mode of three phase four wire, three phase three line
	Rated current of AC 1A, AC 5A
	Over load 1.2 times ( Continued ), 10 times / 5second ( instantaneous )
	Power consumption <0.4VA/phase
	Impedance <20mΩ
	The frequency of 45~65Hz
Auxiliary power supply	AC/DC 80V~270V, AC220V, AC380V, AC100V
	Power consumption <4VA
Function module	Communication interface 1 way RS-485 communication, Modbus-RTU protocol
	Baud rate: 1200~9600bps, the default 2400bps
	Switch input support 4 stem node input
	The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A
	Transmission output support 3 analog output: 0/4~20mA or 0~5/10V
Environment	Working temperature:-10°C ~+55°C
	Storage temperature:-25°C ~+70°C
	Relative humidity is less than 93%, no corrosive gas
	Elevation≤2500m
Safety	Insulation resistance >100MΩ
	AC withstand voltage AC 2KV
Electromagnetic compatibility	ESD level 4
	Electrical fast transient burst level 4
Selection of Specification
Digital Three phase AC Current Meter(9999 display programmable)
Model NO.	Display	Frame size(mm)	Hole size(mm)	Remark
RH-3AA11	Digital Single-row LED	160*80	152*76
RH-3AA23	Digital Three-row LED	120*120	111*111
RH-3AA33	Digital Three-row LED	96*96	92*92
RH-3AA41	Digital Single-row LED	120*60	114*56
RH-3AA51	Digital Single-row LED	96*48	92*45
RH-3AA63	Digital Three-row LED	72*72	68*68
RH-3AA73	Digital Three-row LED	80*80	76*76
RH-3AA83	Digital Three-row LED	48*48	45*45
Extended Modules:
AC/DC power supply(switching power supply)$4
Modbus-RTU RS485 comm:$5
AO: $7 more for each stem node
DI: $4 more for each stem node
DO:$4 more for each stem node
“*” means unconventional products of our corporation
