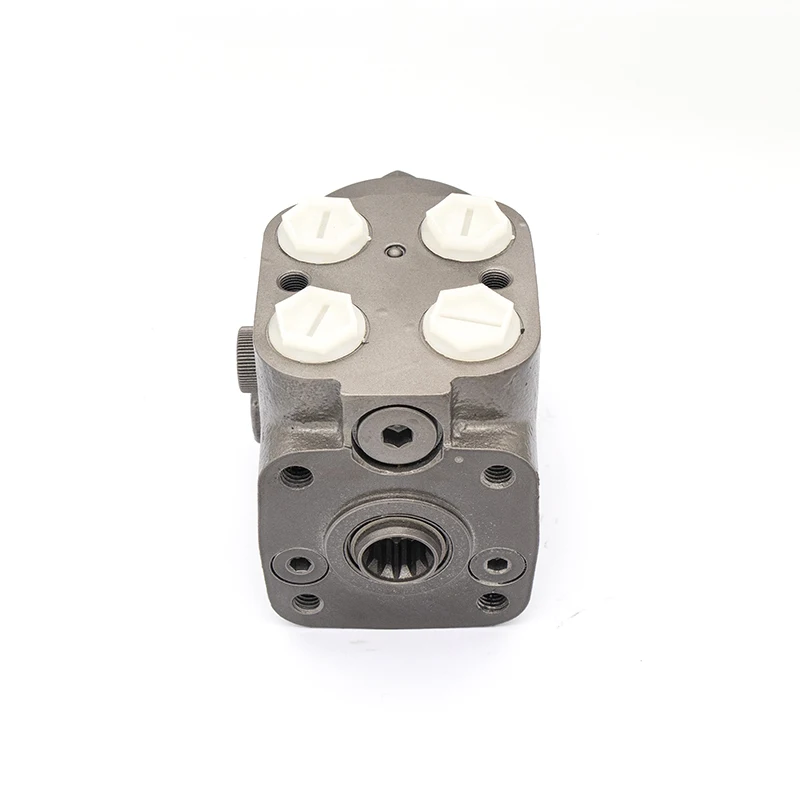

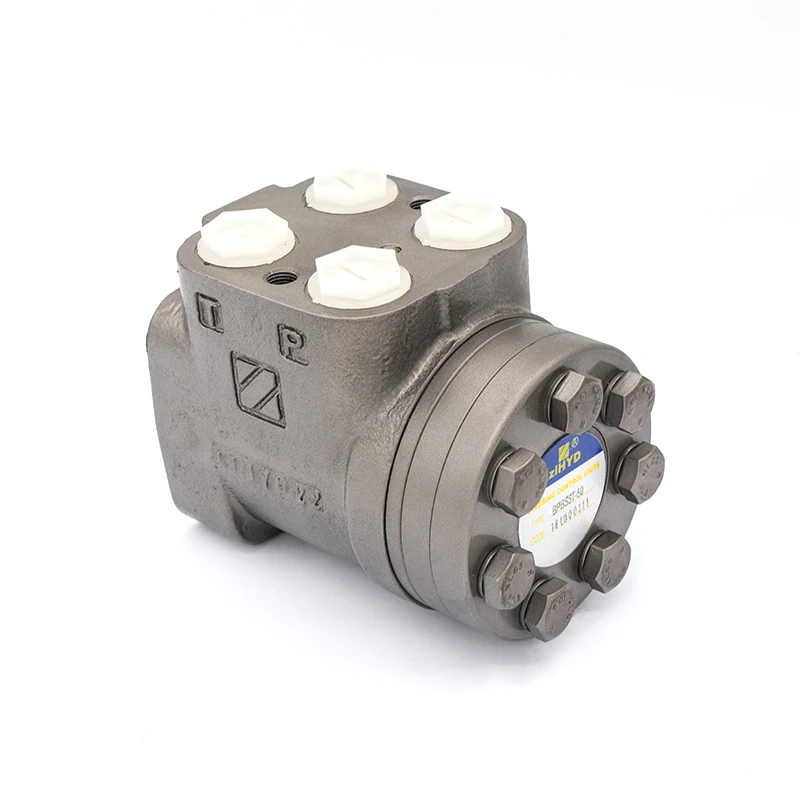

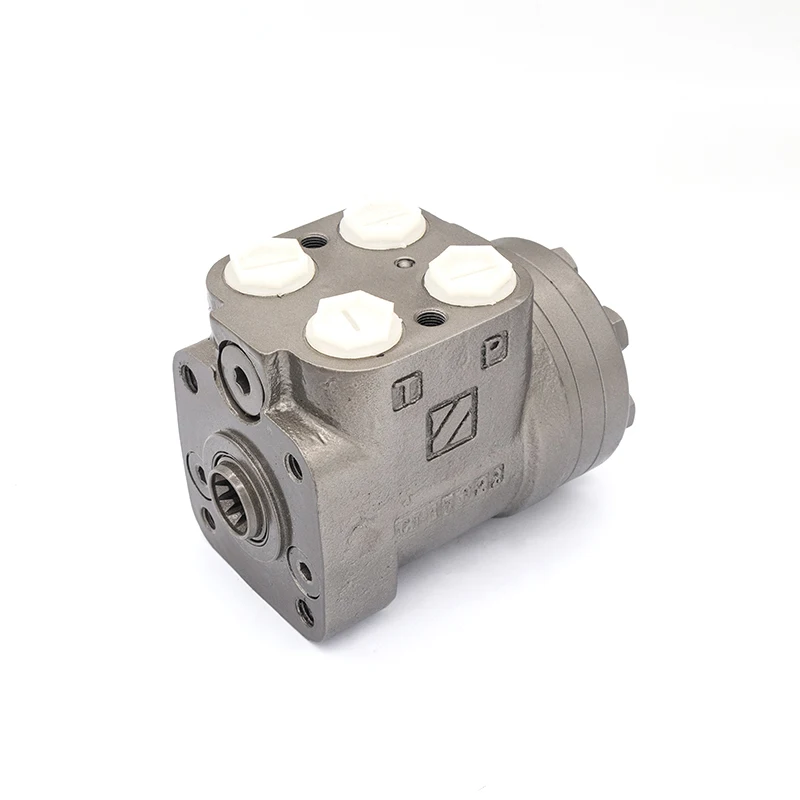

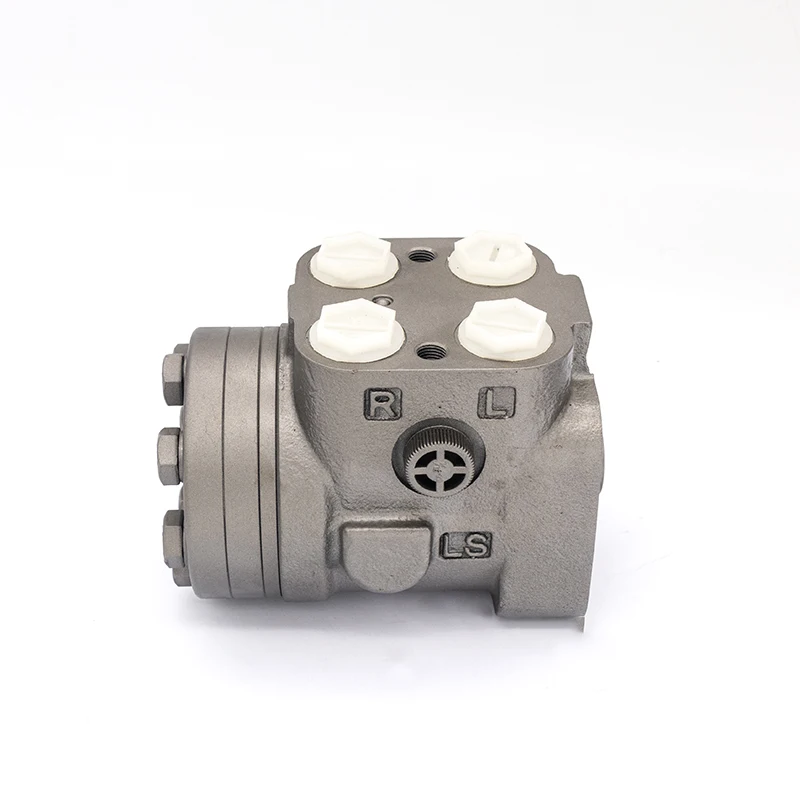

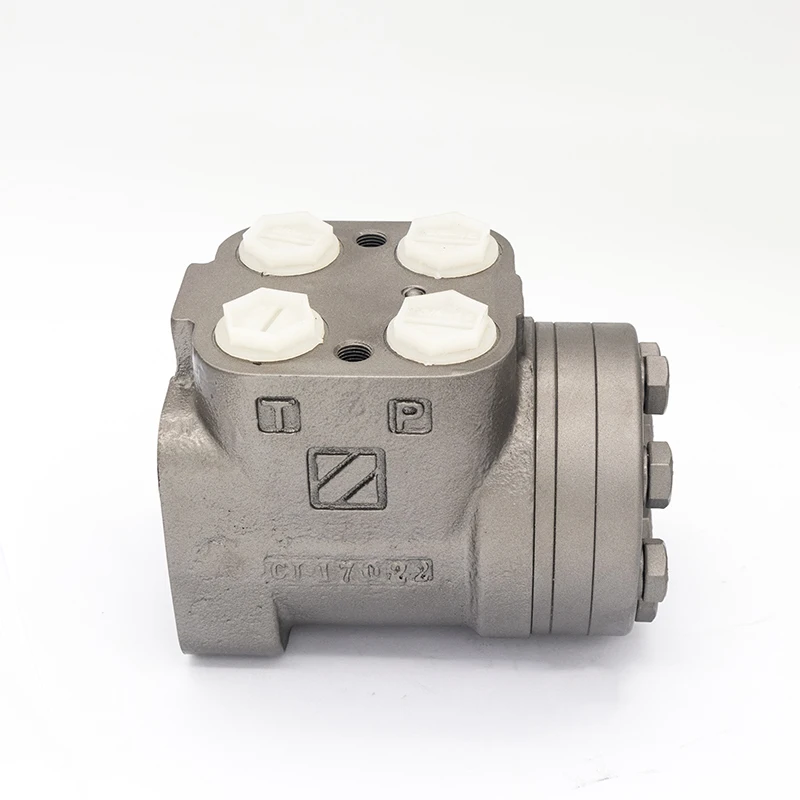

ziHYD Good Performance High Speed Power electric hydraulic servo valve steering vane pump cartridge
- Category: >>>
- Supplier: Ningbo Zhongyi Hydraulic Motor Co. Ltd.
Share on (60477978713):
Product Overview
Description
| Parameters | Type | |||||||||||
| BPBS1,BPBS2,BPBS3 | BPBS1,BPBS3 | |||||||||||
| Displacement | mL/r | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow | L/min | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. Input Pressure | bar | 175 | ||||||||||
| Max.Cont.Pressure in Line T | bar | 25 | ||||||||||
| Relief Valve Pressure Setting | bar | 6, 8, 10, 12, 14, 16, 17.5 | ||||||||||
| Shock Valves Pressure Setting | bar | 12, 14, 16, 18, 20, 22, 23.5 | ||||||||||
| Power Steering Torque | N.m | 1.6~2.4 | ||||||||||
| Max.Manual Steering Torque | N.m | 130 | ||||||||||
| Dimension L | mm | 130 | 132 | 133 | 136 | 139 | 144 | 149 | 155 | 160 | 165 | 175 |
| Weight | kg | 5.8 | 5.9 | 6 | 6.1 | 6.2 | 6.4 | 6.5 | 6.7 | 7 | 7.2 | 7.4 |
