Product Overview

Description

Our Company
we are professional enterprise which engaged in researching,manufacturing and selling a full set of road line marking equipment.

Our enterprise is aiming to providing the best quality,most scientific and most efficient road facilities to our clients all over the world.

Our company keep on the concept of innovation,excellent quality and perfect service,also we have been devoting ourselves to making a big contribution to the field of transportation infrastructure construction.

Our company’s mission is to be number one of our industry,with the core value of fighting against impossible,and holding the enterprise’s spirit that is to regard honesty and trustworthiness as the root,to win by quality,and finally to become most valuable enterprise in the world.
Product Description

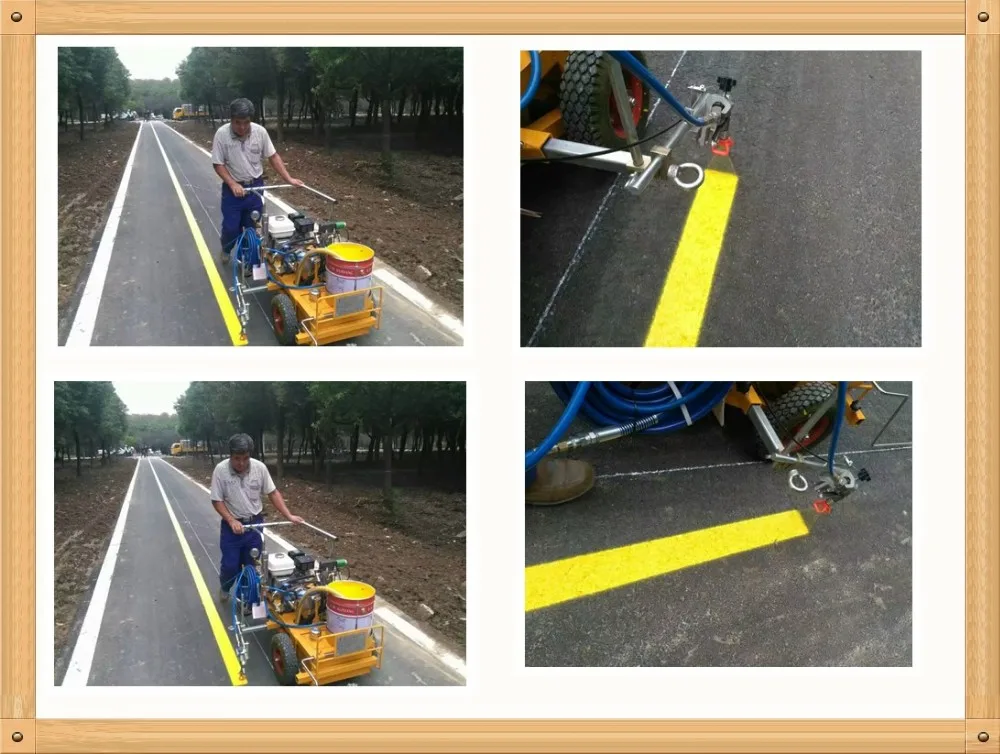

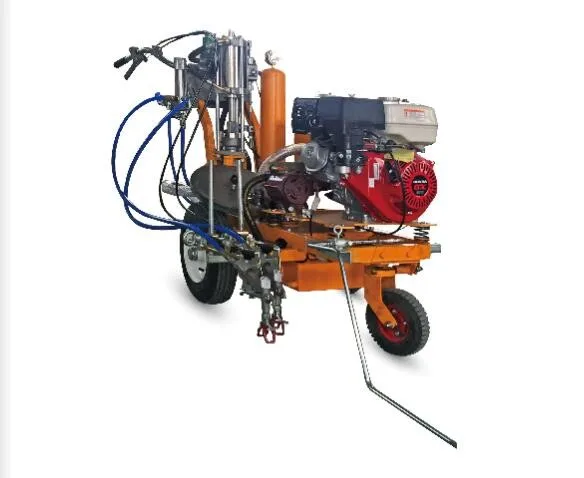

Model 1: LXD6L cold spraying road marking machine

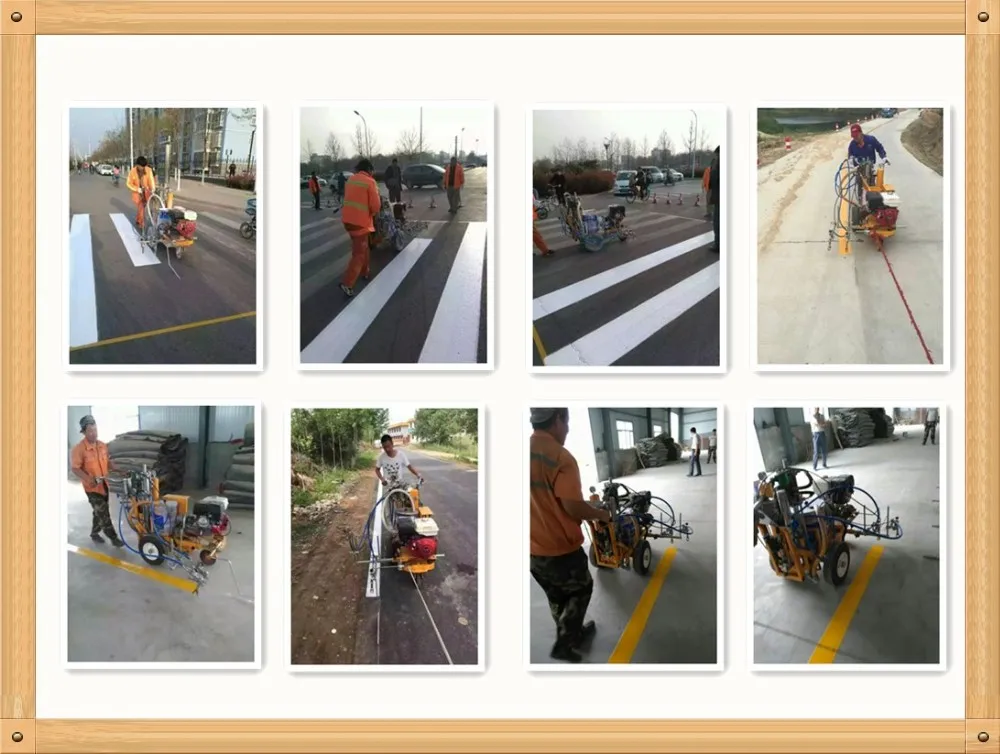

LXD6L cold spraying road marking machine is special equipment to normal temperature road line construction. It is suitable for roads, highway, parking lot,airport, station.it can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.

It is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.
Technical Parameter of LXD6L cold spraying road marking machine
power
5.5HP gasoline engine
Work pressure
10-18Mpa
Flux
6L/min
Width
50-300mm(single gun)
Thickness
0.2-0.6mm
Size
1180×860×1000mm
Net weight
145kg

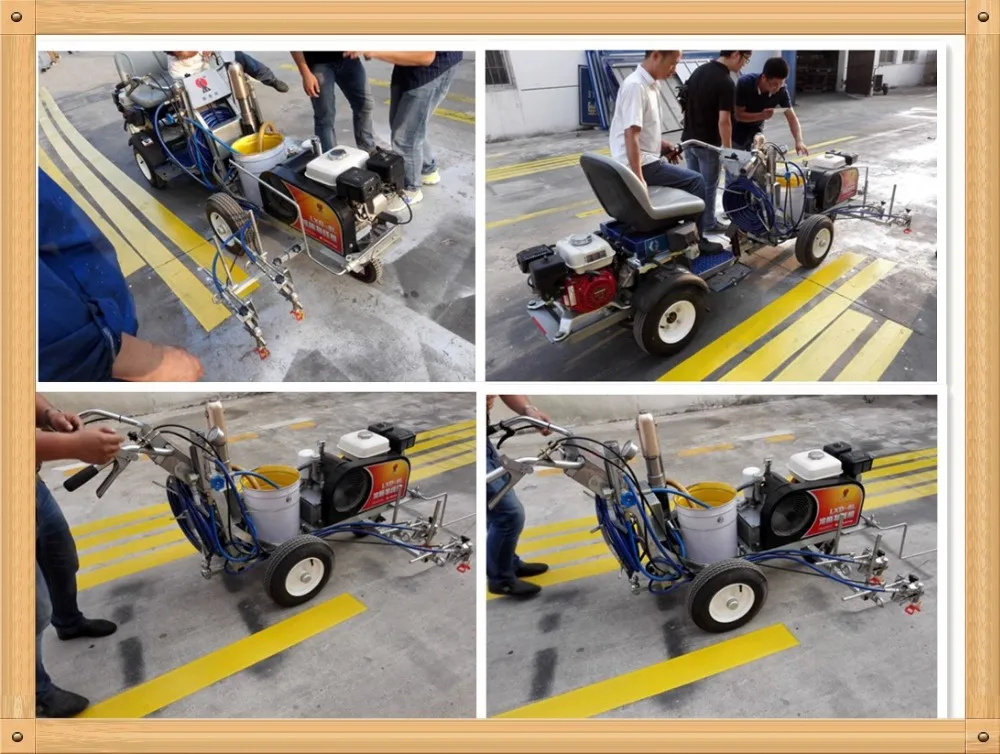

Model 2: LXD18L cold spraying road marking machine

LXD18L cold spraying road marking machine is special equipment to normal temperature road line construction. It is suitable for roads, highway, parking lot,airport, station.it can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.

LXD18L cold spraying road marking machine is the spray equipment with high pressure,equal discharge and airless. It use gasoline engine to drive single plunger pump to work,which can generate high pressure inside the machine.The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently. Equipped with the computer line controller, the space between dotted lines can be changed according to the project requirements.
Technical Parameter
power
9HP gasoline engine
Work pressure
10-18Mpa
Flux
18L/min
Width
50-300mm(single gun)
50-500mm(double gun)
Thickness
0.2-0.6mm
Spray gun
Double gun can work together
Size
1800×1020×1100mm
Net weight
180kg

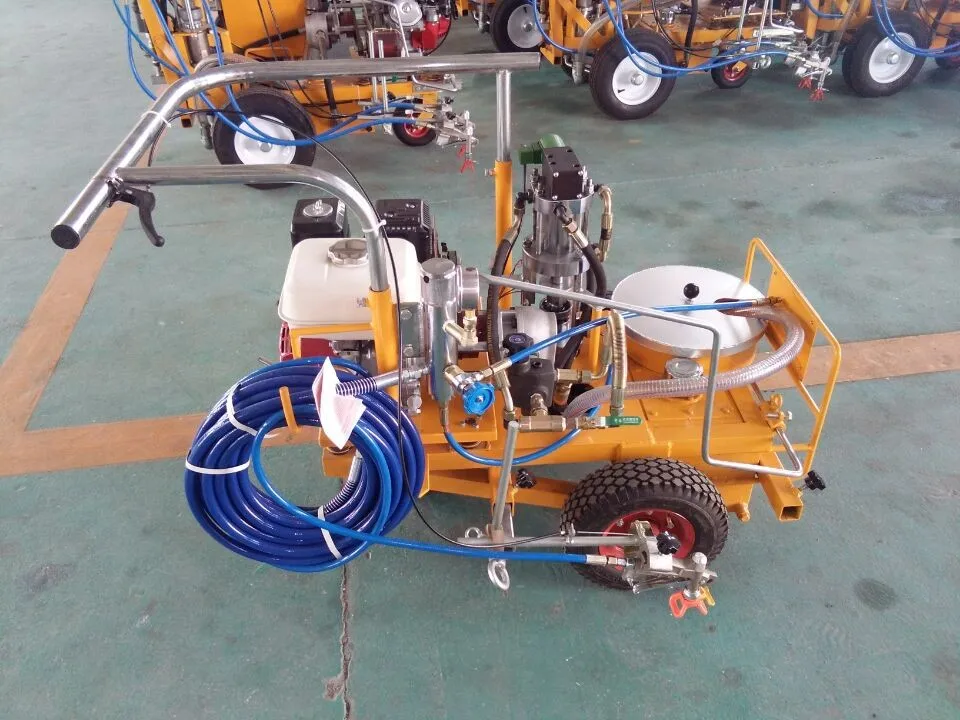

Model 2: LXD9L cold spraying road marking machine
LXD9L is the fastest among our cold paint marking machines,its working speed can reach 13kh/h,

Since it has powerful hydraulic system which make sure it work well under harsh environment.
Technical  Parameter of LXD9L cold spraying road marking machine
engine
5.5PS (Honda)
Pump
built-in Reversing hydraulic pump(import from German)
Max flow
9L
Max spray pressure
23MPS
Max working speed
13km/h
Single spray gun
0.048
Double spray gun
0.033
Aluminium oil tank capacity
13L
weight
130kg
size
1660*1050*1000mm

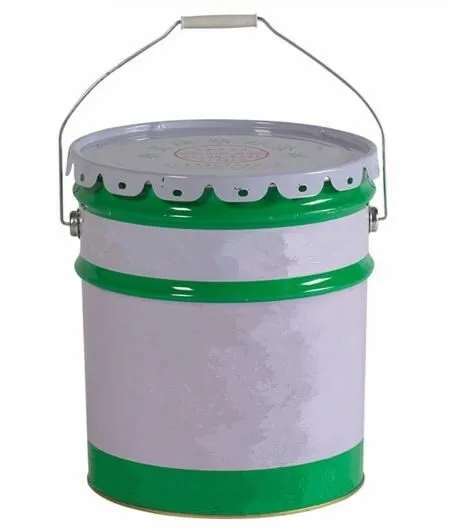

Cold Paint
Cold Solvent Road Marking Paint is environment friendly product,it consists of Modified Acrylic resin,
colored aggregate, filler material and etc.
it is suitable for application to bituminous and concrete
roads. It can be successfully applied to airless or
air auxiliary spraying equipment.
BAISC INFORMATION
Product Name
Normal Temperature Road Marking Paint
Use For
Concrete and asphalt floor
Components
Titanium dioxide, natural calcium carbonate, filler materials…
Appearance
Solvent
Standard
JT/T280-2004
Color
White, Yellow, Red, Blue, Green, Black
Weight

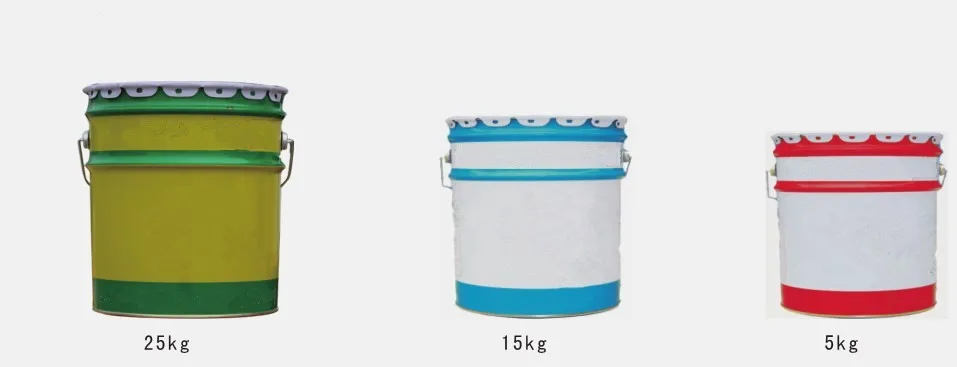

25kg/barrel, 15kg/barrel, 5kg/barrel
Density
45g/ cm³
Film Thickness
700μm
PHYSICAL CHARACTERISTICS
Abrasion Resistance
22.4mg
Solid content
68.6%
Viscosity
121 KU
Flexibility
1mm
Luminance factor
0.85
Drying Time After Marking
9 mins
Shelf Life
Up to 24 months
Storage
Store in a tightly sealed container in a cool & dry place
FEATURES
High usage ratio
It’s an environmental paint
Tough and wear-resistant
Fast drying under a wide range of climatic conditions
Not faded easily marking line
Easy to be applied with different equipment
Various of color to be choose

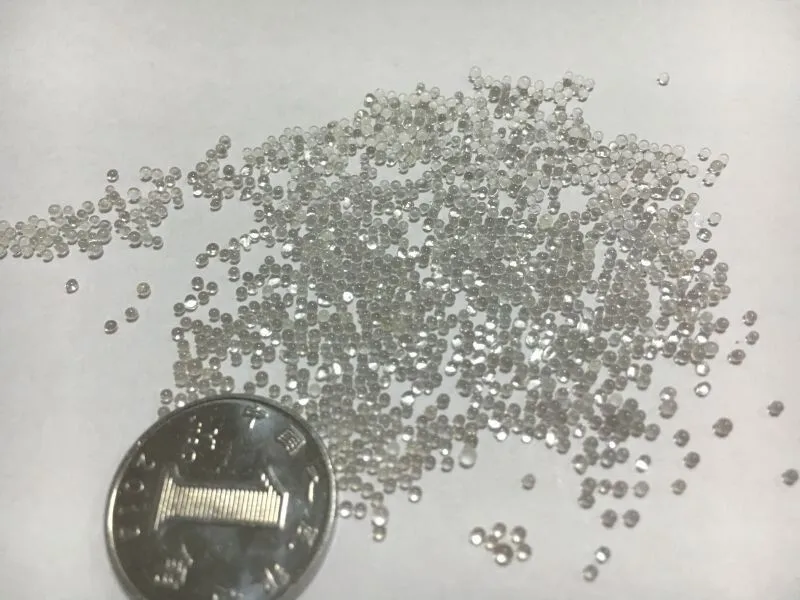

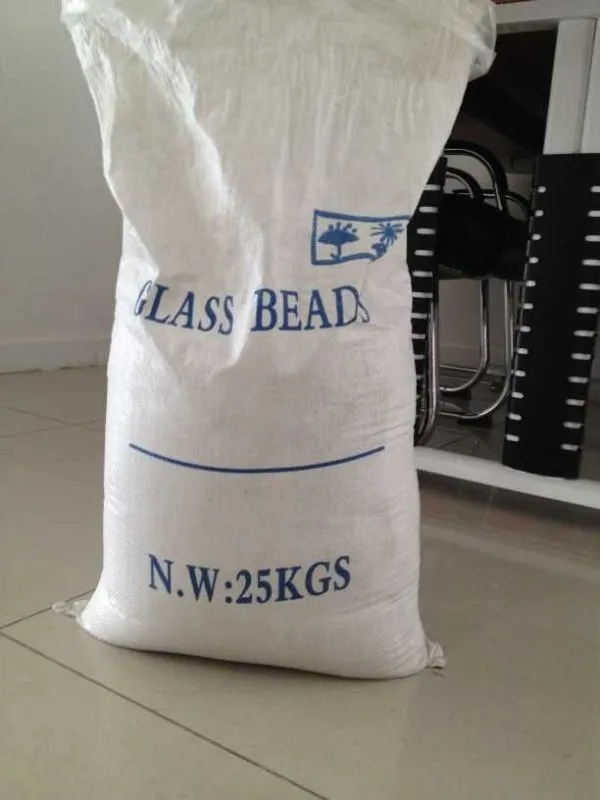

Glass Beads
Specification
Product:
Retro reflective glass beads
Item number :
BS6088B
Appearace:
Colorless,Clean white powder ,No obvious impurity
Roundness:
BS6088B≥80%,BS6088A≥70%
Refractive index:
≥1.5
Specific gravity:
2.4-2.6g/cm3
Heavy metal:
<200ppm
Coated
silicone

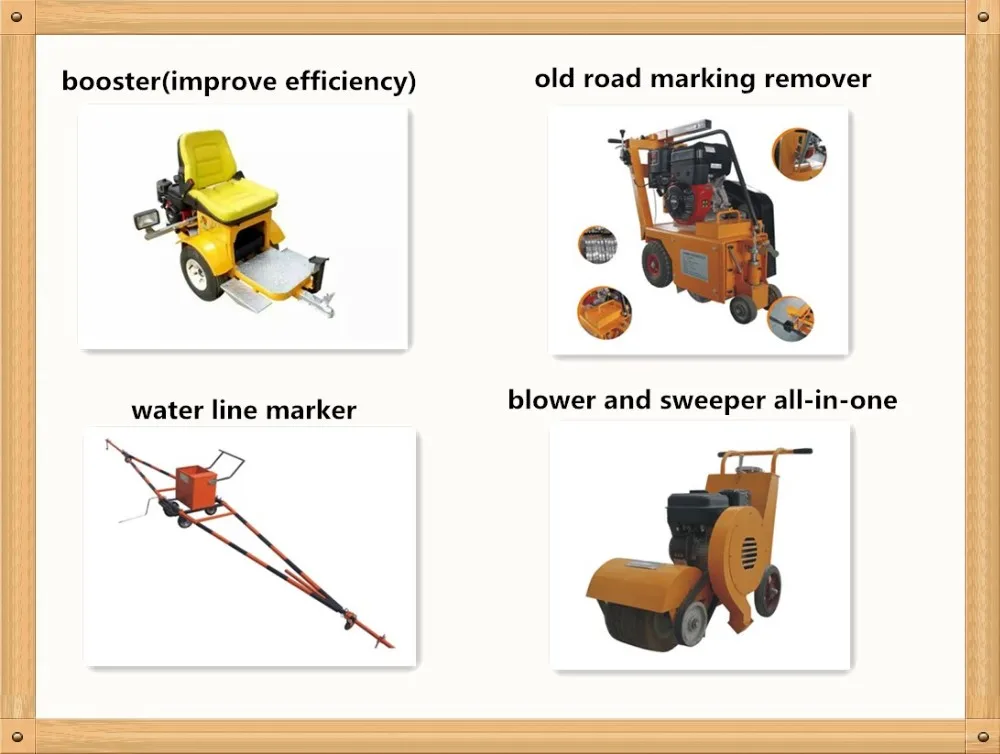

Related Products
Packing & Delivery
Packaging
Size
1400mm(L) * 850mm (W) * 1050mm(D)
Weight
180kg

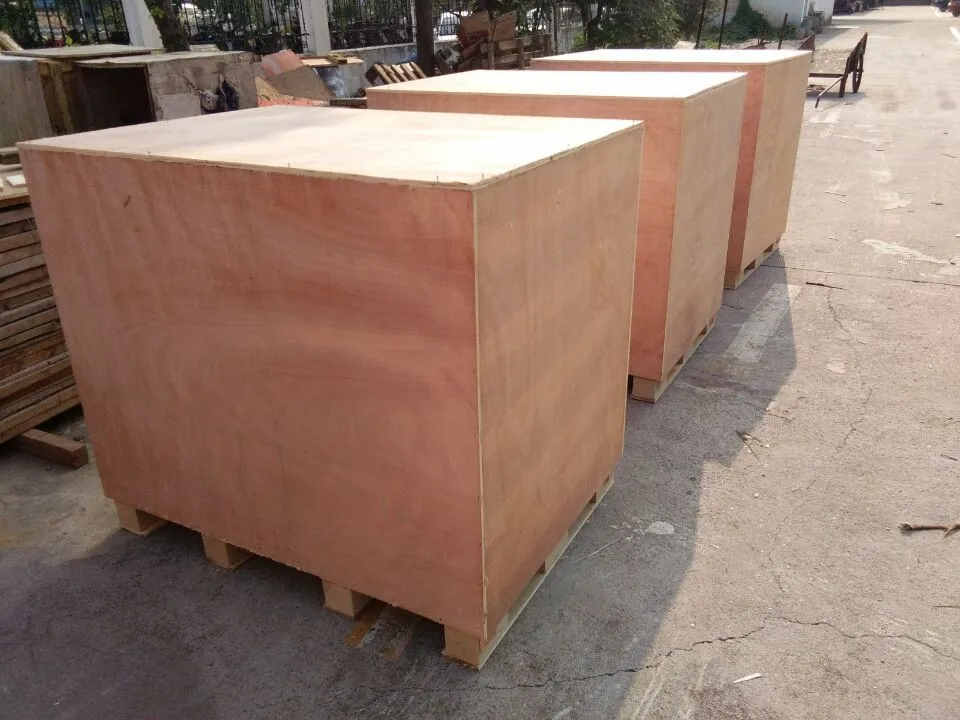

Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
