LY 280 modified atmosphere food vacuum sealing machine map packaging machine meal food tray sealing machine with gas flush
- Category: >>>
- Supplier: Zhejiang Ruibao Packaging Machine Co. Ltd.
Share on (60478031969):
Product Overview
Description
The machine will remove air from tray, then fill modified gas into tray, and seal cover film. Whole process happens in a closed chamber. This way it can ensure high vacuum degree, extend shelf life in a healthy way, meanwhile keep food fresh.
Advantage
* Support modified atmosphere packaging * Ratio of gas O2/N2/CO2 can be changed as per food
* Extend the shelf life, remain fresh and taste of food

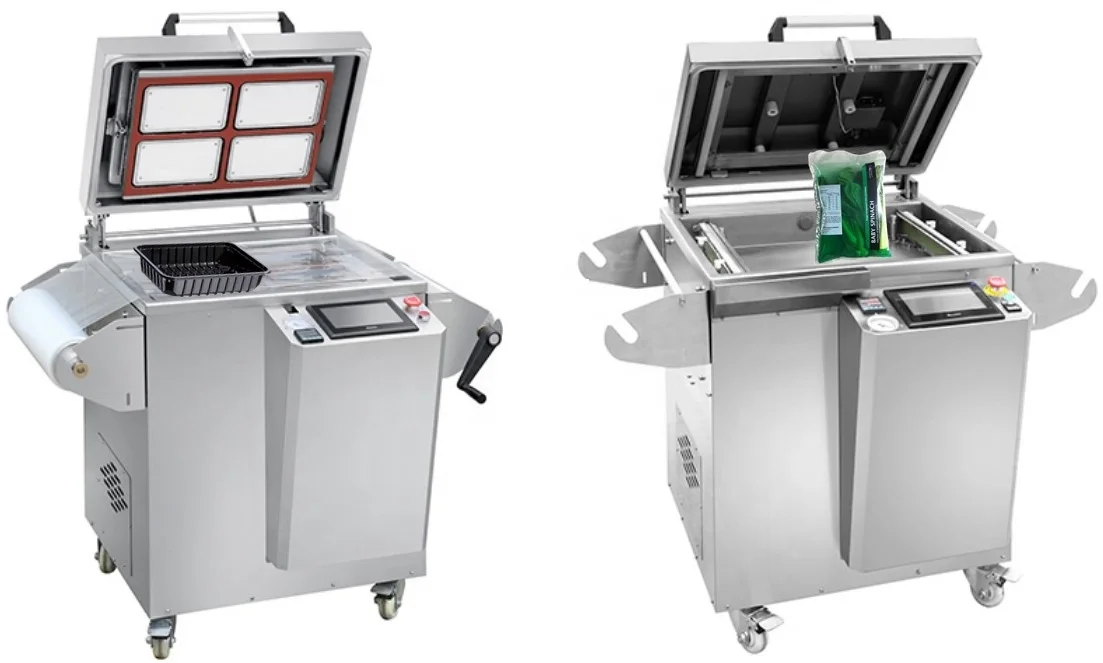

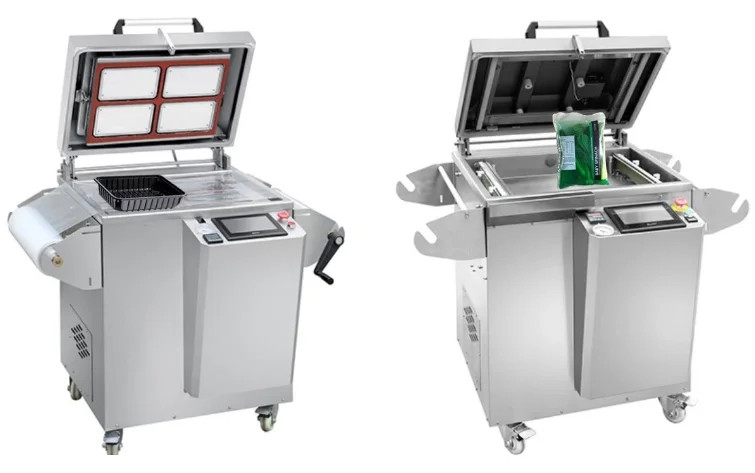

* Multipurpose. Able to pack both bag and trays.
* Multi molds. Able to pack different tray size/shape.
* Customized mold as per client tray
* Automatic film cut
* Reasonable price and reliable quality
* Easy for maintain and operate
* Able to put your company name and LOGO on touch screen
* Support multi language
* Extend the shelf life, remain fresh and taste of food
* Multipurpose. Able to pack both bag and trays.
* Multi molds. Able to pack different tray size/shape.
* Customized mold as per client tray
* Automatic film cut
* Reasonable price and reliable quality
* Easy for maintain and operate
* Able to put your company name and LOGO on touch screen
* Support multi language
Application
1. Suitable item. Food item like ready meal, meat, fish, sausage, cheese, fruit, vegetables, tofu, salad, sandwich, cooked food etc.
2. Tray size. Machines are customized accordingly to client tray size/shape. Above is just for reference.
3. Package type. Our machine can support both tray+film and bags. Standard machine only support tray+film, bag packing cost extra.
4. Package material. Trays or bags made from PP / PET/ Aluminium foil.
Parameter and price
Model | DMP-430A | DMP-430B | Gas mixer | ||
Trays size | Tray size not fixed. Machine customized as per client tray | ||||
Tray depth | 70mm standard deepth | ||||
Trays per cycle | 1-6 trays at the same time | ||||
Pack speed | About 2 cycles per minute | ||||
Air compressor | Require an air compressor, client prepare it | ||||
Air pressure | 0.6-0.8Mpa | ||||
Power | 3.5KW | 2.5KW | 1KW | ||
Voltage | 380V/50HZ/3Phase | 220V/50HZ/1phase | |||
Vacuum pump | ZD brand vacuum pump 63m3/h | ||||
Gas pressure | 0.2-0.3Mpa for gas source inflow | ||||
Controller | PLC + Touch screen | ||||
Material | Food grade 304 stainless steel | ||||
Overall size | 1050*720*940mm | 700*600*555mm | |||
Net weight | 313Kg | 245Kg | 68Kg | ||
Function | Vacuum, gases mix and fill, seal | Vacuum, gas fill seal | Premix for gases O2+CO2+N2 | ||
Unit price | 6266USD | 4882USD | 1400USD | ||
* Gas mixer can premix O2/CO2/N2 as per ratio which preset by client.

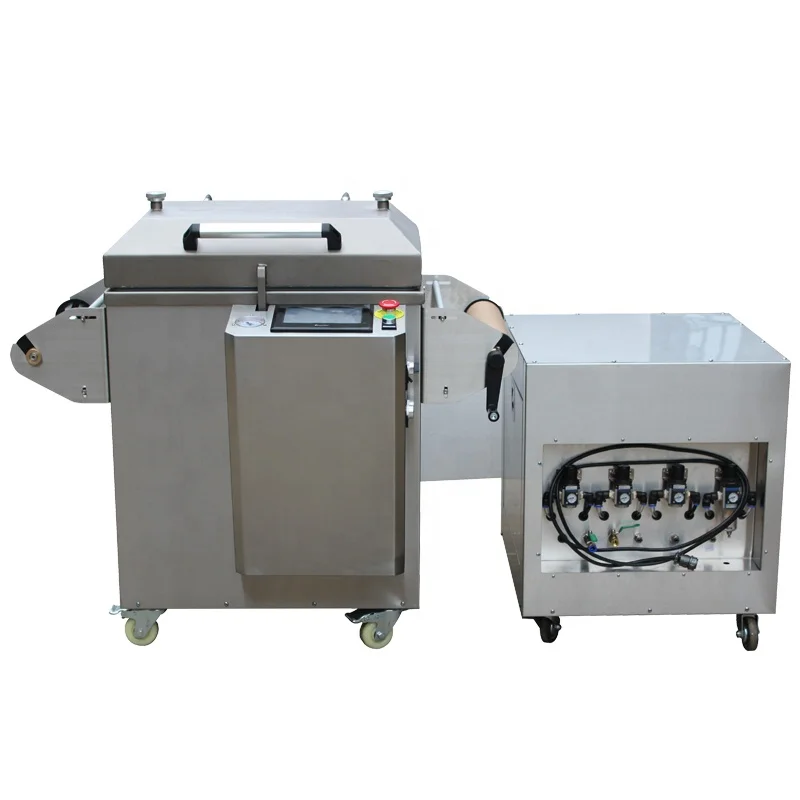

* DMP-430A is actually for tray sealer DMP-430B + Gas mixer.
* Above price do not include air compressor. It cost additional 700USD .
* We can customize wider/deeper chamber, with extra 300USD. if client has big or deep tray. Tray depth can be maxi 120mm.
* Voltage can be customized as required.
* Above price include one mold. Additional cost 800USD each extra mold. The machine support maxi 3 molds. Each tray size/shape require one mold.
* The machine can also pack bags with gas fill, cost extra 300USD
* Opening aid on tray cost extra 200USD
* If client order more than 5pcs, there will be discount.

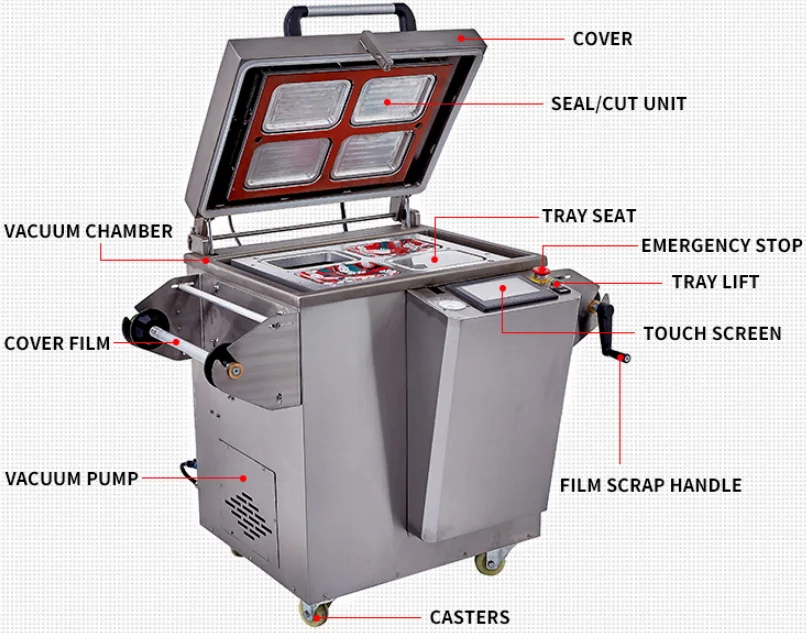

Machine details
HMI touch screen
It's easy to set parameters.
Usually it's English for export machine.
----------------------
Vacuum meter
It's stable, precise, and fast response.
-----------------------
Scrap collect
Turn handle. It's easy to remove scrap off the support.
-----------------------
Emergency stop
Once press it, the machine stop immediately, and the cover open.
------------------------
Leakage protect
If any short circuit or slight power leakage, it will jump and cut off power.
-------------------------
Brakeable caster
User can move machine with it.
Press the brake, the machine will be fixed well.
-----------------------

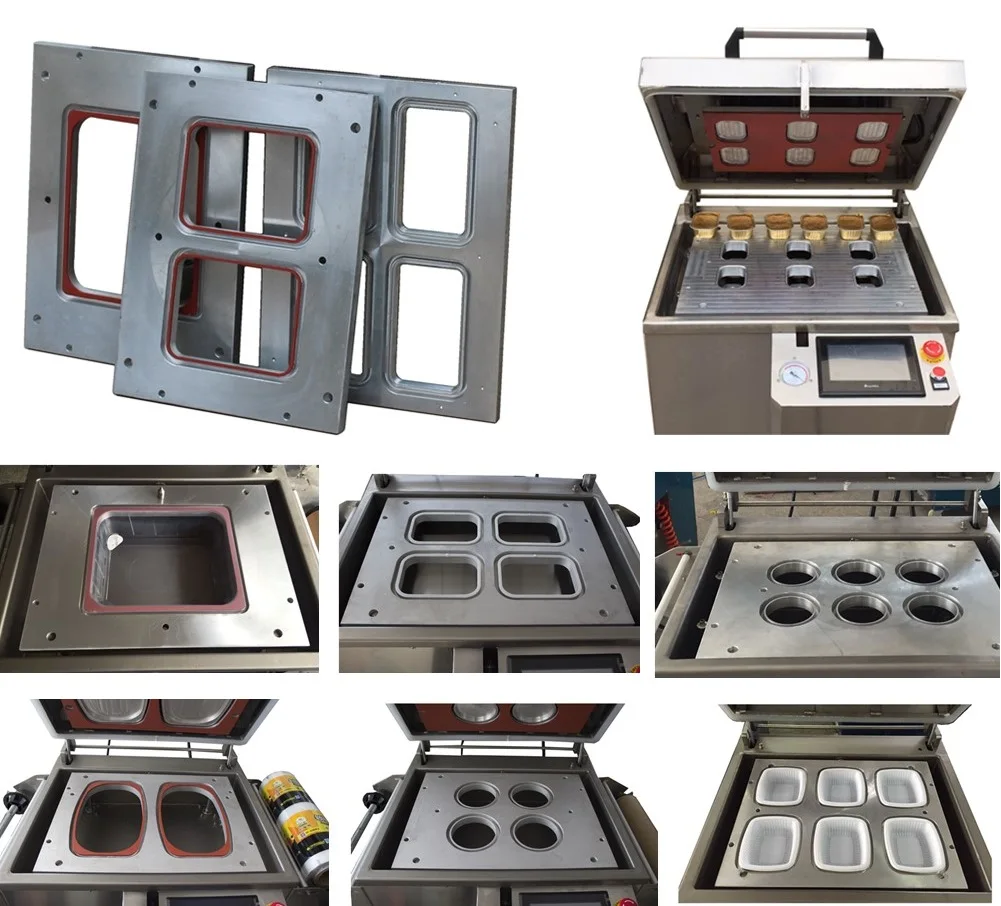

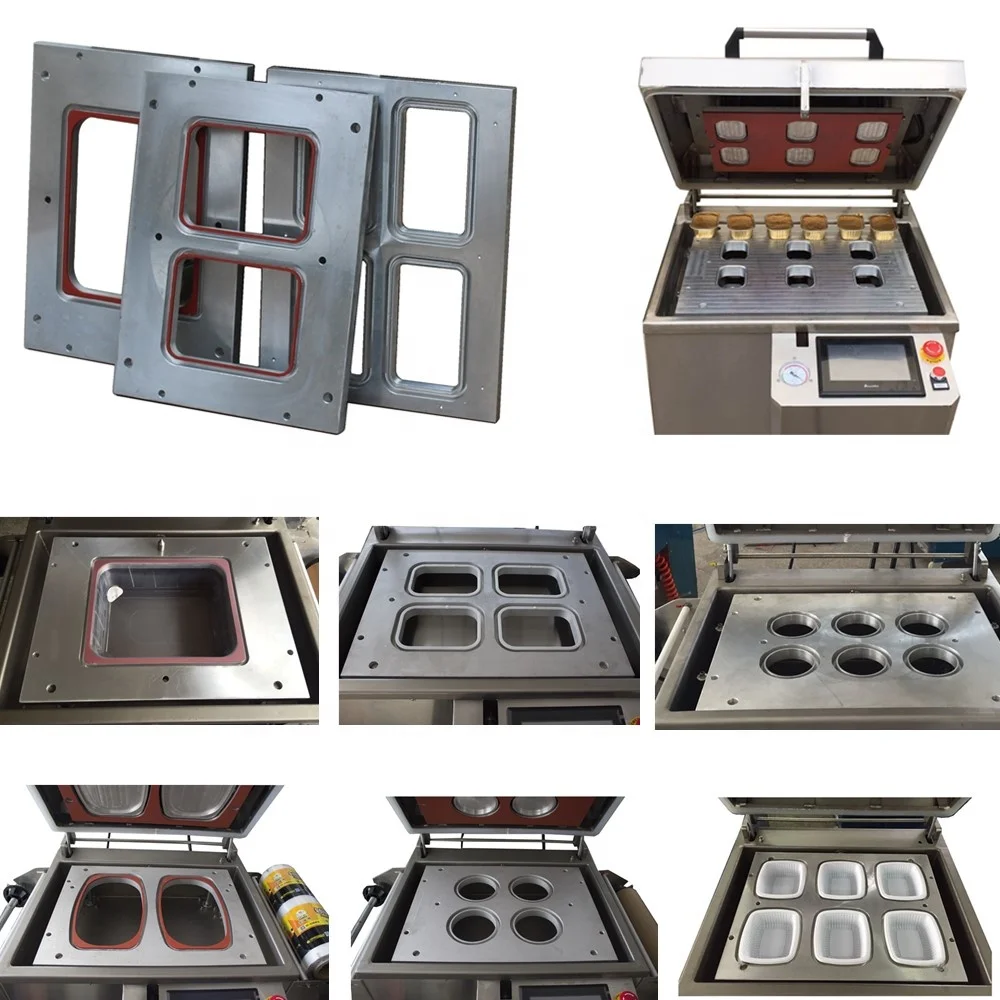

How to change molds?
It can support maxi three molds each machine. It is easy to change. Please check video at link of https://youtu.be/vNIXhaQ16hs--------------------------------------------

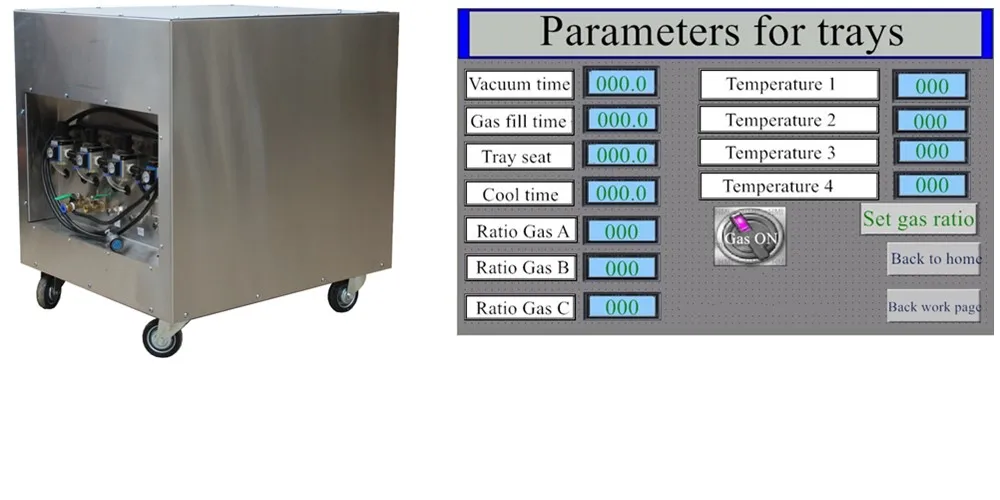

Gas mixer set
Gas mixer is an seperate machine. It is easy to preset or change the gases ratio.
Gas mixer share same PLC with tray sealer, so gas mixer can't work with other machines.
The input pressure of gas source shall be less than 0.3Mba.
