Electric Bipolar Scalpel for Veterinary Surgery
- Category: >>>
- Supplier: Beijing Dongfang Shenjian Medical Equipment Ltd.
Share on (60478037228):
Product Overview
Description
Electric Bipolar Scalpel for Veterinary Surgery

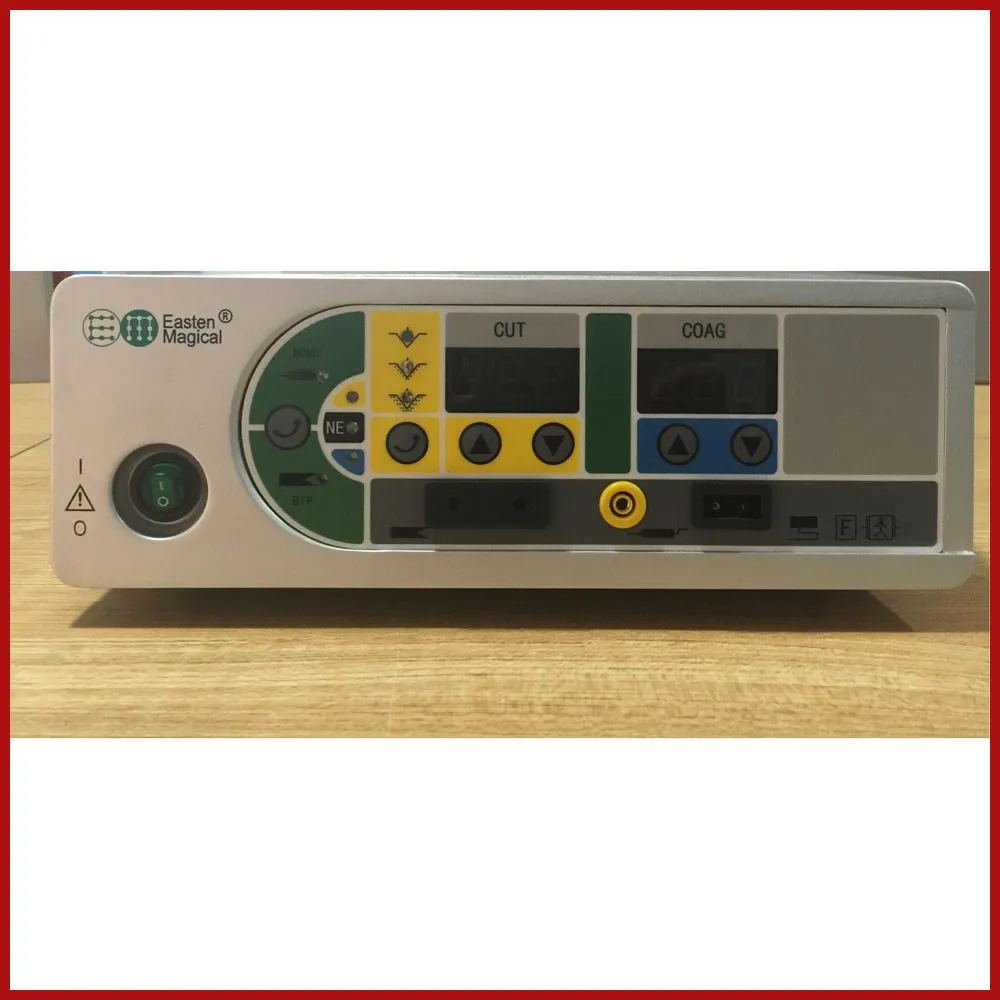

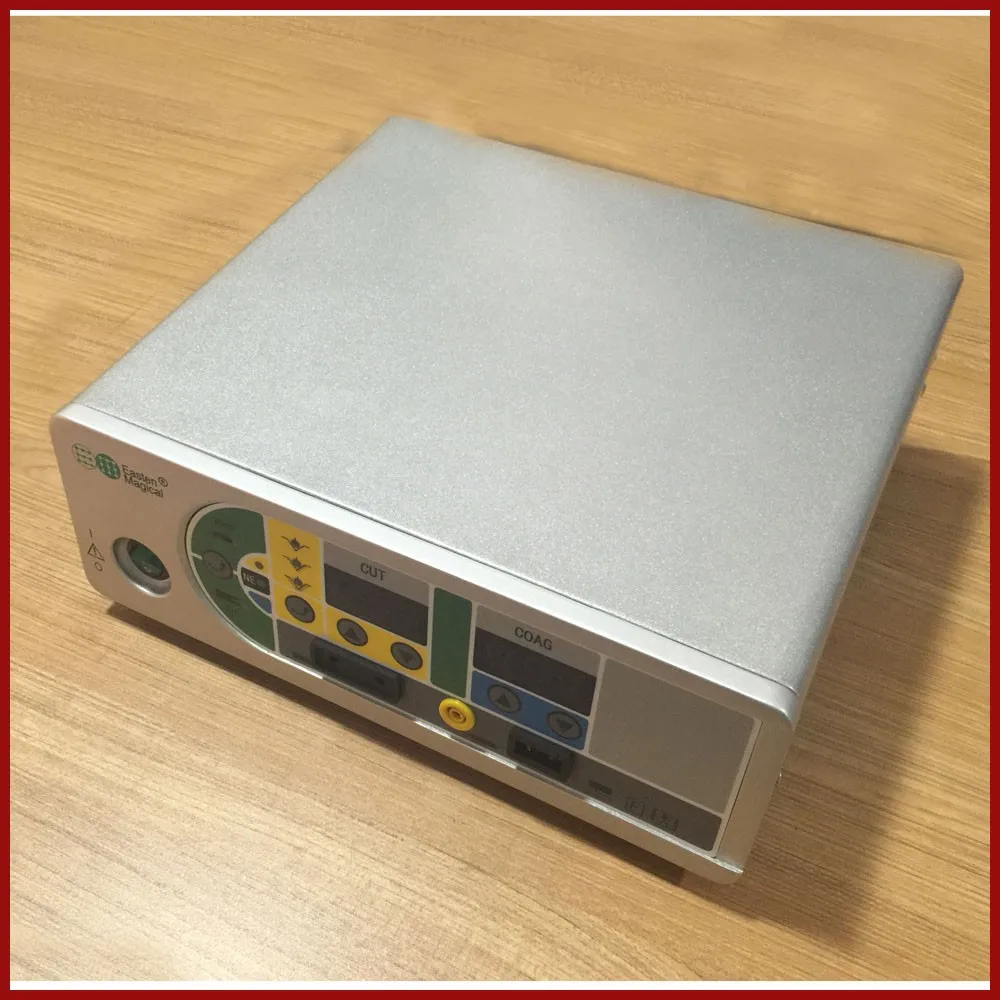

Detailed Images
Features & Advantage
Various functions with Compact and light design
Monopolar Cut ( Pure cut , Blend 1, Blend 2 )
Monopolar Coag ,Bipolar Coag, fully meet different surgery requirement.
Tissue Monitoring Technology
This technology monitors the tissue density, especially for polypectomy & papillotomy,
cutting is smartly divided incut & pause, so that coagulation occurs in each pause.
The system is intelligent to change the pause interval as
tissue density changes, hence produces fine cutting with coagulation effect.
Patient Return Electrode Monitoring (PREM)
REM (Return Electrode Monitoring) function monitors the range of contact area
between a patient and the neutral plate. If the size is inappropriate, it automatically
stop the high-frequency current with audible alarm to minimize the danger of burning incidents.
Compatible with other surgical equipment
Endoscopy, Optimum Smoke Evacuation System.
Waterproof Panel Operation
Microcomputer Auto Control, Three-zone (LED ) digital display.
Applications
Dermatology,Vascular Surgery, Obstetrics and Gynecology. ORL/ ENT Surgery, Neurosurgery, Orthopedics & Plastic Surgery, Veterinary Surgery
Technology Data
Working Mode | Max Power | Rated Load | |||
Monopolar Cut | Pure cut | 100W | 500Ω | ||
| Blend 1 | 80W | 500Ω | ||
| Blend 2 | 60W | 500Ω | ||
Monopolar Coag | Fulgurate Coag | 50W | 200Ω | ||
Bipolar Coag | Bipolar Coag | 50W | 200Ω | ||
Electrical requirement | |||||
Operating Voltage | 220V±22V | Measuring Frequency | 530KHz±2 | ||
Monopolar Rate Load | 500Ω | Bipolar Rate Load | 100Ω | ||
Max Input Currency | 1400VA | ||||
Environmental Conditions for Use | |||||
Condition | Range | ||||
Temperature | 50°C to 40°C | ||||
Relative humidity | ≤ 95% non-condensing | ||||
Pressure | 700 hPa to 1060 hpa | ||||
Environmental Conditions for Transport and Storage | |||||
Condition | Range | ||||
Temperature | -40°C to 55°C | ||||
Relative humidity | ≤ 93% non-condensing | ||||
Pressure | 500 hPa to 1060 hPa | ||||

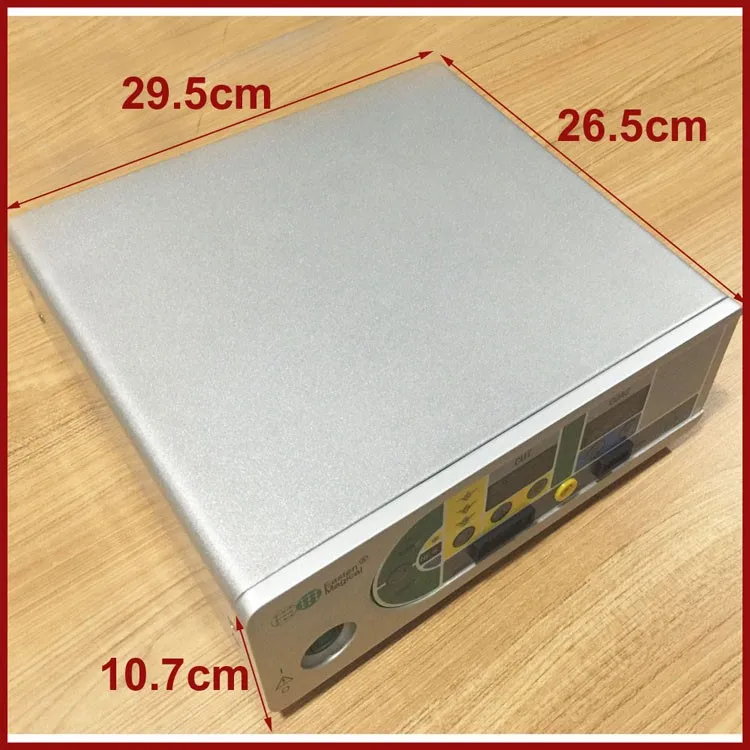

Dimension (L×W×H) | 300mm×265mm×107mm | ||||
Weight | 15kg | ||||

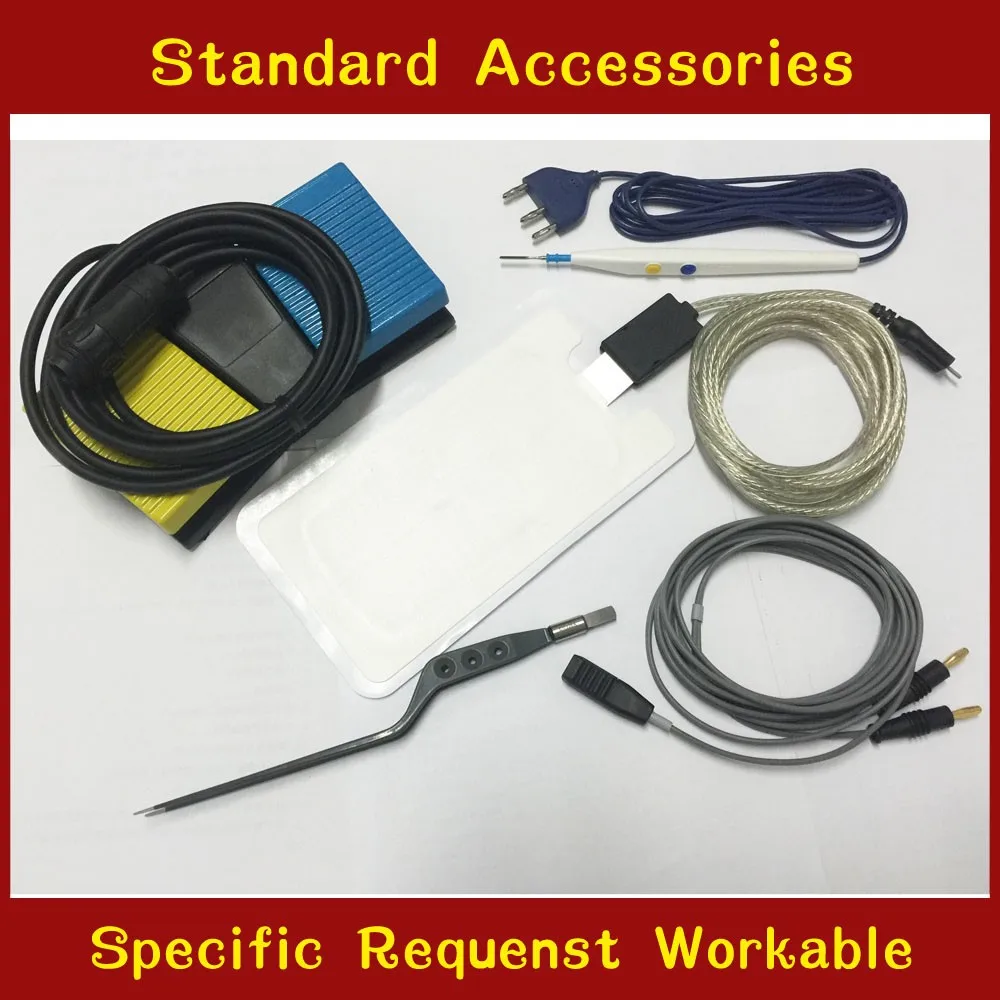

Standard Accessories
Code | Description | Quantity |
1 | Electrosurgical Unit | 1 |
2 | Single-use ESU Pencil with Cable | 1 |
3 | Single-use ESU Plate | 5 |
4 | Reusable ESU Plate Cable | 1 |
5 | Bipolar ESU Forceps | 1 |
6 | Reusable Bipolar Cable | 1 |
7 | Double Foot Swith | 1 |
8 | Power Cable | 1 |
9 | Service Manual | 1 |
