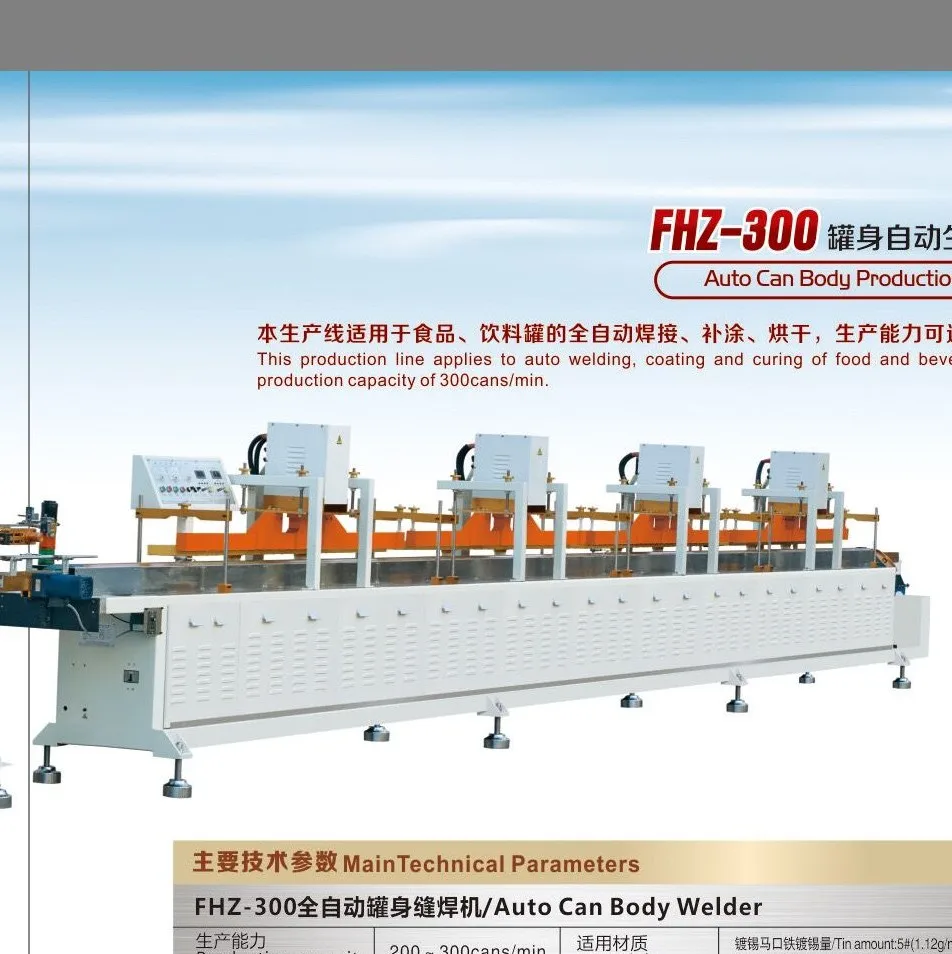

FHZ 300 Auto Can Body Production Line for Small Cans

Product Overview

Description

  FHZ-300 Auto Can Body Production Line for Small Cans

        Feature:

      1.Suction double crank struture, maganetic seperator is, when the inner and outer sides of the feed is not damaged.

      2.Adopt  import combined needle roller bearing for rounding table, durable in use and easy maintenance.

      3.Adopt alloy steel for key guide plate on rounding table, nitriding process for steel shaft, attrition resistant and adhered

         tin avoidable

      4. Copper wheel collapsed and  Z-shaped guide groove with zirconium oxide materials, insulution, wear-resistant.

      5. Double crank pushing can device, accurate running and easy adjustment for can height, more effective to reduce

         distance among cans.

     6. Water-cooled welding transformer, high power with low efficiency.

     7. Inverter power supply by sinusoidal wave, more flexible for welding line.

     8.Equipped with grease auto lubricating system, reduce mantenance workload.

     9. Double sheets detection and auto elimination, non-stop production.

    10.Equipped with cooling system for copper wire, invariable  extension of copper wire to make sure distance consistency

         among cans and good quality of front and bark end welding line.

    11. Touch screen can store a varity of product specification, easy call when replacing pot.

          Fault self-diagnosis in both Chinese and English and complemented the image display.
