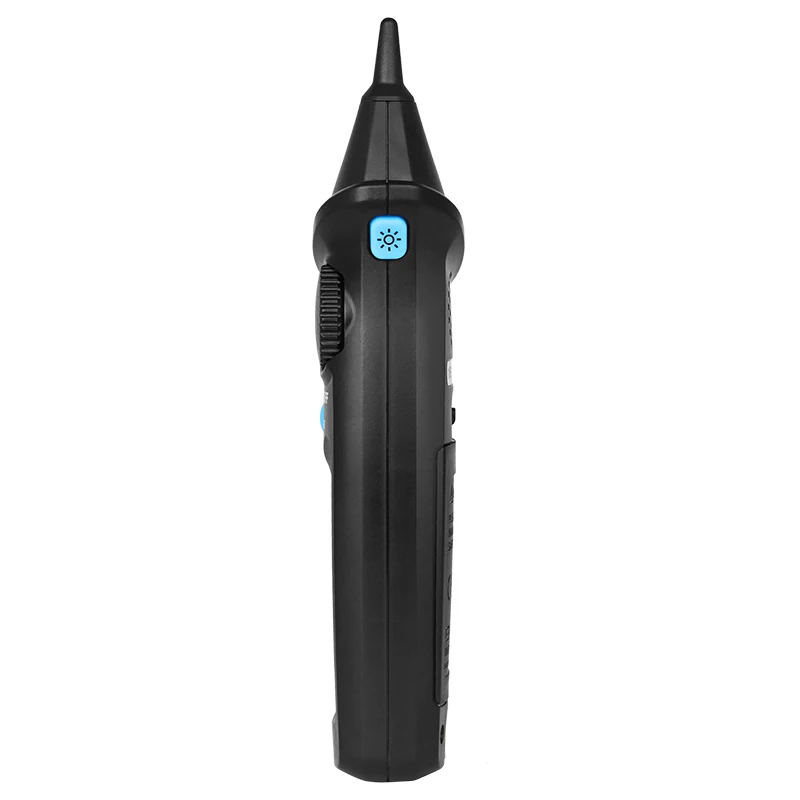

China Pen Type 1000V AC Light Alarm Non Contact Voltage Detector

Test Principle:

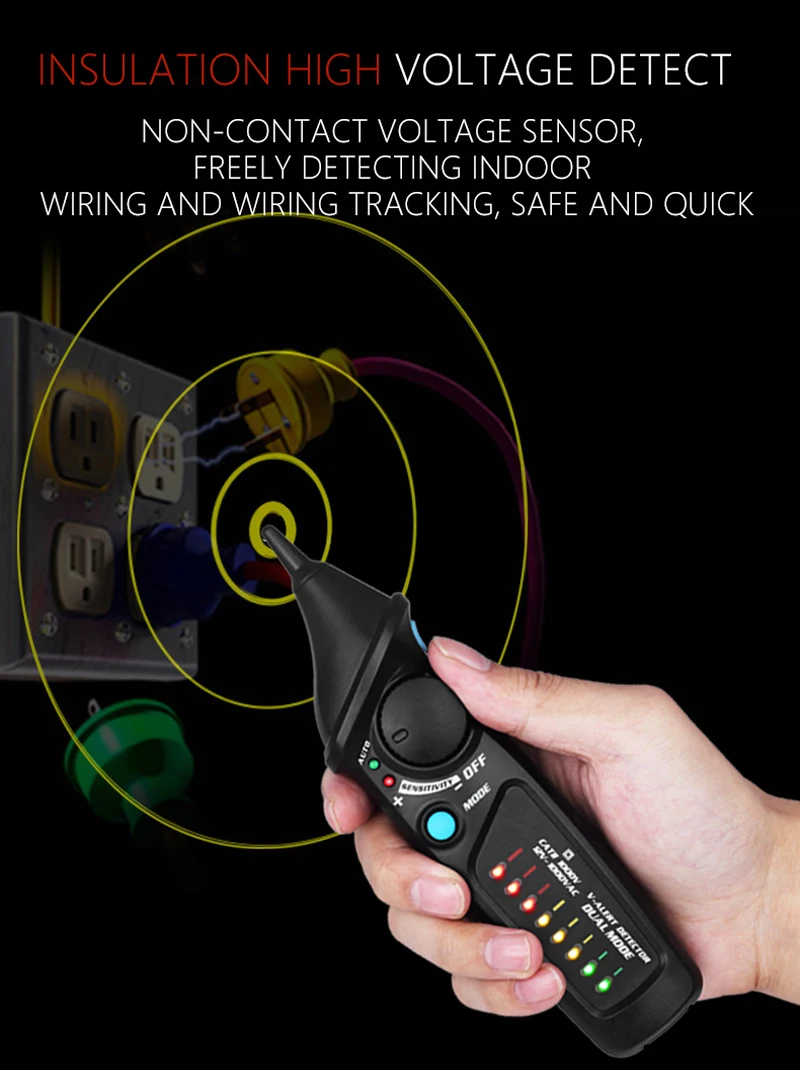

·         Non-Contact Voltage Detector - Also called voltage detection pen. Using the principle of inductive detection, No physical contact is required. Very Safe and convenient.

Main Features:

Non-contact and pen shaped desigh,convenient to operate and carry.

Dual mode operation:

·         Manual mode and Automatic mode. Can detect AC voltage in 12V~1000V or 48V~1000V(Frequency: 50Hz/60Hz).

Self-Inspection Function:

·         When starting up, The product has self-inspection function.

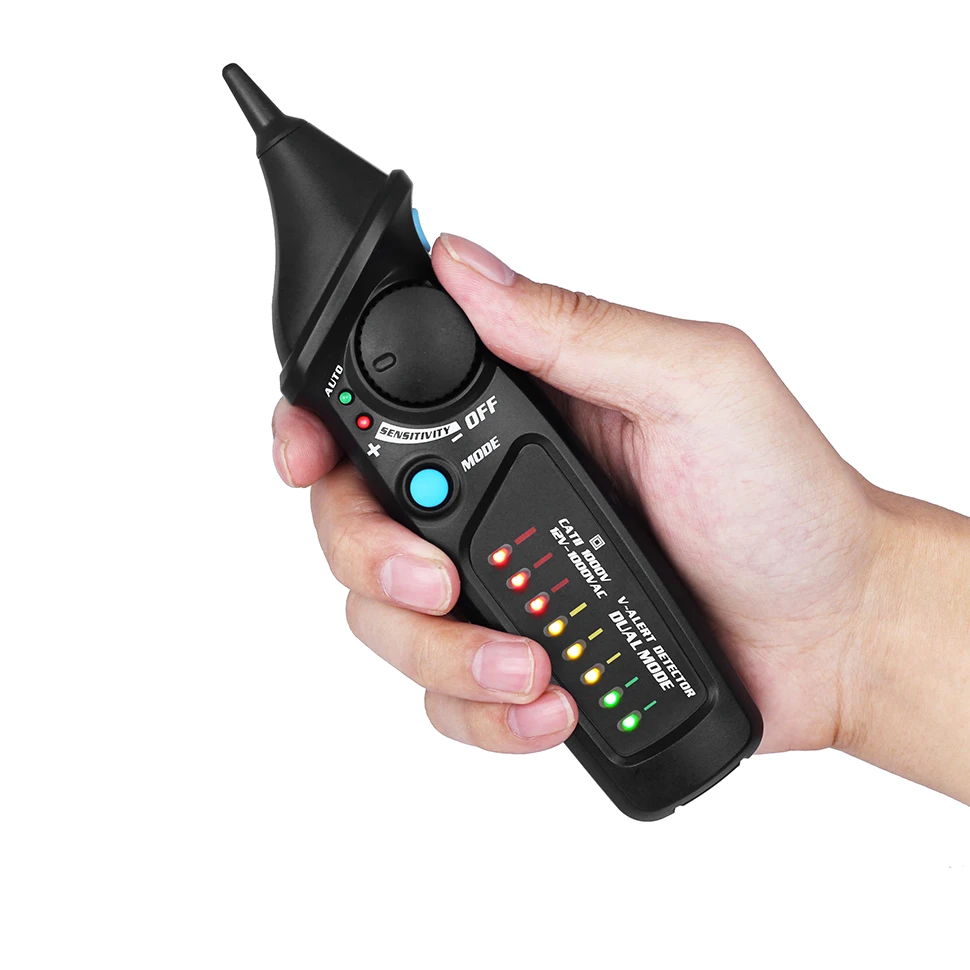

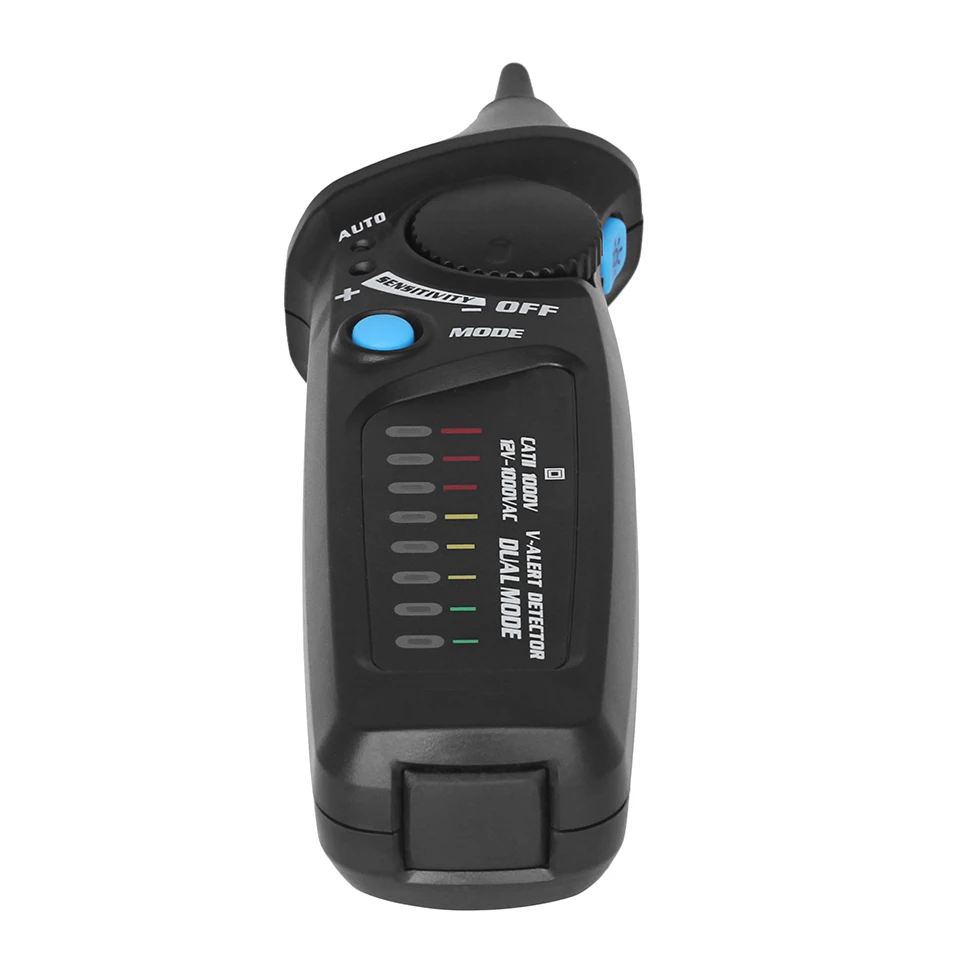

8 LED lights / 3 Colors:

·          Has 8 LED indicators in 3 colors(Red/Yellow/Green ):Automatic identification of high/medium/low voltage.

Sensitivity adjustable:

·         The sensitivity of the detector is adjustable according to your needs. When adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.

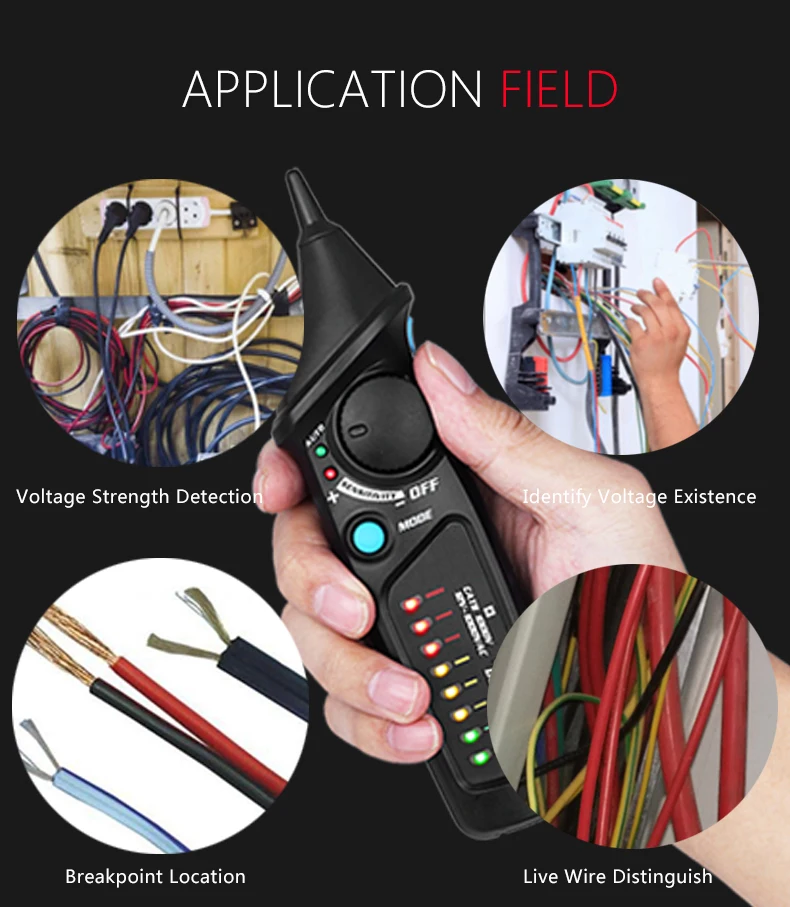

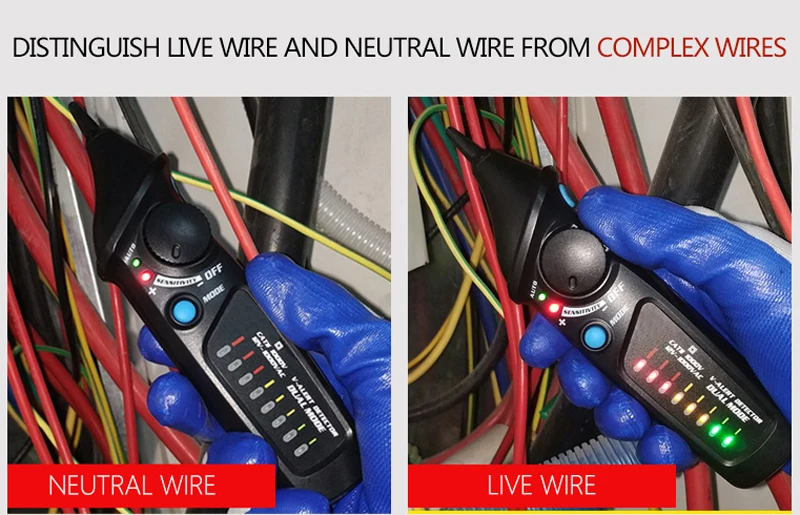

Live/Neutral wire distinction:

·         Safe and easy to distinguish the live wire by judging the strength of the detected voltage, the line that detect the stronger voltage signal is live wire.

Live Wire Breakpoint Locate(Continuity check):

·         Locate the breakpoint of the live line by measuring the change in voltage strength of the live wire.

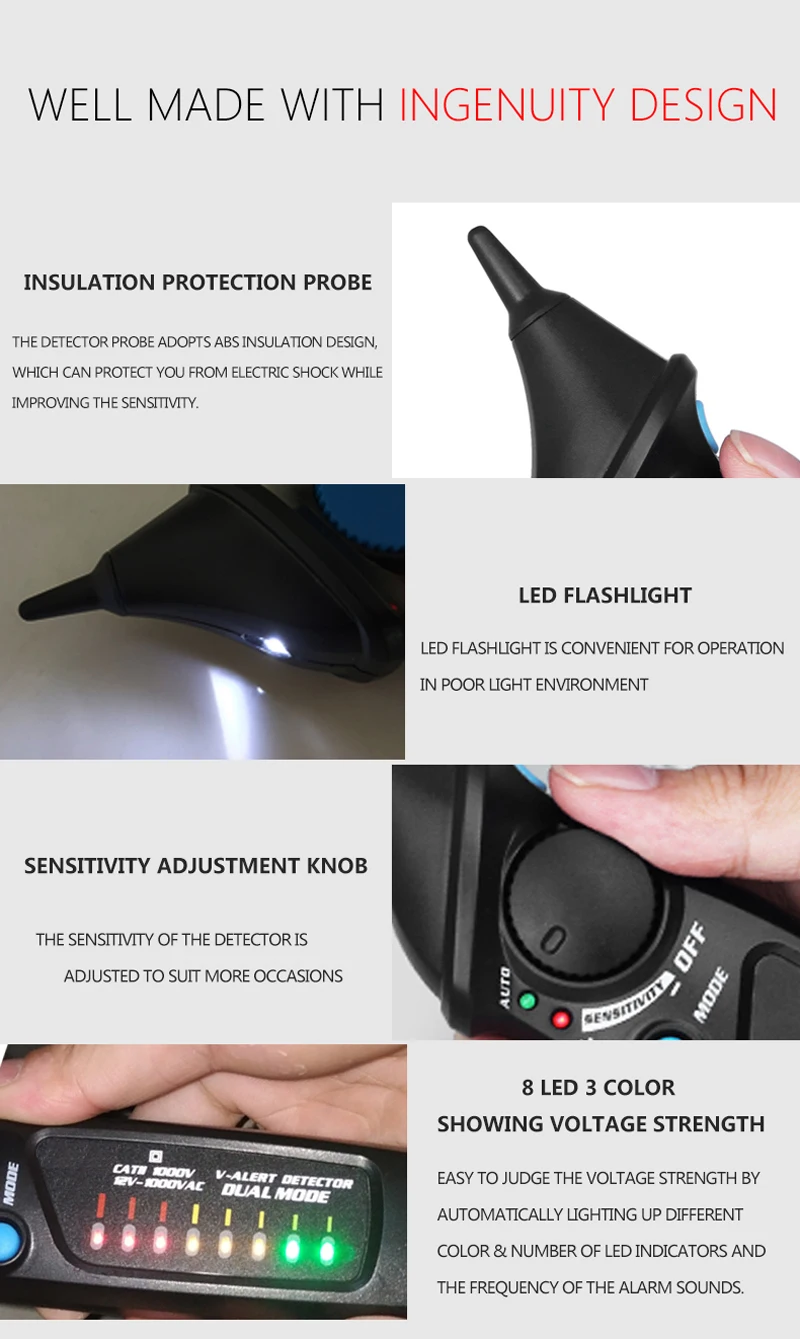

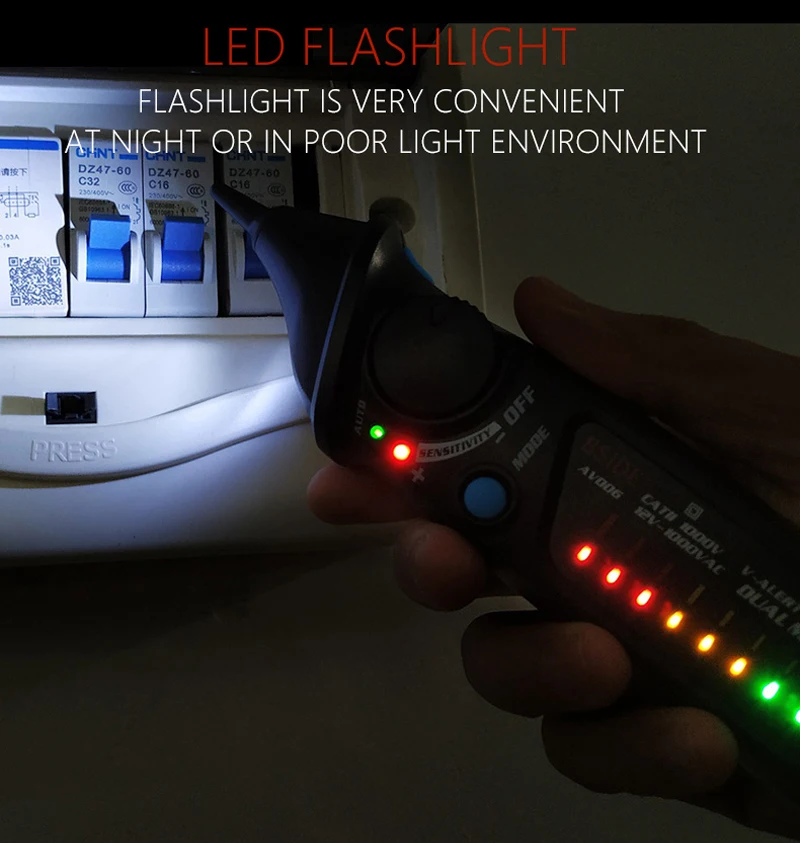

LED spotlight:

·         Convenient LED spotlight design Convenient for detection in dark environments.

Alarm mode:  Sound and light/red&yellow&green.

Battery low voltage reminder function:  Yes. (Please refer to the manual for details)

Auto power off:  Yes. (If there is no operation within 5 minutes, the product power will be automatically turned off)

Safety level:  CAT III  1000V

Power supply:  1*9V Batteries(Not included).

Features unique design and excellent function: ACUD06 has a unique and leading design that is different from traditional voltage testers (Can be used as an ideal gift for Relatives, Friends, Colleagues)

Non Contact Voltage Detector Tester

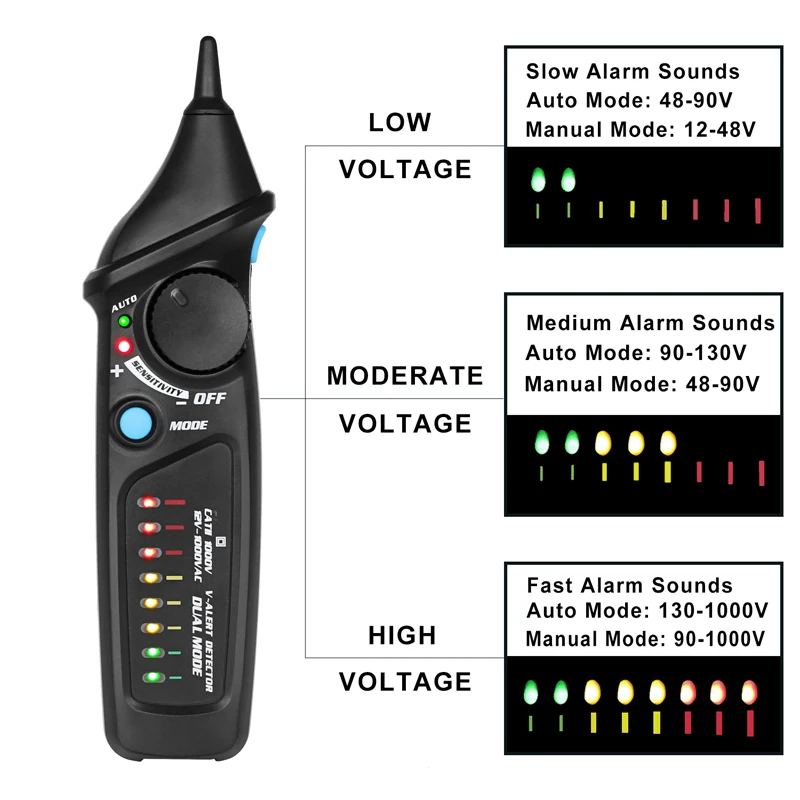

What is Dual Mode?

·         Dual mode refers to two modes of operation.(Manual mode and Auto mode)

      In manual mode:

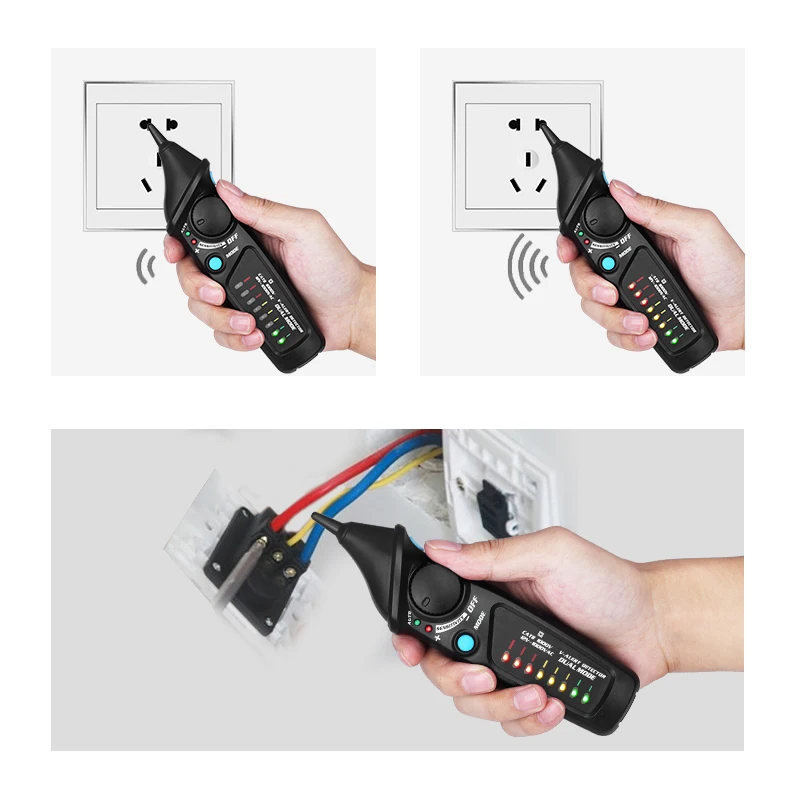

·         Low voltage: 12-48V, 2 Green LED indicators light up, low frequency alarm sounds.

·         Moderate voltage: 48-90V, 2 Green & 3 Yellow LED indicators light up, high frequency alarm sounds.

·         High voltage: 90-1000V, 8 LED indicators light up, much higher frequency alarm sounds.

      In Auto mode:

·         Low voltage: 48-90V, 2 Green LED indicators light up, low frequency alarm sounds.

·         Moderate voltage: 90-130V, 2 Green & 3 Yellow LED indicators light up, high frequency alarm sounds.

·         High voltage: 130-1000V, 8 LED indicators light up, much higher frequency alarm sounds.

Why is the dual mode voltage detector better than the single mode voltage detector?

·         The dual mode voltage detector has Auto/Manual mode for selection according to your needs.

·         The single mode voltage detector has only one detection mode, and the application is greatly limited.

How does our AVD06 voltage detector smart indicate the detected voltage strength?

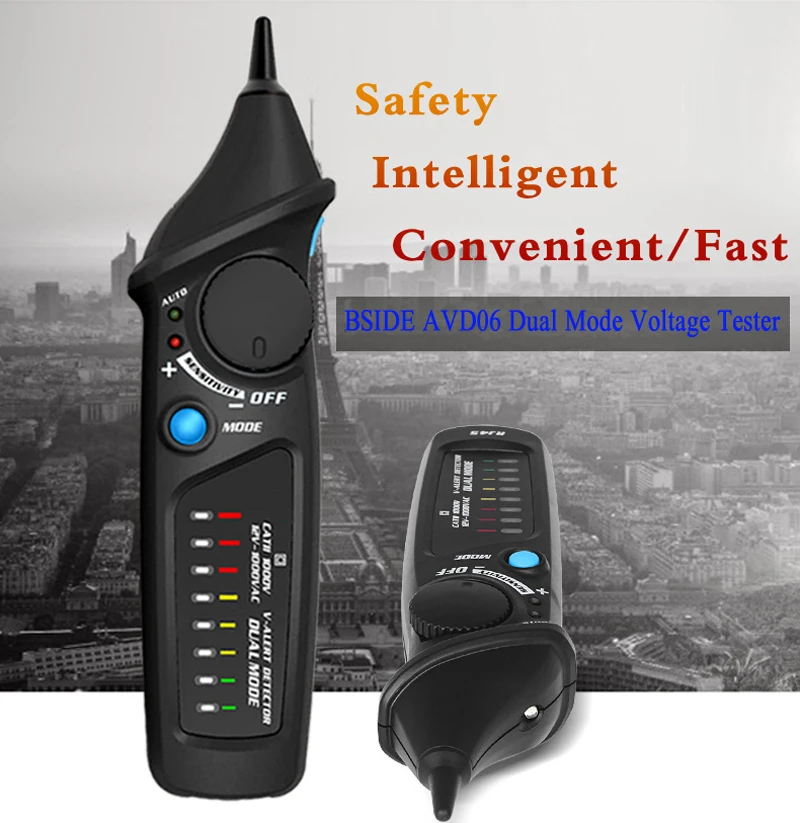

·         Our BSIDE AVD06 voltage detector has 8 LED indicators in 3 colors. Easy to judge the voltage strength by automatically lighting up different color & number of LED indicators.

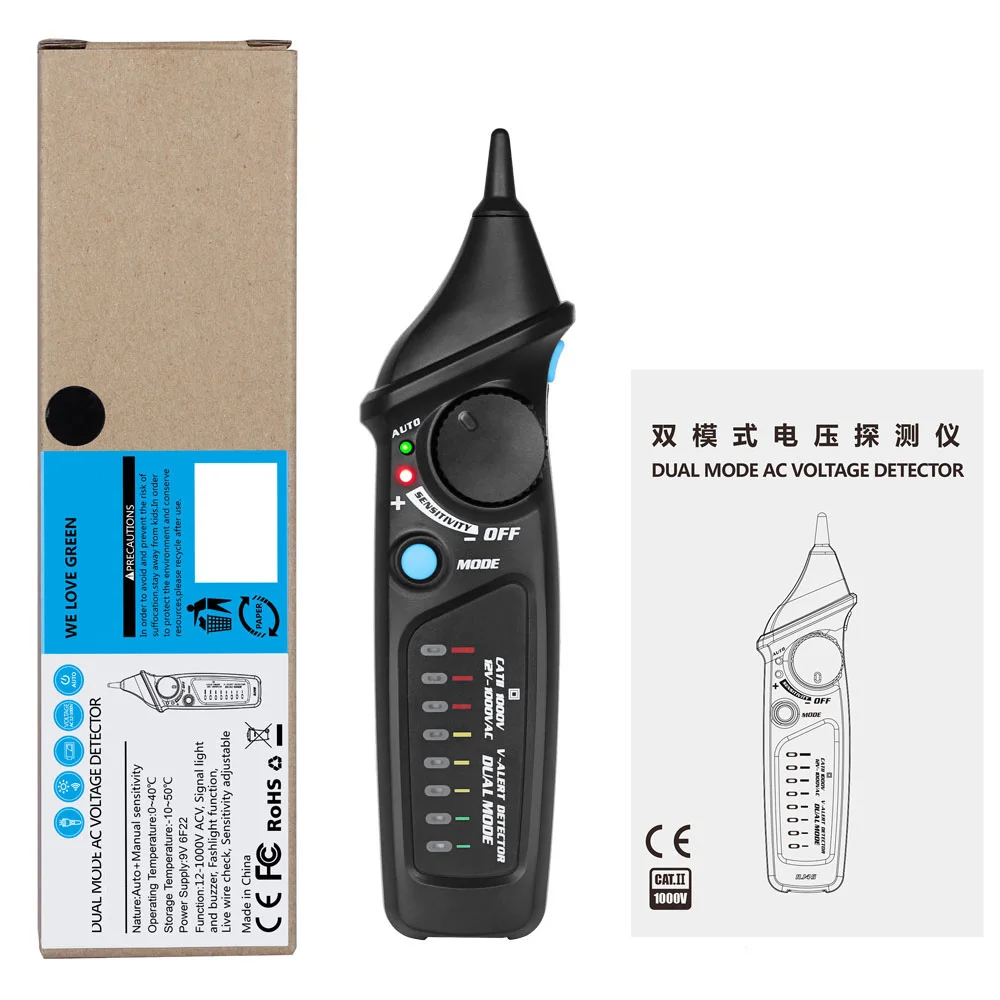

Package Includes:

·         1 * AVD06 Non-contact Voltage Tester.

·         1 * User Manual.

·         1 * Box.
