Single effect vacuum evaporator for milk juice

Product Overview

Description

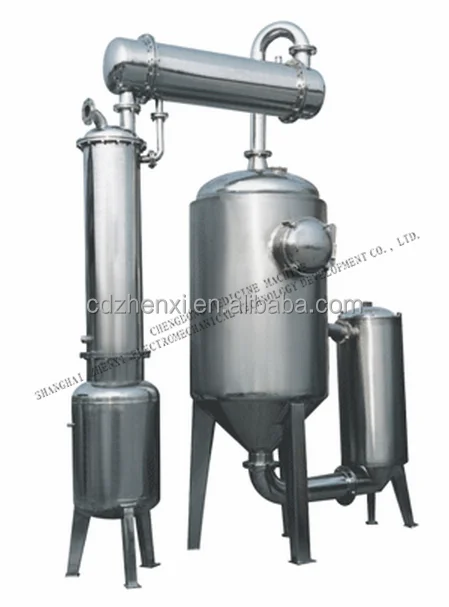

Single effect vacuum evaporator for milk juice



Multi-Function !     High Efficency !      Wide Usage !





Use



This Single effect vacuum evaporator for milk juice applies to Chinese medicine, western medicine, glucose, brewing, starch, oral liquid, chemical, food, MSG, dairy and other industrial alcohol recovery, can be used for small volume, variety and more heat-sensitive materials at low temperature vacuum concentration.





Feature



1. Alcohol recovery: improving the process of equipment, recovery rate reach 95%, alcohol consumption is less than 5%. Reduce 30% energy consumption, with features of small investment and hight recovery efficiency.



2. Concentrated Liquid material: the plant adopts external heating with natural circulation vacuum evaporation, has rapid evaporation speed, concentration ratio is up to 1.4; liquid is concentrated in a sealed without bubble state, the concentrated liquid is no pollution with dense taste.



3. Setted automatic drainage device, condensate water from evaporation can be drained out automatically.





Technology Parameter

Type		DJN-500A/C	DJN-1000A/C	DJN-1500A/C	DJN-2000A/C	DJN-3000A/C
Evaporating Volume(kg/h)		500	1000	1500	2000	3000
Alcohol Recovery(kg/h)		200-500	350-1000	500-1500	600-2000	1000-3000
Using Pressure(Mpa)		0.15
Vacuum Degree(Mpa)		0.02-0.08
Retrieval Degree of Alcohol		85%
Ratio of Concentration		1.1-1.35
Outer Size(m)		LxWxH
	A	2x1x3	2.2x1.2x3.3	2.5x1.3x3.5	2.7x1.4x4	3x1.6x4.5
	C	4.5x1.2x3.5	5x1.3x4	5.5x1.5x4.5	6x1.7x5	6.5x1.8x5.5
